Deltaplus TC006 Manual

DELTA PLUS GROUP
B.P. 140 - ZAC de La Peyroliere
84405 APT Cedex
FRANCE
http: www.deltaplus.eu
TC006
MADE IN EU
TC006
WARNING:
A c t i v i t i e s a t h e i g h t a r e i n h e r e n t l y d a n g e r o u s .
Understand and accept the risks involved before
participating. You are responsible for your own actions and decisions.
Before using this product, read and understand all instructions and
warnings that accompany it and familiarize with its proper use,
capabilities and limitations. We recommend that every climber seeks
proper training in the use of the equipment. Failure to read and follow
these warnings can result in severe injury or even death!

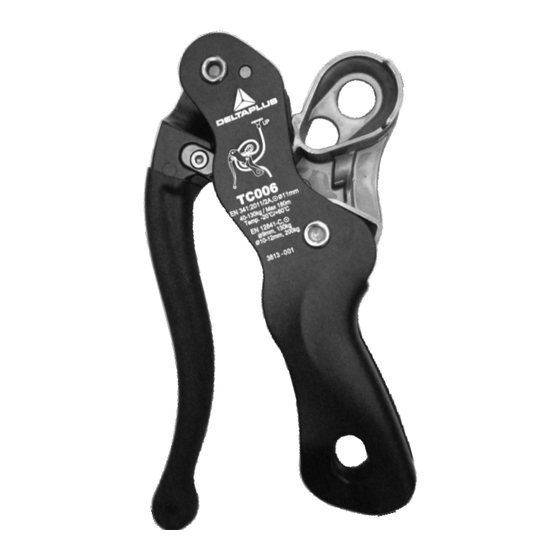

TC006 is a self-braking descender for single rope use and is certified
according to the norms EN 341:2011, Class A and EN 12841:2006 Type C.
While the former norm is meant for rescue purposes only the later implies
rope access.
USE: rescue, intervention, industry, sport: rope access, independent
descent, assisted descent, emergency evacuations, work at height...
EN 341:2011
WORKING LOAD:
minimum rated load is 40 kg, maximum rated load is 130 kg.
MAXIMUM DESCENT DISTANCE:
180 m (in this case approved for 32 consecutive descents)
APPROVED TEMPERATURE RANGE:
-20 °C ≤ approved temperature ≤ 60 °C
ROPE TYPE(S):
Tests according to the norm EN 341:2011 have been performed with a low
stretch kernmantel rope BORNACK TEC-Static Pro, 11 mm (concordant
with EN 1891).
-
Sheath slippage: Ss = 0,0 mm
-
Elongation: E = 3,9 %
-
Mass per metre: M = 79 g/m
-
Sheath proportion: Sp = 41,2 %
-
Core proportion: C = 58,5 %
-
Shrinkage: R = 1,3 %
- Material: PA
TESTED AND APPROVED FOR DESCENTS WITH A RELEASED
ENERGY OF 7,5MJ (according to EN 341 class A).
W = m g h n
x x x
m: mass (kg)
2
g: acceleration of gravity = 9,81 m/s
h: height (m)
n: number of descents
NOMENCLATURE OF PARTS TC006
