Omron BP7150, 3 Series Manual
![]()
Introduction
Thank you for purchasing the OMRON BP7150 Upper Arm Blood Pressure Monitor. This monitor can be used by multiple users. This blood pressure monitor uses the oscillometric method of blood pressure measurement. This means this monitor detects your blood movement through your brachial artery and converts the movements into a digital reading.
Safety Instructions
This instruction manual provides you with important information about the OMRON BP7150 Upper Arm Blood Pressure Monitor. To ensure the safe and proper use of this monitor, READ and UNDERSTAND all of these instructions. If you do not understand these instructions or have any questions, contact 1-800-634-4350 before attempting to use this monitor. For specific information about your own blood pressure, consult with your physician.
Intended Use
The device is a digital monitor intended for use in measuring blood pressure and pulse rate in adult patient population. The device detects the appearance of irregular heartbeats during measurement and gives a warning signal with readings.
Environments of Use: Home
Patient Population: Adult
Receiving and Inspection
Remove this monitor and other components from the packaging and inspect for damage. If this monitor or any other components is damaged, DO NOT USE and contact 1-800-634-4350.
Symbols Glossary
For symbol information, visit:
OmronHealthcare.com/symbols-glossary
Contraindications
- This monitor is contraindicated for use in ambulatory environments.
- This monitor is contraindicated for use on aircraft.
Read the Important Safety Information in this instruction manual before using this monitor.
Follow this instruction manual thoroughly for your safety.
Keep for future reference. For specific information about your own blood pressure, CONSULT WITH YOUR PHYSICIAN.
![]()
Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.
- DO NOT use this monitor on infants, toddlers, children or persons who cannot express themselves.
- DO NOT adjust medication (including altering your use of any drug or treatment) based on readings from this blood pressure monitor. Take medication as prescribed by your physician. ONLY a physician is qualified to diagnose and treat high blood pressure and heart related conditions.
- NEVER diagnose or treat yourself based on your readings. ALWAYS consult with your physician.
- If you are experiencing any symptoms or concerns, consult with your physician.
- DO NOT postpone/stop regular checkups or physician visits based on the results that you are getting from this monitor.
- DO NOT use this monitor on an injured arm or an arm under medical treatment.
- DO NOT apply the arm cuff on your arm while on an intravenous drip or blood transfusion.
- DO NOT use this monitor in areas containing high frequency (HF) surgical equipment, magnetic resonance imaging (MRI) equipment, computerized tomography (CT) scanners. This may result in incorrect operation of the monitor and/or cause an inaccurate reading.
- DO NOT use this monitor in oxygen rich environments or near flammable gas.
- Consult with your physician before using this monitor if you have common arrhythmias such as atrial or ventricular premature beats or atrial fibrillation; arterial sclerosis; poor perfusion; diabetes; pregnancy; preeclampsia or renal disease.
NOTE that any of these conditions in addition to patient motion, trembling, or shivering may affect the measurement reading. - To help avoid strangulation, keep the air tube and AC adapter cable away from infants, toddlers and children.
- This product contains small parts that may cause a choking hazard if swallowed by infants, toddlers and children.
Data Transmission
- DO NOT replace the batteries or unplug the AC adapter while your readings are being transferred to your smart device. This may result in incorrect operation of this monitor and failure to transfer your blood pressure data.
AC Adapter Handling and Usage
(Optional accessory)
- DO NOT use the AC adapter if this monitor or the AC adapter cable is damaged. If this monitor or the cable is damaged, turn off the power and unplug the AC adapter immediately.
- Plug the AC adapter into the appropriate voltage outlet. DO NOT use in a multi-outlet plug.
- NEVER plug in or unplug the AC adapter from the electric outlet with wet hands.
- DO NOT disassemble or attempt to repair the AC adapter.
- Fully insert the AC adapter into the outlet.
- When unplugging the AC adapter from the outlet, be sure to safely pull from the AC adapter. DO NOT pull from the AC adapter cable.
- When handling the AC adapter cable: DO NOT damage it.
DO NOT break it.
DO NOT tamper with it.
DO NOT forcibly bend or pull it.
DO NOT twist it.
DO NOT use it if it is gathered in a bundle.
DO NOT pinch it.
DO NOT place it under heavy objects. - Wipe any dust off of the AC adapter.
- Unplug the AC adapter when not in use.
- Unplug the AC adapter before wiping this monitor.
Battery Handling and Usage
- Keep the batteries out of the reach of infants, toddlers and children.
![]()
Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury to the user or patient, or cause damage to the equipment or other property.
- Stop using this monitor and consult with your physician if you experience skin irritation or discomfort.
- Consult with your physician before using this monitor on an arm where intravascular access or therapy, or an arterio-venous (A-V) shunt, is present because of temporary interference to blood flow which could result in injury.
- Consult with your physician before using this monitor if you have had a mastectomy or lymph node clearance.
- Consult with your physician before using this monitor if you have severe blood flow problems or blood disorders as cuff inflation can cause bruising.
- DO NOT take measurements more often than necessary because bruising, due to blood flow interference, may occur.
- ONLY inflate the arm cuff when it is applied on your upper arm.
- Remove the arm cuff if it does not start deflating during a measurement.
- DO NOT use this monitor for any purpose other than measuring blood pressure.
- During measurement, make sure that no mobile device or any other electrical device that emits electromagnetic fields is within 12 inches (30 cm) of this monitor. This may result in incorrect operation of the monitor and/or cause an inaccurate reading.
- DO NOT disassemble or attempt to repair this monitor or other components. This may cause an inaccurate reading.
- DO NOT use in a location where there is moisture or a risk of water splashing this monitor. This may damage this monitor.
- DO NOT use this monitor in a moving vehicle such as in a car.
- DO NOT drop or subject this monitor to strong shocks or vibrations.
- DO NOT use this monitor in places with high or low humidity or high or low temperatures. Refer to Specifications.
- During measurement, observe the arm to ensure that the monitor is not causing prolonged impairment to blood circulation.
- DO NOT use this monitor in high-use environments such as medical clinics or physician offices.
- DO NOT use this monitor with other medical electrical (ME) equipment simultaneously. This may result in incorrect operation of the devices and/or cause an inaccurate reading.
- Avoid bathing, drinking alcohol or caffeine, smoking, exercising and eating for at least 30 minutes before taking a measurement.
- Rest for at least 5 minutes before taking a measurement.
- Remove tight-fitting or thick clothing from your arm while taking a measurement.
- Remain still and DO NOT talk while taking a measurement.
- ONLY use the arm cuff on persons whose arm circumference is within the specified range of the cuff.
- Ensure that this monitor has acclimated to room temperature before taking a measurement. Taking a measurement after an extreme temperature change could lead to an inaccurate reading. It is recommended that you wait for approximately 2 hours for the monitor to warm up or cool down when the monitor is used in an environment within the temperature specified as operating conditions after it is stored either at the maximum or at the minimum storage temperature. For additional information on operating and storage/transport temperature, refer to Specifications.
- DO NOT use this monitor after the durable period has ended. Refer to Specifications.
- DO NOT crease the arm cuff or the air tube excessively.
- DO NOT fold or kink the air tube while taking a measurement. This may cause an injury by interrupting blood flow.
- To unplug the air plug, pull on the plastic air plug at the base of the tube, not the tube itself.
- ONLY use the AC adapter, arm cuff, batteries and accessories specified for this monitor. Use of unsupported AC adapters, arm cuffs and batteries may damage and/or may be hazardous to this monitor.
- ONLY use the approved arm cuff for this monitor. Use of other arm cuffs may result in incorrect readings.
- Inflating to a higher pressure than necessary may result in bruising of the arm where the cuff is applied. NOTE: refer to "If your systolic pressure is more than 210 mmHg" in "Using Your Unit without a Smart Device" section of this instruction manual for additional information.
- DO NOT insert batteries with their polarities incorrectly aligned.
- ONLY use 4 "AA" alkaline or manganese batteries with this monitor. DO NOT use other types of batteries. DO NOT use new and used batteries together. DO NOT use different brands of batteries together.
- Remove the batteries if this monitor will not be used for a long period of time.
- If battery fluid should get in your eyes, immediately rinse with plenty of clean water. Consult with your physician immediately.
- If battery fluid should get on your skin, wash your skin immediately with plenty of clean, lukewarm water. If irritation, injury or pain persists, consult with your physician.
- DO NOT use batteries after their expiration date.
- Periodically check the batteries to ensure they are in good working condition.
Know Your Product
Contents/Product Includes
Monitor, Wide-Range D-Ring Cuff, instruction manual, quick start guide
Device and Arm Cuff

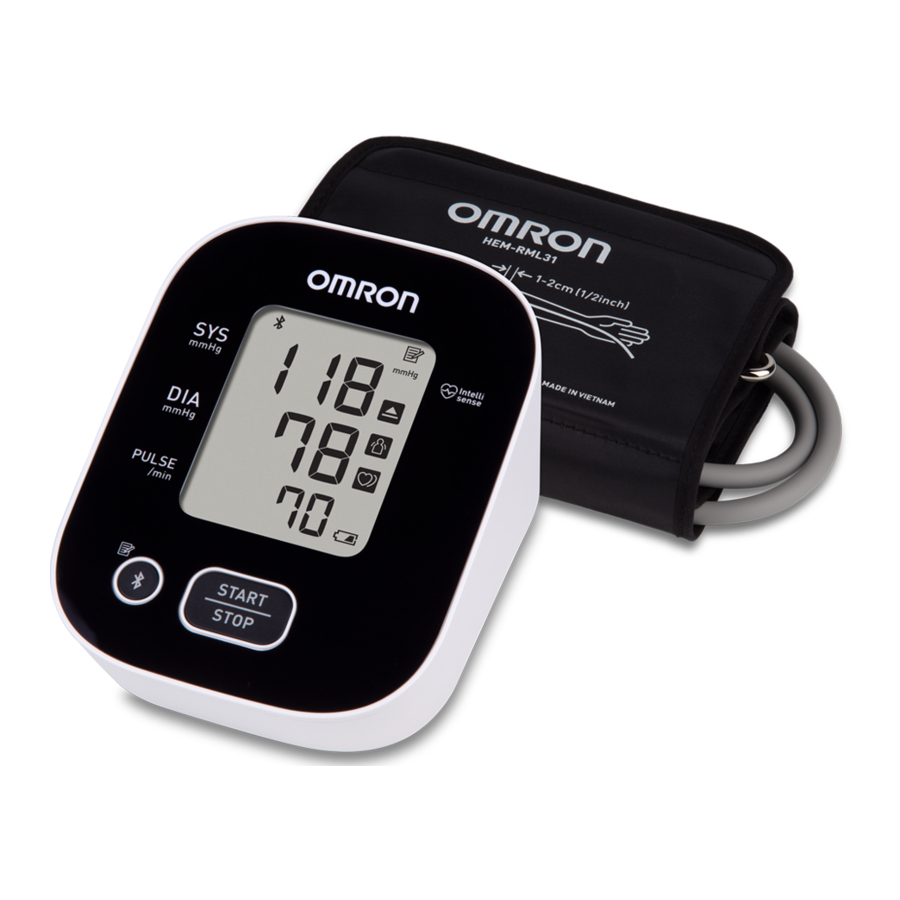

![Omron - 3 Series - Know Your Product - Front of the monitor Know Your Product - Front of the monitor]()
Front of the monitor
- Display
- [Connection] button (Memory)
- [START/STOP] button
![Omron - 3 Series - Know Your Product - Left/back/bottom of monitor Know Your Product - Left/back/bottom of monitor]()
Left side, back and bottom of the monitor
- Air jack
- AC adapter jack (for optional AC adapter)
- Battery compartment
![Omron - 3 Series - Know Your Product - Arm cuff Know Your Product - Arm cuff]()
Arm cuff
(Upper arm circumference: 9" - 17" (22 - 42 cm))
- Air plug
- Air tube
Display and Symbols
![Omron - 3 Series - Display and Symbols Description - Part 1 Display and Symbols Description - Part 1]()
![Omron - 3 Series - Display and Symbols Description - Part 2 Display and Symbols Description - Part 2]()
![Omron - 3 Series - Display and Symbols Description - Part 3 Display and Symbols Description - Part 3]()
Classification of Blood Pressure
ACC/AHA 2017 Hypertension guidelines define categories of BP in adults as below.
Categories of BP in Adults* |
BP Category | Systolic BP | Diastolic BP |
Normal | < 120 mmHg and < 80 mmHg |
Elevated | 120 - 129 mmHg and < 80 mmHg |
Hypertension | Stage 1 | 130 - 139 mmHg or 80 - 89 mmHg |
Stage 2 | ≥ 140 mmHg or ≥ 90 mmHg |
* Individuals with Systolic BP and Diastolic BP in 2 categories should be designated to the higher BP category.
BP indicates blood pressure (based on an average of ≥ 2 careful readings obtained on ≥ 2 occasions).
Source: ACC/AHA 2017 High Blood Pressure Clinical Practice Guideline
![]()
NEVER diagnose or treat yourself based on your readings. ALWAYS consult with your physician.
Preparation
Installing Batteries
Batteries are not included in this unit. You will need to supply your own 4 "AA" batteries before using your monitor.
![Omron - 3 Series - Preparation - Installing Batteries Preparation - Installing Batteries]()
- Remove the battery cover.
- Insert 4 "AA" batteries as indicated in the battery compartment.
- Close the battery cover.
Note
- When the "
" symbol flashes on the display, it is recommended that you replace the batteries. - To replace the batteries, turn your monitor off and remove all batteries. Then replace with 4 new batteries at the same time.
- Replacing the batteries will not delete previous readings.
- The supplied batteries may have a shorter life span than new batteries.
- Disposal of used batteries should be carried out in accordance with local regulations.
Blood Pressure Measurement Tips
To help ensure an accurate reading, follow these directions:
- Stress raises blood pressure. Avoid taking measurements during stressful times.
- Measurements should be taken in a quiet place.
- It is important to take measurements at the same times each day. Taking measurements in the morning and in the evening is recommended.
- Remember to have a record of your blood pressure and pulse readings for your physician. A single measurement does not provide an accurate indication of your true blood pressure. It is recommended you take and record several readings over a period of time.
![]()
- Avoid bathing, drinking alcohol or caffeine, smoking, exercising and eating for at least 30 minutes before taking a measurement.
- Rest for at least 5 minutes before taking a measurement.
Applying the Arm Cuff
Note
- The following steps are for applying the arm cuff to your left arm. When you take a measurement on your right arm, follow the cuff wrap instructions for use on your right arm mentioned under "To take a measurement on your right arm" located at the end of this sub-section.
- Blood pressure can differ between the right arm and the left arm, and the measured blood pressure readings can be different. It is recommended that you always use the same arm for measurement. If the readings between both arms differ substantially, check with your physician to determine as to which arm to use for your measurements.
![]()
- Remove tight-fitting or thick clothing from your arm while taking a measurement.
- Plug the arm cuff into your monitor by inserting the air plug into the air jack securely until it clicks.
- Place your hand through the cuff loop.
Pull the cuff until it reaches your upper left arm.
Note
- The bottom edge of the arm cuff should be 0.5 inch (1 to 2 cm) above the inside elbow. The air tube is on the inside of your arm and aligned with your middle finger.
- Make sure that the air tube is positioned on the inside of your arm and wrap the cuff securely, so it cannot move around your arm.
![]()
![]()
To take a measurement on your right arm
When you take a measurement on your right arm, the air tube should run along the side of your elbow, along the bottom of your arm. Be careful not to rest your arm on the air tube.
Sitting Correctly
![Omron - 3 Series - Preparation - Sitting Correctly Preparation - Sitting Correctly]()
To take a measurement, you need to be relaxed and comfortably seated in a room with a comfortable temperature. Place your arm on the table.
- Sit in a comfortable chair with your back and arm supported.
- Keep your feet flat and your legs uncrossed.
- The arm cuff should be placed on your arm at the same level as your heart, with the arm resting comfortably on a table.
Using Your Unit without a Smart Device
This monitor tracks readings for 1 user. If you are sharing with another, manually track your readings separately.
Taking a Measurement
You can use your monitor without pairing to a smart device. To pair your monitor with a smart device, refer to "Pairing Your Unit with a Smart Device" sub-section.
Note
- To stop the measurement, press the [START/STOP] button once to deflate the arm cuff.
![]()
- DO NOT use this monitor with other medical electrical (ME) equipment simultaneously. This may result in incorrect operation of the devices and/or cause an inaccurate reading.
- Remain still and DO NOT talk while taking a measurement.
- Press the [START/STOP] button.
All symbols except the battery symbol appear on the display before starting the measurement. - Remain still and do not talk until the entire measurement process is complete.
The "
" symbol flashes at every heartbeat.
Your blood pressure and pulse rate are displayed.
If either the systolic or the diastolic reading is high (refer to "Display and Symbols" sub-section), the "
" symbol appears.
- Press the [START/STOP] button to turn your monitor off.
Note
- Your monitor automatically turns off after 2 minutes.
- Wait 2 - 3 minutes between measurements. The wait time allows the arteries to return to their pre-measurement state. You may need to increase the wait time depending on your individual physiological characteristics.
If your systolic pressure is more than 210 mmHg
If your systolic pressure is more than 210 mmHg, take a measurement manually. After the arm cuff starts to inflate, press and hold the [START/STOP] button until the monitor inflates 30 to 40 mmHg higher than your expected systolic pressure.
Note
- Do not inflate above 299 mmHg.
![]()
- Inflating to a higher pressure than necessary may result in bruising of the arm where the cuff is applied.
Using Your Unit with a Smart Device
This monitor tracks readings for 1 user. If you are sharing with another, manually track your readings separately.
Pairing Your Unit with a Smart Device
Review the list of compatible smart devices at OmronHealthcare.com/connect
- Enable Bluetooth on your smart device.
- Scan the code below with your smart device camera or visit OmronHealthcare.com/app to find the OMRON compatible app for this product.
![]()
- Download and install the compatible OMRON app onto your smart device.
If you already have the compatible OMRON app and have created your account, open the app and add your new monitor. - Open the app and follow the pairing instructions shown on your smart device
- Confirm that your monitor is connected successfully. When your monitor is connected successfully to your smart device, the OK symbol appears.
![]()
- Press the [START/STOP] button to turn your monitor off.
Note
- If the "Err" appears, follow the instructions in the app.
- Your monitor automatically turns off after 10 seconds.
- Be aware that OMRON will not be responsible for the loss of data and/or information in the app.
- Only compatible OMRON apps should be used with this monitor to help ensure correct data transfer.
Taking a Measurement
Refer to "Using Your Unit without a Smart Device" to start a measurement. Open the app on your smart device and follow the instructions.
Note
- Make sure that your monitor is within 16 ft. (5 m) of your smart device.
- When Bluetooth is enabled, the readings will be transferred to your smart device after taking a measurement.
Disabling/Enabling Bluetooth
Bluetooth is enabled as default.
- When your monitor is off, press and hold the
button for more than 10 seconds.
"oFF" flashes 3 times
![]()
- Press the [START/STOP] button to turn your monitor off.
Note
- To enable Bluetooth, press and hold the
button for more than 3 seconds. "on" appears on the display. - Your monitor automatically turns off 10 seconds after the completion.
- When Bluetooth is disabled, the "
" symbol appears.
Using Memory Function
Your monitor automatically stores up to 14 readings.
This monitor tracks readings for 1 user. If you are sharing with another, manually track your readings separately.
Viewing the Readings Stored in Memory
- Press the
button.
The Memory number appears for 2 seconds before the pulse rate is displayed. The most recent reading stored in the memory will be numbered as "1".
![Omron - 3 Series - Viewing the Readings Stored in Memory Viewing the Readings Stored in Memory]()
Note
- If the reading was high (refer to "Display and Symbols" sub-section), the "
" symbol appears. - If there are no readings stored in the memory, the screen below is displayed.
- If the memory is full, new readings will replace the old readings, starting with the oldest reading.
- Press the
button repeatedly to scroll through the previous readings stored in the memory.
Restoring Your Device to the Default Settings
To delete all the information stored in your monitor, follow the instructions below. Make sure that your monitor is turned off.
- Press the
button.
After a memory number appears, the latest reading will appear - While holding the
button down, press and hold the [START/STOP] button for more than 4 seconds.
The display below flashes.
![Omron - 3 Series - Restoring Your Device to Default Settings - Step 1 Restoring Your Device to Default Settings - Step 1]()
- While holding the
button down again, press and hold the [START/STOP] button for more than 4 seconds.
The display stops flashing, then your monitor is restored to the default settings.
![Omron - 3 Series - Restoring Your Device to Default Settings - Step 2 Restoring Your Device to Default Settings - Step 2]()
- Press the [START/STOP] button to turn your monitor off.
Note
- Reverting to the default setting of your monitor does not delete the information in the app.
- Your monitor automatically turns off after 10 seconds.
Error Messages and Troubleshooting
If any of the below problems occur during measurement, check to make sure that no other electrical device is within 12 inches (30 cm) of the monitor. If the problem persists, refer to the table below.
Display/Problem | Possible Cause | Solution |
![]() appears or the arm cuff does not inflate. | The [START/STOP] button was pressed while the arm cuff is not applied. | Press the [START/STOP] button again to turn the monitor off. |
Air plug is not completely plugged into the monitor. | Insert the air plug securely. |
The arm cuff is not applied correctly. | Apply the arm cuff correctly, then take another measurement. Refer to "Applying the Arm Cuff". |
Air is leaking from the arm cuff. | Replace the arm cuff with a new one. Refer to "Optional Accessories" section. |
![]() appears or a measurement cannot be completed after the arm cuff inflates. | Moving or talking during a measurement causes the arm cuff to not inflate sufficiently. | Remain still and do not talk during a measurement. If "E2" appears repeatedly, inflate the arm cuff manually until the systolic pressure is 30 to 40 mmHg above your previous readings. Refer to "Taking a Measurement" sub-section. |
The systolic pressure is above 210 mmHg and a measurement cannot be taken. |
![]() appears | The arm cuff is inflated exceeding the maximum allowable pressure. | Do not touch the arm cuff and/or bend the air tube while taking a measurement. If inflating the arm cuff manually, refer to "Taking a Measurement" sub-section. |
![]() appears | Moving or talking during a measurement results in vibrations that disrupt the measurement. | Remain still and do not talk during a measurement. |
![]() appears | The pulse rate is not detected correctly. | Apply the arm cuff correctly, then take another measurement. Refer to "Applying the Arm Cuff". Remain still and sit correctly during a measurement. If the " " symbol continues to appear, it is recommended that you consult with your physician. |
![]() appears |
![]() does not flash during a measurement |
![]() appears | The monitor has malfunctioned. | Press the [START/STOP] button again. If "Er" still appears, contact customer service. Refer to "Limited Warranty". |
![]() appears | The monitor cannot connect to a smart device or transmit data correctly. | Follow the instructions shown in the app. If the "Err" still appears after checking the app, contact customer service. Refer to "Limited Warranty". |
![]() flashes | The monitor is waiting for pairing with the smart device. | Refer to "Pairing Your Unit with a Smart Device" sub-section for pairing your monitor with your smart device, or press the [START/STOP] button to cancel pairing and turn your monitor off. |
![]() flashes | More than 11 readings are not transferred. | Pair or transfer your readings to the app so you can keep them in memory in the app, and this symbol disappears. |
Your monitor is not paired or not connected with your smart device. |
![]() appears | 14 readings are not transferred. |
![]() flashes | Batteries are low. | Replacing all 4 batteries with new ones is recommended. Refer to "Installing Batteries". |
and appears or the monitor is turned off unexpectedly during a measurement. | Batteries are depleted. | Immediately replace all 4 batteries with new ones. Refer to "Installing Batteries". |
Nothing appears on the display of the monitor. | Batteries are depleted. |
Battery polarities are not properly aligned. | Check the battery installation for proper placement. Refer to "Installing Batteries" sub-section. |
Readings appear too high or too low. | Blood pressure varies constantly. Many factors including stress, time of day, and/or how you apply the arm cuff, may affect your blood pressure. Review the "Preparation" and "Using Your Unit without a Smart Device" sections. |
Any other communication issue occurs. | Follow the instructions shown in the smart device, or visit the "Help" section in the app for further help. If the problem still persists, contact customer service. Refer to "Limited Warranty". |
Any other problems occur. | Press the [START/STOP] button to turn the monitor off, then press it again to take a measurement. If the problem continues, remove all batteries and wait for 30 seconds. Then re-install the batteries. If the problem still persists, contact customer service. Refer to "Limited Warranty". |
Maintenance
Maintenance
To protect your monitor from damage, follow the directions below:
- Changes or modifications not approved by the manufacturer will void the user warranty.
![]()
- DO NOT disassemble or attempt to repair this monitor or other components. This may cause an inaccurate reading.
Storage
Store your monitor and other components in a clean, safe location.
- Remove the arm cuff from the monitor.
The air plug is designed to fit securely into the monitor so it does not accidentally unplug from the monitor when in use. When removing the arm cuff from the monitor, pull the air plug out from the monitor in a straight motion, holding the plug and not using the tube. You will hear a "click" sound as the cuff plug is removed from the monitor.
![]()
- To unplug the air plug, pull on the plastic air plug at the base of the tube, not the tube itself.
- Gently fold the air tube into the arm cuff.
![Omron - 3 Series - Folding and Storing the Product Folding and Storing the Product]()
Note
- Do not bend or crease the air tube excessively.
Do not store your monitor and other components:
- If your monitor and other components are wet.
- In locations exposed to extreme temperatures, humidity, direct sunlight, dust or corrosive vapors such as bleach.
- In locations exposed to vibrations or shocks.
Wiping the Unit
- Do not use any abrasive or volatile cleaners.
- Use a soft dry cloth or a soft cloth moistened with mild (neutral) detergent to wipe your monitor and arm cuff and then wipe them with a dry cloth.
- Do not wash or immerse your monitor and arm cuff or other components in water.
- Do not use gasoline, thinners or similar solvents to wipe your monitor and arm cuff or other components.
Optional Accessories
![]()
Small D-Ring Cuff
Arm circumference
7" - 9" (17 - 22 cm)
Model:
HEM-CS24-B HEM-CS24-BZ
![]()
Wide-Range D-Ring Cuff
Arm circumference
9" - 17" (22 - 42 cm)
Model:
HEM-RML31-B HEM-RML31-BZ
- Same as the arm cuff provided with the product.
Note
- Do not throw the air plug away. The air plug can be applicable to the optional cuff.
![]()
AC Adapter
Model: HEM-ADPTW5
For further information, visit our website at OmronHealthcare.com
Using the AC Adapter (optional accessory)
Note
- Make sure not to place your monitor in a location where it is difficult to plug and
![Omron - 3 Series - Using the AC Adapter Using the AC Adapter]()
- Insert the AC adapter plug into the AC adapter jack on the back side of your monitor.
- Plug the AC adapter into an electrical outlet.
To unplug the AC adapter, unplug the AC adapter from the electrical outlet and then remove the AC adapter plug from the monitor.
![]()
- ONLY use the AC adapter, arm cuff, batteries and accessories specified for this monitor. Use of unsupported AC adapters, arm cuffs and batteries may damage and/or may be hazardous to this monitor.
Specifications
Model | BP7150 HEM-7142T2-Z |
Display | LCD digital display |
Cuff pressure range | 0 to 299 mmHg |
Blood pressure measurement range | SYS: 60 to 260 mmHg DIA: 40 to 215 mmHg |
Pulse measurement range 40 to 180 beats / min. |
Accuracy | Pressure: ±3 mmHg Pulse: ±5% of display reading |
Inflation | Automatic by electric pump |
Deflation | Automatic pressure release valve |
Measurement method | Oscillometric method |
Transmission method | Bluetooth ® Low Energy |
Wireless communication | Frequency range: 2.4 GHz (2400 - 2483.5 MHz) Modulation: GFSK Effective radiated power: < 20 dBm |
Operation mode | Continuous operation |
IP classification | Monitor: IP20 / Optional AC adapter: IP21 |
Rating | DC6 V 4 W |
Power source | 4 "AA" batteries 1.5 V (not included) or optional AC adapter (INPUT AC100 - 240 V 50 - 60 Hz 0.12 - 0.065 A) |
Battery life | Approximately 500 measurements (using new alkaline batteries and included arm cuff. Depending on the type of battery and arm cuff size.) |
Durable period (Service life) | Monitor: 5 years or the time when reaching 10000 times of use. Arm cuff: 5 years or the time when reaching 10000 times of use. Optional AC adapter: 5 years |
Operating conditions | +50°F to +104°F (+10°C to +40°C) / 15 to 90% RH (non-condensing) / 800 to 1060 hPa |
Storage / Transport conditions | -4°F to +140°F (-20°C to +60°C) / 10 to 90% RH (non-condensing) |
Weight | Monitor: Approximately 8.8 oz. (250 g) not including batteries Arm cuff: Approximately 6 oz. (170 g) |
Dimensions | Monitor: Approximately 4.1" (w) × 3.2" (h) × 5.5" (l) (103 mm × 82 mm × 140 mm) Arm cuff: Approximately 5.7" × 23.4" (air tube: 29.5") (145 mm × 594 mm (air tube: 750 mm)) |
Cuff circumference applicable to the monitor | Total arm circumference range: 7 to 17" (17 to 42 cm) Included arm cuff: 9 to 17" (22 to 42 cm) Optional arm cuff: 7 to 9" (17 to 22 cm) |
Memory | Stores up to 14 readings |
Contents | Monitor, Wide-Range D-Ring Cuff, instruction manual, quick start guide |
Protection against electric shock | Internally powered ME equipment (When using only batteries) Class II ME equipment (Optional AC adapter) |
Applied part | Type BF (arm cuff) |
Note
- These specifications are subject to change without notice.
- This monitor is clinically investigated according to the requirements of ISO 81060-2:2013 and complies with ISO 81060-2:2013 and ISO 81060-2:2018+A1:2020. In the clinical validation study, K5 was used on 85 subjects for determination of diastolic blood pressure.
- This monitor has not been validated for use on pregnant patients.
- IP classification is degrees of protection provided by enclosures in accordance with IEC 60529. This monitor and optional AC adapter are protected against solid foreign objects of 0.5 inch (12.5 mm) diameter and greater such as a finger. The optional AC adapter is protected against vertically falling water drops which may cause issues during a normal operation.
- Operation mode classification complies with IEC 60601-1.
- Please report to the manufacturer and the regulatory authority in which you are established about any serious incident that has occurred in relation to this device.
About a wireless communication interference
The Bluetooth option in the product is used to connect to dedicated apps on mobile devices to synchronize date/time data from mobile device to the product, and to synchronize measurement data from the product to mobile device. Further handling of the data on the mobile device is up to the user's discretion. This product operates in an unlicensed ISM band at 2.4 GHz where any third party can intercept the radio waves, willfully or accidentally, for any unknown purpose. In the event this product is used near other wireless devices such as microwave and wireless LAN, which operate on the same frequency band as this product, there is a possibility that interference may occur. If interference occurs, stop the operation of the other devices or relocate this product away from other wireless devices before attempting to use it.
Pictogram on the Product |
| Types of marks used to indicate the correct positioning of the artery for the upper arm |
| Identifies the type of cuff that is compatible with the blood pressure monitor |
Limited Warranty
To obtain warranty service contact Customer Service by calling 1-800-634-4350 for the address of the inspection center and the return shipping and handling fee that may apply.
FOR CUSTOMER SERVICE
Visit our web site at: OmronHealthcare.com
Call toll free: 1-800-634-4350
OMRON HEALTHCARE Co., Ltd.
53, Kunotsubo, Terado-cho, Muko, Kyoto, 617-0002 JAPAN
Distributed by:
OMRON HEALTHCARE, INC.
2895 Greenspoint Pkwy. Hoffman Estates, IL 60169 USA
OmronHealthcare.com
Documents / Resources
References
Download manual
Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.
Download Omron BP7150, 3 Series Manual
Need help?
Do you have a question about the 3 Series and is the answer not in the manual?
Questions and answers
