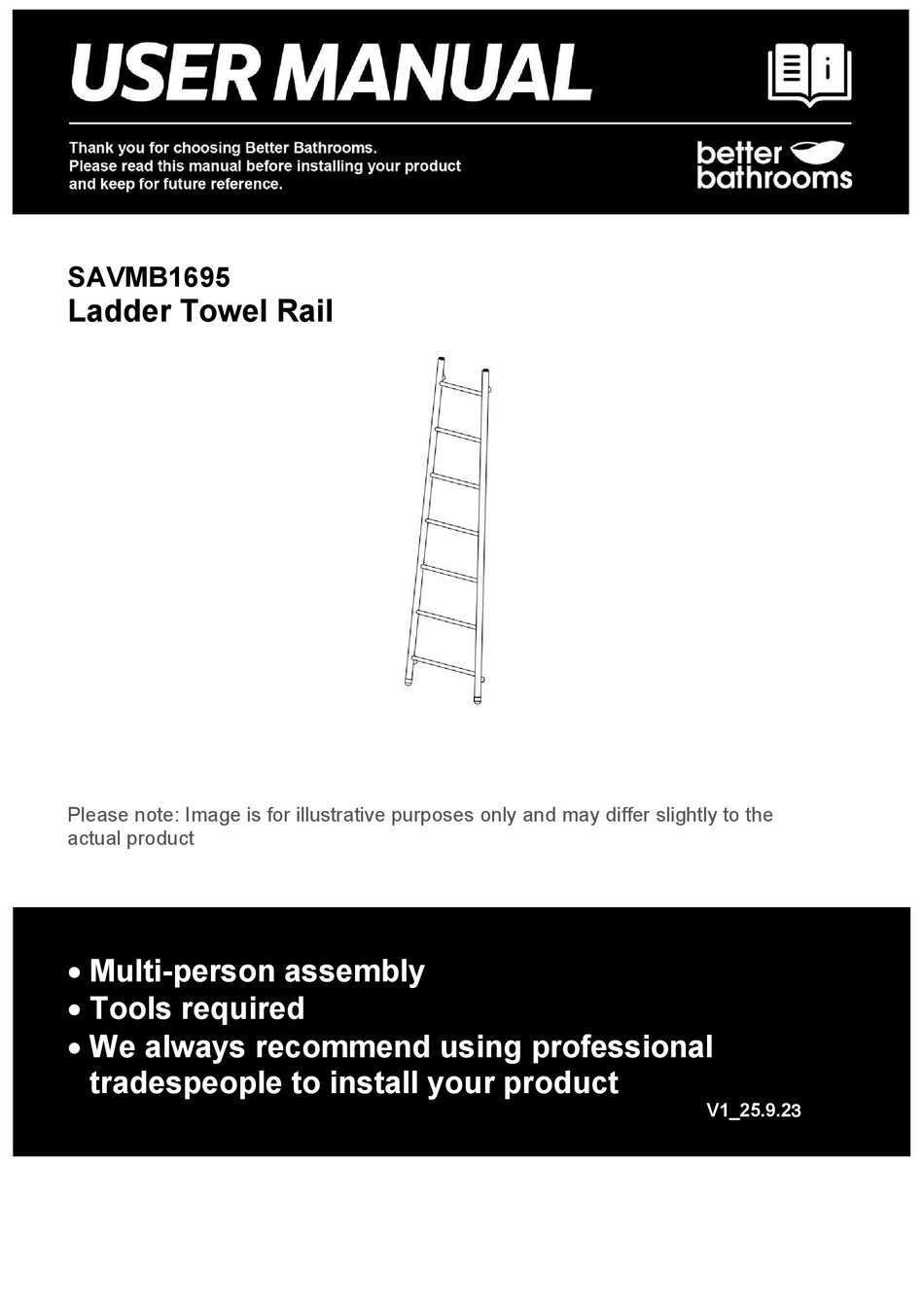

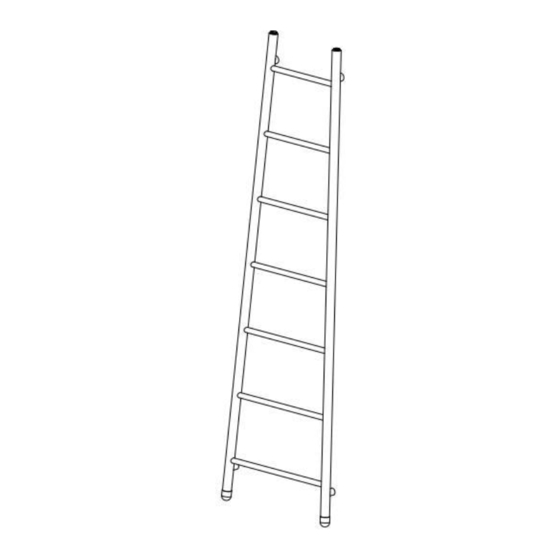

- Page 1 SAVMB1695 Ladder Towel Rail Please note: Image is for illustrative purposes only and may differ slightly to the actual product Multi-person assembly Tools required We always recommend using professional tradespeople to install your product V1_25.9.23...
-
Page 2: Congratulations On Your Purchase
The pipework must be flushed out to remove any debris which can affect the function of this product. A corrosion inhibitor should be used in your installation. BTU & Wattage info- Product Code Wattage SAVMB1695 1170... -
Page 3: Tools Required
Parts A. 1 x Radiator B. 1 x Air Vent (Bleed Valve) C. 1 x Blanking Cap D. 4 x Wall plug E. 4 x Wall Bracket F. 4 x Washer G. 4 x Wall screw H. 4 x Rail Bracket I. -
Page 4: Installation
Installation Please note: Before starting any installation, turn off the water supply. Please note: Before commencing any installation, the desired location should be checked before drilling, that no pipes or wires can be damaged. First, prepare the water supply pipes to match up with the towel radiator and valve dimensions being used. - Page 5 3. Using the drill and 8mm drill bit, drill into the marked positions then insert the wall plugs and tap flush to the finished wall surface. Please note: If drilling into a tile, it is recommended to tape the wall to prevent the drill from slipping.
-
Page 6: After Installation
6. Align and push the rail brackets on the radiator onto the wall brackets secured to the wall. Secure the two together with the connecting screws provided (insert through the slot in the bracket) and tighten using the Philips screwdriver, be sure not to overtighten.
