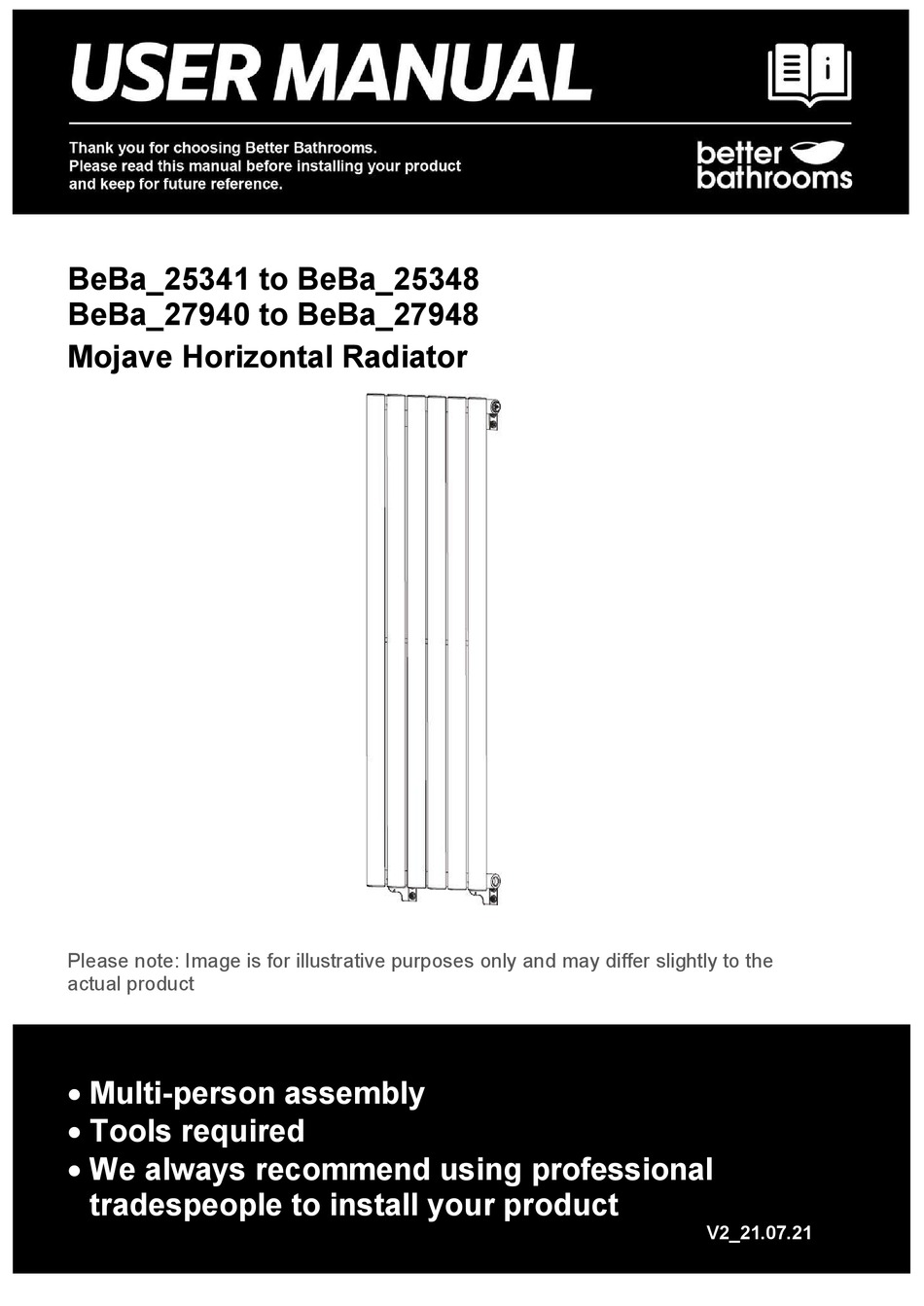

BeBa_25341 to BeBa_25348
BeBa_27940 to BeBa_27948

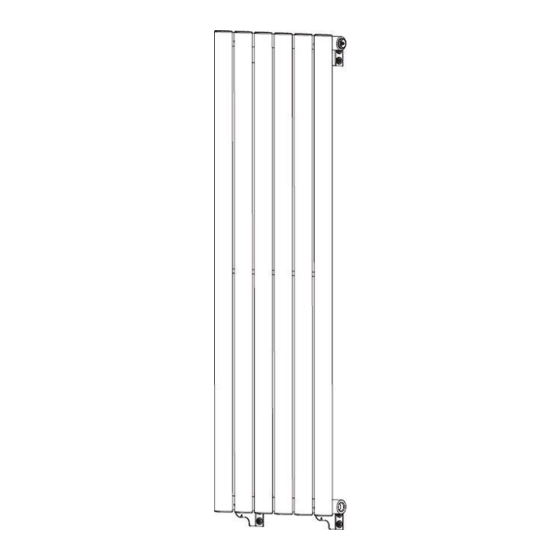

Mojave Horizontal Radiator
Please note: Image is for illustrative purposes only and may differ slightly to the
actual product
Multi-person assembly
Tools required
We always recommend using professional
tradespeople to install your product
V2_21.07.21
Advertisement
Table of Contents
Related Manuals for Better Bathrooms Mojave BeBa 25341
Summary of Contents for Better Bathrooms Mojave BeBa 25341
- Page 1 BeBa_25341 to BeBa_25348 BeBa_27940 to BeBa_27948 Mojave Horizontal Radiator Please note: Image is for illustrative purposes only and may differ slightly to the actual product Multi-person assembly Tools required We always recommend using professional tradespeople to install your product V2_21.07.21...
-
Page 2: Congratulations On Your Purchase
Congratulations on your purchase And welcome to our growing gang of savvy shoppers We're on a mission to bring you extraordinary bathroom products, for less. From modern to traditional style ceramics, plus the gorgeous fixtures, fittings and furniture to match. So, you can fall in love with your space every single day. -
Page 3: Tools Required
Parts A. 1 x Radiator B. 1 x Air Vent (Bleed Valve) C. 1 x Blanking Cap D. 8 x Wall Plug E. 4 x Wall Bracket F. 8 x Washer G. 8 x Wall screw H. 4 x Wall Bracket Cover Please note that Parts are for illustrative purposes only and may differ slightly to the actual product... -
Page 4: Installation
Installation Please note: Before starting any installation, turn off the water supply. Please note: Before commencing any installation, the desired location should be checked before drilling, that no pipes or wires can be damaged. First, prepare the water supply pipes to match up with the towel radiator and valve dimensions being used. - Page 5 3. Using the drill and 8mm drill bit, drill into the marked positions then insert the wall plugs and tap flush to the finished wall surface. Please note: If drilling into tile, it is recommended to tape the wall to prevent the drill from slipping.
-
Page 6: After Installation
6. Finally, fit the radiator valves to the pipework and connect to the radiator valve tail and tighten all connections. IMPORTANT! The product is supplied un-filled. The radiator should be filled with a water (80%) and glycol (20%) mixture if NOT being connected to the central heating system, also allow 5% air gap.
