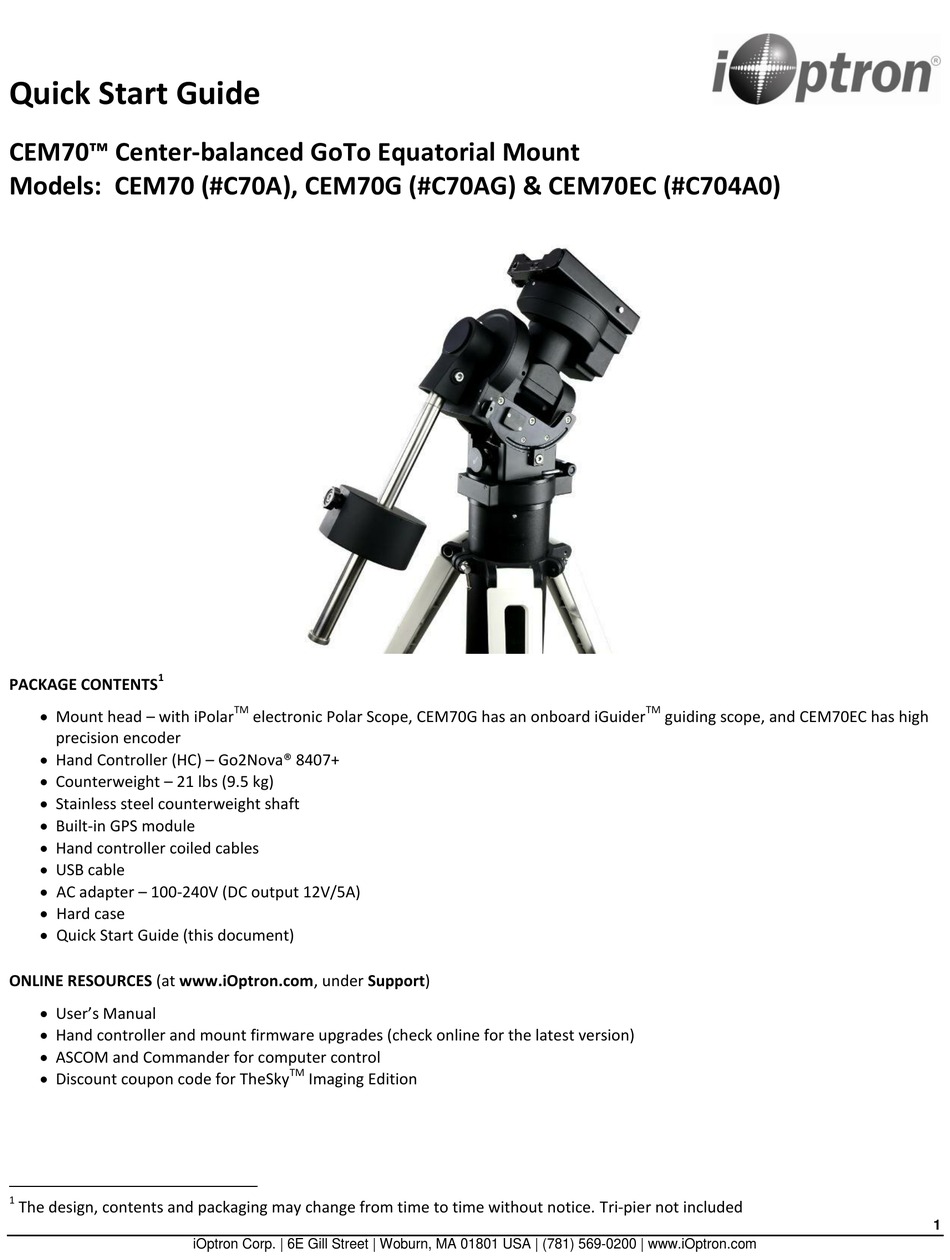

Quick Start Guide
CEM70™ Center-balanced GoTo Equatorial Mount
Models: CEM70 (#C70A), CEM70G (#C70AG) & CEM70EC (#C704A0)
1
PACKAGE CONTENTS
Mount head – with iPolar
precision encoder
Hand Controller (HC) – Go2Nova® 8407+
Counterweight – 21 lbs (9.5 kg)
Stainless steel counterweight shaft
Built-in GPS module
Hand controller coiled cables
USB cable
AC adapter – 100-240V (DC output 12V/5A)
Hard case
Quick Start Guide (this document)
ONLINE RESOURCES (at www.iOptron.com, under Support)
User's Manual
Hand controller and mount firmware upgrades (check online for the latest version)
ASCOM and Commander for computer control
Discount coupon code for TheSky
1
The design, contents and packaging may change from time to time without notice. Tri-pier not included
TM
electronic Polar Scope, CEM70G has an onboard iGuider
TM
Imaging Edition
iOptron Corp. | 6E Gill Street | Woburn, MA 01801 USA | (781) 569-0200 | www.iOptron.com
TM
guiding scope, and CEM70EC has high
1
Advertisement
Related Manuals for iOptron CEM70EC
Summary of Contents for iOptron CEM70EC
- Page 1 Discount coupon code for TheSky Imaging Edition The design, contents and packaging may change from time to time without notice. Tri-pier not included iOptron Corp. | 6E Gill Street | Woburn, MA 01801 USA | (781) 569-0200 | www.iOptron.com...
- Page 2 Rotate the mount to align the screws to the tripod mounting holes. Insert the wrench into the holes on the base where azimuth locking screws are located. iOptron Corp. | 6E Gill Street | Woburn, MA 01801 USA | (781) 569-0200 | www.iOptron.com...
- Page 3 HBX port on the mount base panel. Install telescope: CEM70 is equipped with a Vixen/Losmandy-D dual saddle. It can receive either a Vixen or a Losmandy-D plate. Release the dovetail iOptron Corp. | 6E Gill Street | Woburn, MA 01801 USA | (781) 569-0200 | www.iOptron.com...
- Page 4 Zero Position either manually or slewed by hand controller. The Zero Position is defined as the telescope being on top of the mount head and iOptron Corp. | 6E Gill Street | Woburn, MA 01801 USA | (781) 569-0200 | www.iOptron.com...
- Page 5 Sync to target: If the object is not in the center of the support. eyepiece, use this function to center and synchronize Ver 2.0 202012 iOptron Corp. | 6E Gill Street | Woburn, MA 01801 USA | (781) 569-0200 | www.iOptron.com...
-
Page 6: Ioptron Two Year Telescope, Mount, And Controller Warranty
A. iOptron warrants your telescope, mount, or controller to be free from defects in materials and workmanship for two years. iOptron will repair or replace such product or part which, upon inspection by iOptron, is found to be defective in materials or workmanship. As a condition to the obligation of iOptron to repair or replace such product, the product must be returned to iOptron together with proof-of- purchase satisfactory to iOptron.
