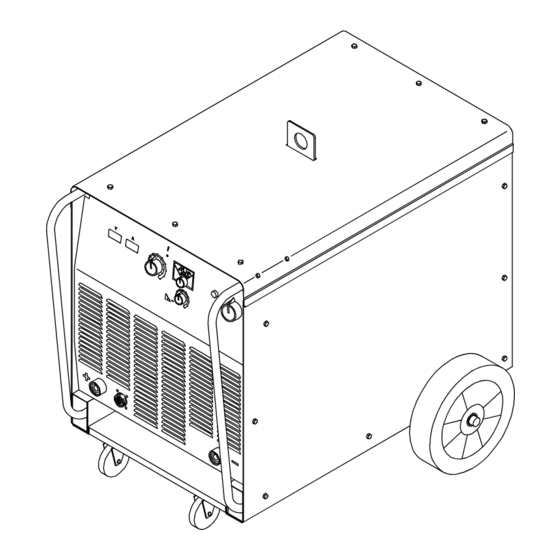

SRH 2000 STICK
400/500
OWNER'S MANUAL
OM-199 099
February 2000
Effective with serial number:
400 Model – 165 270
500 Model – 165 478
Processes
Stick (SMAW) Welding
Description

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SRH 2000 STICK 400 and is the answer not in the manual?

Questions and answers

Summary of Contents for Miller SRH 2000 STICK 400

  • Page 1 OM-199 099 February 2000 Effective with serial number: 400 Model – 165 270 500 Model – 165 478 Processes Stick (SMAW) Welding Description SRH 2000 STICK 400/500 OWNER’S MANUAL Visit our website at www.MillerWelds.com...
  • Page 2 1929. This Owner’s Manual is designed to help you get the most out of your Miller products. Please take time to read the Safety precautions. They will help you protect yourself against potential hazards on the worksite. We’ve made installation and operation quick and easy.
  • Page 3: Table Of Contents

    Table of Contents SECTION 1 – SAFETY PRECAUTIONS - READ BEFORE USING ..1-1. Symbol Usage ..........1-2.
  • Page 4 Via Privata Iseo, 6/E Indirizzo Costruttore: 20098 San Giuliano Milanese, Italy Declares that this product: SRH 2000 Stick 400/500 Dichiara che il Prodotto: Conforms to the following Directives and Standards: È Conforme alle seguenti Direttive e Norme. Direttive Low Voltage: 73/23/EEC...
  • Page 5: Section 1 - Safety Precautions - Read Before Using

    SECTION 1 – SAFETY PRECAUTIONS - READ BEFORE USING som _nd_4/98 1-1. Symbol Usage Means Warning! Watch Out! There are possible hazards with this procedure! The possible hazards are shown in the adjoining symbols. This group of symbols means Warning! Watch Out! possible Y Marks a special safety message.
  • Page 6 ARC RAYS can burn eyes and skin. BUILDUP OF GAS can injure or kill. D Shut off shielding gas supply when not in use. Arc rays from the welding process produce intense D Always ventilate confined spaces or use visible and invisible (ultraviolet and infrared) rays that can burn eyes and skin.
  • Page 7: Additional Symbols For Installation, Operation, And Maintenance

    1-3. Additional Symbols For Installation, Operation, And Maintenance FIRE OR EXPLOSION hazard. MOVING PARTS can cause injury. D Do not install or place unit on, over, or near D Keep away from moving parts such as fans. combustible surfaces. D Keep all doors, panels, covers, and guards D Do not install unit near flammables.
  • Page 8: Emf Information

    1-5. EMF Information Considerations About Welding And The Effects Of Low Frequency 1. Keep cables close together by twisting or taping them. Electric And Magnetic Fields 2. Arrange cables to one side and away from the operator. Welding current, as it flows through welding cables, will cause electro- magnetic fields.
  • Page 9: Section 2 - Definitions

    – SECTION 2 DEFINITIONS 2-1. General Precautionary Label Warning! Watch Out! There are possible hazards as shown by the symbols. Electric shock from welding electrode or wiring can kill. 1.1 Wear dry insulating gloves. Do not touch electrode with bare hand. Do not wear wet or damaged gloves.
  • Page 10: Manufacturer's Rating Label For Ce Products

    2-2. Manufacturer’s Rating Label for CE Products MADE IN ITALY MADE IN ITALY SRH 2000 STICK 400 COD. 029015322 SRH 2000 STICK 500 COD. 029016215 EN 60974 – 1 EN 60974 – 1 450A–38V 650A-44V 15A-20V 15A-20V 50/60 HZ 100%...
  • Page 11: Duty Cycle And Overheating

    2-4. Duty Cycle And Overheating Duty Cycle is percentage of 10 min- utes that unit can weld at rated load without overheating. If unit overheats, thermostat(s) opens, output stops, and cooling fan runs. Wait fifteen minutes for Rated Rated unit to cool. Reduce amperage or Output Output duty cycle before welding.
  • Page 12: Weld Output Terminals And Selecting Cable Sizes

    2-6. Weld Output Terminals and Selecting Cable Sizes Y ARC WELDING can cause Electromagnetic Interference. To reduce possible interference, keep weld cables as short as possible, close together, and down low, such as on the floor. Locate welding operation 100 meters from any sensitive electronic equipment. Be sure this welding machine is installed and grounded according to this manual.
  • Page 13: Section 3 - Operation

    SECTION 3 – OPERATION 3-1. Control Panel High temperature shutdown light Process selector Indicator light On/Off switch Circuit breaker DIG potentiometer Negative output terminal 14 pin receptacle for remote control Positive output terminal 10 Digital voltmeter 11 Digital ammeter 12 Current/Voltage regulator OM-199 099 Page 9...
  • Page 14: Digital Meters

    3-2. Digital Meters Reading of the parameters is done by means of signals supplied by the main card to the actual instruments. This permits more accurate and thus more reliable values to be read. Also, the meters hold the values for 15 seconds. 3-3.
  • Page 15: Section 4 - Maintenance And Troubleshooting

    SECTION 4 – MAINTENANCE AND TROUBLESHOOTING 4-1. Routine Maintenance Y Disconnect power before maintaining. 3 Months Clean Repair or Replace tighten weld replace unreadable terminals. cracked labels. weld cable. 6 Months Blow out or vacuum inside. During heavy service, clean monthly.
  • Page 16: Section 5 - Electrical Diagram

    SECTION 5 - ELECTRICAL DIAGRAM schema XJ/sf cod.956 142 400 Figure 5-1. Circuit Diagram for 400 Volt Models OM-199 099 Page 12...
  • Page 17 schema XL/sf cod.956 142 414 Figure 5-2. Circuit Diagram for 500 Volt Models OM-199 099 Page 13...
  • Page 18: Section 6 - Parts List

    SECTION 6 - PARTS LIST 6-1. Main Assembly – 400/500 Volt Models OM-199 099 Page 14...
  • Page 19 Qty. Qty. Item Ref. Code 400 500 Item Ref. Code 400 500 116121118 ZR.0.0.19 056054067 ZW.0.0.3 156002033 ZR.0.0.16 156023054 000162816 ZS.0.0.6 656043030 316117005 XJ.0.0.2 116005322 116122300 ZV.0.0.3 556070011 HD.0.0.2 057095011 ZR.0.11 756069012 BO.0.0.6 058061049 XL.4 000010467 ZS.0.0.30 000006393 QA.0.0.10 057014043 OQ.0.1 116145005 ZR.0.0.3 000173283 QB.0.0.13 000097924 EE.0.0.11...
  • Page 20 Notes...
  • Page 21 Notes...
  • Page 22 Notes...
  • Page 23 Effective January 1, 2000 This limited warranty supersedes all previous Miller warranties and is exclusive with no other guarantees or warranties expressed or implied. LIMITED WARRANTY – Subject to the terms and conditions APT, ZIPCUT & PLAZCUT Model Plasma Cutting below, Miller Electric Mfg.
  • Page 24 Phone: 414-735-4505 USA & Canada FAX: 920-735-4134 International FAX: 920-735-4125 European Headquarters – United Kingdom Phone: 44 (0) 1204-593493 FAX: 44 (0) 1204-598066 Miller Europe Italy Phone: 39 (0) 2982901  PRINTED IN USA 2000 Miller Electric Mfg. Co. 1/00...
