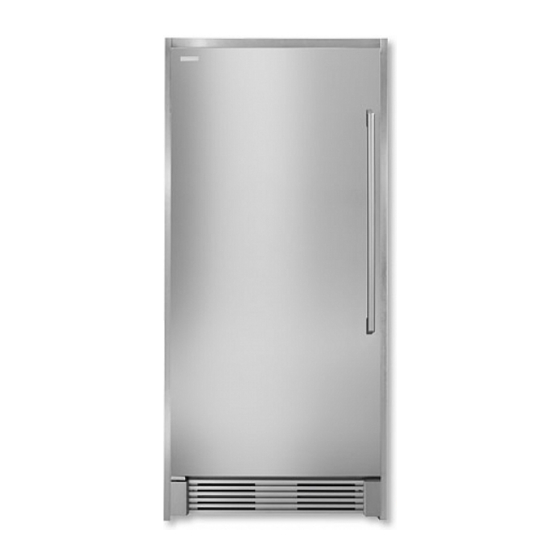

Electrolux EI32AF65JS Use And Care Manual

Built-in all freezer with iq-touch controls
Hide thumbs

Advertisement

Use & Care Guide
Freezer
Guia de Uso y Cuidado
Congelador
Guide d'utilisation et d'entretien
Congélateur
297299200 August 2010

Advertisement

Table of Contents
loading

  Related Manuals for Electrolux EI32AF65JS

  Summary of Contents for Electrolux EI32AF65JS

  • Page 1 Use & Care Guide Freezer Guia de Uso y Cuidado Congelador Guide d’utilisation et d’entretien Congélateur 297299200 August 2010...
  • Page 2: Table Of Contents

    Finding Information Please Read And Save This Guide Thank you for choosing Electrolux, our new premium brand in home appliances. This Use & Care Guide is part of our commitment to customer satisfaction and product quality throughout the service life of your new appliance.
  • Page 3: Safety

    Important Safety Instructions Safety Precautions Do not attempt to install or operate your unit until you have read the safety precautions in this manual. Safety items throughout this manual are labeled with a Danger, Warning, or Caution based on the risk type. Defi...
  • Page 4: Electrical Information

    Safety Electrical Information You must follow these guidelines to ensure that your refrigerator’s safety mechanisms are operating correctly. • The freezer must be plugged into its own dedicated 115 Volt, 60 Hz, AC-only non-GFCI electric outlet. The power cord of the appliance is equipped with a three-prong grounding plug for your protection against electrical shock hazards.
  • Page 5: Feature Overview

    Understanding Features and Terms Your Electrolux freezer is designed for optimal convenience and storage fl exibility. The illustration below is provided to assist you with familiarizing yourself with product features and terminology. Features may vary according to model. Adjustable Two Liter Bins...
  • Page 6: Installation

    Installation Required Tools You will need the following tools: This Use & Care Guide provides general installation and operating instructions for your model. We recommend using a service or kitchen contracting professional to install your freezer. Use the freezer only as instructed in this Use & Care Guide. Before starting the freezer, follow these important fi...
  • Page 7: Installing Door Handles

    Door Handle Mounting Instructions 1. Remove handle from carton and any other protective packaging. 2. Position freezer handle end caps over upper and lower pre-installed shoulder bolts (A) that are fastened into door, ensuring the holes for the set screws are facing towards the outside of door if a single unit installation or the refrigerator door (if installing the matching refrigerator) 3.
  • Page 8 Leveling To Level The Freezer: While unit is lying on its back for wood skid removal, note the location of the four (4) leg levelers installed at each corner. These leg levelers will be used to level the freezer and to adjust the height. Use a carpenter’s level to level the freezer from front to back and side to side.
  • Page 9: Door Removal And Temperature Control

    Door Removal and Temperature Control Door Removal If door must be removed: Doors are heavy. It is recommended to have two people to remove or replace the door assembly from the cabinet. • Unplug the unit or switch the breaker that supplies power to the unit to the off position.
  • Page 10: Electronic Control

    Electronic Control Adjust UP Key Adjust DOWN Key IQ Touch™ Electronic Control Features Replace Air Filter When the “REPLACE AIR FILTER” LED is illuminated yellow, the air fi lter needs to be replaced. The control will signal for air fi lter replacement after 3600 hours of refrigerator operation.
  • Page 11: Alarms

    Alarms Alarms There are four possible conditions that will cause the alarm tone to sound. High Temp Alarm If the temperature inside the cabinet has exceeded 23ºF (-5ºC) for 1 hour or more of normal operation, the HI TEMP LED will illuminate, the HIGH TEMP Alarm will sound and the cabinet temperature is shown in the display.
  • Page 12: Sabbath Mode And Air Filter

    fi ltering of freezer odors. The replacement air fi lter can be purchased on the Electrolux website (http://www.electroluxappliances.com) or call toll free in the U.S. and Canada: 1-877-4ELECTROLUX (1-877-435-3287). Your electronic control is equipped with a Change Filter Indicator to remind you to change your fi...
  • Page 13: Luxury Design™ Lighting

    Luxury Design™ Lighting and Water Supply Luxury Design™ Lighting The interior cabinet lighting features LED lights that gradually ramp up in intensity after the door is opened. To replace an LED: Unplug the unit or switch the breaker that supplies power to the unit to the off position before changing an LED light.
  • Page 14: Connecting Water Supply To Freezer

    Smart Choice® water line kit 5305513409 (with a 6 ft. Stainless Steel Water Line) and for homes without an existing valve, Electrolux recommends its Smart Choice® water line kit 5305510264 (with a 20 ft. Copper Water Line with selftapping saddle valve).
  • Page 15: Ice Service

    Ice Service If your freezer has an automatic icemaker, it will provide a suffi cient supply of ice for normal use. During the initial startup of your freezer, however, no ice will be produced during the fi rst 24 hours of operation.
  • Page 16: Storage Components

    Storage Components Storage Luxury Design Glass Shelving Multi-position adjustable slide out glass shelves can be moved to any position for larger or smaller packages. The shipping spacers that stabilize the shelves for shipping may be removed and discarded. To Adjust The Shelves •...
  • Page 17 Adjustable Door Bins This model is equipped with adjustable door bins that can be moved to suit individual needs. To Move Door Bins: • Lift the bin straight up. • Remove the bin. • Place the bin in desired position. •...
  • Page 18: Storing Food & Saving Energy

    Storing Food & Saving Energy Energy Saving Ideas • Locate the freezer in the coolest part of the room, out of direct sunlight, and away from heating ducts or registers. Do not place the freezer next to heat-producing appliances such as a range, oven, or dishwasher.
  • Page 19: Care And Cleaning Chart

    • Turning the freezer temperature control to “OFF” (See Page 9) turns off the compressor, but does not disconnect electrical power to the LED lights or other electrical components. Unplug the unit or switch the breaker that supplies power to the unit to the off position. •...
  • Page 20: Warranty Information

    Warranty Information Your appliance is covered by a one year limited warranty. For one year from your original date of purchase, Electrolux will repair or replace any parts of this appliance that prove to be defective in materials or workmanship when such appliance is installed, used, and maintained in accordance with the provided instructions.
  • Page 21: Solutions To Common Problems

    Solutions To Common Problems Troubleshooting Guide Before calling for service, review this list. It may save you time and expense. This list includes common occurrences that are not the result of defective workmanship or materials in this Freezer. Problem Freezer Operation Freezer does not run.
  • Page 22: Installation Checklist

    Solutions To Common Problems Problem Sound And Noise (Continued) Popping or cracking * Metal parts undergo expansion and sound when compressor comes on. * Freezer (used to cool refrigerator is Bubbling or gurgling sound. * Freezer is not level. It rocks on the Vibrating or rattling noise.
