Philips 3000 Series Manual

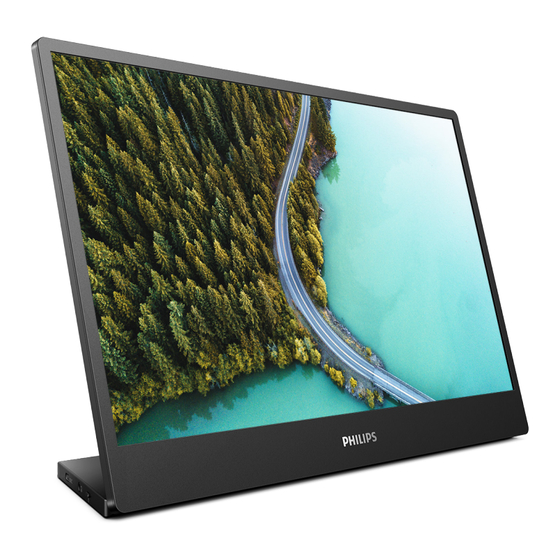

Portable monitor
Hide thumbs Also See for 3000 Series:
Table of Contents

Advertisement

Quick Links

Download this manual

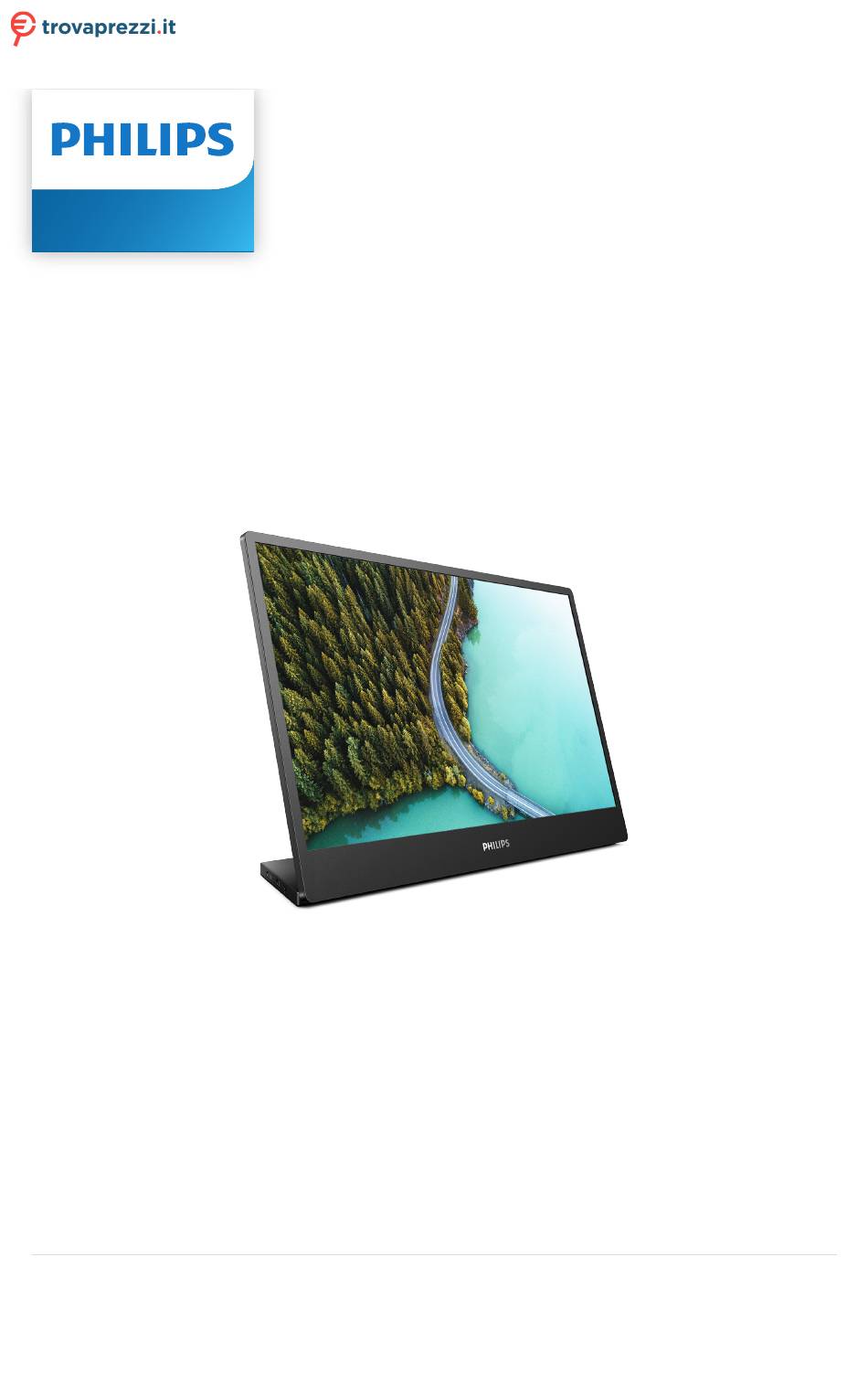

Portable
Monitor
3000 Series
EN
User manual
Customer care and warranty
Troubleshooting and FAQs
Register your product and get support at www.philips.com/welcome
Questo manuale d'istruzione è fornito da trovaprezzi.it. Scopri tutte le offerte per
cerca il tuo prodotto tra le
migliori offerte di Monitor
Philips 16B1P3302D
o
16B1P3302
1
17
21

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 3000 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Philips 3000 Series

Summary of Contents for Philips 3000 Series

  • Page 1 Questo manuale d’istruzione è fornito da trovaprezzi.it. Scopri tutte le offerte per Philips 16B1P3302D cerca il tuo prodotto tra le migliori offerte di Monitor Portable Monitor 3000 Series 16B1P3302 User manual Customer care and warranty Troubleshooting and FAQs Register your product and get support at www.philips.com/welcome...

  • Page 2: Table Of Contents

    ..........12 5. Technical Specifications ������������14 5.1 Resolution & Preset Modes ..16 6� Customer care and warranty ���17 6.1 Philips’ Flat Panel Monitors Pixel Defect Policy ......... 17 6.2 Customer Care & Warranty ..20 7� Troubleshooting & FAQs ����������21 7.1 Troubleshooting ......

  • Page 3: Important

    Keep the display away from oil. Oil may damage the plastic cover of the display and void the warranty. This electronic user’s guide is intended for anyone who uses the Philips monitor. • Remove any object that could fall Take time to read this user manual into ventilation holes or prevent before you use your monitor.
  • Page 4 monitor damage will not be covered • Oil-based cleaning solutions may under warranty. damage the plastic parts and void the warranty. • Do not knock or drop the monitor during operation or transportation. • Unplug the monitor if you are not going to use it for an extensive •...

  • Page 5: Notational Descriptions

    1.2 Notational Descriptions Uninterrupted display of still or static images over an extended period may The following subsections describe cause “burn-in”, also known as “after- notational conventions used in this imaging” or “ghost imaging”, on your document. screen. • “Burn-in”, “after-imaging”, or Notes, Cautions and Warnings “ghost imaging”...

  • Page 6: Disposal Of Product And Packing Material

    From the planning, design and production stages, Philips emphasizes the important of making products that can easily be recycled. At Philips, end-of-life management primarily This marking on the product or on entails participation in national take- its packaging illustrates that, under...

  • Page 7: 2� Setting Up The Monitor

    Connecting to your PC 2.1 Installation Package contents Portable Monitor 3000 Series 16B1P3302 Quick start Register your product and get support at www.philips.com/welcome Audio out USB-C Kensington anti-theft lock *USB C-C/A *Protective case Note *Different according to region The monitor is able to be powered by...
  • Page 8 Power Delivery This monitor is powered through the USB port. There is 2 kinds of connection to empower this monitor: USB C-C and USB A-C. 1. Connect the USB-C port of notebook 2. Connect the USB-A port of notebook and the monitor with a USB type-C and the monitor with a USB A-C cable.

  • Page 9: Operating The Monitor

    Mute On-Screen Display (OSD) is a feature Color Color Temperature Native, 5000K, 6500K, 7500K, 8200K, 9300K, 11500K in all Philips LCD monitors. It allows an sRGB User De ne Red: 0~100 end user to adjust screen performance Green: 0~100 or select functions of the monitors Blue: 0~100 English, Deutsch, Español, Ελληνική, Français, Italiano,...
  • Page 10 Resolution notification • For the connection from the USB-A port of notebook and the monitor This monitor is designed for optimal with a USB A-C cable, please follow performance at its native resolution, the steps below for the setting of 1920 x 1080.

  • Page 11: Vesa Mounting

    2.3 VESA Mounting This monitor accepts a 75mm VESA-Compliant mounting interface. VESA Mounting Screw M4 (VESA Mounting depth 7.0mm). Always contact manufacturer for wall-mount installation. 2 screws (M4) 75mm 0° 90° -5° * Display design may differ from those illustrated. Warning •...

  • Page 12: 3� Image Optimization

    Office, Photo, Movie, Game, Economy, brightness, contrast, color and sharpness LowBlue Mode, Off. in real time. Whether you're working with text applications, displaying images  or watching a video, Philips SmartImage delivers great optimized monitor  performance.  Why do I need it? ...

  • Page 13: Smartcontrast

    • Off: No optimization by SmartImage. Note Philips LowBlue mode, mode 2 compliance with TUV Low Blue Light certification, you can have this mode by simply press the hotkey , then press to select LowBlue Mode, see above SmartImage selection steps.

  • Page 14: 4� Usb Docking Display

    4.2 How to operate USB docking display through USB-C to A introduction cable? Philips USB-docking monitors deliver If your laptop doesn’t have USB-C universal port replication, for a simple, port, connect the USB C-A cable to the clutter-free, notebook connection.
  • Page 15 DisplayLink software installation is successful. 3. Click “Install”, then DisplayLink start PHILIPS(product name) to install, once it complete, click “Finish” Controlling the display After the DisplayLink software is installed completely, an icon appears in the taskbar.

  • Page 16: Technical Specifications

    5. Technical Specifications Picture/Display Monitor Panel Type IPS Technology Backlight W-LED Panel Size 15.6" (39.6 cm) Aspect Ratio 16:9 Pixel Pitch 0.17925 (H) mm x 0.17925 (V) mm Contrast Ratio(typ.) 700:1 Optimum Resolution 1920 x 1080 @ 60 Hz Display Screen Coating Anti-Glare 3H, Haze 25% Viewing Angle 170°...
  • Page 17 500 to 1060hPa (Non-operation) Environmental and energy ROHS Packaging 100% recyclable Specific Substances 100% PVC BFR free housing Cabinet Color Black Finish Texture Note This data is subject to change without notice. Go to www.philips.com/support to download the latest version of leaflet.

  • Page 18: Resolution & Preset Modes

    1920 x 1080. For best display quality, please follow this resolution recommendation. For best output performance, please always ensure that your graphic card is capable of achieving the maximum resolution and refresh rate of this Philips display.

  • Page 19: 6� Customer Care And Warranty

    Pixel Defect Policy pixels of other colors. Philips strives to deliver the highest Types of Pixel Defects quality products. We use some of the Pixel and sub pixel defects appear on the industry's most advanced manufacturing screen in different ways.
  • Page 20 Black Dot Defects the warranty period, a TFT Monitor panel Black dot defects appear as pixels or sub in a Philips flat panel monitor must have pixels that are always dark or 'off'. That pixel or sub pixel defects exceeding the is, a dark dot is a sub-pixel that stands tolerances listed in the following tables.
  • Page 21 BRIGHT DOT DEFECTS ACCEPTABLE LEVEL 1 lit subpixel 2 adjacent lit subpixels 3 adjacent lit subpixels (one white pixel) Distance between two bright dot defects* >15mm Total bright dot defects of all types BLACK DOT DEFECTS ACCEPTABLE LEVEL 1 dark subpixel 4 or fewer 2 adjacent dark subpixels 2 or fewer...

  • Page 22: Customer Care & Warranty

    Please contact our Philips Customer Service Representative or local contact center (by Consumer care number) for more details. Philips Customer Care Center number listed below.

  • Page 23: 7� Troubleshooting & Faqs

    The Auto Function is not applicable in be corrected by a user. If the problem DVI-Digital mode as it is not necessary. still persists after you have tried these solutions, contact Philips customer service Visible signs of smoke or sparks representative. •...
  • Page 24 • Uninterrupted display of still or static Service Information Manual and contact images over an extended period may Philips customer service representative. cause "burn-in", also known as "after- * Functionality different according to imaging" or "ghost imaging", on your display.

  • Page 25: General Faqs

    • Shut down your computer, disconnect applied to the panel surface side. your old monitor and reconnect your This may affect your warranty Philips LCD monitor. conditions. • Turn on your monitor and then turn on your PC. How should I clean the LCD...
  • Page 26 Q12: Why is my Display not showing any PC, workstation or Mac? sharp text, and is displaying Ans.: Yes. All Philips LCD monitors are jagged characters? fully compatible with standard Ans.: Your LCD monitor works best at its PCs, Macs and workstations. You...
  • Page 27 USB A-C cable, the USB-A of your notebook need to be USB 3.2 or above. Q15: Where can I find Regulation & Service Information Manual mentioned in EDFU? Ans.: Regulation & Service Information Manual can be download on the Philips website support page.
  • Page 28 This product has been manufactured by and is sold under the responsibility of Top Victory Investments Ltd., and Top Victory Investments Ltd. is the warrantor in relation to this product. Philips and the Philips Shield Emblem are registered trademarks of Koninklijke Philips N.V.
