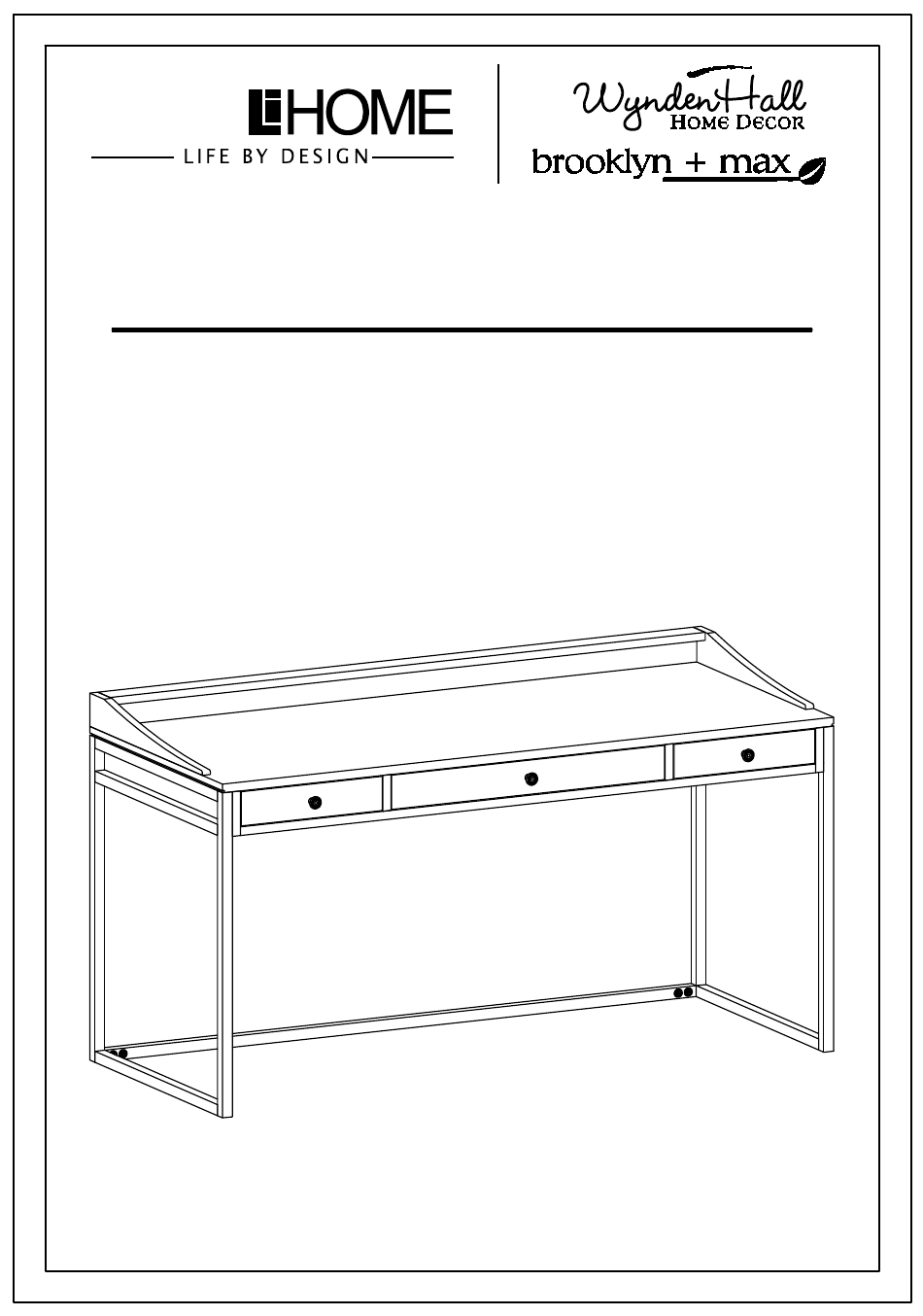

- Page 1 S IMP HOME ® RALSTON / BRINKLEY / DORIAN DESK MODEL # AXCRST-14GR...
- Page 2 S IMP HOME ® Questions, problems, assembly help, missing parts? No need to return the product, we will gladly help and ship your replacement parts free of charge Please call Customer Service at 1-866-518-0120 ext. 262 Monday to Friday between 9 am –4 pm EST or go to www.simpli-home.com/parts request In order to assist you in a timely manner, please have the following...
-
Page 3: Safety Information
IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. SAFETY INFORMATION Identify all the parts and hardware. Do not discard of the packaging until you have checked that you have all of the parts and hardware required. Hardware package may have spare parts. -
Page 4: Care And Maintenance
IMPORTANT : Keep this manual for future reference. CARE and MAINTENANCE Wood Furniture Care Perhaps the greatest environmental damage to wood furniture comes from wide swings in relative humidity (RH) in our homes. Wood absorbs and desorbs water as relative humidity rises and falls, and in doing so it swells and shrinks. -
Page 5: Pre-Assembly Information
PRE-ASSEMBLY INFORMATION MODEL # AXCRST-14GR PART DESCRIPTION LEFT SIDE QTY 1 QTY 1 RIGHT SIDE SUPPORT BAR QTY 1 QTY 1 NEED HELP? For help with assembly or if you are missing a part, Please call customer service at 1-866-518-0120 ext. 262 (9 am to 4 pm EST) -
Page 6: Hardware Description
PRE-ASSEMBLY INFORMATION MODEL # AXCRST-14GR HARDWARE DESCRIPTION LOCK WASHER ALLEN KEY BOLT ALLEN KEY BOLT M6 X 20mm M6 X 35mm Ø10 / Ø6 x 1.5 mm QTY 6 QTY 8 QTY 14 HANDLE & BOLT a. M4 X 25mm = QTY 2 WASHER ALLEN KEY b. - Page 7 COMPONENTS-KEY DIAGRAM MODEL # AXCRST-14GR...
- Page 8 ASSEMBLY MODEL # AXCRST-14GR STEP-1...
- Page 9 ASSEMBLY MODEL # AXCRST-14GR STEP-2...
- Page 10 ASSEMBLY MODEL # AXCRST-14GR STEP-3 1. Align Right Side BR to Top A and Support Bar C . 2. Repeat Step-1 and Step-2 for Right Side BR .
- Page 11 ASSEMBLY MODEL # AXCRST-14GR STEP-4 STEP-5 1. Attach Handle & Bolts 6 to Drawer Fronts of part A . 2. Use Phillips screwdriver to tighten Bolts. Do not over-tighten.
- Page 12 ASSEMBLY MODEL # AXCRST-14GR STEP-6 Note: Levelers on bottom of legs can be adjusted if floor is uneven.
-
