Craftsman 917.271142 Owner's Manual

16.5 hp electric start 42" mower automatic lawn tractor
Hide thumbs
Table of Contents

Advertisement

Quick Links

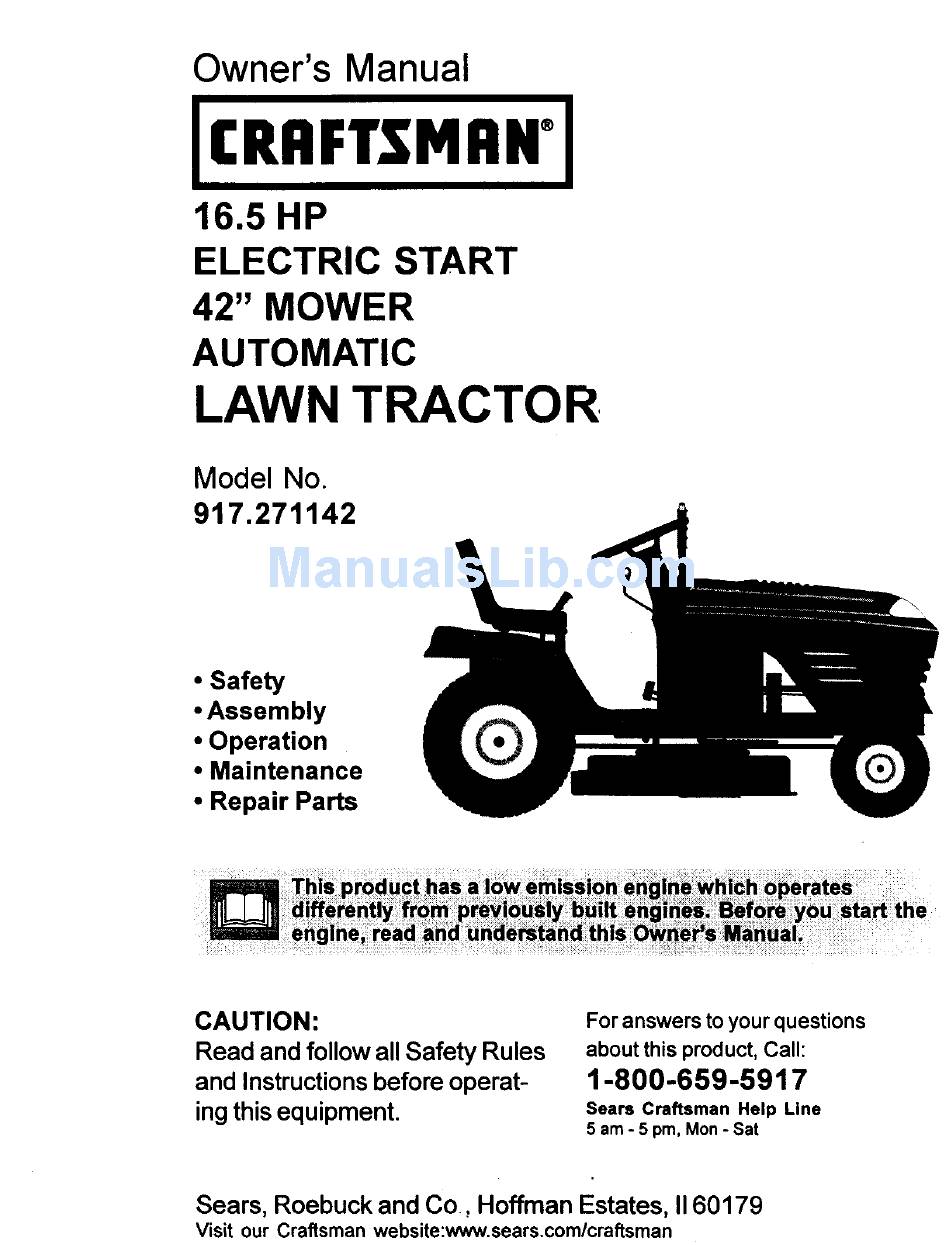

Owner's Manual
ICRAFTSMAN°I
16.5 HP
ELECTRIC
START
42" MOWER
AUTOMATIC
LAWN TRACTOR
Model No.
917.271142
• Safety
• Assem bly
• Operation
• Maintenance
• Repair Parts
CAUTION:
Read and follow all Safety Rules
and Instructionsbefore operat-
ing this equipment.
For answers to your questions
about this product, Call:
1-800-659-5917
Sears
Craftsman
Help
Line
5 am - 5 pm, Mon - Sat
Sears, Roebuck and Co, Hoffman Estates, II 60179
Visit our Craftsman website:www.sears.com/craftsman

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 917.271142 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Craftsman 917.271142

Summary of Contents for Craftsman 917.271142

  • Page 1 • Repair Parts CAUTION: Read and follow all Safety Rules and Instructionsbefore operat- ing this equipment. Sears, Roebuck and Co, Hoffman Estates, II 60179 Visit our Craftsman website:www.sears.com/craftsman For answers to your questions about this product, Call: 1-800-659-5917 Sears Craftsman...
  • Page 2 Sears will replace the battery at no charge. War- ranty service is available free of charge by taking your Craftsman your nearest Sears Service Center. charge will apply. This warranty...

  • Page 3: General Operation

    IMPORTANT: This cutting machine is capable of amputating hands and feet and throwing objects. Failure to observe the following safety instructions could result in serious injury or death. GENERAL OPERATION • Read, understand, and follow all instructions in the manual and on the machine before starting.
  • Page 4 • Keep children out of the mowing and under the watchful care of another responsible adult. • Be alert and turn machine off if children enter the area. • Before and when backing, and down for small children. • Never carry children. They may fall off and be seriously injured or interfere...

  • Page 5: Product Specifications

    A, Look for this symbol to point o_ impor- tant safety precautions. It means t.,,_u- TION!!! BECOME AWARE!!! YOUR SAFETY IS INVOLVED. _CAUTION: in order to prevent acciden- tal starting when setting up, transporting, adjusting or making repairs always dis- connect spark plug wire and place wire where it cannot contact spark plug.
  • Page 6 Steering Wheel Adapter ' ,zc __(1] Wmsher Seat 17/32 (1) Knob Keys (2) Keys Steering Wheel Steering Sleeve / Steering Wheel _eila)LhOC (1) Hex Bolt 5/16-18 x 1-1/4 x 1-3/16 x 12 Gauge Video Cassette Slope Sheet Steering Extension Shaft (1) Hex Bolt 5/16-18 (1) Shoulder...

  • Page 7: Tools Required

    Your new tractor has been assembled unassembled for shipping purposes. tractor all parts and hardware" you assemble correct tools as necessary to insure proper tightness. TOOLS REQUIRED FOR ASSEMBLY A socket wrench set will make assembly easier. Standard wrench sizes you need are listed below.

  • Page 8: Maintenance

    HOW TO SET UP YOUR TRACTOR CHECK BATTERY • Lift seat pan to raised position and open battery box door. • If this battery is put into service after month and year indicated on label (label located between terminals) charge battery for minimum of one hour at 6-10 amps.
  • Page 9 INSTALL MULCHER PLATE (If previously removed) • Raise and hold deflector shield in upright position. • Place front of mulcher plate over front of mower deck opening and slide into place, as shown, • Hook front latch into hole on front of mower deck.
  • Page 10 These symbols may appear on your tractor or in literature supplied with the product. Learn and understand their meaning. BATTERY CAUTION OR WARNING ENGINE ON ENGINE OFF FUEL CHOKE R N H L ATTACHMENT REVERSE CLUTCH ENGAGED ATTACHMENT IGNITION CLUTCH DISENGAGED DANGER, KEEP HANDS AND FEET AWAY REVERSE FORWARD...
  • Page 11 KNOW YOUR TRACTOR READ THIS OWNER'S MANUAL YOUR TRACTOR Compare the illustrations with your tractor to familiarize various controls and adjustments. Attachment Clutch Ammeter Throttle/Choke Control Clutch/ Brake Height Adjustment Knob Free Wheel Control Our tractors conform to the safety standards AMMETER - Indicates charging discharging...
  • Page 12 The operation of any tractor can the eyes, which can result in severe eye damage. glasses or eye shields while operating adjustments or repairs. over spectacles HOW TO USE YOUR TRACTOR TO SET PARKING BRAKE Your tractor is equipped with an operator presence sensing switch.

  • Page 13: To Operate On Hills

    • The average lawn should be cut to approximately 2-1/2 inches during the cool season and to over 3 inches during hot months. For healthier better looking lawns, mow often and after moderate growth. • For best cutting performance, over 6 inches in height should mowed twice.

  • Page 14: Add Gasoline

    NOTE: To protect hood from damage when transporting your tractor on a truck or a trailer, be sure hood is closed and secured to tractor. Use an appropriate means of tying hood to tractor (rope, cord, etc.). TOWING,CARTS AND OTHER ATrACHMENTS Tow only the attachments that are...
  • Page 15 • Insert key into ignition and turn key clockwise to "START" position release key as soon as engine starts. Do not run starter continuously than fifteen seconds per minute. If the engine does not start after several attempts, move throttle control to fast position, wait a few minutes and try again.

  • Page 16: Mowing Tips

    MOWING TIPS • Mower should be properly leveled for best mowing performance. LEVEL MOWER HOUSING" Service and Adjustments section of this manual. • The left hand side of mower should be used for trimming. • Drive so that clippings are discharged onto the area that has been cut.

  • Page 17: General Recommendations

    As Y OU COMPLETE FILL IN DATES REGULAR SERVICE Check Brake Operation Check Tire Pressure Check Operator Presence and Intedock Systems Check for Loose Fasteners A Sharpan/Replece Mowe, Blades Lubrication Chart Check Battery Level Clean Battery and Terminals Check Transaxle Cooling Adjust Blade Belt(s) Tension Adjust Motion Onve Belt(s) Tension Check Engine Oi! Level...
  • Page 18 TRACTOR Always observe safety rules when performing any maintenance. BRAKE OPERATION If tractor requires more than six (6) feet stopping distance at high speed in highest gear, then brake must be ad- justed. (See 'q'O ADJUST BRAKE" in the Service and Adjustments section of this manual).
  • Page 19 NOTE: The original equipment battery on your tractor is maintenance free. Do not attempt to open or remove caps or covers. Adding or checking level of electrolyte is not necessary. TO CLEAN BATTERY AND TERMINALS Corrosion and dirt on the battery and terminals can cause the battery to "leak"...

  • Page 20: Air Filter

    CLEAN AIR SCREEN Air screen must be kept free of dirt and chaff to prevent engine damage overheating. Clean with a wire brush or compressed air to remove dirt and stubborn dried gum fibers. CLEAN AIR INTAKE/COOLING AREAS To insure proper cooling, make sure the grass screen, cooling fins, and other external surfaces...
  • Page 21 CLEANING • Clean engine, battery, seat, finish, etc. of all foreign matter. • Keep finished surfaces and wheels free of all gasoline, oil, etc. • Protect painted surfaces with automo- tive type wax. CAUTION: Before performing • Depress clutch/brake pedal fully and set parking brake. •...
  • Page 22 TO LEVEL MOWER HOUSING Adjust the mower while tractor is parked on level ground or driveway. tires are properly inflated (See "PROD- UCT SPECIFICATIONS" section manual). If tires are over or underinflated, you will not properly adjust your mower. SIDE-TO-SIDE ADJUSTMENT •...
  • Page 23 Mandrel Idler Pull_ Pulleys TO ADJUST BRAKE Your tractor is equipped with an adjust- able brake system which is mounted the side of the transaxle. If tractor requires more than six (6) feet stopping distance at high speed highest gear, then brake must be adjusted.
  • Page 24 • Move motion control lever to the neutral (N) (lock gate) position. • Tighten adjustment bolt securely. NOTE: If additional clearance to get to adjustment bolt, move mower deck height to the lowest position. After above adjustment is made, if the tractor still creeps forward or backward while motion control lever is in neutral...

  • Page 25: Interlocks And Relays

    Positive Terminal Negative Terminal Positive Terminal Negative REPLACING BA'I-rERY ACAUTION: Do not short battery terminals by allowing a wrench other object to contact both terminals at the same time. Before connecting battery, remove metal bracelets, wristwatch bands,rings,etc. Positive terminal must be connected first to prevent sparking from accidental grounding.
  • Page 26 TO ADJUST THROTTLE CONTROL CABLE The throttle control has been preset at the factory and adjustment should not be necessary. Check adjustment as de- scribed below before loosening cable. If adjustment is necessary, proceed as follows: • With engine not running, move throttle control lever from slow to choke position.

  • Page 27: Engine Oil

    Immediately prepare your tractor for storage at the end of the season or if the tractor will not be used for 30 days or more. CAUTION: Never store the tractor with gasoline in the tank inside a building where fumes may reach an open flame or spark.

  • Page 28: Troubleshooting Chart

    TROUBLESHOOTING CHART PROBLEM CAUSE Willnotstart • Out of fuel. • Engine not "CHOKED" properly. • Engine • Bad spark plug. • Dirty air filter. • Dirty fuel filter. • Water in fuel. • Loose or damaged • Carburetor Service • Engine valves out of adjustment.
  • Page 29 TROUBLESHOOTING CHART CAUSE PROBLEM • Build-up of grass, leaves Loss of power and trash under mower. (Continued) • Dirty air filter. • Low oil level/dirty • Faulty spark plug. • Dirty fuel filter. • Stale or dirty fuel. • Water in fuel. •...
  • Page 30 TROUBLESHOOTING CHART CAUSE PROBLEM • Engine speed too slow. Poor grass discharge • Travel speed too fast. • Wet grass. • Mower deck not level. • Low/uneven tire air pressure. • Worn, bent or loose blade. • Buildup of grass, leaves and trash under mower.
  • Page 31 TRACTOR - - MODEL NUMBER 917.271142 SCHEMATIC AMMETER WHITE IGNITION SWITCH SEAT SWITCH (NOT OCCUPIED) L-- o ,_ED =---_--q RELAY BA]q'ERY FUSE WHITE BRAKEPEDAL UP) A]q-'MENT CLUTCH (CLUTCH --J-- i GREE N 86 i OPERATOR PRESENCE RELAY IGNITION UNIT _h L...
  • Page 32 TRACTOR-- MODEL NUMBER 917.271142 ELECTRICAL...
  • Page 33 TRACTOR - - MODEL NUMBER 917.271142 ELECTRICAL KEY PART 163465 74760412 156417 161343 166182 4152J 4799J 146147 166180 73510400 4207J 160784 163_o_38 140403 170219 71110408 131563 145673 122822X 141940 170250 109748X NOTE: All component dimensions given in U.S. inches 1 inch = 25,4 mm...

  • Page 34: Chassis And Enclosures

    TRACTOR-- MODEL NUMBER 917.271142 CHASSIS AND ENCLOSURES 13 ----..__...
  • Page 35 TRACTOR - - MODEL NUMBER 917.271142 CHASSIS AND ENCLOSURES KEY PART 169830 169061 17060612 155272 168337X013 STD533710 155927 145660 172108 144983X558 126938X 19131312 STD541437 156725X558 155217X599 164918X558 139976 17490508 169834 73800400 19091416 145201 161464 145202 STD552507 150127 72140606 154798 STD541437...

  • Page 36: Ground Drive

    TRACTOR - - MODEL NUMBER 917.271142 GROUND DRIVE...
  • Page 37 V-Belt, Ground Drive 169691 Keeper, Center Span 17060612 Screw 3/8-16x3/4 8883R Cover, Pedal 140186 Pulley, Engine - - MODEL NUMBER 917.271142 PART DEScRIPTIoN 71170764 Bolt Hex 7/16-20 x 4 Gr. 5 STD551143 Washer 154778 Keeper Belt Engine Hydro 134683 Guide Belt RH Engine...

  • Page 38: Steering Assembly

    TRACTOR - - MODEL NUMBER 917.271142 STEERING ASSEMBLY 4S _ • "29...
  • Page 39 TRACTOR - - MODEL NUMBER 917.271142 STEERING ASSEMBLY KEY PART 139768 154427 169840 169839 6266H 121748X 19272016 12000029 3366R 169832 STD551137 136518 145212 156546 57079 160395 165857 165851 154406 126847X 136874 19131416 17060612 STD561210 130465 155099 152927 139769 19133812 STD541537...

  • Page 40: Optional Equipment

    TRACTOR - - MODEL NUMBER 917.271142 ENGINE 13 77 _...,,,,..._ OPTIONAL EQUIPMENT Spark Arrester...
  • Page 41 TRACTOR - - MODEL NUMBER 917.271142 ENGINE PART 162156 17720410 159420 12-041-03 13280328 13200300 STD551231 169837 137180 109202X 158990 123487)( 137040 124028X 17670412 17000612 19091416 STD551131 19101216 M740108025 74760508 73510400 M73030800 NOTE: All component dimensions 1 inch = 25.4 mm...

  • Page 42: Seat Assembly

    17000616 19131614 Washer 13/32 X 1X 14 Ga 155925 Pan Pnt Seat (blk) 166369 Knob Seat - - MODEL NUMBER 917.271142 KEY PART DESCRIPTION 121246X Bracket Pnt Mounting Switch 121248X Bushing Snap BIk Nyl 50 Id Bolt Rdhd Sht Nk 1/4-20x1-1/2...

  • Page 43: Wheels And Tires

    TRACTOR - - MODEL NUMBER 917.271142 DECALS PART DESCRIPTION 156439 Decal Fender DangerSears 163205 Decal Fend Auto Sears Gold 171698 Decal Hood Rh Craftsman 171699 Decal Hood Lh Craftsman 168920 Decal Engine 133644 Decal Maint Customer Sears Dom 171765 Decal Replacement Srs...

  • Page 44: Lift Assembly

    TRACTOR - - MODEL NUMBER 917.271142 LIFT ASSEMBLY 2524...
  • Page 45 TRACTOR - - MODEL NUMBER 917.271142 LIFT ASSEMBLY KEY PART 159460 159471 105767X 12000002 19211621 120183X 125631X 122365X 139865 139866 STD624008 173288 73350800 130171 73800800 139868 163552 110807X 19131016 2876H 169484 126971X 73350600 138057 150233 169865 73540600 145212 110452X NOTE: All component dimensions 1 inch = 25.4 mm...

  • Page 46: Mower Deck

    TRACTOR - - MODEL NUMBER 917.271142 MOWER DECK 40--_ 103 105 _147 23 24 119 _ ""...
  • Page 47 TRACTOR - - MODEL NUMBER 917.271142 MOWER DECK KEY PART NO. NO. DESCRIPTION 165892 Mower Housing STD533107 Bolt 138O17 Bracket Assembly,Sway 165460 Bracket Sway Bar 38/42" STD624008 Retainer Spring 130832 Arm, Suspension, Rear 850857 Bolt, Hex 3/8-24 x 1.25 Gr. 8...
  • Page 48 119- 120- =;_, =_,- o1-,4...
  • Page 49 TRACTOR - - MODEL NUMBER 917.271142 HYDRO GEAR TRANSAXLE - - MODEL NUMBER 314-0510 _EY PART _10. NO. DESCRIPTION 170351 Main Housing, Assembly 170352 Side Housing, Assembly 170353 Center Section, Assembly 170354 Swashplate, Trunion Machined 169898 Block - Assembly 170355 Sealant 10.50z...
  • Page 50 TRACTOR - - MODEL NUMBER 917.271142 KOHLER ENGINE-MODEL NUMBER CV16S, TYPE NUMBER PS-43519 CYLINDER HEAD, VALVE AND BREATHER I CRANKCASE...
  • Page 51 TRACTOR - - MODEL NUMBER 917.271142 KOHLER ENGINE-MODEL NUMBER CV16S, TYPE NUMBER PS-43519 CYLINDER HEAD/VALVE/BREATHER KEY PART NO. NO. DESCRIPTION 25-351-01 Lifter, valve (2) 12-755-81 Kit, cylinder head (includes 3-17) 12-041-01 Carburetor gasket(2) 12-041-02 Air cleaner base gasket 12-041-03 Exhaust maniford gasket...
  • Page 52 TRACTOR o- MODEL NUMBER 917.271142 KOHLER ENGINE-MODEL NUMBER CV16S, TYPE NUMBER PS-43519 BLOWER HOUSING AND BAFFLES I IGNITION / ELECTRICAL I AIR INTAKE I...
  • Page 53 TRACTOR - - MODEL NUMBER 917.271142 KOHLER ENGINE-MODEL NUMBER CV16S, TYPE NUMBER PS-43519 IGNITION/ELECTRICAL KEY PART DESCRIPTION 12-086-14 Screw, hex. flange MIOxl.5x46 12-468-03 Washer, plain 3/8 24-162-03 Screen, grass M-0639016 Screw, hex. flange M6x1.0x16 (6) 12-157-03 41-403-09 Regulator, rectifier X-22-11...
  • Page 54 TRACTOR - - MODEL NUMBER 917.271142 KOHLER ENGINE-MODEL NUMBER CV16S, TYPE NUMBER PS-43519 STARTING SYSTEM J ENGINE CONTROLS OIL PAN / LUBRICATION I '-2: @ --13 0--4 22-- 8-- l O--16...
  • Page 55 M5x0.8x16 (3) 12-032-03 Seal, oil (P.T.O. end) 24-086-16 Screw, hex. flange M8x1.25x45 (11) 24-086-17 Screw, hex. flange M8x1.25x45 12-199-53 Assembly, Pan, oil (Incl. 11,15-18) - - MODEL NUMBER 917.271142 ENGINE CONTROLS PART DESCRIPTION 12-079-07 12-237-01 M-0664020 24-086-43 12-536-10 M-0443025 M-0443020 12-089-11...
  • Page 56 TRACTOR - - MODEL NUMBER 917.271142 KOHLER ENGINE-MODEL NUMBER CV16S, TYPE NUMBER PS-43519 CRANKSHAFT FUEL SYSTEM I...
  • Page 57 12-454-01 Tie, wire 25-452-20 Terminal 12-454-03 Tie cable M-0561010 Screw, thread forming M5X0.8X10 M-0645020 Screw, hex. flange M6X1.0X20 (2) MODEL NUMBER 917.271142 CRANKSHAFT KEY PART DESCRIPTION 12-014-37 Crankshaft (Includes 2) 12-139-01 Plug, cup EXHAUST KEY PART DESCRIPTION 25-072-04 Stud (2)
  • Page 59 SUGGESTED o"1 GUIDE FOR SIGHTING SLOPES Operate your Tractor up and down the face of slopes (not greater than 15°), never across the face. Make turns gradu- ally to prevent tipping or loss of control. Exercise extreme caution when changing direction on slopes.
