- Page 1 ИНСТРУКЦИЯ Systemair KBR 355E4...

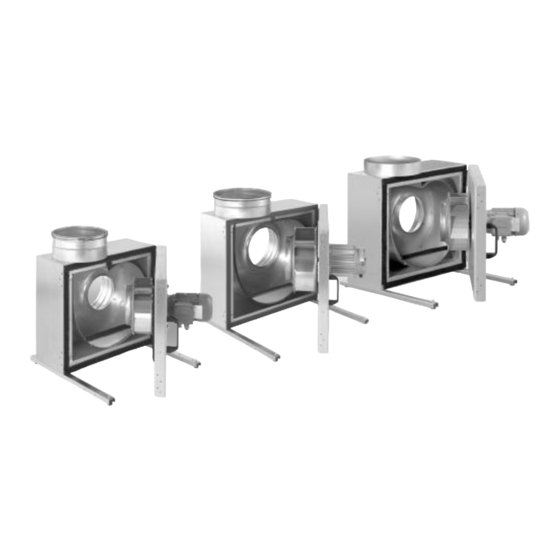

- Page 2 Thermo box KBR, KBR/F Installation and Operating Instructions Document in original language | · 004...
- Page 3 © Copyright Systemair AB All rights reserved E&OE Systemair AB reserves the rights to alter their products without notice. This also applies to products already ordered, as long as it does not affect the previously agreed specifications. | 004...
-
Page 4: Table Of Contents
Contents General information .........1 Notice symbols ........1 1.1.1 Instruction symbols.....1 Important safety information ......1 Personnel ..........1 Personal protective equipment....2 5 rules of electrical safety ......2 Warranty ............2 Delivery, transport, storage .......2 Description ............3 Intended use ........3 Technical data ........4 KBR and KBR/F ........4 Name plate and type key ........5 Accessories............6 Installation.............6... -
Page 7: General Information
General information | General information Notice symbols Danger Caution Hazard with a low risk Direct hazard Failure to comply with this warning may lead to Failure to comply with this warning will lead moderate injuries. directly to death or to serious injury. Important Warning Hazard with risk of damage to objects... -
Page 8: Personal Protective Equipment
Further prerequisites are a completed maintenance plan with no gaps and a commissioning re- port. Systemair will require these in the case of a warranty claim. The commissioning report is a component of this document. The maintenance plan must be created by the operator, see section 12.2 Maintenance, page 13. -
Page 9: Description
Description | Unpacking When opening the transport packaging, there is a risk of damage from sharp edges, nails, staples, splinters etc. ♦ Unpack the fan carefully. ♦ Check the fan for obvious transport damage. ♦ Only remove the packaging shortly before assembly. Transport Safety information Warning: Electrical or mechanical hazards due to fire, moisture, short circuit or malfunction. -
Page 10: Technical Data
| Description Technical data Max. ambient temperature [°C] see data sheet, available in our online catalogue. Sound pressure [dB] see data sheet, available in our online catalogue. Voltage, current, frequency, enclosure class, weight see name plate of the fan The motor data can be found on the name plate of the motor, or in the technical documents of the motor manufacturer. -
Page 11: Name Plate And Type Key
Name plate and type key | Name plate and type key Type designation Insulation class Voltage/current/frequency Article number/production number/manufacturing date Input power Certifications Enclosure class/fan impeller speed/ weight Table 3 Type key More power version Normal power version Less power version Motor type Electronically commutated/1 phased or 3 phased 4 poled/controllable by frequency converter/1 phased... -
Page 13: Accessories
| Accessories Accessories For details of the accessories, please check our online catalog or contact Systemair. Accessories KBR/F Accessories KBR Table 4 Accessories ALS-KBR Drain plug Flexible connection AXC 400°C WSD-KBR-2 Weather roof for motor Silencer Flexible connection Air-operated damper... -
Page 14: Assembly/Disassembly Impeller - Internal Rotor Motor
The ball bearing of the motor and the balanced impeller may be damaged by forceful impacts. ♦ Attach the impeller and/or the shaft extension to the shaft or the rotor without forceful impacts. ♦ Do not separate the impeller and the hub. They were balanced as one unit by Systemair. Note: The hub can be heated for easier assembly and disassembly, for example with a hot-air blower. - Page 15 | Installation Disassembly 1. Aluminium hub 1. Steel hub Assembly 5. Aluminium hub Use screw locking The set screw must push on the wedge Use screw locking of the shaft. 5. Steel hub 6. Steel hub Tighten the two screws evenly with the tightening torque according to table 5.
-
Page 16: Electrical Connection
Electrical connection | Electrical connection Safety information ♦ Observe 2 Important safety information, page 1 ♦ Prevent the ingress of water into the connection box. Connection ♦ Check if the data on the nameplate matches the ♦ Connect the cable end in a dry environment. connection data. -
Page 17: Protecting The Motor
| Electrical connection Controll via switching on / off The following fans are equipped with a DIN1 connection: KBR 355EC-L Din1: enable electronics • enable: pin open or voltage 5–50 V DC • disable: bridge to GND IR24–P CO2RT-R(-D) IR24-P CO2RT-R-D Supply +10V... -
Page 19: Commissioning
♦ Heating of the motor due to use of a variable frequency drive must be checked in the application by the customer. ♦ Never exceed the maximum impeller rotation speed indicated on the name plate of the fan. ♦ In any case Systemair recommends an all-pole sine filter if the fan is operated with a frequency converter. Commissioning Warranty claims can only be made if commissioning work is carried out correctly and written evidence thereof is provided. -
Page 20: Troubleshooting/Maintenance/Repair
Thermal contacts/ resistors have Check the cooling impeller (if used), measure the motor Motor overheated triggered winding (if possible) / contact Systemair. Capacitor (if used) not or not Connect the capacitor correctly. correctly connected. Contact Systemair Motor blocked... -
Page 21: 12.2 Maintenance
Ambient temperature too high Check if the correct fan is used for your application. Note: For all other damage/defects, please contact Systemair. 12.2 Maintenance Warranty claims can only be made if maintenance work is carried out correctly and written evidence thereof is provided. -
Page 22: Cleaning
Check the flexible connectors for damage. See normal operating conditions Spare parts ♦ Use original spare parts from Systemair only. ♦ When ordering spare parts, please specify the serial number of the fan. This can be found on the name plate. Cleaning Safety information ♦... -
Page 23: Commissioning Report
Commissioning Report | Commissioning Report Warranty claims can only be made if commissioning work is carried out correctly and written evidence thereof is provided. Description: Article no.: Manufacturing order no.: Installer Company: Contact person: Company address: Tel. no.: Email: Operator (Place of installation) Company: Contact person: Company address:... -
Page 25: Eu Declaration Of Conformity
□ □ Commissioning of the fan successful? Date, installer's signature Date, operator's signature EU Declaration of conformity The manufacturer: Systemair GmbH Seehöfer Straße 45 97944 Boxberg Germany Product designation: Thermo fans Type designation: AxZent; KBR; MUB-K; MUB/T; MUB/T-S; DVN; DVNI... - Page 26 | 004...
- Page 27 Systemair GmbH Seehöfer Str. 45 97944 Boxberg Germany Tel.: +49 (0)7930/9272-0 Fax: +49 (0)7930/9273-92 info@systemair.de www.systemair.de...
- Page 28 СМОТРИТЕ ТАКЖЕ Кухонные Промышленные Канальные вентиляторы Гибкие вставки вентиляторы вентиляторы Алмазное Кухонные Заслонки Монтаж систем вентиляции сверление вытяжки отверстий Воздухораспределительные Воздуховоды устройства...
