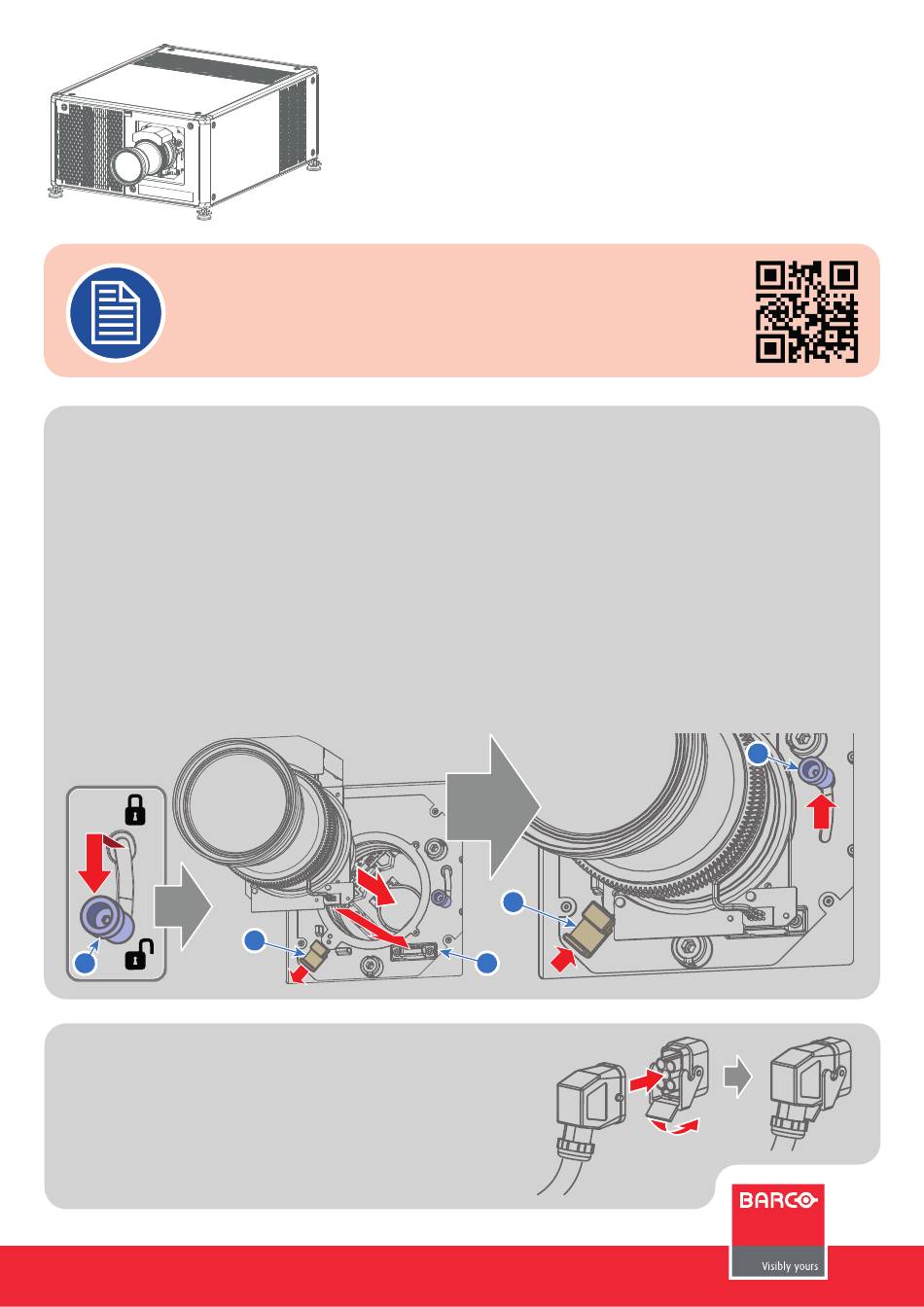

Quick Start Guide Download Product Manual Product manuals and documentation are available online at www.barco.com/td/R9008600 Registration may be required; follow the instructions given on the website. IMPORTANT! Read Installation Instructions before connecting equipment to the mains power supply. Install Lens !! ONLY USE TLD+ Zoom Lenses !! 1.
Page 2
Startup 1. Power on. Turn the mains switch to on ( I ). - Start up sequence starts. Backlight of the Power on/off button flashes WHITE. - When start up sequence is finalized the Power on/off button lit WHITE. 2. Press the Power on/off button. - The backlight of the Power on/off button changes from WHITE to BLUE.
Switch off 1. Press the Power on/off button for three seconds. 2. Wait until the after-cooling cycle is finished (approximately 30 sec.) 3. Turn the mains switch to off (’0’). 4. Unplug the power cord from the projector. 30 s Precautions •...
Page 4
RCU buttons Button pressed indicator. Shutter Open. Shutter Close. Touch Panel On/Off. LCD On/Off. Lens Zoom. Lens Shift. Menu Activation. Menu Selection. Menu Navigation. Input Selection. Address button. Numeric buttons. Test pattern Lens Menu XLR connector. TBD. Macro button. Menu Back. Default button.
Communication Panel WiFi antenna for wireless IP (optional) RS232 for serial communication 12V 1A output Sync Out 3D Firmware update/USB backup custom settings Sync In 3D Status lights 10/100 base-T for external control over IP and Art-Net DMX interface input IR receive sensor DMX interface output GSM antenna input (optional)
Error RED toggles on/off ORANGE toggles on/off Warning IR signal received GREEN IR signal acknowledged Tel.: - USA +1 866 374 7878 Support - EMEA +32 56 36 8019 Website www.barco.com/esupport - APAC +86 400 88 22726 - 6 -...
