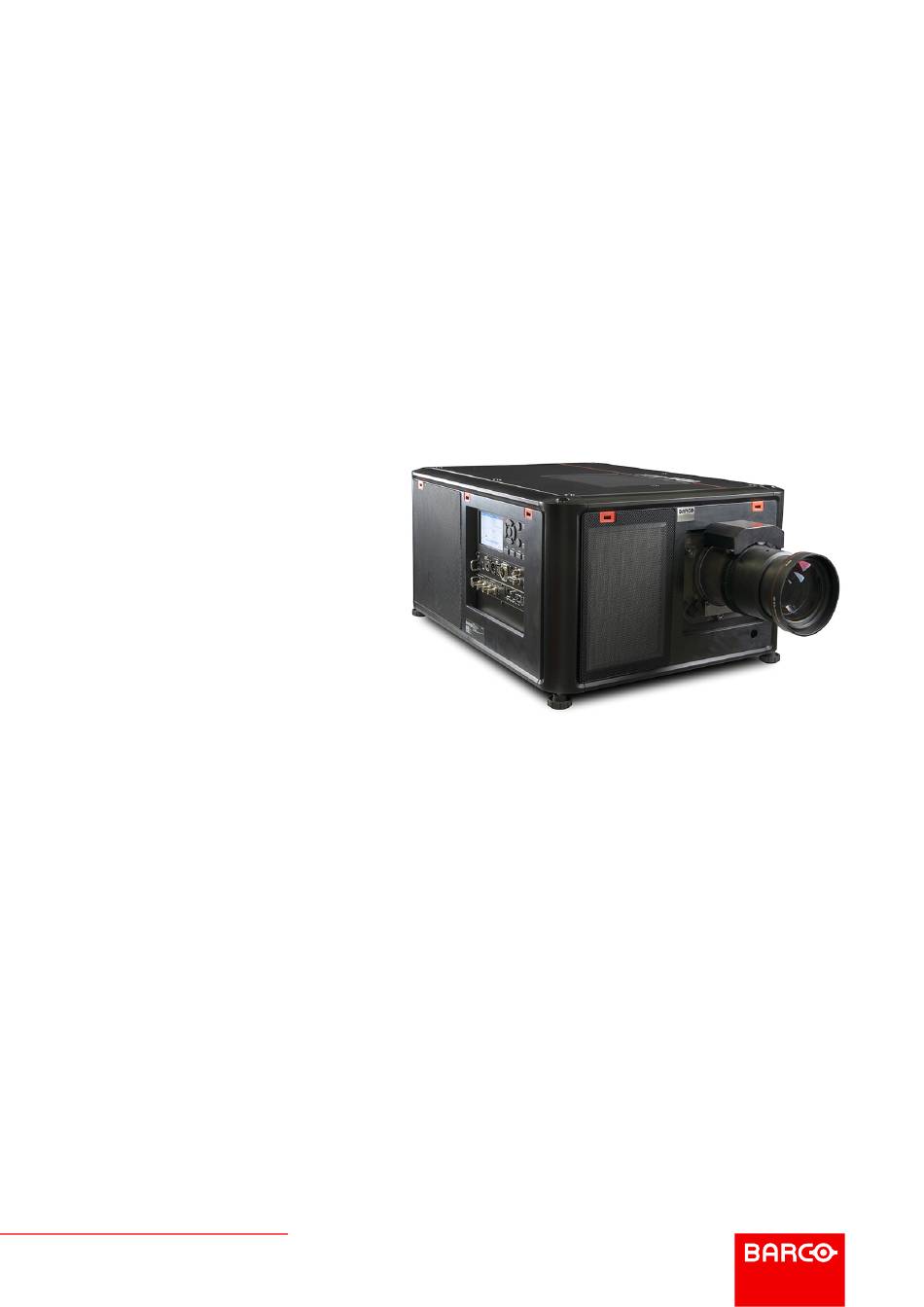

Page 1 User guide ENABLING BRIGHT OUTCOMES...
Page 2 Product revision Software Revision: 2.3.8 Barco Fredrikstad AS Habornveien 53, N-1630 Gamle Fredrikstad, Norway Support.fre@barco.com www.barco.com Barco NV Beneluxpark 21, 8500 Kortrijk, Belgium www.barco.com/en/support www.barco.com...
Page 3 Barco. If the purchaser or a third party carries out modifications or repairs on goods delivered by Barco, or if the goods are handled incorrectly, in particular if the systems are operated incorrectly or if, after the transfer of risks, the goods are subject to influences not agreed upon in the contract, all guarantee claims of the purchaser will be rendered invalid.
Page 4 Disclaimer for camera usage Barco provides a kit with a laser range finder and USB camera to help measure the distance from the front of the projector to the projected surface and to help monitor the performance of the projector. Barco disclaims any liability for any use of the USB camera outside this intended use.
Page 5: Table Of Contents
Table of contents 1 Safety information....................................11 General Considerations ................................12 Important safety instructions..............................13 Product safety labels..................................17 High Brightness precautions: Hazard Distance ......................18 HD for fully enclosed projection systems...........................20 HD in function of modifying optics ............................22 Radio equipment (optional) ...............................22 Compliance ......................................23 Download Product Manual ................................23 2 Getting Started......................................25 Getting to know the projector ..............................26...
Page 6 LED and Button indication chart .............................46 Pulse Quad Combo input Mk II ...............................47 Pulse Quad Combo input Mk I..............................48 Pulse Quad DP 1.2 input ................................49 Pulse SFP input ....................................50 5 GUI – Introduction....................................51 Overview......................................52 Navigation ......................................55 Test Patterns......................................57 6 GUI – Source ......................................59 Displaying a single source .................................60 Displaying multiple sources: Stitched layouts.........................60 Connector settings ..................................62...
Page 7 8.13.4 Basic black level adjustment ..........................117 8.13.5 RGB gain adjustment..............................119 8.13.6 Black level files................................120 8.14 Illumination ...................................... 121 8.15 3D projection ....................................122 8.15.1 Active Stereo & Passive Stereo........................122 8.15.2 Setup process 3D projection ..........................123 8.15.3 Connection possibilities............................123 8.15.4 3D Setup ..................................
Page 8 14.4 Cleaning / replace the air filters............................196 A Specifications ......................................201 Specifications for UDM 4K30 ..............................202 Specifications for UDM W30..............................203 Specifications for UDM 4K22 ..............................205 Specifications for UDM W22..............................207 Specifications for UDM W19..............................208 Specifications for UDM 4K15 ..............................210 Specifications for UDM W15..............................
Page 9 Contact information..................................244 Production address..................................244 Glossary ........................................245 List of tools ....................................... 247 Index ..........................................249 R5911443 /11...
Page 10 R5911443 /11...
Page 11: Safety Information
Ensure that you understand and follow all safety guidelines, safety instructions and warnings mentioned in this chapter before installing the UDM projector. Clarification of the term “UDM” used in this document When referring in this document to the term UDM means that the content is applicable for following Barco poducts: •...
Page 12: General Considerations
• Before operating this equipment please read this manual thoroughly and retain it for future reference. • Installation and preliminary adjustments must be performed by qualified Barco personnel or by authorized Barco service dealers. • All warnings on the projector and in the documentation manuals must be adhered to.
Page 13: Important Safety Instructions
See the product safety manual for details. Users definition Throughout this manual, the term SERVICE PERSONNEL refers to Barco authorized persons having appropriate technical training and experience necessary to be knowledgeable of potential hazards to which they are exposed (including, but not limited to HIGH VOLTAGE ELECTRIC and ELECTRONIC CIRCUITRY and HIGH BRIGHTNESS PROJECTORS) in performing a task, and of measures to minimize the potential risk to themselves or other persons.
Page 14 This product contains no user serviceable parts. Attempts to modify/replace mechanics or electronics inside the housing or compartments will violate any warranties and may be hazardous. This kind of operations shall only be performed by Barco authorized service personnel. •...
Page 15 • Max units in hanging configuration, 2 units. • When hanging projectors on a truss with the Barco stacking frame, always secure the stack with safety cables between the projectors and the truss. • When using the projector in a hanging configuration, always mount 2 safety cables. See installation manual for the correct use of these cables.
Page 16 For lens cleaning follow the instructions precisely as stipulated in the projector manual. • Only use zoom lenses of the Barco TLD+ series on the 4K models of the projector. Using other lenses will damage the internal optics. For suitable fixed TLD+ lenses contact Barco or see Barco website.
Page 17: Product Safety Labels
Use an appropriate forklift to raise flight cases and take the necessary precautions to avoid personnel injury. Safety Data Sheets for Hazardous Chemicals For safe handling information on chemical products, consult the Safety Data Sheet (SDS). SDSs are available upon request via safetydatasheets@barco.com. 1.3 Product safety labels Light beam related safety labels Label image...
Page 18: High Brightness Precautions: Hazard Distance
Safety information Label image Label description Label location Hazard class 2: laser radiation warning symbol. 0.95 mW - 638 nm. WARNING! DO NOT LOOK INTO THE BEAM NO DIRECT EYE EXPOSURE TO THE PROJECTOR BEAM IS PERMITTED LASER RADIATION - DO NOT STARE INTO LASER RANGING BEAM RG3 IEC EN 62471-5:2015 CLASS 2 IEC EN 60825-1:2014 HAZARD DISTANCE: CONSULT SAFETY MANUAL...
Page 19 Safety information detection system or other applicable control measure shall prevent hazardous eye access to the radiation within the hazard distance. For example, projectors that have a HD greater than 1 m and emit light into an uncontrolled area where persons may be present should be positioned in accordance with “the fixed projector installation”...
Page 20: Hd For Fully Enclosed Projection Systems
The LIP shall be installed by Barco or by a trained and Barco-authorized installer or shall only be transferred to laser light show variance holders. This is applicable for dealers and distributors since they may need to install the LIP (demo install) and/or they transfer (sell, rent, lease) the LIP.
Page 21 Safety information RESTRICTED AREA DIFFUSE REFLECTION Image 1–4 Restricted Access location (enclosed projection area). Restriction Zone. Projector. Projection Distance. Theater (observation area). Separation Width. Must be minimum 1 meter. For this type of setup 3 different HD shall be considered: •...
Page 22: Hd In Function Of Modifying Optics
NO PL 5250 MHz frequency range. UKNI Hereby, Barco declares that the radio equipment type UDM is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: https://www. barco.
Page 23: Compliance
Bracknell RG12 8PE, Berkshire, United Kingdom 1.9 Download Product Manual Download Product Manual Product manuals and documentation are available online at www.barco.com/td. Registration may be required; follow the instructions given on the website. IMPORTANT! Read Installation Instructions before connecting equipment to the mains power supply.
Page 24 Safety information R5911443 /11...
Page 25: Getting Started
Getting Started Getting to know the projector ......................26 Power on the projector ........................28 Start image projection ........................29 Switching to ready mode .......................32 Power off projector........................32 About this chapter This chapter and by extension this whole document, the user manual, is intended for the user who want’s to operate the projector.
Page 26: Getting To Know The Projector
Getting Started 2.1 Getting to know the projector Orientation convention This manual refers to the left side of the projector as the side at your left hand when standing behind the projector and looking at the projection screen in front of the projector. Image 2–1 Right Left...
Page 27 Getting Started 9 10 11 Image 2–3 IR receiver projector rear side Overvoltage status light Mains power input socket (for C19 plug) USB port (to control motorized rigging frame) Power ON/OFF switch For detailed info about the Input & Communication module see chapter “Input &...
Page 28: Power On The Projector
Getting Started Image 2–4 CAUTION: Keep the air inlets and outlet at all times free. Make sure there is a minimum distance of 40 cm (15.7 in) between the air outlet and the nearest solid object. Projector Infra Red receivers and Remote Controle Unit The projector has three Infra Red receivers: one at the rear (next to the power input), one at the front (below the lens holder) and one at the right side (integrated in the Input &...
Page 29: Start Image Projection
Getting Started Warning: Never switch on the projector if the OVERVOLTAGE status light lit up. Neglecting will cause irreversible damage to the projector. • If no, proceed with the next step. Press the mains switch (reference 2) to switch on this projector. Image 2–6 •...
Page 30 Getting Started Image 2–9 Example of connecting an HDMI source. Check if the SYNC LED lit up ORANGE (reference 1). This indicates that the sync is detected on the input signal. Image 2–10 Select the source Press the Input button (reference I ) on the remote control or local keypad. Image 2–11 The Source selection menu opens on the LCD display.
Page 31 Getting Started Image 2–12 Example of the input selection menu Use the arrow keys to select the desired source. • the SEL LED (reference 2) of the selected source lit up GREEN, and • the image of the selected source is projected. Image 2–13 Quick test pattern selection Press the Test pattern button (references P) on the remote control or local keypad.
Page 32: Switching To Ready Mode
Getting Started 2.4 Switching to ready mode How to switch to ready mode Press and hold the Power on/off button for 3 seconds on the local keypad, or press the Power Off button on the remote control. The projector goes to Ready mode. The after-cooling cycle will start (about 30 seconds). During this period the Power on/off button will blink.
Page 33: Pulse Remote Control Unit
Pulse Remote Control Unit Pulse RCU, battery installation ......................34 Pulse RCU, protocol setup ......................35 Pulse RCU, function of the on/off button ..................36 Using the RCU ..........................36 Pulse RCU, Functionality overview ....................37 Pulse RCU, function of the “button pressed indicator” ..............37 Pulse RCU, function of the “RGB filter”...
Page 34: Pulse Rcu, Battery Installation
Pulse Remote Control Unit 3.1 Pulse RCU, battery installation About the batteries for the remote control Batteries are no longer included in the packaging. It is up to the user to purchase the correct batteries. Use 2 AA size (alkaline) batteries in the remote control. Before using your remote control, first install the batteries.
Page 35: Pulse Rcu, Protocol Setup
Depending on the projector, the remote control can be switched between these protocols. Which protocol to use • The NEC protocol must be used for Barco projectors based on the Pulse platform: F70, F80, F90, HDX 4K, UDX, UDM, XDL, F40, F400, etc. •...
Page 36: Pulse Rcu, Function Of The On/Off Button
Pulse Remote Control Unit 3.3 Pulse RCU, function of the on/off button Function of the remote control on/off button The Pulse remote control unit has at the front side an on/off switch (reference 1 Image 3–5). Switching off the remote control prevents that unwanted commands are send due to an accidental key press. Furthermore, switching the RCU off will extend the battery lifetime of the remote control.
Page 37: Pulse Rcu, Functionality Overview
Using the RCU in combination with a 3D emitter When using a 3D emitter that radiates IR beams (e. g. the optional 3D emitter that Barco provides), the IR beams of the 3D emitter may interfere with the IR communication between projector and the RCU.
Page 38: Pulse Rcu, Function Of The "Rgb Filter" Button
Pulse Remote Control Unit • Slowly flashes (2 times a second) when the battery level is becoming low; typically when more than 85% of the useful life is past. 3.7 Pulse RCU, function of the “RGB filter” button Filtering the color of the projected image By pressing the RGB filter button on the RCU you can place a color filter on the output of the projector.
Page 39: Using The Xlr Connector Of The Rcu
Pulse Remote Control Unit Tip: A few examples: To enter address 3, press "3" digit button on the RCU to set the RCU's address to 3 and wait until the button pressed indicator is out. Alternatively, you can also press “0” and “3”. This way, the button pressed indicator goes out immediately.
Page 40: Pulse Rcu, Silicone Protection Sleeve (Optional)
(optional) Introduction Barco offers a silicone form fitting protection sleeve for the Pulse RCU. The silicone material keeps it comfortably, non slip and soft touch. All buttons and openings remain accessible. The sleeve is quick and easy installed. For ordering information see Barco website.
Page 41: Input & Communication
Input & Communication Introduction ..........................42 Local Keypad and LCD panel ......................42 LCD touch panel...........................43 Communication connections......................44 LED and Button indication chart.....................46 Pulse Quad Combo input Mk II ......................47 Pulse Quad Combo input Mk I .......................48 Pulse Quad DP 1.2 input .......................49 Pulse SFP input..........................50 R5911443 /11...
Page 42: Introduction
Input & Communication 4.1 Introduction General The Input & Communication module consists of a local keypad with LCD panel (1), a communication panel (4) and a Quad Combo input board (5). The free input slot can be used for optional modules (e.g. the Quad DP 1.2 input board).
Page 43: Lcd Touch Panel
Input & Communication Menu navigation Input selection Menu confirmation, OK button Shutter open / close Menu open / close Test patterns Menu back Lens adjustment Power on / off LCD panel Projector OSD on / off Local Keypad The Keypad gives direct access to several functions, in addition, access to the menu system. The keypad has a backlight that can be switched on and off manually.
Page 44: Communication Connections
Input & Communication 4.4 Communication connections Communication Panel 12V 1A Image 4–3 WIFI antenna for wireless IP (optional) RS232 for serial communication 12V 1A output Sync Out 3D Firmware update / USB download log files Sync In 3D 10/100 base-T for external control over IP and Art-Net Status lights DMX interface input IR receive sensor...
Page 45 Input & Communication Advantages of using RS232/RS422 serial communication: • easy adjustment of the projector via PC (or MAC). • allow storage of multiple projector configurations and set ups. • wide range of control possibilities. • address range from 0 to 255. •...
Page 46: Led And Button Indication Chart
Input & Communication 4.5 LED and Button indication chart Button Backlight Status Description Button Color status Power button Blinking WHITE (slow) Projector starts up (booting) Blinking WHITE (fast) Firmware upgrade Solid WHITE Projector is in Standby or Ready mode Blinking BLUE Projector goes to ON mode Solid BLUE Projector is ON...
Page 47: Pulse Quad Combo Input Mk Ii
Input & Communication 4.6 Pulse Quad Combo input Mk II Overview Quad Combo Input Mk II Image 4–4 Quad SDI channel A: 3G/12G input DisplayPort Input Quad SDI channel B: 3G input HDMI input Quad SDI channel C: 3G SDI input + 3G/12G output HDBaseT input 1 Quad SDI channel D: 3G SDI input / output HDBaseT input 2...
Page 48: Pulse Quad Combo Input Mk I
Input & Communication HD, 3G & 12G IN 0 OUT 0 IN 1 OUT 1 N.C. HD & 3G IN 0 OUT 0 N.C. IN 1 OUT 1 FPGA IN: HD & 3G SDI IN/OUT OUT 0 OUT: HD, 3G & 12G IN 0 N.C.
Page 49: Pulse Quad Dp 1.2 Input
Input & Communication Remark concerning the Mk I and Mk II inputs boards The Mk I input board miss functionality that has been implemented on the Mk II input board. These missing features include: • Loop-through functionality • 12G SDI support •...
Page 50: Pulse Sfp Input
Input & Communication 4.9 Pulse SFP input The Barco SFP Input Board has been designed and tested to work alongside the Barco SFP Output Board. However, it is possible that the SFP Input board can also work with other third-party devices that support 12G over fiber.
Page 51: Gui - Introduction
GUI – Introduction Overview .............................52 Navigation............................55 Test Patterns ..........................57 About this chapter This chapter gives a general overview of the Graphic User Interface. R5911443 /11...
Page 52: Overview
GUI – Introduction 5.1 Overview Disclaimer on GUI images used in this manual The GUI images in this manual are example illustrations and should be treated as such. While the name of the projector displayed in the illustrations may be different from the projector model you are currently using, the menu lay-out and functionality is identical.
Page 53 GUI – Introduction Image 5–2 Example of the Product registration form GUI – Status Screens While the projector menu is not active, or the projector is Ready or Standby mode, the Status screens remain visible. These screens give an overview of the state of the projector and can be navigated through using the left and right arrow keys, or by swiping the screen left or right.
Page 54 GUI – Introduction Image 5–4 Example of the home menu The projector software platform uses access levels what each user can do. A standard user has access to the standard projector functionality. A certified service technician has also access to the advanced settings menu. This menu is password protected.
Page 55: Navigation
GUI – Introduction GUI – Pulse software menu tree Source Image Installation Pro les Settings Test patterns Scheduler Lx Quad combo Pro le Edit Product Add command Contrast Scaling Test pattern x registration Connector x New Pro le Custom test Edit command Date and time Brightness...
Page 56 GUI – Introduction Image 5–6 To start up the menu structure, press the MENU button (1). Use the arrow keys (Menu Navigation buttons) to navigate to the desired menu item (2). The background color of the selected menu item will be highlighted light blue. Press the Menu Selection button (center key of the arrow keys), also called OK button, to activate that item and to jump one level deeper (3).
Page 57: Test Patterns
GUI – Introduction To enter values with the local keyboard, use the arrow keys to select the first digit, press OK. Select the second digit and press OK. Continue until all digits are entered. Close the action by selecting the enter (↵) button and press OK.
Page 58 GUI – Introduction Example of test Type Explanation pattern icon Standard Standard test patterns. See previous list to see all test patterns test available for your device. patterns Warped test Available from software 2.2 onward. Every test pattern will have a patterns “warped”...
Page 59: Gui - Source
GUI – Source Displaying a single source ......................60 Displaying multiple sources: Stitched layouts ..................60 Connector settings........................62 No source image ..........................64 About the Source menu This menu is used to select, review and configure sources into the projector. R5911443 /11...
Page 60: Displaying A Single Source
GUI – Source 6.1 Displaying a single source About selecting a source Before a source can be projected, the source signal must be connected to the source input(s) of the device and a valid synchronization signal must be available along with the source signal on at least one of the input connectors.
Page 61 GUI – Source The table below describes the different Stitch Layouts and scan directions. Type of layout Description Available connectors Mode A single source is displayed in Quad Combo input: Mono / Active full screen stereo • SDI (4x) • HDBaseT (2x) •...
Page 62: Connector Settings
GUI – Source Image 6–4 Example of the stitched layout options Select the desired stitched input. Tip: If the Quad DP input board is installed, scroll all the way down the menu for the stitched options on that board. Image 6–5 Example of the stitched input options with the Quad DP board installed 6.3 Connector settings About connector settings The Connector Settings menu allows you to change settings for each input connector of the projector.
Page 63 GUI – Source Image 6–6 Main menu, Source Press OK. The Select Source menu is displayed with the actual available sources filled out. Scroll down to the bottom of the list of available sources and select Connector settings. Image 6–7 Source menu, connector settings The available input connectors are displayed.
Page 64: No Source Image
GUI – Source You can change the following: • To force a limit on the used signal range, select one of the available signal ranges. • To force a limit on the color space, select one of the available color spaces. •...
Page 65 GUI – Source Image 6–12 Example of the No source image menu Select the desired image to project when no source image is available. When custom background images have been uploaded using an external tool, they will be listed after the predefined images. Image 6–13 Example of the No source image menu with two custom background images.
Page 66 GUI – Source R5911443 /11...
Page 67: Gui - Image
GUI – Image Adjusting the contrast ........................68 Adjusting the brightness ........................68 Adjusting the saturation.........................69 Adjusting the sharpness ........................70 Adjusting the gamma correction.....................71 Setting the desired Gamma type ....................72 Tilted brightness uniformity correction ....................74 Digital shift & zoom ........................76 RealColor P7..........................80 7.10 Setting the output resolution ......................82 7.11 Displaying HDR content ........................83 7.12 Dynamic contrast..........................84...
Page 68: Adjusting The Contrast
GUI – Image 7.1 Adjusting the contrast Purpose Used to adjust the contrast ratio of the projected image by applying gain to the red, green and blue signals. Available range: 0.00 to 2.00 Default value: 1.00 How to set up Contrast In the main menu, select Image →...
Page 69: Adjusting The Saturation
GUI – Image Image 7–3 Image menu — Brightness Use the ◄ or ► key to change the brightness until the desired value is reached (adjustable between -1.00 and +1.00). Image 7–4 Example of the image sliders, brightness is the second slider If necessary, use the ▲...
Page 70: Adjusting The Sharpness
GUI – Image Image 7–6 Example of the image sliders, Saturation is the third slider If necessary, use the ▲ or ▼ key to select the other image adjustment options. 7.4 Adjusting the sharpness About adjusting the sharpness The sharpness adjustment amplifies the high frequency components in the picture. This means that by increase the sharpness, the picture will be perceived as sharper, and if decreased, the picture will be perceived as more blurry.
Page 71: Adjusting The Gamma Correction
GUI – Image Image 7–9 Example of the image sliders, Sharpness is the bottommost slider If necessary, use the ▲ or ▼ key to select the other image adjustment options. 7.5 Adjusting the gamma correction About gamma correction Gamma correction is an image quality enhancement function that offers a richer image by brightening the already darker portions of the image without altering the brightness of the brighter portions (contrast feeling enhanced).
Page 72: Setting The Desired Gamma Type
GUI – Image Image 7–11 Example of the gamma menu 7.6 Setting the desired Gamma type About the alternate gamma types Next to the standard gamma correction, the projectors can be manipulated in a way to simulate gamma types for other devices or purposes. This includes sRGB (standard Red-Green-Blue), Power gamma, DICOM gamma ranges and for simulation projectors sim1.
Page 73 GUI – Image Image 7–12 Example of the HDR icon on the status menu For more info on PQ and HDR, refer to “Displaying HDR content”, page How to adjust the gamma type? In the main menu, select Image → Gamma type. Image 7–13 Image menu –...
Page 74: Tilted Brightness Uniformity Correction
GUI – Image Image 7–15 Example of selecting a gamma type Tip: If not sure what gamma type to select, keep the default value auto selected. This automatic mode will determine the used gamma type based on the incoming signal. However: keep in mind when using the automatic mode, your media player needs to be configured correctly as well.
Page 75 GUI – Image Image 7–16 Example of a (maximum) negative horizontal correction being applied on the projected image. Image 7–17 Example of a (maximum) negative vertical correction being applied to the projected image. Image 7–18 Example of a maximum negative correction on both horizontal and vertical axes to the projected image. Required tools Light meter How to adjust brightness across the screen...
Page 76: Digital Shift & Zoom
GUI – Image Image 7–20 Exampe of the Tilted brightness uniformity Enable the Tilted brightness correction slider to activate this feature (blue is enabled, grey is disabled). Use the Test Pattern button on the RCU to enable a specific test pattern. While enabled, this will project the full white test pattern.
Page 77 GUI – Image Image 7–21 Originally picture, not digitally zoomed Image 7–22 Picture digitally zoomed in Image 7–23 Picture digitally zoomed out The effect of digital shift This function will shift the picture digitally, meaning that the picture will be moved in any direction. As a result, some parts of the picture might be shifted outside the DMD range.
Page 78 GUI – Image Image 7–24 Original Picture, not digitally shifted Image 7–25 Picture shifted horizontally Image 7–26 Picture shifted vertically Digital shift and zoom In the main menu, select Image → Digital Zoom and Shift. Image 7–27 Image menu, digital zoom and shift The digital zoom and shift menu is displayed.
Page 79 GUI – Image Image 7–28 Example of the digital zoom and shift menu In order to optimize the digital zoom, enable the Zoom slider. In order to optimize the digital shift, enable the Shift slider. When one or both of the modes are enabled, use the arrow keys to select the mini-keypad in this menu. Use the enter key to activate this mini-keypad.
Page 80: Realcolor P7
GUI – Image • Use the ▲ or ▼ key to shift the lens (image) in vertical direction. • Use the enter key to transform the keypad to digital zoom mode (if enabled). • Use the return key to exit without saving. If digital zoom is enabled, you can now do the following: •...
Page 81 GUI – Image • Temperature: Configure the white point via a color temperature slider. The white point is specified on a Kelvin scale between 3200K and 13000K tracking along the black body curve. Define the coordinates for each available color. Click on a coordinate value and select the current value.
Page 82: Setting The Output Resolution
GUI – Image Image 7–35 Example of one of the presets, here DCI-P3 Note: After choosing one of the presets, you can still alter the values of the coordinates to your own choosing, similarly to how you set custom P7 values. Use the Reset icon to return to the default values of the chosen preset.
Page 83: Displaying Hdr Content
GUI – Image Image 7–37 Example of the available output resolutions Select the desired output resolution. Possible resolutions: • 4K UHD: 4k images, using the actuator at normal frequency. • 4K UHD S: 4k extra sharp images, using the actuator at a higher frequency •...
Page 84: Dynamic Contrast
GUI – Image The projected HDR content depends on the following factors: • Mastering luminance: This is content-specific and cannot be changed. • Screen luminance: Every projection screen has a specific luminance (measured in nits or foot-Lambert). Entering this luminance in the projector will adapt the content towards the intended HDR result. •...
Page 85 GUI – Image How to set the dynamic contrast? In the main menu, select Image → Advanced → DynaBlack. Image 7–41 The DynaBlack menu is displayed. Image 7–42 Example of the DynaBlack menu Select the desired dynamic contrast setting, or leave the default on (medium). The result will slowly become visible.
Page 86 GUI – Image R5911443 /11...
Page 87: Gui - Installation
GUI – Installation Orientation ...........................88 Laser ranging ..........................88 Tilt sensor ............................90 Manipulating the rigging frame ......................91 Manipulating the rigging frame, center position ................93 Configuring the lens, optical zoom and focus ..................94 Configuring the lens, shift ......................94 Configuring the lens, dynamic focus ....................95 Configuring the lens, Shift to center....................96 8.10 Configuring the lens, Shutter mode ....................97 8.11 Scaling modes..........................98...
Page 88: Orientation
GUI – Installation 8.1 Orientation What can be done? The way of physical installation of the projector can be defined to the projector. The following installation are possible: • Desktop front: Projected image will not be flipped or mirrored. • Desktop rear: Projected image will be flipped horizontally (left side switches to the right side).
Page 89 GUI – Installation Take into account that while a laser ranging session is active, the projected image will be off. This to have no interference between laser pointer and projected image. Instead, a red border will be projected giving the outline of where the projected image should be. How to measure the distance between projector and screen? In the main menu, select Installation →...
Page 90: Tilt Sensor
GUI – Installation Tip: If pressed, the Continuous button will be replaced with a Stop button. Press the Stop button to stop the measurement. Take note that when Stop is pressed, it will take a few more seconds to finish up the measurement. The measurement is only completed when the regular source image is returned to the screen.
Page 91: Manipulating The Rigging Frame
GUI – Installation Roll tilt: Seen from the front of the projector, a positive value means that it rolls to the right. A negative value means the projector has rolled to the left. How to read the tilt sensor values In the main menu, select Installation →...
Page 92 GUI – Installation Image 8–9 Position menu – Motorized frame The Motorized frame menu is displayed. Image 8–10 Example of the Motorized frame menu Press the OK key or button to activate the frame shift motors. Image 8–11 Example of horizontal and vertical frame shift Use the ▲...
Page 93: Manipulating The Rigging Frame, Center Position
GUI – Installation Image 8–12 Example of frame rotation Use the ◄ or ► button to rotate the rigging frame (image) either clockwise or counterclockwise. Confirm with the OK button to return to the frame shift menu, or use the Menu back button to return to the Position menu.
Page 94: Configuring The Lens, Optical Zoom And Focus
GUI – Installation Confirm to reset the frame to its center position. Note: Wait until the frame motors have stopped before doing other actions. 8.6 Configuring the lens, optical zoom and focus About the Zoom focus menu If no lens or a non-motorized lens is mounted on the projector, the zoom focus menu will not be available. The Zoom-focus will only be visible if a motorized lens is mounted in the projector.
Page 95: Configuring The Lens, Dynamic Focus
GUI – Installation Optical lens shift is only possible when the used lens has been fully calibrated. To calibrate the lens, navigate to Settings → Maintenance → Lens Calibration. Vertical and Horizontal Shift In the main menu, select Installation → Lens → Shift. Image 8–17 Lens menu, lens shift The Lens shift menu is displayed.
Page 96: Configuring The Lens, Shift To Center
GUI – Installation Image 8–19 Example of the Lens menu In the Lens menu, click Dynamic focus to toggle between On and Off. Image 8–20 Lens menu, Dynamic focus enabled Image 8–21 Lens menu, Dynamic focus disabled Note: The Dynamic focus slider is only visible when the light source is on. 8.9 Configuring the lens, Shift to center What can be done? The lens can be forced back to the center position by selecting Shift to center.
Page 97: Configuring The Lens, Shutter Mode
This may lead to a short timeframe where the colors of the projected image are not displayed in an optimal fashion. From software 2.3.8 onward, Barco provides a configuration option for the behavior of the electronic shutter: •...
Page 98: Scaling Modes
GUI – Installation Image 8–25 Example of the Shutter mode menu. In the Shutter mode menu, select the desired Shutter mode. 8.11 Scaling modes About scaling modes While the default mode of projection is to fill the screen while respecting the aspect ratio (fill aspect), it is also possible to stretch the image in a different way.
Page 99: Warping
GUI – Installation Setting a scaling mode In the main menu, select Installation → Scaling. Image 8–26 Installation menu, scaling The scaling mode menu is displayed. Image 8–27 Example of the scaling mode menu In the Scaling menu, select the desired scaling mode and confirm. 8.12 Warping About warping Image warping is the process of digitally manipulating an image to compensate for the distortion of the screen.
Page 100: Warping - Screen Size
GUI – Installation Image 8–29 Example of the Warp menu In the Warp menu, click Warp to toggle between On and Off. Image 8–30 Image 8–31 8.12.2 Warping – Screen size About (Warp) screen size adjustment If the used source aspect ratio is different than the projector aspect ratio (e.g. source is 16:9 and projector is 16:10), then black bars will be projected.
Page 101 GUI – Installation Image 8–33 Warp menu, screen size The Screen Ssize menu is displayed. Image 8–34 Example of the screen size menu Click on one of the predefined presets for the screen aspect ratio. Image 8–35 Example of the screen size menu, with preset “3:2” selected. The selected ratio is filled out next to Screen width and Screen height.
Page 102 GUI – Installation The Screen size menu is displayed. Image 8–37 Example of the screen size menu Select either Screen width or Screen height. Set the new value to shrink either the width or height of the warp outline so that the outline is equal with the active source.
Page 103: Warping - 4 Corners Adjustment
GUI – Installation Tip: The value can also be entered by the numeric keys on the remote control. Press * to delete existing numbers, and enter the new value by the numeric keys. Click Apply. 8.12.3 Warping – 4 corners adjustment About 4 Corners adjustment 4 corner adjustment is typically used when the mechanical installation of the projector prevents it from pointing perpendicularly at the screen.
Page 104: Warping - Bow
GUI – Installation Image 8–43 Example of 4 corners warping menu, with helper lines active on the edges of the screen To set warping on one of the four corners, select one of the four corners and confirm. Set the desired X and Y coordinates for this corner, using the arrow keys, and confirm. After confirming, the helper lines for that corner will jump to the entered XY coordinate (if helper lines were enabled).
Page 105 GUI – Installation Image 8–45 Bow distortion Definition of angle and linearity (length) in the bow warp procedure Image 8–46 Symmetric bow correction In the main menu, select Installation → Warp → Bow. Image 8–47 Warp menu, Bow The bow menu is displayed. To enable bow correction, make sure the Bow slider is enabled (visible by the blue highlight).
Page 106 GUI – Installation Image 8–48 Both the Bow and Symmetric sliders are set to on Use the arrow keys to select the helping lines that represent the picture and confirm. The helping lines that represent the projected picture are now colored blue, while the others are colored white.
Page 107 GUI – Installation The correction will occur symmetrically on each side of the center of the highlighted side. Repeat this step for all sides of the picture that has to be corrected, until the desired transformation has been achieved. Image 8–51 Example of a symmetric bow correction Asymmetric bow correction In the Bow menu, enable the Bow slider and disable the symmetric slider.
Page 108: Warping - Warp Files
GUI – Installation Select the desired slider and confirm. Image 8–54 Adjust angle and linearity (length) individually to obtain the correct correction. Press enter to confirm and to switch between angle and length. Tip: Adjust the angle by using the up and down arrow keys. Adjust the linearity by using the left and right arrow keys.
Page 109 GUI – Installation For more information on uploading/downloading Warp files using curl or other tools that supports HTTP upload, refer to the Pulse API Reference Guide. When uploading a warp file that is too big, or with warp parameters outside the limits of the projector, some irregularities can occur.
Page 110: Warping - Latency Control In A Multi Projector Setup
GUI – Installation Image 8–59 Example of the Warp files menu 8.12.6 Warping – Latency control in a multi projector setup Transport latency The added delay in the image processing chain. The value is the number of lines relative to the output resolution.
Page 111: Blending & Masking
GUI – Installation Image 8–61 Installation menu, Warp In the Warp menu, select Transport Delay. Image 8–62 Warp menu, Transport delay The Transport delay menu is displayed. Image 8–63 Example of the Transport delay menu Enter the value either by the arrow keys (one step at a time) or directly by the numeric keys on the remote control.
Page 112: Basic Blend
GUI – Installation Width, Projector 1 Width, Projector 2 Picture frame Picture frame Projector 1 Projector 2 Overlap / Blend Zone Image 8–64 From the start (mask) position, you can set blend zone size per edge (left, top, right, bottom). For each edge there will be a drop-off curve for the blend zone.
Page 113 GUI – Installation Image 8–66 Example of the basic blend menu To enable blending, drag the Enable slider to the right. The color of the slider becomes blue when enabled. To project masking lines on the screen, drag the Show lines slider to the right. The color of the slider becomes blue when enabled.
Page 114: Blend & Blend Mask
GUI – Installation Do not forget to disable the Show lines slider after you achieved the desired blend zone. 8.13.2 Blend & Blend mask About masking and blending width or height Offset is used to clip the image on one or multiple sides (masking). This is used to hide parts of the picture that should not be shown on the screen.
Page 115 GUI – Installation Image 8–70 Start position (mask) Blending width Select one of the four starting positions values with the arrow keys and confirm. Use the arrow keys or remote digits to change the value of the mask and confirm. Repeat this process for all other desired sides.
Page 116: Blend Files
GUI – Installation Image 8–71 Set up for projector 1 Image 8–72 Set up for projector 2 8.13.3 Blend files About custom blend files Next to setting your specific blending configuration in the GUI, you can also upload or download a customblend configuration file in png, jpg or tiff format to/from the projector.
Page 117: Basic Black Level Adjustment
GUI – Installation How to activate an uploaded Blend configuration file? In the main menu, select Installation → Blend and Mask → Blend files. Image 8–73 Blend and mask menu, Blend files The Blend files menu is displayed. Image 8–74 Example of the blend files menu If any custom blend files are available, select the desired file.
Page 118 GUI – Installation The size of the black level area is calculated automatically from the blend zones. This is done by using the start position and size of each edge of the blend and adding an additional size of 8 pixels to reduce the effect known as "sea of mirrors".
Page 119: Rgb Gain Adjustment
GUI – Installation enter the black level value with the numeric keys in the remote control. Move the cursor to Level, press enter and adjust this level until the black level equals the level in the blend zone. This value can also be entered by the numeric keys on the remote control. Repeat the same procedure for any other projector connected to this projector, but on the opposite side.
Page 120: Black Level Files
GUI – Installation Image 8–81 Example of the default black level menu Select one of the three sliders on the bottom of the menu (Red, Green or Blue). Use the left and right arrow keys to modify the gain of the chosen color. Repeat for every slider until the desired result is achieved on screen.
Page 121: Illumination
GUI – Installation Image 8–83 Example of the black level files menu If any custom black level adjustment files are available, select the desired file. Image 8–84 Example of custom black level files selected Make sure the Enable slider is set to the right to activate the selected black level file 8.14 Illumination What can be done? Within a certain percentage, the light output of the light source can be reduced by reducing the power slider.
Page 122: Projection
GUI – Installation CLO can not be used when the light source is off, the shutter is closed or if the Dynamic Black feature is active (if available). How to reduce the power In the main menu, select Installation → Illumination. Image 8–85 Installation menu, illumination The Illumination menu is displayed.
Page 123: Setup Process 3D Projection
GUI – Installation To present stereoscopic pictures, two images are projected superimposed onto the same screen through polarizing filters or presented on a display with polarized filters. For Digital Cinema, a silver screen is used so that polarization is preserved. On most passive displays every other row of pixels are polarized for one eye or the other.
Page 124: Setup
Why change the 3D setup? While Barco can provide a 3D emitter and active shutter glasses as options to this projector, you are also free to use a 3D emitter and active shutter glasses of your own choice. Since glasses and emitter can have various specifications compared to the ones Barco can provide, the 3D setup menu allows you to configure the output image to the specifications of your glasses and emitter.
Page 125 GUI – Installation Use the following table as an indicator of what display mode you require. Source signal AutoStereo Mono ActiveStereo 2D Source Output is a 2D image Output is a 2D image Output is in Active Stereo Active Stereo source Output is in Active Stereo Output is a 2D image Output is in Active Stereo Passive Stereo source...
Page 126 GUI – Installation R5911443 /11...
Page 127: Gui - Profiles
GUI – Profiles Profiles introduction ........................128 Saving the current projector settings in a profile ................129 Assigning a created projector profile to a preset ................130 Deleting a projector profile......................132 R5911443 /11...
Page 128: Profiles Introduction
GUI – Profiles 9.1 Profiles introduction About Profiles The profile function makes it possible to store different profiles / projector setups for different use cases, and quickly recall them when needed. This means that it is not necessary to enter a lot of different menus to adjust the projector setup for specific recurring use cases.
Page 129: Saving The Current Projector Settings In A Profile
GUI – Profiles Profile domain Settings saved name Warp • Warp status enabled / disabled • Screen size • Warp file selected (if available) • Transport delay Note: Bow and 4 corners warp cannot be saved. Blend • Blend mask enabled / disabled •...
Page 130: Assigning A Created Projector Profile To A Preset
GUI – Profiles Image 9–3 Profile edit menu Use the arrow keys to select New Profile... and confirm. The New Profile pane is expanded and fully displayed. Image 9–4 Example of the new profile pane Use the arrow keys and the OK key to select any of the settings you wish to save in this macro. Select the field next to Profile Name and confirm with the OK key to make a keyboard prompt on the projector display.
Page 131 GUI – Profiles Image 9–5 Profiles menu, edit The edit menu is displayed. Image 9–6 Example of the Profile edit menu Select the desired projector profile from the list and confirm. The profile pane for the selected profile will expand. Image 9–7 Example of a projector profile with available preset slots Use the arrow keys to select a preset slot and confirm with the OK key.
Page 132: Deleting A Projector Profile
GUI – Profiles Image 9–8 Example of projector profiles allocated to preset slots (here slot 00 and 04) 9.4 Deleting a projector profile How to delete a profile In the main menu, select Profiles → Edit. Image 9–9 Profiles menu, edit The edit menu is displayed.
Page 133 GUI – Profiles Image 9–11 Example of a projector profile with available preset slots Use the arrow keys to select Delete and confirm. confirm the delete action. R5911443 /11...
Page 134 GUI – Profiles R5911443 /11...
Page 135: Gui - System Settings
GUI – System Settings 10.1 Remote control........................... 136 10.2 Host name - custom projector name setup..................138 10.3 Communication, LAN setup ......................139 10.4 DMX ............................147 10.5 Controlling the front XLR connector....................149 10.6 GSM configuration........................150 10.7 Changing the User Interface language ..................151 10.8 Themes .............................
Page 136: Remote Control
GUI – System Settings 10.1 Remote control 10.1.1 Broadcast address About broadcast address Broadcast address is a common address that can be set on the projector. That can be “0” or “1”. The default broadcast address is '0'. Any command coming from an RCU programmed with that common address will be executed. How to the broadcast address In the main menu, select Settings →...
Page 137: Ir Sensors
GUI – System Settings How to change In the main menu, select Settings → Communication → Remote control. Image 10–3 Communication menu, Remote Control The Remote control menu is displayed. Image 10–4 Example of the Remote control menu Select the current projector address and enter a new address. Select APPLY and click OK to apply the changes.
Page 138: Host Name - Custom Projector Name Setup
GUI – System Settings The Remote control menu is displayed. Image 10–6 Example of the Remote control menu To disable an IR sensor, select the slider and drag to the left. Tip: A blue slider means an active IR sensor. A gray slider means an inactive IR sensor.
Page 139: Communication, Lan Setup
GUI – System Settings Image 10–8 Example of the host name menu Press confirm to edit the Host name field. Use the digital keyboard to change the Host name to the desired custom name. Press the OK key, or press the enter icon to confirm the typed name. Click Apply to update the host name. 10.3 Communication, LAN setup About a network connection A network connection can be made via a wired connection or via the optional wireless unit.
Page 140: Wired Ip Address Set Up
On network side, Barco thus recommends the maximum amount of security for your network, in order to avoid this form of tampering. Some network devices may not be properly set for security when installed out of the box.
Page 141 GUI – System Settings Image 10–10 Example of the LAN menu To enable Automatic, make sure the Automatic slider is set to the right. The color of the slider will be blue. An IP address will be automatically assigned if it can make a connection to the network.. When connected, it is indicated with the connection symbol and the indication Connected.
Page 142: Wireless Ip Address Set Up
GUI – System Settings Image 10–13 Example of entering the IP address Use the arrow keys and enter key to enter in the IP address. Note: Digits can be entered with the digit keys on the remote control or the local keypad. When a digit is entered in that way, the next character will be selected automatically.
Page 143 GUI – System Settings Image 10–15 Example of the WiFi menu Make sure the Enable slider is set to the right to enable the WiFi module. The color of the slider becomes blue. Make sure the Automatic slider is set to the right to automatically assign an IP address. Use the Select Network button to select the desired network from the available list.
Page 144 GUI – System Settings Tip: If you already connected to this network in the past using this projector, the software will remember the user name and password, ensuring you do not have to fill this in again. Press Connect to connect to the selected network. If required by the chosen wireless network, fill in the user name and password and confirm.
Page 145: Lan Over Hdbaset Tm Ip Address Set Up
GUI – System Settings Use the arrow keys to select Address and press OK button to activate the input box. Use the arrow keys and enter key to enter in the IP address. Note: Digits can be entered with the digit keys on the remote control or the local keypad. When a digit is entered in that way, the next character will be selected automatically.
Page 146 GUI – System Settings Image 10–22 Communication menu, HDBaseT The HDBaseT menu is displayed. Image 10–23 Example of the HDBaseT menu To enable Automatic, make sure the Automatic slider is set to the right. The color of the slider will be blue. An IP address will be automatically assigned if it can make a connection to the network..
Page 147: Dmx
GUI – System Settings Image 10–25 Example of the HDBaseT menu Disable the Automatic slider. The slider becomes gray. Use the arrow keys to select Address and press OK button to activate the input box. Image 10–26 Example of entering the IP address Use the arrow keys and enter key to enter in the IP address.
Page 148 GUI – System Settings For a full list of all DMX channels, values and possible actions, see “DMX chart”, page 229. About the DMX menu DMX Feature What can be done? DMX Mode Two different modes for DMX are available. •...
Page 149: Controlling The Front Xlr Connector
GUI – System Settings Image 10–28 Example of the DMX menu Choose the desired DMX mode. Choose the desired starting channel. Choose whether or not you want the Auto power-down feature to be enabled. If enabled, determine the time-out. If required, enable Art-Net. If enabled, determine the desired Art-Net Universe and Art-Net channel. If a front XLR connector is available on your projector, you can enable the output voltage on this connector.
Page 150: Gsm Configuration
GUI – System Settings Powering the front XLR connector The front XLR connector is disabled by default and can be enabled using the DMX menu. When enabled, the output voltage level can be set to 0 V, 12 V or 24 V. The output voltage will depend on the application or peripheral used.
Page 151: Changing The User Interface Language
GUI – System Settings As the PIN code cannot be checked with the one on the SIM card, ensure to enter the correct PIN code. When your SIM card is blocked, you have to remove the SIM card from the GSM module and to insert the SIM card in a mobile phone so that you can enter the PUK code to unblock the SIM card.
Page 152: Themes
GUI – System Settings Image 10–35 Example of the Language menu Select the desired language. You can choose between the following: • German (DE) • English (EN) • Spanish (ES) • French (FR) • Japanese (JA) • Korean (KO) • Portuguese (PT-BR) •...
Page 153: Controlling The Backlight Of The Lcd Display
GUI – System Settings • Distance: meter, centimeter, feet or inch. How to set a different metric system In the main menu, select Settings → User interface → Units. Image 10–37 Settings menu, units The Units menu is displayed. Image 10–38 Example of the Units menu Select the desired Temperature unit and Length unit and confirm.
Page 154: Date And Time Setup - Manually
GUI – System Settings The Backlight menu will be displayed. Image 10–40 Example of the backlight menu Choose the desired setting for the backlights. Select one of the predetermined options, or a custom value. 10.11 Date and time setup - manually About date and time The date and time setting can be set manually or automatically via an NTP server based on region and city location.
Page 155: Date And Time Setup - Automatically
GUI – System Settings Image 10–42 Example of the Date and time menu Disable the Automatic slider. Gray slider: automatic is off Blue slider: automatic is on Select Date The Date dialog is prompted. The active day is selected by default. Slide the Day, Month and Year slider up or down until the desired date is obtained.
Page 156 GUI – System Settings Enable the Automatic slider. Image 10–44 Gray slider: automatic is off Blue slider: automatic is on Select Server and click OK. Image 10–45 Enter the name or the IP address of the NTP server. Tip: In case you cannot connect to an external NTP server although you can PING this server, the connection is blocked by the local firewall policy.
Page 157: Power Saving Settings
10.13 Power saving settings About the power saving features In the aspect of continuous improvement, Barco has added several power saving features to the projector, which will extend the lifetime of your projector and light source in particular. From Pulse software 2.3.x onward, the following power saving features are available:...
Page 158 GUI – System Settings Image 10–47 Settings menu, Power To enable or disable Auto dimming, proceed as follows: In the Power menu, click Auto dim. Image 10–48 Power menu, Auto dimming The Auto dimming menu is displayed. Image 10–49 Example of the Auto dim menu Enable or disable the Auto dim slider to respectively enable or disable the Auto dimming feature.
Page 159 GUI – System Settings Image 10–51 Example of the Auto light source off menu Enable or disable the Auto light source off slider to respectively enable or disable this power saving feature. When enabled, select the timeout period after which the light source will be turned off. To enable or disable the Auto standby feature, proceed as follows: In the Power menu, click Auto standby.
Page 160: Lens Features
GUI – System Settings 10.14 Lens features What can be done? Some lens features can be disabled once they are correctly aligned so that a misalignment during a show is not possible. How to enable/disable In the main menu, select Settings → Lens Features. Image 10–54 Settings menu, Lens features The Lens features menu is displayed.
Page 161 GUI – System Settings All Factory settings are listed, regardless of the projector type or chosen projector options. If an option in this list is not present in your menu, the feature is not available or enabled on your projector. Option / Domain Setting Factory setting...
Page 162 GUI – System Settings Option / Domain Setting Factory setting WQXGA (W devices) WUXGA (U devices) Source Source files Standard Sync delay 0 µs Swap eye Dark time lowest value available Test patterns Test Pattern Off, none selected, Note: All uploaded custom test patterns will be deleted “No signal”...
Page 163 Images uploaded by external tools (e.g. Projector Toolset) are removed. Images uploaded using the OEM partner tool provided by Barco are not removed. How to reset all projector settings In the main menu, select Settings → Maintenance → Reset. Image 10–56 Settings menu, factory reset The Reset menu is displayed.
Page 164: Lens Calibration
GUI – System Settings Image 10–58 Settings menu, factory reset The Reset menu is displayed. Image 10–59 Example of the reset menu Navigate to the checkbox next to the settings that need to be reset and press OK. Multiple selections are possible. Select RESET SELECTED and confirm with OK to reset all selected settings.
Page 165: Flex Brightness
GUI – System Settings Image 10–61 Example of the lens calibration menu In the Lens Calibration menu, select the desired calibration action and click OK. You can select one of the following functions, depending on the type of mounted lens: •...
Page 166 GUI – System Settings • Via Barco Insights Management Suite when the GSM module is installed. For more information on how to set up and use the Flex license, see Projector Management Suite user guide, chapter “Projector Configuration tab” – “Flex brightness”...
Page 167: Flex Resolution
License / registration””. • Via Barco Insights Management Suite when the GSM module is installed. For more information on how to set up and use the Flex license, see Projector Management Suite user guide, chapter “Projector Configuration tab” – “Flex resolution”...
Page 168: Rigging Frame Calibration
GUI – System Settings This means that when a Flex resolution lower then 4K is chosen (e. g. WUXGA), 4K content can still be displayed. However, this content will be displayed alongside an persistent notification box proposing to limit the source resolution or upgrade the resolution license. This way, the user can still see enough content to go through the necessary menus (either to change resolution or update the Flex license), while enough of the screen is blocked for it to be a hindrance for the end purpose.
Page 169: Electronic Convergence
GUI – System Settings Image 10–69 Example of the Frame calibration menu In the Frame Calibration menu, select the desired calibration action and click OK. You can select one of the following functions: • Horizontal shift • Vertical shift • Rotation The text Calibrating will be displayed until the calibration is completed.
Page 170: Operational Mode
GUI – System Settings Image 10–72 Example of the electronic convergence menu Select the desired X or Y value for one of the three colors and confirm. Use the arrow keys to raise or lower the value and confirm. Confirm all changes by pressing Enter. Image 10–73 Tip: Press Reset to return all values to the factory settings.
Page 171: Capture Mode
GUI – System Settings Image 10–74 Maintenance menu, operational mode The Operational Mode menu is displayed. Image 10–75 Example of the Operational modes menu Choose the desired operational mode. You may immediately notice a small difference, depending on the chosen operational mode. Navigate to the Illumination menu and update the desired light output, depending on the chosen operational mode.
Page 172: Login To Advanced Settings
GUI – System Settings Image 10–76 System menu, Capture mode disabled Image 10–77 System menu, Capture mode enabled 10.23 Login to advanced settings How to login In the main menu, Settings → Maintenance → Login. Image 10–78 The Login menu is displayed. Image 10–79 There are 2 ways to login: •...
Page 173: List Of Open Source Licenses
GUI – System Settings 10.24 List of open source licenses About open source licenses Open source licenses are licenses that comply with the Open Source Definition. In brief, they allow software to be freely used, modified, and shared. To be open and transparent about the open source software used on the projector, there is a list of all open source licenses available in the software.
Page 174 GUI – System Settings R5911443 /11...
Page 175: Advanced Settings
Advanced Settings 11.1 Remote access – Enable source preview ..................176 11.2 Remote access – Enable camera preview ..................177 11.3 Advanced Settings – Color ......................178 11.4 Advanced Settings – Statistics..................... 179 11.5 Checking the status of the Laser Banks ..................180 11.6 Advanced settings –...
Page 176: Remote Access - Enable Source Preview
Advanced Settings 11.1 Remote access – Enable source preview Source preview Up until Pulse software 2.0. x, you were able to see a preview of the connected source when you remotely accessed the projector. This was a feature you could disable using Projector Toolset. However, from Pulse 2.1.
Page 177: Remote Access - Enable Camera Preview
Advanced Settings 11.2 Remote access – Enable camera preview Camera preview Up until Pulse software 2.0.x, you were able to see the footage of the camera when you remotely accessed the projector. This was a feature you could disable using Projector Toolset. However, from Pulse 2.1.
Page 178: Advanced Settings - Color
Advanced Settings 11.3 Advanced Settings – Color CAUTION: The native colors have been measured and set during factory production. Do not change them, unless parts of the optical path have been replaced due to servicing. If you need to change the native colors on the device, make sure to also perform a P7 calibration, using the Projector Toolset and a chroma meter.
Page 179: Advanced Settings - Statistics
Advanced Settings 11.4 Advanced Settings – Statistics What can be seen? The statistics screen shows the general information about the projector, spread over two tab pages. The following items will be displayed: • Laser runtime • Laser Strikes • Laser bank x runtime •...
Page 180: Checking The Status Of The Laser Banks
Advanced Settings 11.5 Checking the status of the Laser Banks About failing laser banks The projector is powered by a laser light source, which has multiple laser banks. The light output and color performance is dependant on the number of active laser banks. If one or more laser banks have failed of a certain type, you will notice a decreased light input and decrease in color performance.
Page 181: Advanced Settings - Tilt Sensor Calibration
Advanced Settings Image 11–17 Example of the laser bank group menu If you want notifications to be disabled for a specific group of laser banks, disable the Enable notifications for this group slider. 11.6 Advanced settings – Tilt sensor calibration CAUTION: The calibration procedure resets the values of the tilt sensor to 0 in the current position of the projector.
Page 182 Advanced Settings Image 11–20 Example of the Advanced menu with the Tilt sensor menu The tilt sensor will be set to zero in the current position of the projector. R5911443 /11...
Page 183: Gui - Projector Scheduler
GUI – Projector scheduler 12.1 About the projector scheduler ...................... 184 12.2 Adding a new command in the scheduler..................184 12.3 Edit or Delete a command ......................186 12.4 Clearing the scheduler ........................ 187 R5911443 /11...
Page 184: About The Projector Scheduler
GUI – Projector scheduler 12.1 About the projector scheduler About the scheduler From Pulse software 2.3 onward, the projector scheduler is now available to use. The projector scheduler allows you to automate the weekly schedule of the projector. This includes: •...
Page 185 GUI – Projector scheduler Image 12–3 Example of the Add Command window Select the type of command you would like to add to add. You have the following options Power On (ON mode). Power Off (Ready and or Standby mode). Activate a projector profile.
Page 186: Edit Or Delete A Command
GUI – Projector scheduler If you selected Profile, select the desired profile you want to activate. Select the desired Time the command will need to activate (in hours and minutes of the day). Note: Make sure the projector time is correctly configured. For more info, see “Date and time setup - automatically”, page 155 “Date and time setup - manually”, page...
Page 187: Clearing The Scheduler
GUI – Projector scheduler Image 12–8 Example of the Edit Command window Edit the desired settings of the Command. Once all changes have been made, select the Apply Changes button and confirm. If you want to delete the command instead, select Remove Command button and confirm. 12.4 Clearing the scheduler How to clear up the entire scheduler In the Scheduler menu, click Clear All.
Page 188 GUI – Projector scheduler Image 12–10 Example of a cleared Scheduler menu R5911443 /11...
Page 189: Gui - Status Menu
GUI – Status menu 13.1 Status menu overview......................... 190 No settings can be modified in the status menu. Its only for consulting. R5911443 /11...
Page 190: Status Menu Overview
GUI – Status menu 13.1 Status menu overview How to access the status menu While in the main menu, press Status. Image 13–1 Main menu, status The status menu is displayed. Image 13–2 Example of the first page of the status menu Swipe the screen left of right to swap between the Status pages.
Page 191 GUI – Status menu What can be seen on the About page? • Projector information, e.g. firmware version, serial number, projector article number and registration status (only if applicable for your device) • Mounted lens: Lens type and Lens description (if available). •...
Page 192 GUI – Status menu R5911443 /11...
Page 193: Product Maintenance
Product maintenance 14.1 Software update ......................... 194 14.2 Cleaning the lens........................195 14.3 Cleaning the exterior of the projector .................... 196 14.4 Cleaning / replace the air filters ....................196 About this chapter This chapter contains general maintenance procedures. R5911443 /11...
Page 194: Software Update
Download the latest firmware (format .fw) from Barco's website in the same way as for Projector Toolset. Start Projector Toolset and make a connection with the projector. For more information, see the “Projector Toolset”...
Page 195: Cleaning The Lens
Always contact Barco if you want to make sure a downgrade will not hurt your device.
Page 196: Cleaning The Exterior Of The Projector
Product maintenance Use a dry lens cleaning cloth to remove left liquid or stripes. Polish with small circles. If there are still fingerprints on the surface, wipe them off with lens cleaner together with a clean lens cleaning cloth. Polish again with a dry one. If smears occur when cleaning lenses, replace the cloth.
Page 197 Image 14–3 If the top cover do not have “easylocks” for the filter cover (older UDM models), the filter must be serviced by authorized Barco personnel. The filter also can be vacuum cleaned from the outside, with less cleaning efficiency.
Page 198 Product maintenance Image 14–6 Remove the filter from the projector. Image 14–7 Clean the filter with lukewarm water, and let dry. Reinstall the filter in to the correct position. Reinstall the side cover in the correct position, and press the “easylock”s Note: Ensure that the cover is in correct position, and correctly locked to the projector.
Page 199 Product maintenance Image 14–9 Vacuum clean the filter. Reinstall the filter in the front cover. Reinstall the front cover in the correct position, and press the “easylock”s Note: Ensure that the cover is in correct position, and correctly locked to the projector. R5911443 /11...
Page 200 Product maintenance R5911443 /11...
Page 201: A Specifications
Specifications Specifications for UDM 4K30 ....................... 202 Specifications for UDM W30 ......................203 Specifications for UDM 4K22 ....................... 205 Specifications for UDM W22 ......................207 Specifications for UDM W19 ......................208 Specifications for UDM 4K15 ....................... 210 Specifications for UDM W15 ......................212 Specifications SDI inputs......................
Page 202: Specifications For Udm 4K30
3,840 x 2,400 (4K UHD) / 2,560 x 1,600 (native) / 5,120 x 3,200 (processing) Brightness 25,000 ansi lumens / 25,500 center lumens / 27,000 ISO lumens* Contrast ratio Full field 2000:1 / Barco Dyna Black 20000:1 Brightness uniformity Aspect ratio 16:10 ScenergiX...
Page 203: Specifications For Udm W30
Projector type WUXGA 3-chip DLP digital projector Technology 0.96" DMDTM x3 Resolution 1,920 x 1,200 Brightness 26,000 ansi lumens/ 27,000 center lumens / 30,000 ISO lumens* Contrast ratio Full field 2200:1 / Barco Dyna Black 20000:1 Brightness uniformity R5911443 /11...
Page 204 Specifications Aspect ratio 16:10 ScenergiX Horizontal and vertical edge blending Lenses TLD+ 0,37; 0,65-0,85; 0.73:1 ; 1.2:1 ; 0,8-1,16; 1,25 -1.6:1 ; 1.5-2.0:1 ; 2.0- 2.8:1 ; 2.8-4.5:1 ; 4.5-7.5:1 ; 7.5-11.5:1 Optical lens shift Vertical between -100% to +130%, depending on lens Horizontal up to +/- 40%, depending on lens Motorized zoom and focus (with lens memory on TLD lenses) Motorized lens shift (with position memory on all lenses)
Page 205: Specifications For Udm 4K22
3,840 x 2,400 (4K UHD) / 2,560 x 1,600 (native) / 5,120 x 3,200 (processing) Brightness 20,000 center lumens / 19,000 ansi lumens* 22,000 ISO lumens* Contrast ratio Full field 2200:1 / Barco Dyna Black 20000:1 Brightness uniformity Aspect ratio 16:10 ScenergiX Horizontal and vertical edge blending Lenses TLD+ 0,37;...
Page 206 Specifications Picture-by-picture Two sources simultaneously Sealed DLP™ core Standard Orientation 360° DMX 512 Standard WARP Direct adjust OSD + toolset Image processing Embedded warp & blend Processing Pulse Electronics Keystone correction Integrated web server CLO (constant light output) Standard Active eye wear (optional), passive circular (optional); 2 flash up to 200Hz; optional Dual Eye Point 240Hz Inputs Single HDBaseT;...
Page 207: Specifications For Udm W22
0.96" DMDTM x3 Resolution 1,920 x 1,200 Brightness 21,000 center lumens / 20,000 ansi lumens / 22,000 ISO lumens* Contrast ratio Full field 2200:1 / Barco Dyna Black 20000:1 Brightness uniformity Aspect ratio 16:10 ScenergiX Horizontal and vertical edge blending Lenses TLD+ 0,37;...
Page 208: Specifications For Udm W19
Specification Projector type WUXGA 3-chip DLP digital projector Technology 0.96" DMDTM x3 Resolution 1,920 x 1,200 Brightness 18,500 center lumens / 17,800 ansi lumens / 20,000 ISO lumens* Contrast ratio Full field 2200:1 / Barco Dyna Black 20000:1 R5911443 /11...
Page 209 Specifications Brightness uniformity Aspect ratio 16:10 ScenergiX Horizontal and vertical edge blending Lenses TLD+ 0,37; 0,65-0,85; 0.73:1 ; 1.2:1 ; 0,8-1,16; 1,25 -1.6:1 ; 1.5-2.0:1 ; 2.0- 2.8:1 ; 2.8-4.5:1 ; 4.5-7.5:1 ; 7.5-11.5:1 Optical lens shift Vertical between -100% to +130%, depending on lens Horizontal up to +/- 40%, depending on lens Motorized zoom and focus (with lens memory on TLD lenses) Motorized lens shift (with position memory on all lenses)
Page 210: Specifications For Udm 4K15
3,840 x 2,400 (4K UHD) / 2,560 x 1,600 (native) / 5,120 x 3,200 (processing) Brightness 14,500 (4K UHD) center lumens / 14,000 ansi lumens* 15,000 ISO lumens* Contrast ratio Full field 2200:1 / Barco Dyna Black 20000:1 Brightness uniformity Aspect ratio 16:10 ScenergiX Horizontal and vertical edge blending Lenses TLD+ 0,37;...
Page 211 Specifications Light source lifetime 30,000hr (at 100% laser power, DynaBlack = off) Optical dowser Digital Picture-by-picture Two sources simultaneously Sealed DLP™ core Standard Orientation 360° DMX 512 Standard WARP Direct adjust OSD + toolset Image processing Embedded warp & blend Processing Pulse Electronics Keystone correction...
Page 212: Specifications For Udm W15
0.96" DMDTM x3 Resolution 1,920 x 1,200 Brightness 14,500 center lumens / 14,000 ansi lumens / 15,000 ISO lumens* Contrast ratio Full field 2200:1 / Barco Dyna Black 20000:1 Brightness uniformity Aspect ratio 16:10 ScenergiX Horizontal and vertical edge blending Lenses TLD+ 0,37;...
Page 213: Specifications Sdi Inputs
Notes *Brightness levels +/- 10% ** Wifi and GSM options are not available in all countries. Check with your Barco representative for more info. ***at higher altitude light output might be dimmed A.8 Specifications SDI inputs For readability, the video timings listed are summarized. For the full list of video timings, refer to the appendices.
Page 214: Specifications Hdmi Inputs
Specifications HD-SDI follows the SMPTE 292M standard. 3G SDI follows the SMPTE 425M standard Level A. 12G-SDI follows the SMPTE ST-2082-1 and ST-2082-10 standards. SDI specifications Specification Value Color space YCbCr Color depth 10 bpc Chroma sampling 4:2:2 Audio not supported For future release •...
Page 215: Specifications Hdbaset Inputs
Specifications Specification Value Color depth • 24 bpp • 30 bpp • 36 bpp 3D support • Field sequential 3D (Active 3D) Frame-packed Top Bottom progressive Side-by-side progressive • Passive 3D not supported. For future release • Interlaced support Audio Not supported Video timings •...
Page 216: Specifications Displayport 1.2 Inputs
Specifications Specification Value 2 Column mode (2x1 • 1920 x 2160 @50 Hz layout) • 1920 x 2160 @60 Hz • 2048 x 2160 @50 Hz • 2048 x 2400 @60 Hz Native video timings • UDM-W: 1920 x 1200 @60 Hz •...
Page 217: Specifications Sfp Inputs
Specifications • 1920 x 2400 @60 Hz • 2048 x 2160 @60 Hz • 2048 x 2160 @120 Hz 4 quadrant mode (2x2 • 960 x 1080 @120 Hz layout) • 960 x 1200 @120 Hz • 1280 x 1080 @60 Hz •...
Page 218 Specifications Video timings Type Port type Format progressive HD-SDI Single link • Up to 1920 x 1080 @24 Hz • Up to 1920 x 1080 @25 Hz • Up to 1920 x 1080 @30 Hz • Up to 1280 x 720 @50 Hz •...
Page 219: B Video Timing Tables
Video timing tables Overview video timings ....................... 220 Overview video timings SDI Inputs ....................221 Overview video timings HDMI 2.0 inputs..................222 Overview video timings DisplayPort 1.2 inputs ................224 Overview video timings HDBaseT inputs ..................226 About this chapter This chapter contains the tables with video timings for video interfaces.
Page 220: Overview Video Timings
B.1 Overview video timings List of compatible signals The following table specifies the video signals that the projector can project. Barco Events projectors supports the signal with “X” in the Compatible signals column. Note: Support for refresh rates 24.00, 30.00, 60.00 Hz automatically includes support of 1/1.001 x those refresh rates.
Page 221: Overview Video Timings Sdi Inputs
Video timing tables Compatible signal 12G SDI Input on Mk Vertical II Input HDBaseT & refresh rate Resolution HDMI 2.0 3G SDI DisplayPort board & HDMI 1.4 (Hz) Inputs Inputs 1.2 Inputs Fiber Inputs Network Inputs 2048 x 1080 — —...
Page 222: Overview Video Timings Hdmi 2.0 Inputs
Video timing tables Video timing Vertical refresh rate Type Port Type (active pixels x active (Hz) lines) 1280 x 720 HD-SDI Single Link & Quad Link 1280 x 720 HD-SDI Single Link & Quad Link 1920 x 1080 HD-SDI Single Link & Quad Link 1920 x 1080 HD-SDI Single Link &...
Page 223 Video timing tables Video timing Vertical refresh rate (Hz) 3D support? (active pixels x active lines) 800 x 600 1024x 768 1280 x720 Frame packing Top – bottom 1280 x 720 Frame packing Top – bottom 1280 x 800 1280 x 960 1280 x1024 1400 x 1050 1600 x 1200...
Page 224: Overview Video Timings Displayport 1.2 Inputs
Video timing tables Video timing Vertical refresh rate (Hz) 3D support? (active pixels x active lines) 4096 x 2160 4096 x 2160 B.4 Overview video timings DisplayPort 1.2 inputs Overview The following standard video formats are available for the projector. Note: support for refresh rates 24.00, 30.00, 60.00 Hz automatically includes support of 1/1.001 x those refresh rates Video timing...
Page 225 Video timing tables Video timing Available layout modes, Vertical refresh rate other than standard Support for 3D? (active pixels x active (Hz) layout (1 x 1 layout) lines) 1280 x 1600 4 Quadrant mode (2 x 2 Active 3D layout) 1400 x 1050 1600 x 1200 1600 x 1200...
Page 226: Overview Video Timings Hdbaset Inputs
Video timing tables Video timing Available layout modes, Vertical refresh rate other than standard Support for 3D? (active pixels x active (Hz) layout (1 x 1 layout) lines) 3840 x 2160 3840 x 2160 3840 x 2160 3840 x 2160 Passive Stereo 3840 x 2400 3840 x 2400...
Page 227 Video timing tables Video timing Vertical refresh rate (Hz) (active pixels x active lines) 1920 x 1080 1920 x 1080 1920 x 1200 1920 x 1200 1920 x 2160 1920 x 2160 2048 x 1080 2048 x 1080 2048 x 1080 2048 x 1080 2048 x 1080 2048 x 1080...
Page 228 Video timing tables R5911443 /11...
Page 229: C Dmx Chart
DMX chart DMX chart input board positioning ....................230 DMX chart, Basic........................230 DMX chart, Extended........................231 R5911443 /11...
Page 230: Dmx Chart Input Board Positioning
DMX chart C.1 DMX chart input board positioning About the input boards 6 Input selection ranges are reserved in the DMX chart per input board location (named L1 and L2). With the current version of DMX support, it is important to take into account to keep the input boards in their original slots.
Page 231: Dmx Chart, Extended
DMX chart Function Value Default Action 136 - 143 Select input 7: Quad DP board Input A (if held for 1 second) 144 - 151 Select input 8: Quad DP board Input B (if held for 1 second) 152 - 159 Select input 9: Quad DP board Input C (if held for 1 second) 160 - 167...
Page 232 DMX chart Function Value Default Actions 128 - 135 Select input 6: Quad SDI input (if held for 1 second) 136 - 143 Select input 7: Quad DP board Input A (if held for 1 second) 144 - 151 Select input 8: Quad DP board Input B (if held for 1 second) 152 - 159 Select input 9: Quad DP board Input C (if held for 1...
Page 233 DMX chart Function Value Default Actions 24 - 31 Calibrate lens (zoom, focus and shift) (if held for 5 seconds) 32 - 255 Reserved for future functionality R5911443 /11...
Page 234 DMX chart R5911443 /11...
Page 235: D Wifi & Gsm Compliance Information
WiFi & GSM compliance information Compliance FCC ........................236 Compliance IC..........................236 KCC Certification ........................237 About this chapter This chapter contains important compliance information related to the WiFi and GSM module. Regulatory information for US and Canada can be accessed in the OSD of the projector. In order access it, select System Settings →...
Page 236: Compliance Fcc
WiFi & GSM compliance information D.1 Compliance FCC Federal Communication Commission Interference Statement You are cautioned that changes or modifications not expressly approved by the part responsible for compliance could void the user's authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC rules.
Page 237: Kcc Certification
기기명칭: 특정소출력무선기기(무선랜을 포함한 무선접속시스템용 무선기기) 인증자상호: Barco N.V. 모델명: eBox Pulse 인증번호: R-C-BVY-eBoxPulse 모듈 ID: KCC-CRM-TCS-HE910-D 제조연월: 2019. 제조자/제조국: Barco NV/벨기에와 중국 EMC 경고: 이 기기는 업무용 환경에서 사용할 목적으로 적합성평가를 받은 기기로서 가정용 환경에서 사용하는 경우 전파간섭의 우려가 있습니다. R5911443 /11...
Page 238 WiFi & GSM compliance information R5911443 /11...
Page 239: E Regulatory Information
Regulatory information Product compliance ........................240 China RoHS compliance ......................241 Taiwan RoHS compliance......................242 Turkey RoHS compliance......................243 Disposal information ........................243 Contact information........................244 Production address........................244 R5911443 /11...
Page 240: Product Compliance
Regulatory information E.1 Product compliance UK Compliance This product is fit for use in the UK. Authorised Representative: Barco UK Ltd Address: Building 329, Doncastle Road Bracknell RG12 8PE, Berkshire, United Kingdom EurAsian Conformity (EAC) This product complies with the Safety of Low-Voltage Equipment (LVE Technical Regulation 004/...
Page 241: China Rohs Compliance
Electronic Products” (Also called RoHS of Chinese Mainland), the table below lists the names and contents of toxic and/or hazardous substances that Barco’s product may contain. The RoHS of Chinese Mainland is included in the MCV standard of the Ministry of Information Industry of China, in the section “Limit Requirements of toxic substances in Electronic Information Products”.
Page 242: Taiwan Rohs Compliance
Chinese Mainland, marked with the Environmental Friendly Use Period (EFUP) logo. The number inside the EFUP logo that Barco uses (please refer to the photo) is based on the “General guidelines of environment-friendly use period of electronic information products”...
Page 243: Turkey Rohs Compliance
For more information about recycling of this product, please contact your local city office or your municipal waste disposal service. For details, please visit the Barco website at: https://www.barco. com/about/sustainability/waste-of-electronic-equipment-customers...
Page 244: Contact Information
Registered office address: Habornveien 53, N-1630 Gamle Fredrikstad, Norway Contact address: Beneluxpark 21, 8500 Kortrijk, Belgium Importers contact information To find your local importer, contact Barco directly or one of Barco's regional offices via the contact information given on Barco's web site, www.barco.com. E.7 Production address...
Page 245: Glossary
Glossary Default Gateway A router that serves as an entry point into and exit point out of a network. For example, a local network (LAN) may need a gateway to connect it to a wide area network (WAN) or to the Internet. DHCP Dynamic host configuration protocol.
Page 246 Glossary RS232 An Electronic Industries Association (EIA) serial digital interface standard specifying the characteristics of the communication path between two devices using either D-SUB 9 pins or D-SUB 25 pins connectors. This standard is used for relatively short-range communications and does not specify balanced control lines. RS- 232 is a serial control standard with a set number of conductors, data rate, word length and type of connector to be used.
Page 247: List Of Tools
List of tools Clean cotton cloth Clean micro fiber lens cleaning cloth (e.g. Toraysee® cloth(s)) Compressed air Flat screwdriver 5mm Lens cleaner (e.g. Zeiss lens cleaner, Purosol® or any water based lens cleaner) Level Light meter R5911443 /11...
Page 248 List of tools R5911443 /11...
Page 249: Index
Index RGB adjustment 119 Numbers/Symbols RGB gain 119 Brightness 68 3D emitter setup 124 3D projection 122 3D setup 123 CE Certification 22 Clean Exterior 193 Filters 193 Active 3D 122 Lens 193 setup 124 Cleaning Active Stereo 122 Exterior 196 Address Lens 195 Program...
Page 250 Index Custom projector name 138 sRGB 72 General Considerations 12 Getting started 25 Graphic User Interface Overview 52 Digital Shift 76 Graphics User Interface 51 Digital Zoom 76 Display Compliance 235 Multiple sources 60 GSM activation Single source 60 SIM card 150 DisplayPort 1.2 inputs Specifications 216 Image 67...
Page 251 Index IR sensors 137 Projector address 136 Network Introduction 139 Network connection 139 IP address, wired connection 140 KCC Certification 237 IP address, wireless connection 142 KCC 인증 237 Notice on optical radiation Optical radiation 12 Laser Banks Status 180 Open source licenses 173 Laser radiation 13 Orientation 88...
Page 252 Index Projector OSD on/off 38 protection sleeve 40 Safety Protocol setup 35 Battery explosion 15 RGB button 38 Cooling liquid circuit 15 RGB filter 38 Environment 11 Stealth Mode 38 Hazard Distance 18, 20 Hazardous Chemicals 17 Important instructions 13 Safety Data Sheet (SDS) 17 Quad Combo Mk I Servicing 16...
Page 253 Tilt sensor UDM 4K30 202 Calibration 181 UDM W19 208 Touch panel 43 UDM W22 207, 212 Turkey RoHS 243 UDM W30 203 Standard source files 219 Standby mode 32 Start Image projection 29 UK Compliance 23, 240 Status Light 46...
Page 254 Index R5911443 /11...
Page 256 R5911443 /11 | 2023-07-13 www.barco.com...

This manual is also suitable for:

Udm series Udm 4k30 Udm 4k22 Udm w22 Udm w19 Udm 4k15 ... Show all

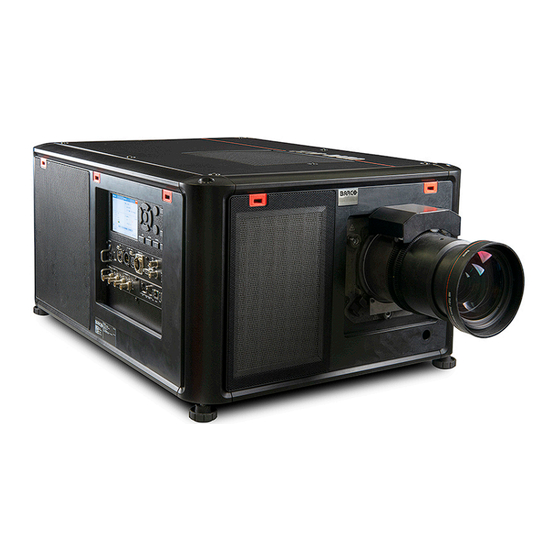

Barco UDM W30 User Manual

Quick Links

Need help?

Questions and answers

Related Manuals for Barco UDM W30

Summary of Contents for Barco UDM W30
