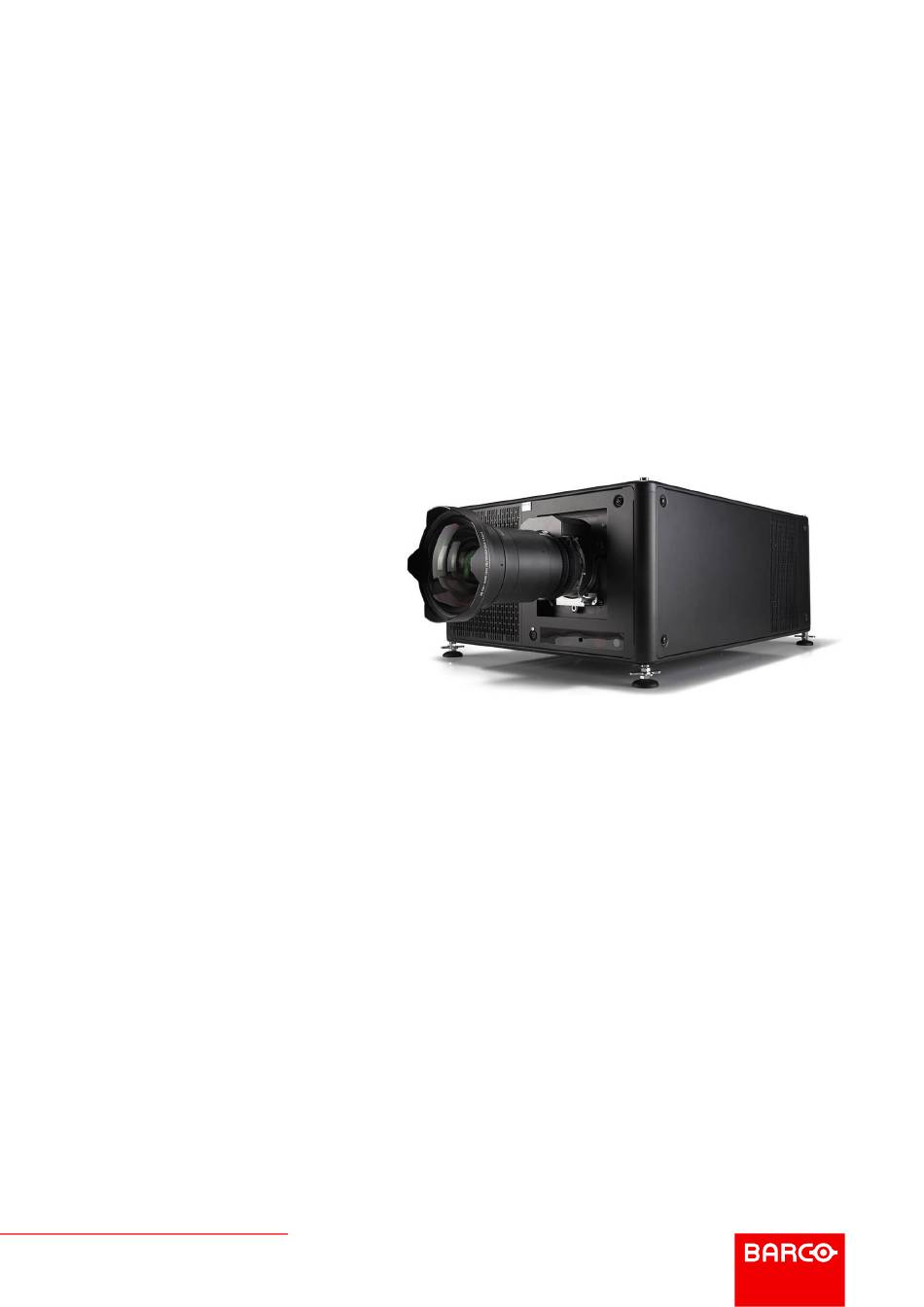

  • Page 1 User manual ENABLING BRIGHT OUTCOMES...
  • Page 2 Barco NV Beneluxpark 21, 8500 Kortrijk, Belgium Registered office: Barco NV President Kennedypark 35, 8500 Kortrijk, Belgium...
  • Page 3 Barco. If the purchaser or a third party carries out modifications or repairs on goods delivered by Barco, or if the goods are handled incorrectly, in particular if the systems are operated incorrectly or if, after the transfer of risks, the goods are subject to influences not agreed upon in the contract, all guarantee claims of the purchaser will be rendered invalid.
  • Page 4 Disclaimer for camera usage Barco provides a kit with a laser range finder and USB camera to help measure the distance from the front of the projector to the projected surface and to help monitor the performance of the projector. Barco disclaims any liability for any use of the USB camera outside this intended use.
  • Page 5 Table of contents 1 Safety ........................................... 9 General considerations ................................10 Important safety instructions..............................12 Product safety labels..................................16 High Brightness precautions: Hazard Distance ......................17 HD for fully enclosed projection systems...........................19 HD in function of modifying optics ............................20 HD calculation of multi-projector stacks..........................21 Radio equipment ....................................22 Compliance ......................................23 1.10...
  • Page 6 Projector Address ...................................49 Quick setup via Direct access..............................50 6 Powering On/Off.....................................53 Power modes ....................................54 Power on projector ..................................55 Switching to ready mode ................................56 Power off projector ..................................57 Power mode transitions................................58 7 Input & Communication ...................................59 Introduction......................................60 Communication connections ..............................61 Pulse Quad Combo input Mk II ...............................63 Pulse Quad Combo input Mk I..............................65 Pulse Quad DP 1.2 input ................................66 Pulse SFP input ....................................67...
  • Page 7 D PJLink commands .................................... 129 PJLink Command list ................................. 130 E Regulatory ........................................ 133 Contact information..................................134 Production information................................135 Product compliance EU................................136 Product compliance UK................................137 Product compliance US................................138 Product compliance Canada ..............................139 Product compliance EAC ................................ 140 Product compliance China..............................
  • Page 8 R5906112 /21...
  • Page 9 UDX product. Clarification of the term “UDX” used in this document When referring in this document to the term “UDX” means that the content is applicable for following Barco products: •...
  • Page 10 • All warnings on the unit and in its documentation manuals must be adhered to. • Installation and preliminary adjustments must be performed by qualified Barco personnel or by authorized Barco service dealers. • This product contains no user serviceable parts. Attempts to modify/replace mechanics or electronics inside the housing or compartments will violate any warranties and may be hazardous.
  • Page 11 Safety WARNING: No direct exposure to the projection beam within the hazard distance shall be permitted for RG3 (Risk Group 3) IEC EN 62471-5:2015. Do not stare into the beam for RG2 (Risk Group 2) IEC EN 62471-5:2015. CAUTION: Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.
  • Page 12 Safety 1.2 Important safety instructions To prevent the risk of electrical shock • This product should be operated from a mono phase AC power source. Ensure that the mains voltage and capacity matches the projector electrical ratings (120-160V / 200-240V (+/- 10%), 20A, 50-60Hz). If you are unable to install the AC requirements, contact your electrician.
  • Page 13 Do not place flammable or combustible materials near the projector! • Barco large screen projection products are designed and manufactured to meet the most stringent safety regulations. This projector radiates heat on its external surfaces and from ventilation ducts during normal operation, which is both normal and safe.
  • Page 14 For lens cleaning follow the instructions precisely as stipulated in the projector manual. • Only use zoom lenses of the Barco TLD+ series on the 4k models of the UDX. Using other lenses will damage the internal optics. For suitable fixed TLD+ lenses contact Barco or see Barco website.
  • Page 15 Use an appropriate forklift to raise flight cases and take the necessary precautions to avoid personnel injury. Safety Data Sheets for Hazardous Chemicals For safe handling information on chemical products, consult the Safety Data Sheet (SDS). SDSs are available upon request via safetydatasheets@barco.com. R5906112 /21...
  • Page 16 Safety 1.3 Product safety labels Light beam related safety labels Safety labels explanation and location: Hazard RG3: Not for household use symbol. Hazard RG3: Optical radiation warning symbol. Hazard class 2: Laser radiation warning symbol. 0.95 mW - 638 nm DECEMBER 12, 2019 WARNING! DO NOT LOOK INTO THE LIGHT BEAM.
  • Page 17 Safety 1.4 High Brightness precautions: Hazard Distance Hazard Distance (HD) is the distance measured from the projection lens at which the intensity or the energy per surface unit becomes lower than the applicable exposure limit on the eye or on the skin. The light beam is considered (to be) unsafe for exposure if the distance from a person to the light source is less than the HD.
  • Page 18 The LIP shall be installed by Barco or by a trained and Barco-authorized installer or shall only be transferred to laser light show variance holders. This is applicable for dealers and distributors since they may need to install the LIP (demo install) and/or they transfer (sell, rent, lease) the LIP.
  • Page 19 Safety 1.5 HD for fully enclosed projection systems Hazard Distance (HD) is the distance measured from the projection lens at which the intensity or the energy per surface unit becomes lower than the applicable exposure limit on the eye or on the skin. The light beam is considered (to be) unsafe for exposure if the distance from a person to the light source is less than the HD.
  • Page 20 Safety 1.6 HD in function of modifying optics Hazard distance UDX 4K40, UDX W40, UDX U40, UDX U45 LC UDX 4K26, UDX W26, UDX 4K28, UDX W28 UDX 4K22, UDX W22 UDX 4K32, UDX W32, UDX U32 Throw Ra�o (TR) Image 1–5 Hazard Distance Throw Ratio...
  • Page 21 Safety 1.7 HD calculation of multi-projector stacks Sometimes two or more projectors are stacked (projecting on the same surface). In this case, because of the overlap of the images, possibly a system Hazard Distance needs to be applied instead of a single projector hazard distance.
  • Page 22 UKNI Hereby, Barco NV declares that the radio equipment type “4G module for the Pulse Input & Communication unit” is in compliance with the Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: https://www.barco.com/en/support/docs/TDE12980...
  • Page 23 Safety 1.9 Compliance UK Compliance This product is fit for use in the UK. Authorised Representative: Barco UK Ltd Address: Building 329, Doncastle Road Bracknell RG12 8PE, Berkshire, United Kingdom R5906112 /21...
  • Page 24 1.10 Download Product Manual Download product manual Product manuals and other related documentation are available online at https://www.barco.com. Search or browse to the product support page or scan the QR code on the product ID-label or on the box label. To see all service documentation (e.
  • Page 25 The Pulse software has regular new releases due to continuous improvements. Hence, the Pulse OSD user guide is subject to updates. Download the latest version of the user guide from the Barco website using following link: https://www.barco.com/support.
  • Page 26 UDX introduction 2.1 Projector orientation Orientation convention This manual refers to the left side of the projector as the side at your left hand when standing behind the projector and looking at the projection screen in front of the projector. Image 2–1 Right Left...
  • Page 27 UDX introduction 2.2 Projector components Projector component location Image 2–2 Power input socket Auxiliary connector (for external shutter, DMX, ...) Power On/Off switch IR receiver projector front side Input & Communication module Distance meter (optional) IR receiver projector right side Dust filter top air inlet Dust filter front air inlet For detailed info about the Input &...
  • Page 28 UDX introduction 2.3 Projector airflow Projector airflow The projector has 4 air inlet channels and 2 air outlets. The air outlets are located at the rear of the projector. The air inlets are located at the top, bottom and right side of the projector. Image 2–3 R5906112 /21...
  • Page 29 UDX introduction 2.4 Projector status LED indication The Control & Communication module contains four status LEDs at the right side of the front panel. These LEDs allows a quick status analyses of the projector. For explanatory see table hereunder. 12V 1A Image 2–4 Location of projector status LEDs.
  • Page 30 UDX introduction R5906112 /21...
  • Page 31 Local keypad Local keypad..........................32 Local keypad backlight........................33 LCD touch panel...........................34 R5906112 /21...
  • Page 32 Local keypad 3.1 Local keypad Buttons overview Image 3–1 Menu navigation Input selection Menu confirmation, OK button Shutter open / close Menu open / close Test patterns Menu back Lens adjustment Power on / off LCD panel Projector OSD on / off Local keypad functionality The Keypad gives direct access to several functions, in addition, access to the menu system.
  • Page 33 Local keypad 3.2 Local keypad backlight Button backlight status The Power and Shutter buttons are equipped with white, blue and red backlit LEDs. The other keys are only equipped with white and blue backlit LEDs. The LEDs are controlled according to the features available. Description Button Color status...
  • Page 34 Local keypad 3.3 LCD touch panel Functionality The LCD touch panel has two main functions: 1. Showing the menus, adjustment information and if enabled a mirror of the OSD (On Screen Display). 2. Information regarding the status of the projector: •...
  • Page 35 Pulse Remote Control Unit (RCU) Pulse RCU functions........................36 Pulse RCU battery installation .......................37 Pulse RCU, protocol setup ......................39 Pulse RCU on/off button........................40 Pulse RCU “button pressed indicator” ....................41 Pulse RCU “RGB filter” button .......................42 Pulse RCU “Projector OSD on/off” button ..................43 Using the XLR connector of the RCU .....................44 Using the mini-jack connector of the RCU..................45 4.10 Pulse RCU silicone protection sleeve (optional) ................46...
  • Page 36 Pulse Remote Control Unit (RCU) 4.1 Pulse RCU functions Functions Image 4–1 Button pressed indicator Backspace (while entering values) Shutter open XLR connector Shutter close Decimal mark (while entering values) LCD/Touch panel on / off Macro button (Not in use) Projector OSD on / off Menu back Lens zoom...
  • Page 37 Pulse Remote Control Unit (RCU) 4.2 Pulse RCU battery installation About the batteries for the remote control Batteries are no longer included in the packaging. It is up to the user to purchase the correct batteries. Use 2 AA size (alkaline) batteries in the remote control. Before using your remote control, first install the batteries.
  • Page 38 Pulse Remote Control Unit (RCU) CAUTION: Replace with the correct battery type. Use two AA size batteries. There is a risk of explosion if the battery is replaced with an incorrect type. CAUTION: Replace the battery as explained above. There is a risk of explosion if the battery is incorrectly installed.
  • Page 39 Depending on the projector, the remote control can be switched between these protocols. Which protocol to use • The NEC protocol must be used for Barco projectors based on the Pulse platform: F70, F80, F90, HDX 4K, UDX, UDM, XDL, F40, F400, etc. •...
  • Page 40 Pulse Remote Control Unit (RCU) 4.4 Pulse RCU on/off button Function of the remote control on/off button The Pulse remote control unit has at the front side an on/off button (reference 1 Image 4–6). Switching off the remote control prevents that unwanted commands are send due to an accidental key press. Furthermore, switching the RCU off will extend the battery lifetime of the remote control.
  • Page 41 Pulse Remote Control Unit (RCU) 4.5 Pulse RCU “button pressed indicator” Functions button pressed indicator • Rapidly flashes when commands are sent, this is the normal “button pressed” indication. • 1 Short flash when remote control is switched ON by means of the on/off button. •...
  • Page 42 Pulse Remote Control Unit (RCU) 4.6 Pulse RCU “RGB filter” button Filtering the color of the projected image By pressing the RGB filter button on the RCU you can place a color filter on the output of the projector. This feature can be useful during the installation and configuration of a multi-projector or multi-channel setup.
  • Page 43 Pulse Remote Control Unit (RCU) 4.7 Pulse RCU “Projector OSD on/off” button Functions Projector on/off button While the light source is on, you can toggle on and off the projection of the On-screen display by pressing the projector OSD on/off button. From Pulse 2.3 onward, this button now supports another function.
  • Page 44 Pulse Remote Control Unit (RCU) 4.8 Using the XLR connector of the RCU Connecting a cable with the XLR connector will reset the broadcast address of the RCU to its default value '0'. Revised RCU Revised Remote Control Units produced from April 2023 onward will require the projector to run software 2.3.x (or newer) in order to properly use the XLR connector.
  • Page 45 Pulse Remote Control Unit (RCU) 4.9 Using the mini-jack connector of the RCU Connecting a cable with the mini-jack connector will reset the broadcast address of the RCU to its default value '0'. How to use the mini-jack connector Connect a cable with the mini-jack connector (reference 2 Image 4–8) of the RCU.
  • Page 46 (optional) Introduction Barco offers a silicone form fitting protection sleeve for the Pulse RCU. The silicone material keeps it comfortably, non slip and soft touch. All buttons and openings remain accessible. The sleeve is quick and easy installed. For ordering information see Barco website.
  • Page 47 Controlling the projector Using the RCU ..........................48 Projector Address .........................49 Quick setup via Direct access ......................50 R5906112 /21...
  • Page 48 Using the RCU in combination with a 3D emitter When using a 3D emitter that radiates IR beams (e. g. the optional 3D emitter that Barco provides), the IR beams of the 3D emitter may interfere with the IR communication between projector and the RCU.
  • Page 49 Controlling the projector 5.2 Projector Address Projector address Address installed in the projector to be individually controlled. Why a projector address? As more than one projector can be installed in a room, each projector should be separately addressable with an RCU or computer. Therefore each projector has its own address. Set up an individual Projector Address The set-up of a projector address can be done via the software.
  • Page 50 Controlling the projector 5.3 Quick setup via Direct access Quick source selection Press the Input button on the remote control or local keypad. Image 5–1 The Source selection menu opens on the LCD display. Image 5–2 Example of the input selection menu Use the arrow keys to select the desired source.
  • Page 51 Controlling the projector Image 5–3 The Test pattern menu opens on the LCD display. Use the arrow keys to select the desired test pattern. R5906112 /21...
  • Page 52 Controlling the projector R5906112 /21...
  • Page 53 Powering On/Off Power modes ..........................54 Power on projector........................55 Switching to ready mode .......................56 Power off projector........................57 Power mode transitions.........................58 R5906112 /21...
  • Page 54 Powering On/Off 6.1 Power modes Overview The UDX has three different power modes: Description Mode STANDBY Light source is switched off and Control & Communication module is active. READY Projector is booted up and the light source is switched off. Projector is booted up and the light source is on.
  • Page 55 Powering On/Off 6.2 Power on projector How to power on Press the mains switch at the side of the projector to switch on this projector. Image 6–1 Mains switch • When '0' is pressed, the projector is switched off. • When 'I' is pressed, the projector is switched on.
  • Page 56 Powering On/Off 6.3 Switching to ready mode How to switch to ready mode Press and hold the Power on/off button for 3 seconds on the local keypad, or press the Power Off button on the remote control. The projector goes to Ready mode. The after-cooling cycle will start (about 30 seconds). During this period the Power on/off button will blink.
  • Page 57 Powering On/Off 6.4 Power off projector CAUTION: This procedure assumes the projector is in standby or ready mode. How to power off Switch off the projector with the mains switch. '0' must be pressed. Image 6–5 Mains switch Unplug the power cord from the projector. R5906112 /21...
  • Page 58 Powering On/Off 6.5 Power mode transitions Transition diagram READY STANDBY Image 6–6 Symbol Description Short pressing the Power on/off button on the local keypad or on the remote control unit. Long pressing the Power on/off button on the local keypad or on the remote control unit.
  • Page 59 Input & Communication Introduction ..........................60 Communication connections......................61 Pulse Quad Combo input Mk II ......................63 Pulse Quad Combo input Mk I .......................65 Pulse Quad DP 1.2 input .......................66 Pulse SFP input..........................67 R5906112 /21...
  • Page 60 Optional antenna for Legacy WiFi module Quad Combo Input board Optional antenna for Pulse 4G Free input slot (here filled with the Quad DP 1.2 Input board) The legacy WiFi module is replaced by a WiFi USB-dongle. See Barco website for ordering information. R5906112 /21...
  • Page 61 Sub-D connector and an USB connector acting as RS input when connected to an USB input of a PC. You can use the RS232/RS422 input to connect a local PC to your UDX series projector. By this way you can configure and control your projector from your local PC.
  • Page 62 Input & Communication Advantages of using RS232/RS422 serial communication: • easy adjustment of the projector via PC (or MAC). • allow storage of multiple projector configurations and set ups. • wide range of control possibilities. • address range from 0 to 255. •...
  • Page 63 Input & Communication 7.3 Pulse Quad Combo input Mk II Front panel Quad Combo Input Mk II Image 7–3 Quad SDI channel A: 3G/12G input DisplayPort Input Quad SDI channel B: 3G input HDMI™ input Quad SDI channel C: 3G SDI input + 3G/12G output HDBaseT input 1 Quad SDI channel D: 3G SDI input / output HDBaseT input 2...
  • Page 64 Input & Communication HD, 3G & 12G IN 0 OUT 0 IN 1 OUT 1 N.C. HD & 3G IN 0 OUT 0 N.C. IN 1 OUT 1 FPGA IN: HD & 3G SDI IN/OUT OUT 0 OUT: HD, 3G & 12G IN 0 N.C.
  • Page 65 Input & Communication 7.4 Pulse Quad Combo input Mk I Overview Quad Combo input Mk I SDI IN SDI IN/OUT SYNC SYNC SYNC SYNC SYNC SYNC HDMI HDBT 1 HDBT 2 SYNC SYNC Image 7–5 Quad SDI channel A: 3G input DisplayPort Input Quad SDI channel B: 3G input HDMI input...
  • Page 66 Input & Communication 7.5 Pulse Quad DP 1.2 input Front panel Quad DP 1.2 input Image 7–8 Quad DisplayPort channel A input Quad DisplayPort channel B input Quad DisplayPort channel C input Quad DisplayPort channel D input LED behavior • The SYNC LED lights up ORANGE when valid input sync is detected.
  • Page 67 Input & Communication 7.6 Pulse SFP input The Barco SFP Input Board has been designed and tested to work alongside the Barco SFP Output Board. However, it is possible that the SFP Input board can also work with other third-party devices that support 12G over fiber.
  • Page 68 Input & Communication R5906112 /21...
  • Page 69 Projector maintenance Software update ...........................70 Cleaning the lens..........................72 Cleaning the exterior of the projector ....................73 About this chapter This chapter contains general maintenance procedures. R5906112 /21...
  • Page 70 CAUTION: Do not power off or unplug the projector while the software update is ongoing. Similarly, do not remove the USB flash drive while the software update is ongoing. Prerequisites First download the latest projector software package from the Barco's website. Required tools Projector Toolset How to update the software using Projector Toolset Power on the projector.
  • Page 71 Always contact Barco if you want to make sure a downgrade will not hurt your device.
  • Page 72 Projector maintenance 8.2 Cleaning the lens To minimize the possibility of damage to optical coatings, or scratches to lens surfaces follow the cleaning procedure as described here precisely. Required tools • Compressed air • Clean cotton cloth • Clean micro fiber lens cleaning cloth (e.g. Toraysee® cloth(s)) •...
  • Page 73 Projector maintenance 8.3 Cleaning the exterior of the projector How to clean the exterior of the projector ? Switch off the projector and unplug the projector from the mains power net. Clean the housing of the projector with a damp cloth. Stubborn stains may be removed with a cloth lightly dampened with a mild detergent solution.
  • Page 74 Projector maintenance R5906112 /21...
  • Page 75 Specifications Specifications of the UDX-4K40 .....................76 Specifications of the UDX-4K32 .....................78 Specifications of the UDX-4K28 .....................80 Specifications of the UDX-4K26 .....................82 Specifications of the UDX-4K22 .....................84 Specifications of the UDX-W40 ......................86 Specifications of the UDX-W32 ......................88 Specifications of the UDX-W28 ......................90 Specifications of the UDX-W26 ......................92 A.10 Specifications of the UDX-W22 ......................94 A.11 Specifications of the UDX-U45LC ....................96...
  • Page 76 3,840 x 2,400 (4K UHD) / 2,560 x 1,600 (native) / 5,120 x 3,200 (processing) Brightness 37,500 (WQ)/36,500 (4K UHD) center lumens // 36,500 (WQ)/35,500 (4K UHD) ansi lumen // 40,000 ISO Contrast ratio Full field 2200:1 / Barco Dyna Black 20000:1 Brightness uniformity Aspect ratio 16:10 ScenergiX Horizontal and vertical edge blending Lenses TLD+ 0.37, 0.65-0.85, 0.8-1.16:1 ;...
  • Page 77 Specifications 24hz to 120hz 4K/4KUHD (4096 x 2160/ 3860 x 2400) to 240hz WQXGA (2560 x 1600) Max. pixel clock 600 MHz Software tools Projector Toolset + Android app + iOS app Control XLR wired + IR, RS232, Wifi (opt), GSM (opt) Network connection 10/100 base-T, RJ-45 connection, Wifi (optional) Power requirements...
  • Page 78 3,840 x 2,400 (4K UHD) / 2,560 x 1,600 (native) / 5,120 x 3,200 (processing) Brightness 31,000 (WQ)/30,000 (4K UHD) center lumens* // 30,000 (WQ)/29,000 (4K UHD) ansi lumens // 33,000 ISO Contrast ratio Full field 2200:1 / Barco Dyna Black 20000:1 Brightness uniformity Aspect ratio 16:10 ScenergiX Horizontal and vertical edge blending Lenses TLD+ 0.37, 0.65-0.85, 0.8-1.16:1 ;...
  • Page 79 Specifications 24hz to 120hz 4K/4KUHD (4096 x 2160/ 3860 x 2400) to 240hz WQXGA (2560 x 1600) Max. pixel clock 600 MHz Software tools Projector Toolset + Android app + iOS app Control XLR wired + IR, RS232, Wifi (opt), GSM (opt) Network connection 10/100 base-T, RJ-45 connection, Wifi (optional) Power requirements...
  • Page 80 Brightness 27,500 center lumens / 26,500 ansi lumens / 30,000 ISO Contrast ratio Full field 2200:1 / Barco Dyna Black 20000:1 Optical lens shift Vertical between -100% to +130%, depending on lens Horizontal up to +/- 40%, depending on lens...
  • Page 81 *Note * Brightness levels +/- 10% ** Wifi and GSM options are not available in all countries. Check with your Barco representative for more info. ***at higher altitude light output might be dimmed Software upgradeable, please contact your local authorized Barco sales...
  • Page 82 3,840 x 2,400 (4K UHD) / 2,560 x 1,600 (native) / 5,120 x 3,200 (processing) Brightness 26,000 (WQ)/25,000 (4K UHD) center lumens // 25,000 (WQ)/24,000 (4K UHD) ansi lumens // 28,000 ISO Contrast ratio Full field 2200:1 / Barco Dyna Black 20000:1 Brightness uniformity Aspect ratio 16:10 ScenergiX Horizontal and vertical edge blending Lenses TLD+ 0.37:1 ;...
  • Page 83 Power cord, wireless/XLR wired rugged remote control Certifications Compliant with UL60950-1 and EN60950-1, complies with FCC rules & regulations part 15 Class A and CE EN55022 Class A, Rhos Warranty 3 years Software upgradeable, please contact your local authorized Barco sales representative R5906112 /21...
  • Page 84 3,840 x 2,400 (4K UHD) / 2,560 x 1,600 (native) / 5,120 x 3,200 (processing) Brightness 20,000 (WQ)/19,000 (4K UHD) center lumens* // 19,000 (WQ)/18,000 (4K UHD) ansi lumens // 21,500 ISO Contrast ratio Full field 2200:1 / Barco Dyna Black 20000:1 Brightness uniformity Aspect ratio 16:10 ScenergiX Horizontal and vertical edge blending Lenses TLD+ 0.37, 0.65-0.85, 0.8-1.16 ;...
  • Page 85 Certifications Compliant with UL60950-1 and EN60950-1, complies with FCC rules & regulations, part 15 Class A and CE EN55032 Class A, Rohs Warranty 3 years Software upgradeable. Check with your local authorized Barco sales representative for full details. R5906112 /21...
  • Page 86 Resolution 1920 x 1200 Technology 0.96" DMD™ x3 Brightness 40,000 center lumen/ 39,000 ansi lumen / 43,000 ISO Contrast ratio Full field 2200:1 / Barco Dyna Black 20000:1 Brightness uniformity Aspect ratio 16:10 ScenergiX Horizontal and vertical edge blending Lenses TLD+ 0.37, 0.65-0.85, 0.8-1.16:1 ;...
  • Page 87 Specifications Software tools Projector Toolset + Android app + iOS app Control XLR wired + IR, RS232, Wifi (opt), GSM (opt) Network connection 10/100 base-T, RJ-45 connection, Wifi (optional) Power requirements 120-160 V (reduced power) / 200-240V (+/- 10%), 20A, 50-60Hz Max.
  • Page 88 Technology 0.96" DMD™ x3 Resolution 1,920 x 1,200 Brightness 32,000 center lumens/ 31,000 ansi lumen / 34,000 ISO Contrast ratio Full field 2200:1 / Barco Dyna Black 20000:1 Brightness uniformity Aspect ratio 16:10 ScenergiX Horizontal and vertical edge blending Lenses TLD+ 0.37, 0.65-0.85, 0.73:1 ;...
  • Page 89 Specifications Software tools Projector Toolset + Android app + iOS app Control XLR wired + IR, RS232, Wifi (opt), GSM (opt) Network connection 10/100 base-T, RJ-45 connection, Wifi (optional) Power requirements 120-160V (reduced power) / 200-240V (+/- 10%), 20A, 50-60Hz Max.
  • Page 90 Brightness 28,000 center lumens / 27,000 ansi lumens / 30,500 ISO Contrast ratio Full field 2200:1 / Barco Dyna Black 20000:1 Optical lens shift Vertical between -100% to +130%, depending on lens Horizontal up to +/- 40%, depending on lens...
  • Page 91 *Note * Brightness levels +/- 10% ** Wifi and GSM options are not available in all countries. Check with your Barco representative for more info. ***at higher altitude light output might be dimmed Software upgradeable, please contact your local authorized Barco sales...
  • Page 92 0.96" DMD™ x3 Resolution 1,920 x 1,200 Brightness 26,000 center lumens / 25,000 ansi lumens / 28,000 ISO Contrast ratio Full field 2200:1 / Barco Dyna Black 20000:1 Brightness uniformity Aspect ratio 16:10 ScenergiX Horizontal and vertical edge blending Lenses TLD+ 0.37:1;...
  • Page 93 (WxLxH) 800 x 1,200 x 685 mm (31.49 x 47.24 x 26.96") Weight 92kg (202 lbs)/shipping weight from factory: 110kg (242 lbs) Standard accessories Power cord, wireless/XLR wired rugged remote control Certifications Warranty 3 years Software upgradeable, please contact your local authorized Barco sales representative R5906112 /21...
  • Page 94 0.96" DMD™ x3 Resolution 1,920 x 1,200 Brightness 21,000 center lumens* / 20,000 ansi lumens / 22,500 ISO Contrast ratio Full field 2200:1 / Barco Dyna Black 20000:1 Brightness uniformity Aspect ratio 16:10 ScenergiX Horizontal and vertical edge blending Lenses TLD+ 0.37:1 ;...
  • Page 95 Power cord, wireless/XLR wired rugged remote control Certifications Compliant with UL60950-1 and EN60950-1 complies with FCC rules & regulations, part 15 Class A and CE EN55032 Class A, Rohs Warranty 3 years Software upgradeable, please contact your local authorized Barco sales representative R5906112 /21...
  • Page 96 0.96" DMD™ x3 Resolution 1600 x 1200 Brightness 41,000 center lumen/ 39,500 ansi lumens / 45,000 ISO Contrast ratio Full field 2200:1 / Barco Dyna Black 20000:1 Brightness uniformity Aspect ratio ScenergiX Horizontal and vertical edge blending Lenses TLD+ 0.37, 0.65-0.85, 0.8-1.16:1 ; 1.25-1.6:1 ; 1.5-2.0:1 ; 2.0-2.8:1 ; 2.8- 4.5:1 ;...
  • Page 97 Specifications Software tools Projector Toolset + Android app + iOS app Control XLR wired + IR, RS232, Wifi (opt), GSM (opt) Network connection 10/100 base-T, RJ-45 connection, Wifi (optional) Power requirements 120-160 V (reduced power) / 200-240V (+/- 10%), 20A, 50-60Hz Max.
  • Page 98 0.96" DMD™ x3 Resolution 1600 x 1200 Brightness 37,500 center lumen/ 36,500 ansi lumens / 40,000 ISO Contrast ratio Full field 2200:1 / Barco Dyna Black 20000:1 Brightness uniformity Aspect ratio ScenergiX Horizontal and vertical edge blending Lenses TLD+ 0.37, 0.65-0.85, 0.8-1.16:1 ; 1.25-1.6:1 ; 1.5-2.0:1 ; 2.0-2.8:1 ; 2.8- 4.5:1 ;...
  • Page 99 Specifications Software tools Projector Toolset + Android app + iOS app Control XLR wired + IR, RS232, Wifi (opt), GSM (opt) Network connection 10/100 base-T, RJ-45 connection, Wifi (opt) Power requirements 120-160 V (reduced power) / 200-240V (+/- 10%), 20A, 50-60Hz Max.
  • Page 100 0.96" DMD™ x3 Resolution 1,600 x 1,200 Brightness 30,000 center lumens / 29,000 ansi lumen / 32,000 ISO Contrast ratio Full field 2200:1 / Barco Dyna Black 20000:1 Brightness uniformity Aspect ratio ScenergiX Horizontal and vertical edge blending Lenses TLD+ 0.37, 0.65-0.85, 0.73:1 ; 1.2:1 ; 0.8-1.16 ; 1.25-1.6:1 ; 1.5-2.0:1 ; 2.0- 2.8:1 ;...
  • Page 101 Specifications Software tools Projector Toolset + Android app + iOS app Control XLR wired + IR, RS232, Wifi (opt), GSM (opt) Network connection 10/100 base-T, RJ-45 connection, Wifi (optional) Power requirements 120-160V (reduced power) / 200-240V (+/- 10%), 20A, 50-60Hz Max.
  • Page 102 Specifications A.14 Specifications SDI inputs For readability, the video timings listed are summarized. For the full list of video timings, refer to the appendices. HD-SDI follows the SMPTE 292M standard. 3G SDI follows the SMPTE 425M standard Level A. 12G-SDI follows the SMPTE ST-2082-1 and ST-2082-10 standards.
  • Page 103 Specifications A.15 Specifications HDMI inputs For readability, the video timings listed are summarized. For the full list of video timings, refer to the appendices. HDMI specifications Specification Value Pixel rate 25 – 600 MHz pixel clock HDCP support • HDCP 1.x •...
  • Page 104 Specifications A.16 Specifications HDBaseT inputs For readability, the video timings listed are summarized. For the full list of video timings, refer to the appendices. HDBase T specifications Specification Value Pixel rate 25 – 297 MHz pixel clock Color space • YCbCr 4:2:2 •...
  • Page 105 Specifications A.17 Specifications DisplayPort 1.2 inputs For readability, the video timings listed are summarized. For the full list of video timings, refer to the appendices. DisplayPort 1.2 specifications Pixel rate Up to 600 MHz pixel clock Color space • YCbCr 4:2:2 •...
  • Page 106 Specifications • 2560 x 1080 @120 Hz • 2560 x 1600 @120 Hz Active 3D 2 column mode (2x1 1920 x 2160 @120 Hz layout) Active 3D 4 quadrant mode (2x2 • 1920 x 1080 @120 Hz layout) • 1920 x 1200 @120 Hz •...
  • Page 107 Specifications A.18 Specifications SFP inputs For readability, the video timings listed are summarized. For the full list of video timings, refer to the appendices. SFP specifications Color space YCbCr Color depth 10 bpc Chroma sampling 4:2:2 Audio support not supported Video timings Type Port type...
  • Page 108 Specifications R5906112 /21...
  • Page 109 Video timing tables Overview video timings ....................... 110 Overview video timings SDI Inputs ....................112 Overview video timings HDMI 2.0 inputs..................113 Overview video timings DisplayPort 1.2 inputs ................115 Overview video timings HDBaseT inputs ..................118 About this chapter This chapter contains the tables with video timings for video interfaces.
  • Page 110 B.1 Overview video timings List of compatible signals The following table specifies the video signals that the projector can project. Barco Events projectors supports the signal with “X” in the Compatible signals column. Note: Support for refresh rates 24.00, 30.00, 60.00 Hz automatically includes support of 1/1.001 x those refresh rates.
  • Page 111 Video timing tables Compatible signal 12G SDI Input Vertical on Mk II Input HDBaseT & refresh rate Resolution HDMI 2.0 DisplayPort board & Fiber 3G SDI Inputs HDMI 1.4 (Hz) Inputs 1.2 Inputs Network Inputs Inputs 3840 x 2160 — —...
  • Page 112 Video timing tables B.2 Overview video timings SDI Inputs Overview The following standard video formats are available for the projector. Video timing Vertical refresh rate Type Port Type (active pixels x active (Hz) lines) 1280 x 720 HD-SDI Single Link & Quad Link 1280 x 720 HD-SDI Single Link &...
  • Page 113 Video timing tables B.3 Overview video timings HDMI 2.0 inputs Overview The following standard video formats are available for the projector. Note: support for refresh rates 24.00, 30.00, 60.00 Hz automatically includes support of 1/1.001 x those refresh rates Video timing Vertical refresh rate (Hz) 3D support? (active pixels x active lines)
  • Page 114 Video timing tables Video timing Vertical refresh rate (Hz) 3D support? (active pixels x active lines) 3840 x 2160 3840 x 2160 3840 x 2160 3840 x 2160 3840 x 2400 3840 x 2400 4096 x 2160 4096 x 2160 4096 x 2160 4096 x 2160 4096 x 2160...
  • Page 115 Video timing tables B.4 Overview video timings DisplayPort 1.2 inputs Overview The following standard video formats are available for the projector. Note: support for refresh rates 24.00, 30.00, 60.00 Hz automatically includes support of 1/1.001 x those refresh rates Video timing Available layout modes, Vertical refresh rate other than standard...
  • Page 116 Video timing tables Video timing Available layout modes, Vertical refresh rate other than standard Support for 3D? (active pixels x active (Hz) layout (1 x 1 layout) lines) 1920 x 1080 1920 x 1080 4 Quadrant mode (2 x 2 Active 3D layout) 1920 x 1200...
  • Page 117 Video timing tables Video timing Available layout modes, Vertical refresh rate other than standard Support for 3D? (active pixels x active (Hz) layout (1 x 1 layout) lines) 4096 x 2160 4096 x 2160 4096 x 2160 4096 x 2160 4096 x 2160 13.
  • Page 118 Video timing tables B.5 Overview video timings HDBaseT inputs Overview The following standard video formats are available for the projector. Note: support for refresh rates 24.00, 30.00, 60.00 Hz automatically includes support of 1/1.001 x those refresh rates. Video timing Vertical refresh rate (Hz) (active pixels x active lines) 640 x 480...
  • Page 119 Video timing tables Video timing Vertical refresh rate (Hz) (active pixels x active lines) 3840 x 2160 3840 x 2160 4096 x 2160 4096 x 2160 4096 x 2160 R5906112 /21...
  • Page 120 Video timing tables R5906112 /21...
  • Page 121 DMX chart DMX chart input board positioning ....................122 DMX chart, Basic........................123 DMX chart, Extended........................124 R5906112 /21...
  • Page 122 DMX chart C.1 DMX chart input board positioning About the input boards 6 Input selection ranges are reserved in the DMX chart per input board location (named L1 and L2). With the current version of DMX support, it is important to take into account to keep the input boards in their original slots.
  • Page 123 DMX chart C.2 DMX chart, Basic Overview Ch. Function Value Default Action Shutter + Intensity 0 - 7 Close shutter 8 - 255 Adjust intensity Function select 0 - 7 No function 8 - 15 Activate first profile preset (If held for 1 second) 16 - 23 Activate second profile preset (If held for 1 second) 24 - 31...
  • Page 124 DMX chart C.3 DMX chart, Extended Overview on F40, F70, F80, Bragi, Balder and Medea Ch. Function Value Default Actions Shutter + Intensity 0 - 7 Close shutter 8 - 255 Adjust intensity Brightness 0 - 255 Adjusts the brightness between 0 and 100% on input. Contrast 0 - 255 Adjusts the contrast between 0 and 100% on input...
  • Page 125 DMX chart Function Value Default Actions Lens shift vertical 0 - 255 Set coarse lens shift in vertical direction (MSB) Lens shift vertical 0 - 255 Set fine lens shift in vertical direction (LSB) Lens shift 0 - 255 Set coarse lens shift in horizontal direction horizontal (MSB) Lens shift 0 - 255...
  • Page 126 DMX chart Overview on UDX, UDM, Njord and Hodr Ch. Function Value Default Actions Shutter + Intensity 0 - 7 Close shutter 8 - 255 Adjust intensity Brightness 0 - 255 Adjusts the brightness between 0 and 100% on input. Contrast 0 - 255 Adjusts the contrast between 0 and 100% on input...
  • Page 127 DMX chart Function Value Default Actions Lens shift vertical 0 - 255 Set fine lens shift in vertical direction (LSB) Lens shift 0 - 255 Set coarse lens shift in horizontal direction horizontal (MSB) Lens shift 0 - 255 Set fine lens shift in horizontal direction horizontal (LSB) Light Source Set light source to 100%...
  • Page 128 DMX chart R5906112 /21...
  • Page 129 PJLink commands PJLink Command list ........................130 R5906112 /21...
  • Page 130 ON or READY mode. Remark for PJLink Class 1 only: The PJLink 1.0 specification only defines 9 digital inputs. Barco projectors can have more than 9 digital inputs. For this reason, the storage and network categories are used to host the remaining digital sources.
  • Page 131 Get list of input sources NAME ? Get projector name The result is the projector Hostname INF1 ? Get manufacturer of The result is: “Barco” the projector INF2 ? Get product name Identification property of the DeviceIdentification file INFO ?
  • Page 132 PJLink commands R5906112 /21...
  • Page 133 Regulatory Contact information........................134 Production information ........................ 135 Product compliance EU....................... 136 Product compliance UK....................... 137 Product compliance US....................... 138 Product compliance Canada......................139 Product compliance EAC ......................140 Product compliance China......................141 Product compliance Taiwan ......................143 E.10 Product compliance Korea ......................145 E.11 Product compliance Turkey ......................
  • Page 134 Barco NV Beneluxpark 21, 8500 Kortrijk, Belgium Importers contact information To find your local importer, contact Barco directly or one of Barco's regional offices via the contact information given on Barco's web site, www.barco.com. Registered offices Registered office: Barco NV President Kennedypark 35, 8500 Kortrijk, Belgium Registered office: Barco (Wuxi) Technology Co., Ltd.
  • Page 135 The month and year of production is indicated on the product ID label on the product itself. Factory address Factory: Barco NV President Kennedypark 35, 8500 Kortrijk, Belgium Factory: Barco (Wuxi) Technology Co., Ltd. No. 38, Chunhui Middle Road, XiShan District, 214101 Wuxi CHINA 工厂：巴可（无锡）技有限公司 中国无锡市锡山区春晖中路38号，邮编214101...
  • Page 136 For more information about recycling of this product, please contact your local city office or your municipal waste disposal service. For details, please visit the Barco website at: https://www.barco. com/about/sustainability/waste-of-electronic-equipment-customers...
  • Page 137 Regulatory E.4 Product compliance UK UK Compliance This product is fit for use in the UK. Authorised Representative: Barco UK Ltd Address: Building 329, Doncastle Road Bracknell RG12 8PE, Berkshire, United Kingdom R5906112 /21...
  • Page 138 Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment FCC responsible: Barco Inc. 3059 Premiere Parkway Suite 400 30097 Duluth GA, United States Tel: +1 678 475 8000...
  • Page 139 Regulatory E.6 Product compliance Canada Regulatory information for US and Canada can be accessed in the OSD of the projector. In order access it, select Settings >> Regulatory information >> Country. Radio Frequency (RF) exposure information This equipment (IC 23575-R8767900X) complies with IC radiation exposure limits set forth for an uncontrolled environment.
  • Page 140 Regulatory E.7 Product compliance EAC EurAsian Conformity (EAC) This product complies with the Safety of Low-Voltage Equipment (LVE Technical Regulation 004/ 2011, CU TR 004/2011) and the Electromagnetic Compatibility of Technical Products (EMC Technical regulation, CU TR 020/2011) and Restriction of use of Hazardous Substances in radio and electronic devices (RoHS Technical regulation, CU TR 037/2016).
  • Page 141 According to the “Management Methods for the Restriction of the Use of Hazardous Substances in Electrical and Electronic Products” (Also called RoHS of Chinese Mainland), the table below lists the names and contents of toxic and/or hazardous substances that Barco’s product may contain. 零件项目(名称) 有毒有害物质或元素...
  • Page 142 Chinese Mainland, marked with the Environmental Friendly Use Period (EFUP) logo. The number inside the EFUP logo that Barco uses (please refer to the photo) is based on the “General guidelines of environment-friendly use period of electronic information products”...
  • Page 143 Regulatory E.9 Product compliance Taiwan EMC notices Taiwan BSMI Taiwan Class A statement 警告使用者 : 此為甲類資訊技術設備，於居住環境中使用 ，可能會造成射頻擾動，在此情況下，使用者會被要 求採取某些適當的對策。 BSMI Reporting Obligor Information / 報驗義務人資訊 一、 商品在國內產製時，為商品之產製者或輸出者。 但商品委託他人產製，並以在國內有住所或營業所之委託者名義，於國內銷售或輸出時，為委託者。 二、 商品在國外產製時，為商品之輸入者。 但商品委託他人輸入，並以在國內有住所或營業所之委託者名義，於國內銷售時，為委託者。 三、 商品之產製者、輸出入者、委託產製或委託輸出入者不明或無法追查時，為銷售者。 前項所稱產製者，包括具有下列情形之一者： 一、組裝者：商品由個別零組件以組裝銷售。 二、修改者：符合檢驗規定之商品於進入市場前，為銷售目的而修改。 限用物質含有情況標示聲明書 (Declaration of the Presence Condition of the Restricted Substances Marking) 設備名稱：　投影機，　型號（型式）：　UDX Equipment name: Projector, Type designation: UDX...
  • Page 144 Regulatory 設備名稱：　投影機，　型號（型式）：　UDX Equipment name: Projector, Type designation: UDX 限用物質及其化學符號 Restricted substances and its chemical symbols 單元 鉛 汞 鎘 六價鉻 多溴聯苯 多溴二苯醚 Unit Lead Mercu- Cadmi- Hexava- Polybromi- Polybromi- lent nated nated (Pb) chromi- biphenyls diphenyl (Hg) (Cd) ethers (PBB) (Cr6+) (PBDE) 風扇...
  • Page 145 기기명칭: 특정소출력무선기기(무선랜을 포함한 무선접속시스템용 무선기기) 인증자상호: Barco N.V. 모델명: eBox Pulse 인증번호: R-C-BVY-eBoxPulse 모듈 ID: KCC-CRM-TCS-HE910-D 제조연월: 2019. 제조자/제조국: Barco NV/벨기에와 중국 EMC 경고: 이 기기는 업무용 환경에서 사용할 목적으로 적합성평가를 받은 기기로서 가정용 환경에서 사용하는 경우 전파간섭의 우려가 있습니다. R5906112 /21...
  • Page 146 Regulatory E.11 Product compliance Turkey Turkey RoHS compliance Türkiye Cumhuriyeti: AEEE Yönetmeliğine Uygundur. [Republic of Turkey: In conformity with the WEEE Regulation] R5906112 /21...
  • Page 147 Regulatory E.12 Trademark notice HDMI™ The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. DisplayPort™ DisplayPort™, the DisplayPort™ logo and DisplayPortHDR™ logo are trademarks owned by the Video Electronics Standards Association (VESA®) in the United States and other countries.
  • Page 148 Users feature, or via a factory reset executed as administrator. Logs may contain user names and IP addresses and are subject to the retention policy, but can’t be deleted by the user. The user can send a request to dataprotection@barco.com. R5906112 /21...
  • Page 149 Glossary Broadcast address Projector will always execute the command coming from a RCU programmed with that broadcast address. DMX-512 Lighting protocol over RS-485 interface. Carries information of 512 channels from a lighting controller to lighting devices. Standardized by USITT. Hazard Distance (HD) is the distance measured from the projection lens at which the intensity or the energy per surface unit becomes lower than the applicable exposure limit on the eye or on the skin.
  • Page 150 Glossary R5906112 /21...
  • Page 151 List of tools Clean cotton cloth Clean micro fiber lens cleaning cloth (e.g. Toraysee® cloth(s)) Compressed air Lens cleaner (e.g. Zeiss lens cleaner, Purosol® or any water based lens cleaner) Projector Toolset R5906112 /21...
  • Page 152 List of tools R5906112 /21...
  • Page 153 Index Control 47 Numbers/Symbols Cooling liquid circuit warning 13 DisplayPort 1.2 inputs Address Specifications 105 Prodcution 135 Disposal 136 Airflow 28 Battery 136 DMX chart 121 Basic 123 Extended 124 Backlight 33 DMX Chart Battery Input mapping 122 Disposal 136 DMX input 61 DMX interface 61 DMX out 61...
  • Page 154 Index Hazard Distance 17, 19 PJLink Modifying optics 20 Command List 130 Multi-projector 21 Commands 129 Projector stacks 21 Power Hazardous Chemicals 15 Modes 54 HDBaseT inputs Power mode Specifications 104 Transition 58 HDMI inputs Power off 57 Specifications 103 Power Off 53 High Brightness precautions 17 Power on 55...
  • Page 155 Index Safety 9 UK Compliance 23, 137 Battery explosion 14 USB port 62 Cooling liquid circuit 13 User definition 11 Electrical shock 12 Fire hazard 13 Hazard Distance 17, 19 Hazardous Chemicals 15 Video timings Important instructions 12 DisplayPort Inputs 115 Personal injury 12 HDBaseT Inputs 118 Projector damage 14...
  • Page 156 Index R5906112 /21...
  • Page 158 R5906112 /21 | 2024-07-08 www.barco.com...
