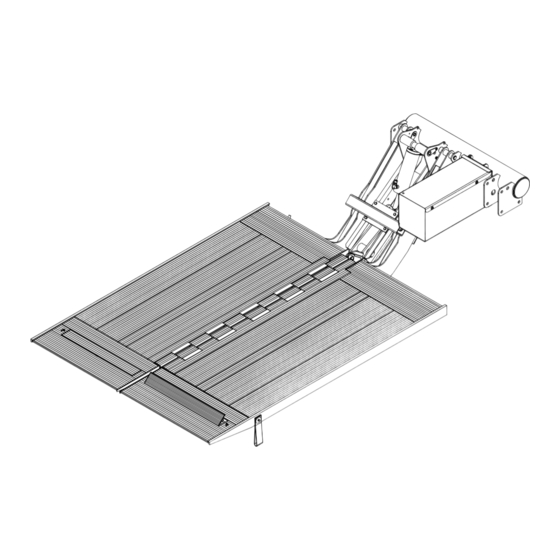

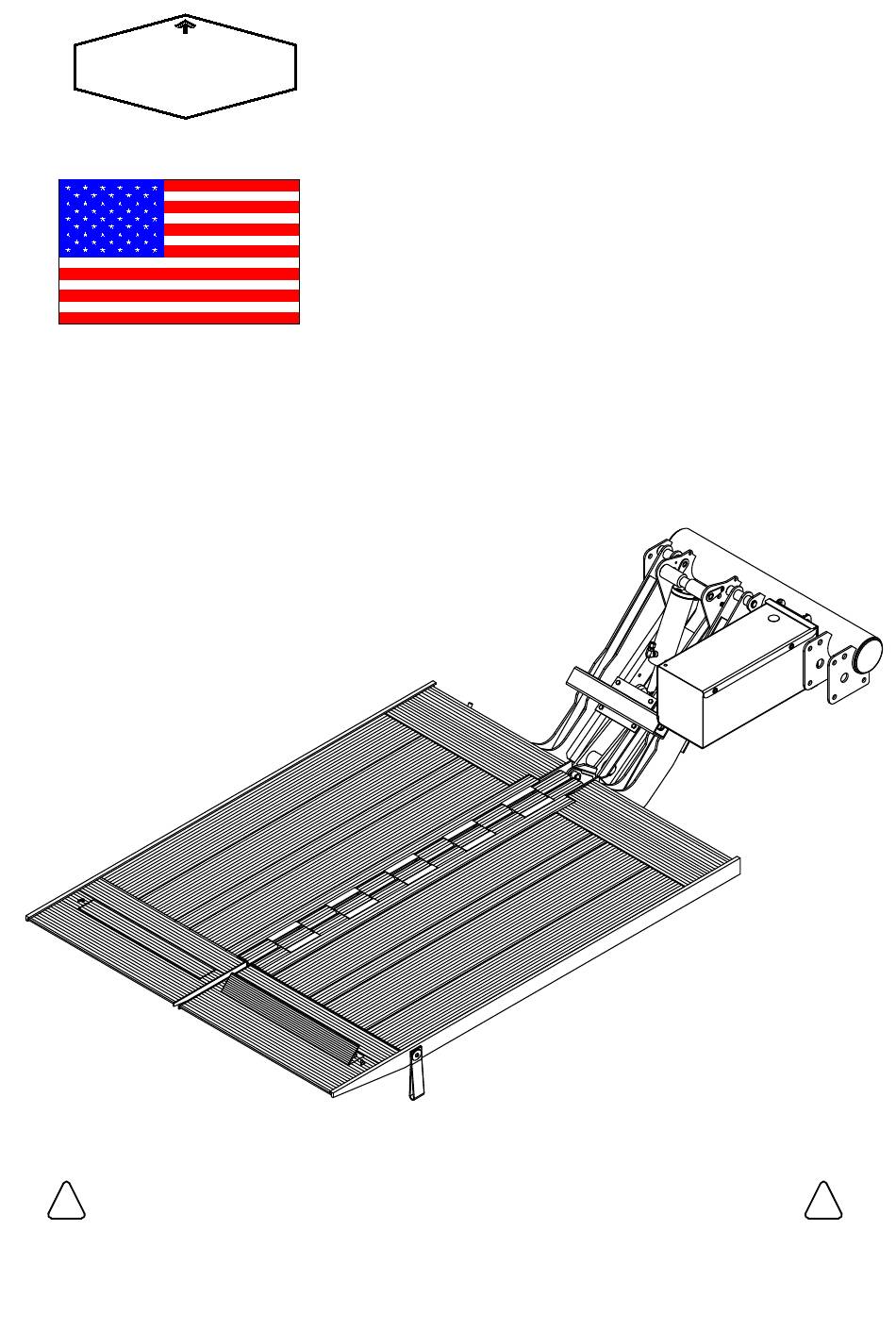

The original
TOMMY GATE
hydraulic lift
Woodbine, Iowa
Made in America
Before installing or using this Liftgate, please observe the Vehicle Loading
!
Limitations. These loading limitations are outlined in the Vehicle Owner's Manual
and the Safety Compliance Certification Label located on the driver's door pillar.
CAUTION
DPN: 010819
OWNER'S / OPERATOR'S
®
·
·
·
·
·
CANTILEVER
SERIES
PLEASE KEEP IN VEHICLE
Page 1 of 28
MANUAL
Safety Information
Warranty Information
Operator's Instructions
Maintenance Instructions
Parts List
!
CAUTION
Rev 17
7-24-23
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Tommy Gate TG-CVL-AC-1330 EF
Summary of Contents for Tommy Gate TG-CVL-AC-1330 EF
- Page 1 OWNER'S / OPERATOR'S The original TOMMY GATE ® MANUAL hydraulic lift Woodbine, Iowa Safety Information · Warranty Information · Operator's Instructions · Maintenance Instructions · Parts List · Made in America CANTILEVER SERIES Before installing or using this Liftgate, please observe the Vehicle Loading Limitations.
-
Page 2: Table Of Contents
The original TOMMY GATE ® TABLE OF CONTENTS hydraulic lift Introduction Page# To the Owner\Operator Safety Decals 4 - 7 Location and Descriptions Decal Replacement Operator's Instructions Cantilever Series Terms and Method of Operation 9 & 10 Operator's Instructions 11 & 12... -
Page 3: To The Owner\Operator
Be sure you read and understand all operating, safety, maintenance and service information. Should you need repair or service information, contact Tommy Gate or an authorized distributor for assistance. This is the safety alert symbol. It is used to alert you to potential personal injury hazards. - Page 4 UNATTENDED. NEVER LEAVE PLATFORM DOWN TO BE USED AS A STEP. ALL REPAIRS OR REINSTALLATIONS OF TOMMY GATE LIFTS SHOULD BE PERFORMED BY AN AUTHORIZED DISTRIBUTOR THAT IS FAMILIAR WITH ITS OPERATION AND SAFETY FEATURES. ALL REPLACEMENT PARTS MUST BE OF ORIGINAL QUALITY, AND ALL...
- Page 5 WARNING Read operator's manual before operating equipment. Do not modify lift or its safety features. Use only Tommy Gate service parts installed by an authorized distributor. If additional assistance is needed, call Tommy Gate at (712) 847-8000. Do not exceed the rated lift capacity.
- Page 6 The original TOMMY GATE ® DECAL LOCATIONS AND DESCRIPTIONS hydraulic lift Rated Lift Capacity 1300 lb or 590 kg 9478 Decal No. 7 Two decals. Located on the left-hand side of platform. Positioned up when platform is unfolded. Located on the side of the pendant control...
-
Page 7: Decal Replacement
The original TOMMY GATE ® DECAL LOCATIONS AND DESCRIPTIONS hydraulic lift DANGER Before removing box cover do the following: 1) Lower platform to ground or close and latch. 2) Disconnect positive battery cable(s). 9556 Decal No. 12 Located on rear out side of power unit case. -
Page 8: Cantilever Series Terms And Method Of Operation
Tommy Gate's control includes a low voltage warning feature. When the control is armed with 7 volts or less present at the power unit, the amber "POWER ON" LED will blink. This warns the operator of the low voltage condition, but will not disable the liftgate. -
Page 9: Operator's Instructions 9
Make sure the control is deactivated before leaving the truck unattended. !Warning: The Tommy Gate is an industrial product for material handling only and is not to be used as a personnel or wheelchair lift. Do not ride on the platform and always stand clear of the platform when opening, raising, or lowering. - Page 10 The original TOMMY GATE ® OPERATOR'S INSTRUCTIONS hydraulic lift Step 5. To unfold the platform, stand to the side clear of the platform and all moving parts, then push the pendant toggle switch down while pushing either up or down on the FOLD/UNFOLD toggle switch.
-
Page 11: Platform Adjustment 11
The original TOMMY GATE ® PLATFORM ADJUSTMENT hydraulic lift LEVELING PLATFORM FOR LOADING 1. Park the van on a level surface. 2. Unlock the platform. 3. Unfold the platform completely. 4. Adjust the passenger side support arm so that the platform is 1-1/2" from level over a 3 foot length (Figures 3 and 4). - Page 12 The original TOMMY GATE ® PLATFORM ADJUSTMENT hydraulic lift ADJUSTING PLATFORM TO FOLD CORRECTLY 1. Park the van on a level surface. 2. Verify that the platform folds to a vertical position without hitting the van door. 3. Loosen the 3/8" nuts on the driver side support arm (Figure 5) so they do not contact the stop when the platform is folded.
-
Page 13: Emergency Chain-Up Feature
The original TOMMY GATE ® EMERGENCY CHAIN-UP FEATURE hydraulic lift USING THE EMERGENCY CHAIN-UP FEATURE The emergency chain-up feature is used to temporarily hold the lift up if the lift will not raise or will not stay raised. Have the lift repaired before using it in this condition. -
Page 14: Electrical Wiring Diagrams
The original TOMMY GATE ® ELECTRICAL WIRING DIAGRAM hydraulic lift WELDING NOTE !!! DISCONNECT ALL BATTERY CABLES. ALWAYS DISCONNECT THE GROUND CABLE FIRST. ATTACH THE WELDING GROUND TO THE TRUCK RATHER THAN THE LIFTGATE. IMPORTANT NOTE !!! IF GATES ARE NOT WIRED... -
Page 15: Ladder Logic/Wiring Diagram
The original TOMMY GATE ® LADDER LOGIC/WIRING DIAGRAM hydraulic lift Ladder Logic/Wiring Diagram Legend Circuit Breaker Toggle Switch Limit Switch Relay/Contactor - Normally Open Contacts Relay/Contactor - Normally Closed Contacts Motor Solenoid/Relay/Contactor - Coil Battery Cable Wire Battery Battery Grounded through motor chassis. -
Page 16: Pendant Plug Wiring Diagram
The original TOMMY GATE ® PENDANT PLUG WIRING DIAGRAM hydraulic lift FEMALE CONNECTOR BACK VIEW WIRE INSERTION SIDE BROWN BLACK NO WIRE NO WIRE GREEN COLE HERSEE SOCKET END WIRE POSITION COLOR BLACK GREEN NO WIRE BROWN NO WIRE Page 16 of 28... -
Page 17: Maintenance And Service
All replacement parts must be of original quality, and all safety and operational decals must be attached. No modifications are allowed to a Tommy Gate product unless authorized in writing by the Engineering Department at Tommy Gate. -
Page 18: Troubleshooting 18
The original TOMMY GATE ® TROUBLESHOOTING - CANTILEVER SERIES hydraulic lift Page 18 of 28 DPN: 010819 Rev 17 7-24-23... - Page 19 The original TOMMY GATE ® TROUBLESHOOTING - CANTILEVER SERIES hydraulic lift Page 19 of 28 DPN: 010819 Rev 17 7-24-23...
-
Page 20: Standard Warranty
Tommy Gate Company's Warranty Department to discuss the problem and its correction. 2. If it is determined that the condition is potentially covered by Tommy Gate Company's warranty, the authorized distributor will receive instructions on how to proceed. A decision will be made to either repair or replace the product or part in question. - Page 21 Action taken, cost involved, complete with work orders and parts expense invoices. 6. If defective parts are to be returned to Tommy Gate Company, the parts: a. Must be packaged for each individual warranty return. No multiple warranty claims in the same box.
-
Page 22: Repair Parts Drawing 22
The original TOMMY GATE ® CANTILEVER SERIES hydraulic lift REPAIR PARTS DRAWING Page 22 of 28 DPN: 010819 Rev 17 7-24-23... - Page 23 The original TOMMY GATE ® CANTILEVER SERIES hydraulic lift REPAIR PARTS DRAWING 38 20 Page 23 of 28 DPN: 010819 Rev 17 7-24-23...
-
Page 24: Repair Parts List
The original TOMMY GATE ® CANTILEVER SERIES hydraulic lift REPAIR PARTS LIST ITEM# DESCRIPTION ITEM# DESCRIPTION Platform Platform Tank Platform Pivot Sub Assembly Timed Control License Plate Mount Kit Limit Switch Kit Lift Arm w/ Pins & Keepers License Plate Light 7/8"... - Page 25 The original TOMMY GATE ® hydraulic lift THIS PAGE INTENTIONALLY LEFT BLANK Page 25 of 28 DPN: 010819 Rev 17 7-24-23...
- Page 26 The original TOMMY GATE ® hydraulic lift THIS PAGE INTENTIONALLY LEFT BLANK Page 26 of 28 DPN: 010819 Rev 17 7-24-23...
-
Page 27: Service Records
The original TOMMY GATE ® SERVICE RECORD hydraulic lift LIFTGATE INFORMATION Date of Purchase: Serial Number: Installed By: Model Number: Reminders: Service liftgate according to page 17. Date of Service Services Performed Page 27 of 28 DPN: 010819 Rev 17... -
Page 28: Contact Information
The original ® TOMMY GATE hydraulic lift America's First Name in Liftgates Corporate Offices: Manufacturing Plant: 83 Bus Brown Drive 33717 N. Scottsdale Rd. Ste 120 Woodbine, Iowa 51579 Scottsdale, AZ 85266 FAX (712) 647-2417 FAX (602) 955-3902 (712) 847-8000 www.tommygate.com...
