650 Series Cargo Van Lift Mounting Instructions
Ford Transit Connect
2010-2013
Installing the Base Plate
1. Examine the interior and exterior of the van for possible obstructions such as
rear air conditioning, heater vents, electrical wiring, spare tire, etc (Figure 2).
2. Examine the underside of the van for obstructions that could be damaged when drilling through the van floor:
fuel tank, frame rail, spare tire, wiring, etc (Figure 2 and 3).
3. Verify that the bed height of the van is not over 31-1/2".
4. Verify that mounting bracket kit matches (Figure 1 and Table 1) and that this kit is for your van.
MAINTENANCE
MANUAL KIT
TOP PIVOT BRACKET
7-7/8"
TOP MOUNTING
BRACKET

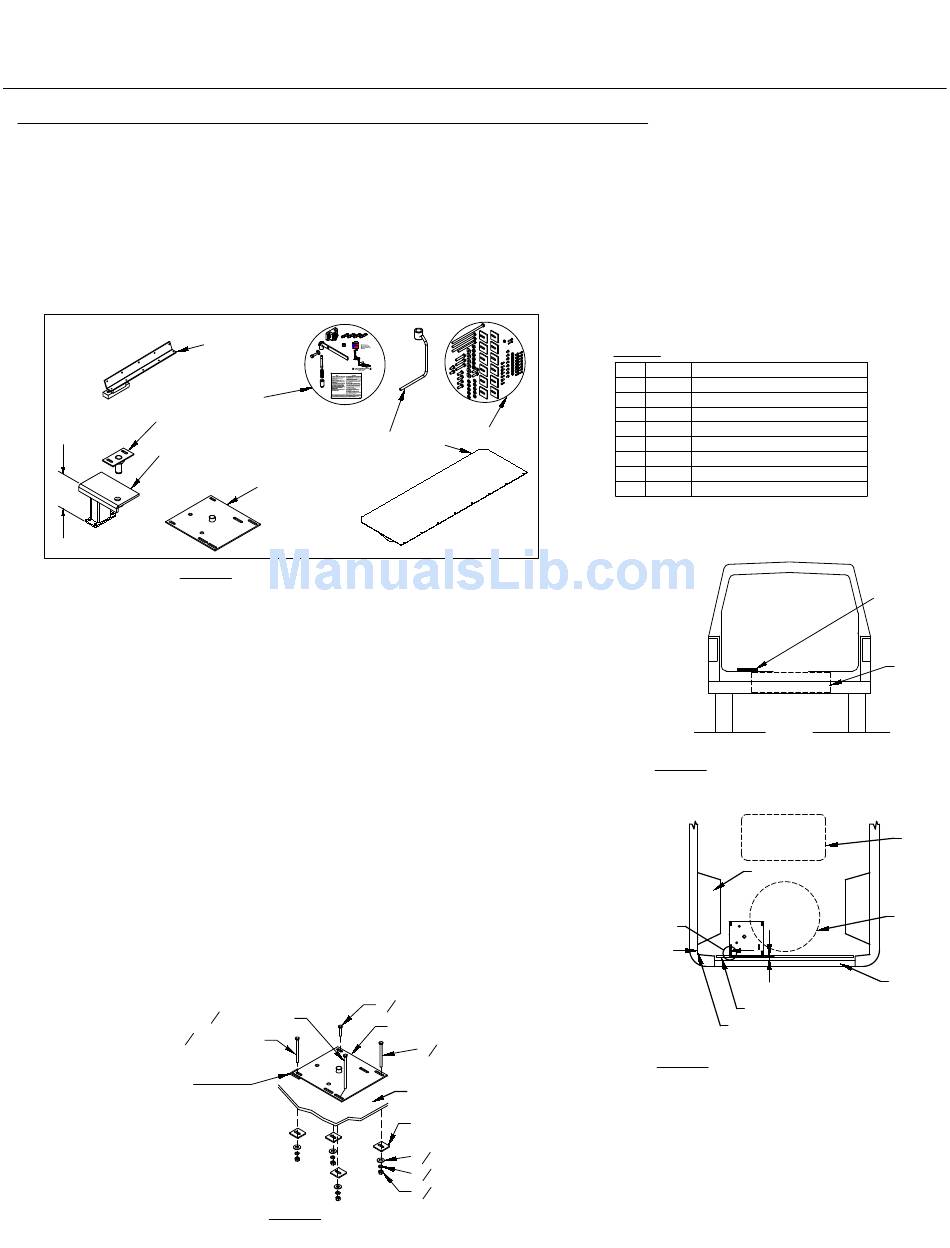

Figure 1: Part Identification.
5. Position the base plate in the van as described in notes A or B (Figure 3).
Note A: The base plate can be located by measuring 7-1/16" from the rear inside left wall of the
van and 3/4" back from the rear edge of the mat hold down.
Note B: The base plate can be located by measuring 7-1/16" from the rear inside left wall of the
van and 2-1/8" back from the closed door on the right side of the base plate. The base
plate should be parallel with the mat hold down, not the van doors.
6. Position the square washer plates under the base plate between the floor ribs, if needed.
The area around the mounting holes must be properly supported by the metal floor.
7. Check for obstructions before drilling in the next step.
8. Drill holes through the floor for the base plate, using the base plate slots as a guide.
Pay close attention to which slots in the base plate to use. The left two mounting
bolts will be close to the spring shackles and rear shock, but will be accessible.
9. Bolt the base plate to the vehicle floor using the hardware provided (Figure 4).
Be careful not to collapse the reinforcement rib when tightening the long bolts.
3
8
Square Washer Plate,
if needed.
TOP ANGLE
OWNER'S / OPERATOR'S
MANUAL
650 Series
650 LB Capacity
BRACKET
TOMMY GATE
FLIPPER ARM
BASE PLATE
3
" x 7" Bolt
8
" x 5" Bolt
Figure 4: Base plate hardware.
BOLT KIT
FLIPPER
PART#10179
3
" x 1-7/8" Bolt
8
Base Plate
3
" x 5" Bolt
8
Van Floor
Square Washer
Plate
3
" Flat Washer
8
3
" Lock Washer
8
3
" Nut
8
Page 1 of 6
Table 1: Parts List.
QTY.
PART NO.
DESCRIPTION
1
10188
650 Bolt Bag Kit (Transit Connect)
1
10178
Top Angle Bracket (Transit Connect)
1
2424
Top Pivot Bracket (Ford)
1
2421
Top Mounting Bracket (Ford & Chevy)
1
1464
Flipper
1
1473
Flipper Arm (650-31)
650 Base Plate
1
1386
1
1062
Maintenance Manual Kit (650)
Ground
Figure 2: Base plate location and obstructions.
Fender Well
(See Note A)
7-1/16"
3/4" (See Note A)
Mat Hold Down
Inside Left Wall
Figure 3: Base plate location and obstructions.
10179
Base Plate
Spare
Floor
Tire
Fuel
Tank
Spare
Tire
Door
Opening
