- Page 1 EXO5 HD WHOLE ROOM CIRCULATOR OWNER’S GUIDE READ AND SAVE THESE INSTRUCTIONS vornado.com...
- Page 2 We expect this If it is not, we product to be will make it perfect. right. vornado.com 800-234-0604 help@vornado.com English...
-
Page 3: Table Of Contents
CONTENTS Important Safety Instructions ............. 4 Warranty .................... 16 Features ....................7 Controls ....................8 How to Use ..................9 Assembly ................... 10 Cleaning .................... 13 Troubleshooting ................15 English... -
Page 4: Important Safety Instructions
See www.vornado.com/circulators-manuals to view, water container. Do not use this product outdoors or expose it to download and print the most current version of these instructions. - Page 5 - Do not open appliance housing while product is plugged in. To Contact Vornado Consumer Service at 1-800-234-0604 (phone) or avoid risk of shock, all service and/or repairs must be done by a consumerservice@vornado.com (email) for further instructions about...
- Page 6 and the product should be discarded or returned to an authorized service facility for examination and/or repair. Risk of fire. Do not replace attachment plug. Contains a safety device (fuse, AFCI, LCDI) that should not be removed. Discard product if the attachment plug is damaged.
-
Page 7: Features

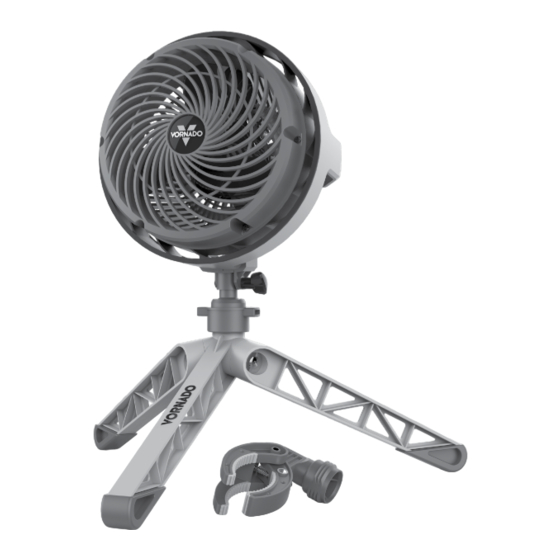

FEATURES FINGER FRIENDLY POWERFUL IP-54 RATED MOTOR DESIGN Dust proof, long life motor that will Resists curious fingers. endure the rigors of the job site. REMOVABLE GRILLE TOOL FREE ASSEMBLY For easy cleaning. EXTRA LONG 8’ SWIVEL HEAD GROUNDED POWER CORD 360°... -
Page 8: Controls
CONTROLS POWER ON/OFF Select High (III), Medium (II), Low (I) fan speed or power off (O) English... -
Page 9: How To Use
HOW TO USE The EXO5 HD can be used in one of three different ways. 1. TRIPOD BASE 2. CLAMP 3. WALL MOUNT English... -
Page 10: Assembly
ASSEMBLY The EXO5 HD can be used in one of three different ways. 1. Connect the Locking Socket Joint (B) to the EXO5 HD Fan Head (A) at any flat location along the Roll Cage (C). Before proceeding, ensure that the knob is properly tightened and the Locking Socket Joint (B) is fully secured to the Fan Head (A). - Page 11 HOW TO USE TRIPOD BASE ATTACHMENT CLAMP ATTACHMENT 1. After product assembly, position unit on flat and level surface 1. After product assembly, twist the Clamp Knob (C) to as shown below. open the Clamp (D). 2. To adjust angle of head tilt, simply loosen the connection 2.
- Page 12 HOW TO USE WALL MOUNT INSTALLATION 1. Locate the Key Holes (A) on the back of the product. 2. Find and mark two circles on the wall where the product will be mounted. The circles need to be 5” apart from center to center.
-
Page 13: Cleaning
CLEANING GRILLE REMOVAL Screwdriver required. WARNING: To reduce the risk of electrical shock and injury to persons, unplug the circulator before removing grille. 1. Remove the 6 screws located on the front of Screw Screw the grille. 2. Dust or wash the Front Grille with a mild dishwashing soap. - Page 14 CLEANING BLADE REMOVAL Pliers recommended. WARNING: To reduce the risk of electrical shock and injury to persons, unplug the circulator before removing blade. 1. First, remove the nut from the shaft by turning the nut clockwise to loosen. Remove the washer. Pull the blade straight out from the shaft.
-
Page 15: Troubleshooting
Under certain conditions, it is possible for a reset GFCI (Ground Fault Circuit Interrupter) outlet to trip when the user is changing speeds on a Vornado circulator. In this event, change to an outlet that is not connected to a GFCI device. It could also indicate a weak or defective GFCI outlet. Contact a qualified electrician to check the GFCI outlet. -
Page 16: Warranty
(5) years from the date of purchase. If any such defect is discovered within used in the country intended. REPAIR OR REPLACEMENT AS PROVIDED UNDER THIS the warranty period, Vornado, at its discretion, will repair or replace the Product at no cost. WARRANTY IS THE EXCLUSIVE REMEDY OF THE CONSUMER. VORNADO SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR BREACH OF For warranty service: Call 1-800-234-0604 or email help@vornado.com to obtain a Return... - Page 17 Vornado Air, LLC 415 East 13th Street, Andover, Kansas 67002 800.234.0604 | vornado.com CL3-0541 R-, V03...
