Vornado EXO5 - Heavy Duty Small Air Circulator Manual

IMPORTANT SAFETY INSTRUCTIONS

INTENDED USE

This product is intended to circulate the air in indoor living spaces only in the United States and Canada. This product is not intended for commercial or industrial use. The manufacturer assumes no responsibility for damage or injury due to unauthorized use or product modification. Failure to follow these directions will void the product warranty.

Risk to Children and Impaired Persons
Supervision is required during the installation, operation, cleaning and maintenance of this product by children 12 years of age and younger and anyone with reduced physical, sensory or mental capabilities. Children should be supervised to ensure that they do not play with the appliance, its parts and packaging material.

INSTALLATION WARNING

To reduce risk of fire, electrical shock and injury to persons, observe the following:

• Place this product away from curtains, draperies, tablecloths and other fabrics, since they may be drawn into the product, damage the motor and/or cause a fire.
• No part of this product (the appliance, power cord, plug, packaging, etc.) should be placed near furnaces, fireplaces, stoves or other high temperature heat sources. Do not use this product in a window, on an uneven or unstable surface, or near water.
• The appliance, power supply, power cord and plug cannot come into contact with water. Do not use this product on wet surfaces. Do not use this product in a bathtub or shower or position product where it may fall into a bathtub, laundry, swimming pool or other water container. Do not use this product outdoors or expose it to weather or elements.
• Do not run cord under carpeting. Do not cover cord with throw rugs, runners, or similar coverings. Do not route cord under furniture or appliances. Arrange cord away from traffic area and where it will not be tripped over. The cord should not hang over edges of counters or be placed where it can be crimped or closed in doors. Place appliance near an easily accessible outlet so the product can be unplugged quickly during an emergency.

SAFE USE WARNING

To reduce risk of fire, electrical shock and injury to persons, observe the following:

•
  To reduce likelihood of circuit overload, fire and electric shock, do not operate with a solid state speed device, such as a dimmer control switch.
• Do not operate any fan with a damaged cord or plug. Discard fan or return to an authorized service facility for examination and/or repair.
• Do not operate unit if the unit has been dropped or damaged. Do not use this product if it has a damaged power cord or plug. To avoid risk of electrical shock, do not attempt to repair or replace parts. Only original replacement parts may be used. If the power cord is damaged, it must be replaced by the manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard. Contact Vornado Consumer Service at 1-800-234-0604 (phone) or consumerservice@vornado.com (email) for further instructions about replacement and repair.
• Before plugging power cord into electrical outlet, be sure that all electrical information on the rating label, including voltage, is compatible with your outlet's power supply.
• Do not sit or stand on product.
• Never use the cord as a handle or otherwise yank, strain or stretch the power cord.
• While the product is plugged in, do not insert or allow foreign objects to enter any input or output opening as this may cause risk of electric shock or fire, or damage the product.
• A loose fit between wall outlet (receptacle) and plug may cause overheating and distortion of the plug. Discontinue use of the product in this outlet. Contact a qualified electrician to replace loose or worn outlets.
• This product's power cord is equipped with a three-prong, grounded plug that must be inserted into a grounded receptacle.
• Before moving, repositioning, servicing, cleaning and when not in use, use the product controls to turn off the power and then unplug. To disconnect from outlet, grasp and pull only the plug. Also, power off and unplug if the product will be left unattended for an extended period of time or during electrical storms.

SERVICING WARNING

To reduce risk of fire, electrical shock and injury to persons, observe the following:

• Clean your product regularly, only as is instructed in this manual. Prior to cleaning, turn off the power on your product and unplug. Do not use gasoline, thinners, solvents, ammonias or other chemicals for cleaning. Refer to the CLEANING instructions provided.
• Do not open appliance housing while product is plugged in. To avoid risk of shock, all service and/or repairs must be done by a Vornado Authorized service Center.
• This product employs overload protection (fuse). A blown fuse indicates an overload or short-circuit situation. If the fuse blows, unplug the product from the outlet. Replace the fuse as per the user servicing instructions (follow product marking for proper fuse rating) and check the product. If the replacement fuse blows, a short-circuit may be present and the product should be discarded or returned to an authorized service facility for examination and/or repair.

User Servicing Instructions

1. Using the product controls, turn off the appliance.
2. Grasp the plug (not the cord) and disconnect from the outlet.
3. Risk of Fire. Replace fuse only with 5 Amp, 125 Volt fuse as approved by Vornado Consumer Service. For an authorized replacement fuse, please contact Vornado Consumer Service.
4. Once the replacement is received, use a small flat-head screwdriver to slide open the fuse cover (located on the plug) (See next page, Fig. A).

5. Remove fuse by using the screwdriver to gently lift each end of the fuse (See next page, Fig. B).

6. Install the replacement fuse by using the screwdriver to gently push each metal end of the fuse into the receptacle one at a time. Do not push on the center of the fuse—it is fragile and may break (See next page, Fig. C).

7. Slide the fuse cover closed using the screwdriver. When closed, the cover should fit completely in the plug. No part of the cover should stick out (See next page, Fig. D).

8. Plug your appliance into the outlet and turn the power on.
9. If the replacement fuse blows, a short-circuit may be present and the product should be discarded or returned to an authorized service facility for examination and/or repair.

Risk of fire. Do not replace attachment plug. Contains a safety device (fuse, AFCI, LCDI) that should not be removed. Discard product if the attachment plug is damaged.

FEATURES

CONTROLS

POWER ON/OFF
Select High (III), Medium (II), Low (I) fan speed or power off (O)

ASSEMBLY

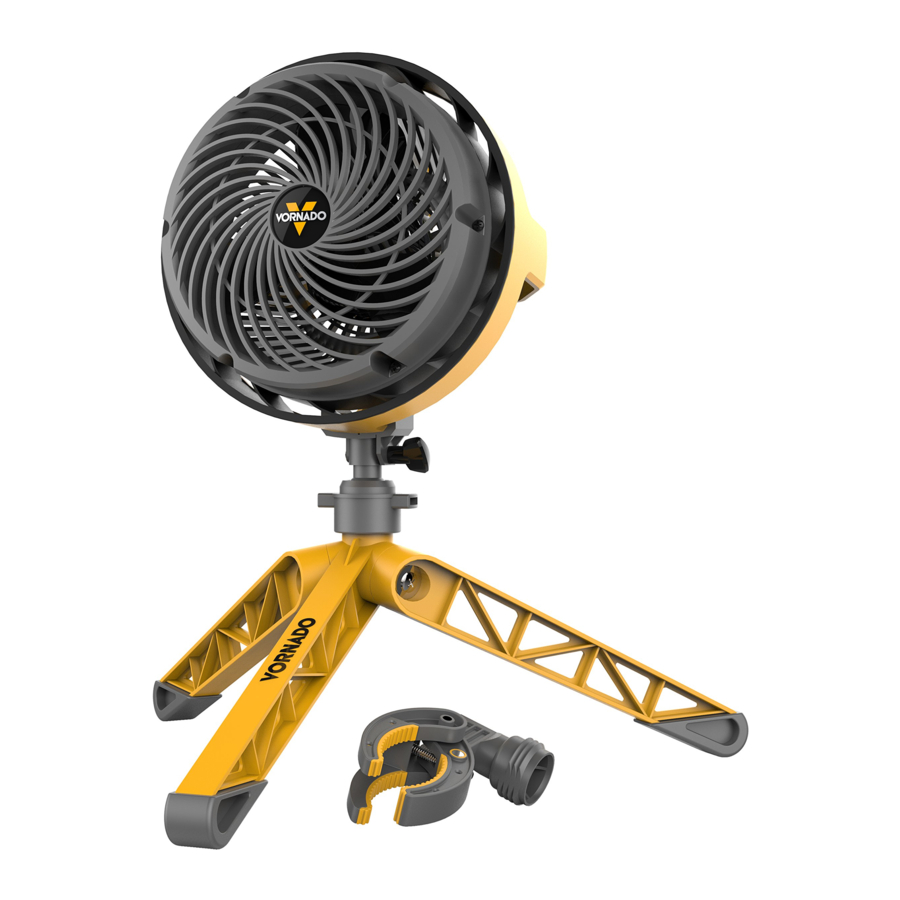

The EXO5 can be used in one of three different ways.

1. Connect the Locking Socket Joint (B) to the EXO5 Fan Head (A) at any flat location along the Roll Cage (C). Before proceeding, ensure that the knob is properly tightened and the Locking Socket Joint (B) is fully secured to the Fan Head (A). Do not pinch the power cord between the Locking Socket Joint (B) and the Fan Head (A).
2. To connect the Fan Head/Locking Socket Joint assembly to either the to the Clamp (E) or the Tripod Base (F), simply insert into the under side of the Locking Socket Joint (D) and twist until secured.
3. To remove Clamp (E) or the Tripod Base (F), simply twist until loosened.

HOW TO USE

The EXO5 can be used in one of three different ways.

TRIPOD BASE ATTACHMENT

1. After product assembly, position unit on flat and level surface as shown below.
2. To adjust angle of head tilt, simply loosen the connection between the Fan Head (A) and the Tripod Base (B) with a twist, adjust to desired angle and then twist to retighten.

   Note: Product should be used with Tripod Base (B) in fully extended position and fully secured to Fan Head (A).

CLAMP ATTACHMENT

1. After product assembly, twist the Clamp Knob (C) to open the Clamp (D).
2. Position the Clamp (D) over a solid surface up to 2" thick.
3. Twist the Clamp Knob (C) to tighten. Take care Clamp (D) is fully engaged on solid surface before releasing.
   Note: DO NOT attach to slick or oily surfaces as this may allow product to come loose. Make sure solid surface can support the weight of the product.

Note: For both attachment options, keep the electrical cord safely routed to avoid being tripped over or pulled. Avoid placing the product where it could be easily bumped.

WALL MOUNT INSTALLATION

1. Locate the Key Holes (A) on the back of the product.

2. Find and mark two circles on the wall where the product will be mounted. The circles need to be 5" apart from center to center.

NOTE: Is it recommended to mount the EXO5 on a solid surface or wall stud. Do NOT hang the product on the ceiling. Use drywall anchors if a stud is not available.

3. Drill 2 #10 panhead screws into the wall (screws not included). Screws should be weight rated for 10 lb vertical load each.
4. Leave about ¼" of each screw exposed.
5. Place the wide portions of the Key Holes over the heads of the 2 screws.
6. Slide the product down until the screws are inside the narrow portion of the key holes and the product is secured to surface.

Note: Hang product from sturdy location using large screws that will support product. Be careful not to hang the product in such a way that it prevents normal fan operation or damages the cord. Keep the electrical cord safely routed to avoid being tripped over or pulled. Avoid placing the product where it could be easily bumped.

CLEANING

GRILLE REMOVAL

Screwdriver recommended.

To reduce the risk of electrical shock and injury to persons, unplug the circulator before removing grille.

1. Remove the 6 screws located on the front of the grille.
2. Dust or wash the Front Grille with a mild dishwashing soap. Do not place grille in the dishwasher. The excessiveheat can distort the plastic.
3. To reattach - align the 6 screw holes and replace all the screws.


Use the brush attachment on your household vacuum cleaner to vacuum any accumulated dust off the Front Grille and Air Inlets.
Note: The motor is permanently lubricated and requires no oiling.

BLADE REMOVAL

Pliers recommended.

To reduce the risk of electrical shock and injury to persons, unplug the circulator before removing blade.

1. First, remove the nut from the shaft by turning the nut clockwise to loosen. Remove the washer. Pull the blade straight out from the shaft.
2. Wipe the Blade with a damp cloth. If your circulator is used in a greasy environment, such as a kitchen, mild soap or a common household cleaner may be necessary. Do not use solvents. Do not place blade in the dishwasher. The excessive heat can distort the plastic.
3. To reattach - be certain the flat side of the shaft aligns directly with the corresponding flat side on the blade's socket. Push the blade all the way on the shaft until it bottoms out. Do not use a hammer as this could result in bearing damage. Reinstall washer and nut.


TROUBLESHOOTING

We expect this product to be perfect.
If it is not, we will make it right.
vornado.com
800-234-0604
help@vornado.com
