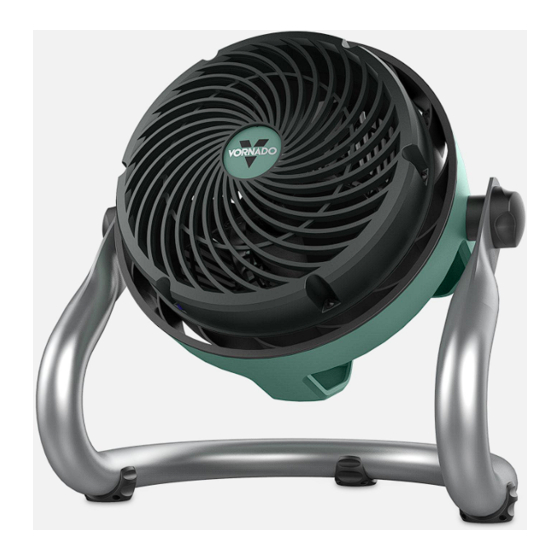

- Page 1 EXO51 WHOLE ROOM CIRCULATOR OWNER’S GUIDE READ AND SAVE THESE INSTRUCTIONS vornado.com...
- Page 2 PERFECT vornado.com 800.234.0604 help@vornado.com English...
-
Page 3: Table Of Contents
CONTENTS Important Safety Instructions ............. 4 Warranty .................... 14 Features ....................7 Getting Started ................... 8 Controls ....................9 How to Use ..................10 Cleaning .................... 11 Troubleshooting ................13 English... -
Page 4: Important Safety Instructions
See www.vornado. - Do not use this product in a bathtub or shower or position com/circulators-manuals to view, download and print the most product where it may fall into a bathtub, laundry, swimming current version of these instructions. - Page 5 - Do not open appliance housing. To avoid risk of shock, all - Before plugging power cord into electrical outlet, be sure that service and/or repairs must be done by a Vornado Authorized all electrical information on the rating label, including voltage, is Service Center.
- Page 6 5. Remove fuse by using the screwdriver to gently lift each encouraged to contact Vornado Consumer Service. Changes or end of the fuse (See Fig. B). modifications to this unit not expressly approved by the party 6.
-
Page 7: Features
FEATURES POWERFUL IP-54 RATED MOTOR FINGER FRIENDLY DESIGN Dust proof, long life motor that will endure the rigors of the job site Resists curious fingers TOOL FREE ASSEMBLY REMOVABLE GRILL Everything in the box you For easy cleaning need to get started EXTRA LONG 8’... -
Page 8: Getting Started
GETTING STARTED BASE ASSEMBLY 1. Loosen the pivot knobs (A) by turning each counter-clockwise. 2. Insert the base between the large rubber washer (B) and the small metal washer (C). 3. Once both sides of the base are installed, tighten the pivot knobs by turning clockwise. English... -
Page 9: Controls
CONTROLS POWER ON/OFF Select High (III), Medium (II), Low (I) fan speed or power off (O) English... -
Page 10: How To Use
The circles need to be 5” apart from center to center. NOTE: Is it recommended to mount the EXO51 on a solid surface or wall stud. Do NOT hang the product on the ceiling. Use drywall anchors if a stud is not available. -
Page 11: Cleaning
CLEANING GRILL REMOVAL Screwdriver required. WARNING: To reduce the risk of electrical shock and injury to persons, unplug the circulator before removing grill. 1. Remove the 6 screws located on the front of Screw Screw the grill. 2. Dust or wash the Front Grill with a mild dishwashing soap. - Page 12 CLEANING BLADE REMOVAL WARNING: To reduce the risk of electrical shock and injury to per- sons, unplug the circulator before removing grill. 1. First, remove the nut from the shaft by turning the nut clockwise to loosen. Remove the washer. Pull the blade straight out from the shaft.
-
Page 13: Troubleshooting
Under certain conditions, it is possible for a reset GFCI (Ground Fault Circuit Interrupter) outlet to trip when the user is changing speeds on a Vornado circulator. In this event, change to an outlet that is not connected to a GFCI device. It could also indicate a weak or defective GFCI outlet. Contact a qualified electrician to check the GFCI outlet. -
Page 14: Warranty
Vornado, at its discretion, will repair or replace the Product at no cost. or product warranties. The product warranty will be honored only on models that are being used in the country intended. - Page 15 Vornado Air, LLC 415 East 13th Street, Andover, Kansas 67002 800.234.0604 | vornado.com CL3-0704 R-, V00...
