Chapter 2: Installation
Mounting the Motherboard in the Chassis
All motherboards have standard mounting holes to fit different types of
chassis.
Make sure the location of all the mounting holes for both the
motherboard and the chassis match. Although a chassis may have both
plastic and metal mounting fasteners, metal ones are highly recommended
because they ground the motherboard to the chassis. Make sure the metal
standoffs click in or are screwed in tightly.
Then use a screwdriver to
secure the motherboard onto the motherboard tray.

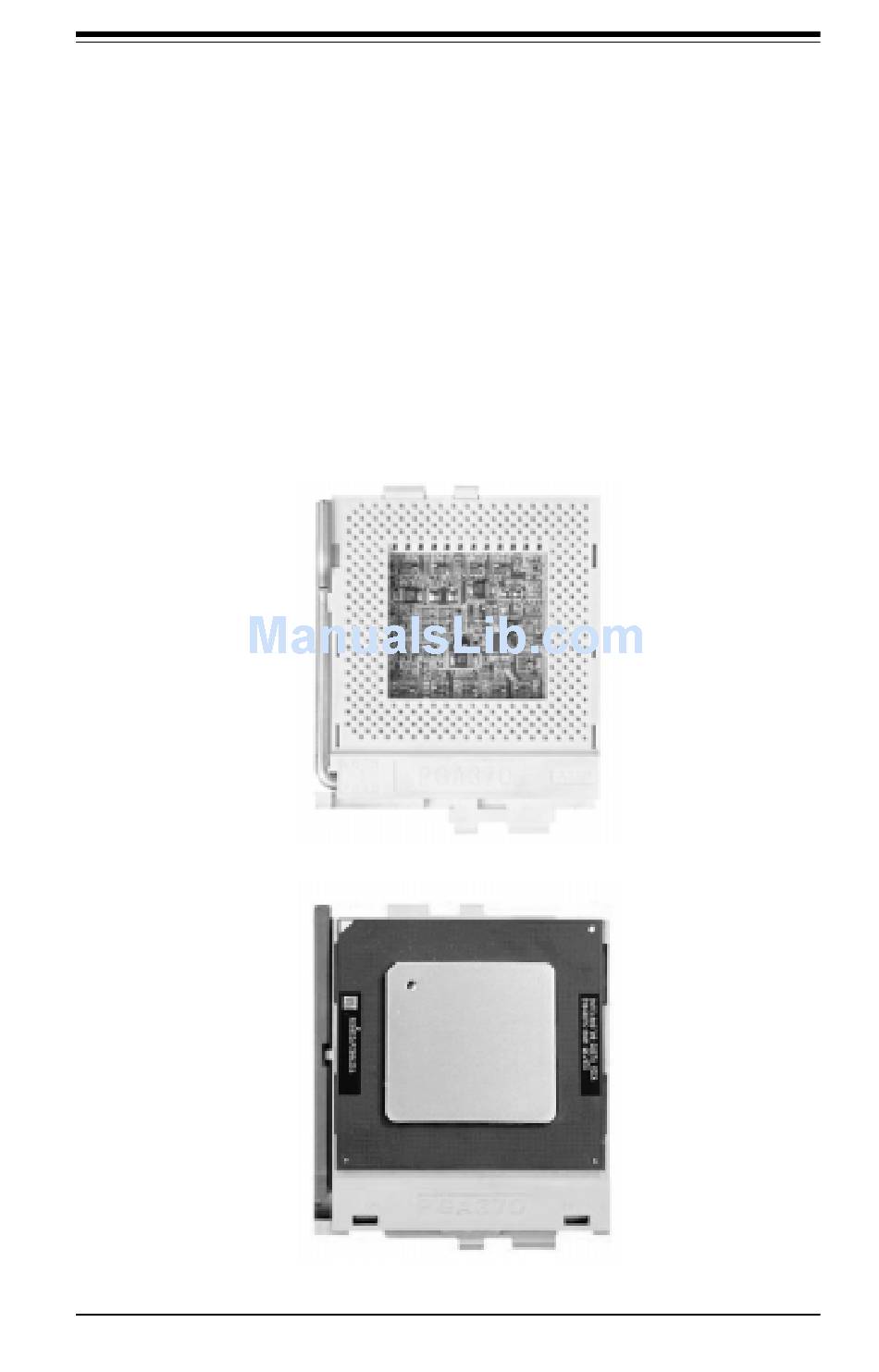

Figure 2-1.
FCPGA Socket: Empty and with Processor Installed
(low power Pentium III shown)
2-3
