S
UPER P3TDE6/P3TDER User's Manual

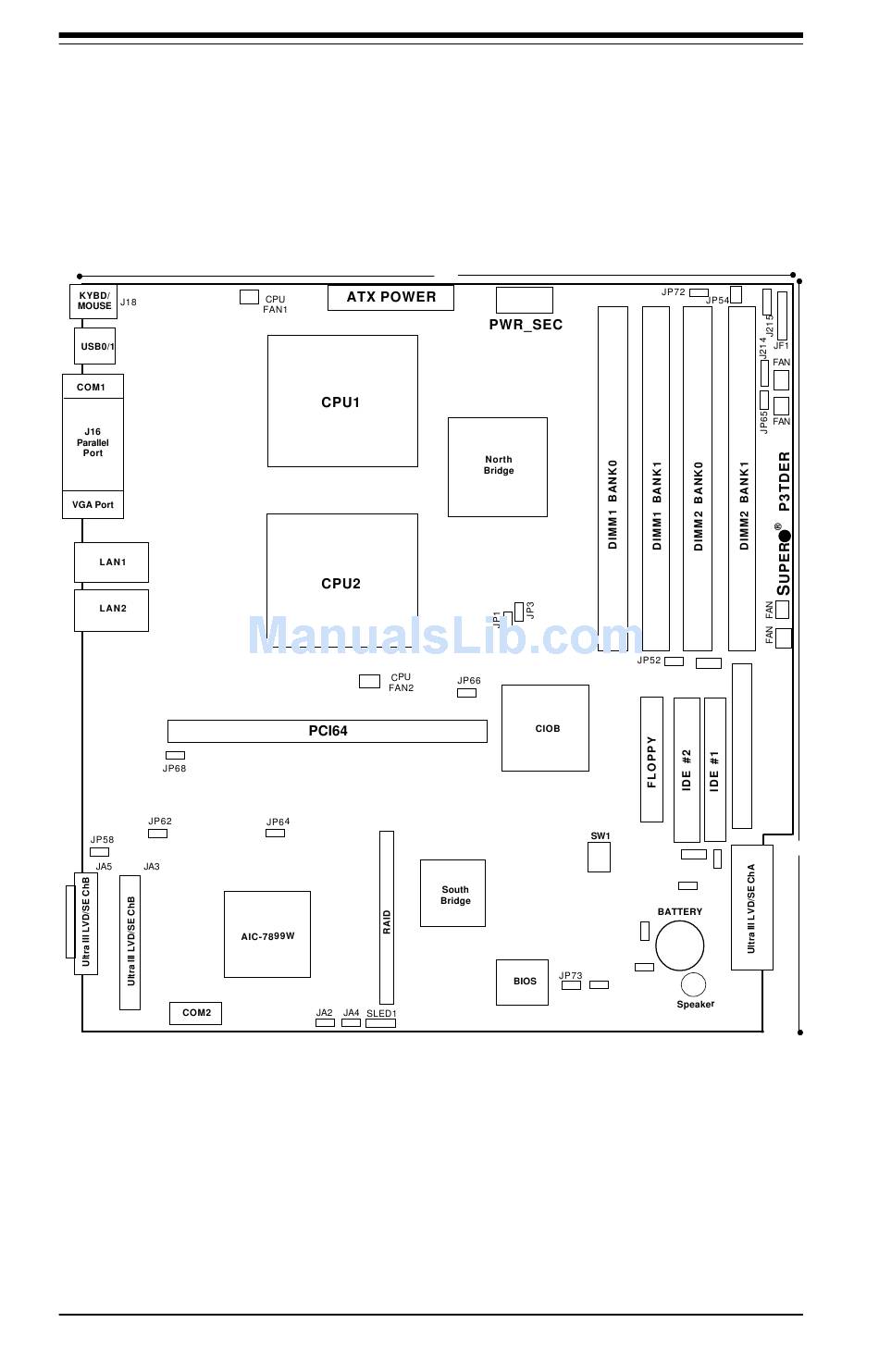

Figure 1-4. SUPER P3TDER Layout
(not drawn to scale)
13"
JP70
J15
J14
J13
12"
JP71
WOL
WOR
JP67
JP56
JA1
JBT1
Note: Memory modules must be installed in pairs.
DIP Switch 1 sets the CPU speed.
Also see Chapter 2 for the locations of the I/O ports and Front Control Panel
(JF1) connectors and for details on jumper settings and pin definitions.
1-8
