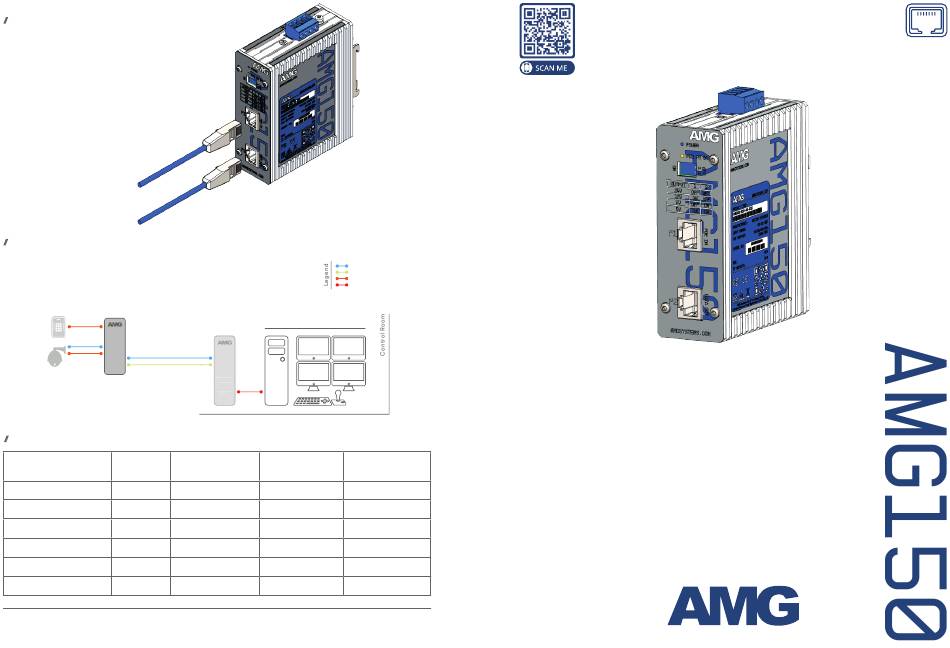

AMG AMG150-1G-S60-PD Installation Manual - Hardware

INTERFACE CONNECTIONS

① Insert the Cat5/6 cable into the
RJ45 PoE In port.
② Insert the Cat5/6 cable into the
RJ45 Data Out port.
IEEE802.3af/at/bt PoE In
Data Out

APPLICATION EXAMPLE

AMG150
1G-S60
PD
DC Powered
Camera

POE CAPABILITIES

Source Max DC Power
Source PoE Class
PSE Power Output @ 10M
IEEE802.3af Class 0/3 15.4W
IEEE802.3at Class 4 30W
IEEE802.3bt Class 5 45W
IEEE802.3bt Class 6 60W
IEEE802.3bt Class 7 75W
IEEE802.3bt Class 8 90W
AMG Systems Ltd. 4 Pioneer Way, Castleford, WF10 5QU, UK T: +44 (0) 1767 600 777 E: sales@amgsystems.com
AMG Systems Inc. 62 Spring Hill Road, Trumbull, CT 06611, USA T: +1-855-AMGPOE1 (855-264-7631) E: sales@amgsystems.com
D33645-00
CAT5e 1Gb
PoE 90W
DC 5/6/12/24v
Fibre 10Gb
Video Recording and
Control System
AMG510
8GBT
16GAT
4XS
P460
Max DC Power Max DC Power
Output @ 50M Output @ 90M
13W 12W
27W 25W
42W 40W
57W 53W
60W 60W
60W 60W
amgsystems.com
11W
23W
38W
49W
60W
60W
AMG150-1G-S60-PD AMG150-1G-S60-PD
Industrial PoE Splitter Industrial PoE Splitter
Installation Manual - Hardware Installation Manual - Hardware
