100BASE-TX Ethernet Media Converter Transmit Unit for a
The AMG5801-DF is a standalone Ethernet Media Converter transmit unit designed to provide
100BASE-TX full duplex Ethernet connectivity over two Multimode fibres.
The AMG5801-DF is designed to be powered using an AMG2001 standalone power supply.
The AMG5801-DF is designed to operate with an AMG5802-DF standalone or AMG5802R-DF
rackmount Ethernet data receive unit in a point to point configuration.
AMG Systems Ltd. reserves the right to make changes to this
document without notice. The information herein is believed to
be accurate. No responsibility is assumed by AMG for its use.
Multimode Dual Fibre Link
AMG5801-DF
Instruction Manual
Page 1 of 8
AMG5801-DF Instruction Sheet
D22213-00.doc
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for AMG AMG5801-DF
Summary of Contents for AMG AMG5801-DF
- Page 1 100BASE-TX Ethernet Media Converter Transmit Unit for a Multimode Dual Fibre Link The AMG5801-DF is a standalone Ethernet Media Converter transmit unit designed to provide 100BASE-TX full duplex Ethernet connectivity over two Multimode fibres. The AMG5801-DF is designed to be powered using an AMG2001 standalone power supply.
- Page 2 Physical Information Dimensions ............................7 Mounting Details ..........................7 Safety Maintenance and Repair AMG Systems Ltd. reserves the right to make changes to this Page 2 of 8 AMG5801-DF Instruction Sheet document without notice. The information herein is believed to D22213-00.doc...
- Page 3 It also receives Ethernet data transmitted from the AMG5802R-DF. Optical Connection The AMG5801-DF connections are illustrated in the following example which shows an AMG5801-DF standalone Media Converter transmit unit together with an AMG5802R-DF rackmount Media Converter receive unit configured as a point to point system.
- Page 4 Ethernet Data Connector ....RJ45 Interface ..........Auto MDI/MDIX 100BASE-TX Ethernet Data Rate ......Maximum 100Mb/s full duplex AMG Systems Ltd. reserves the right to make changes to this Page 4 of 8 AMG5801-DF Instruction Sheet document without notice. The information herein is believed to D22213-00.doc...
- Page 5 Link integrity is good, Idle state GBlink - Data transfer Link not present AMG Systems Ltd. reserves the right to make changes to this Page 5 of 8 AMG5801-DF Instruction Sheet document without notice. The information herein is believed to D22213-00.doc...
- Page 6 Two LED indicators are provided adjacent to the RJ-45 port: Green indicates Link / Data transfer and Yellow when in half-duplex mode. AMG Systems Ltd. reserves the right to make changes to this Page 6 of 8 AMG5801-DF Instruction Sheet document without notice.

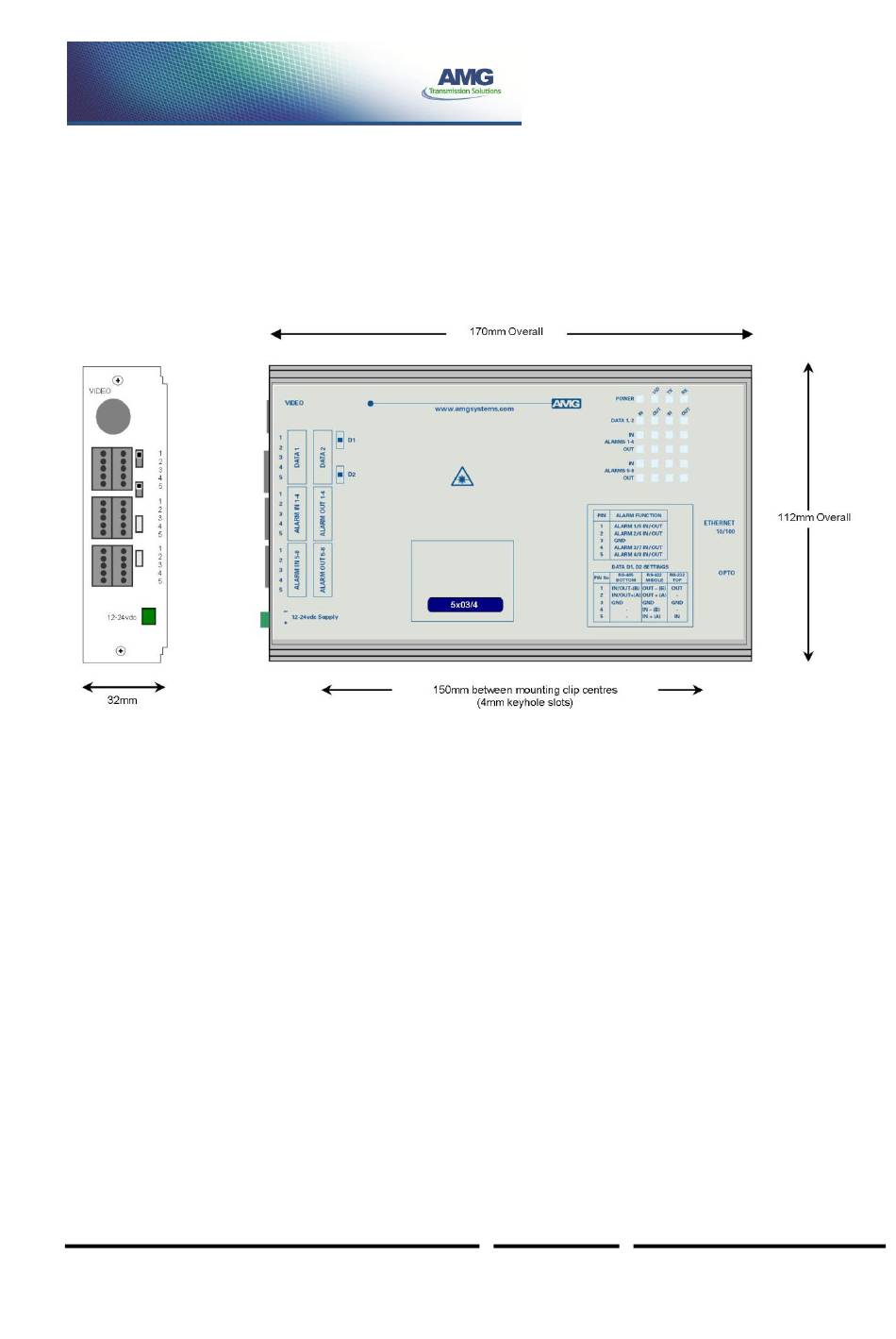

- Page 7 Weight ..........1000grams Mounting Details The AMG unit is supplied with a clip-on mounting bracket which should be attached to a panel or wall using 2 off 4.0mm screws, see diagram on page 1 for dimensions. The unit is clipped into the mounting bracket, and is then held firmly in position.
