10/100 BASE-TX Ethernet Media Converter transmit unit for
a singlemode fibre link using CWDM

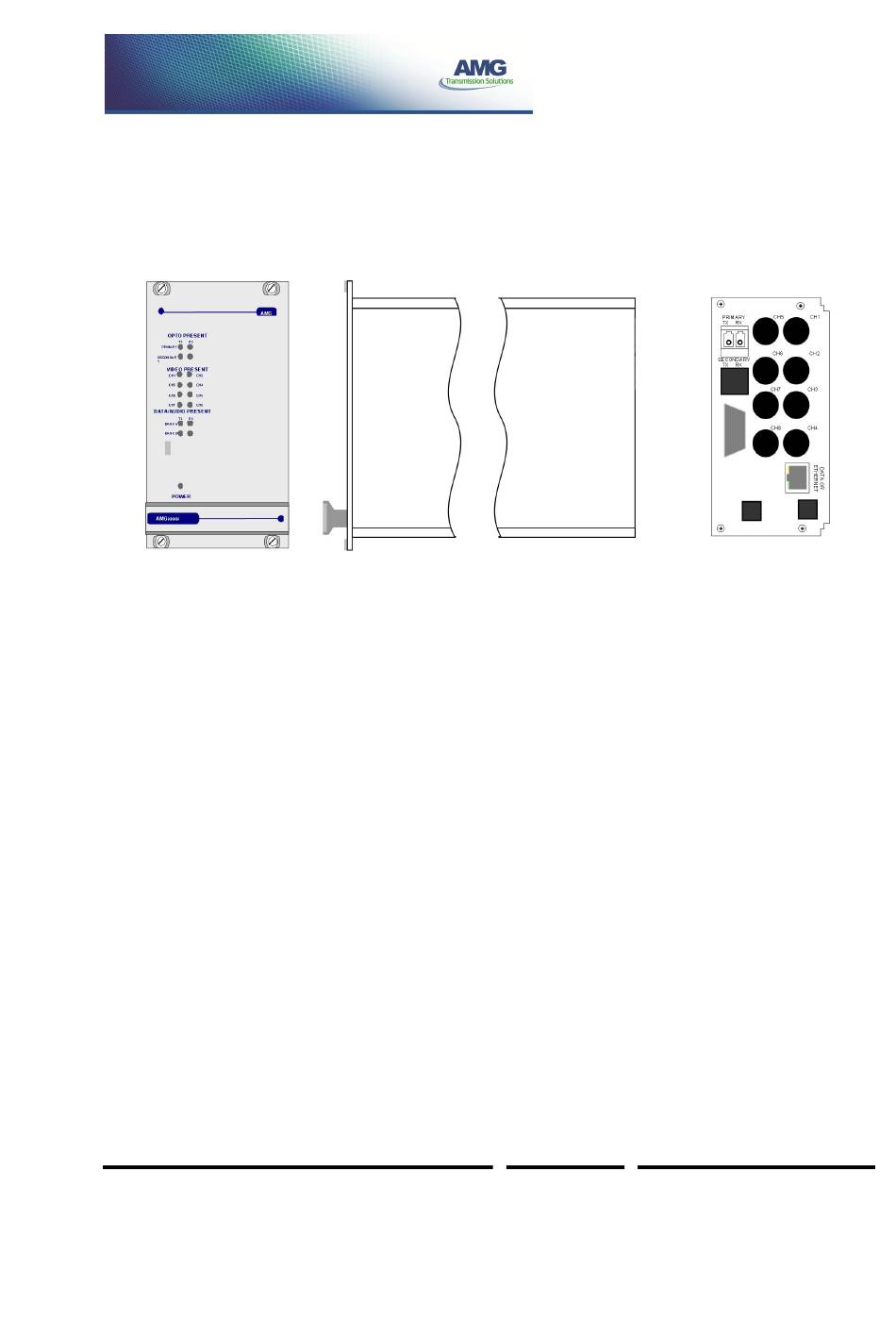

The AMG4701ER-CWDMn is a rackmount Ethernet Media Converter transmit unit designed to provide
10BASE-T half duplex or 100BASE-Tx full duplex Ethernet connectivity over two singlemode optical
fibres, or one optical fibre when used with external optical couplers. The AMG4701ER-CWDMn
transmits on a CWDM wavelength defined by the 'n' in the CWDMn partno. as detailed in the following
table, but can receive from any 1310nm or 1550nm band wavelength.
The AMG4701ER-CWDMn is designed to plug into an AMG2005 subrack, which in turn fits into a 19"
rack system. The rack incorporates an AMG2003 power supply.
The AMG4701ER-CWDMn is designed to operate with AMG4702E-CWDMn or rackmount equivalent
AMG4702ER-CWDMn Ethernet Media Converter receive unit in a point to point configuration.
AMG Systems Ltd. reserves the right to make changes to this
document without notice. The information herein is believed to
be accurate. No responsibility is assumed by AMG for its use.
AMG4701ER-CWDMn
Instruction Manual
Page 1 of 8
AMG4701ER-CWDMn Instruction
Sheet D16885-01.doc
Advertisement
Table of Contents
Related Manuals for AMG 4701ER-CWDMn
Summary of Contents for AMG 4701ER-CWDMn
- Page 1 The AMG4701ER-CWDMn is designed to operate with AMG4702E-CWDMn or rackmount equivalent AMG4702ER-CWDMn Ethernet Media Converter receive unit in a point to point configuration. AMG Systems Ltd. reserves the right to make changes to this Page 1 of 8 AMG4701ER-CWDMn Instruction document without notice.
- Page 2 Mounting Details ..........................6 Removal / replacement from / to the Case..................6 Safety Maintenance and Repair AMG Systems Ltd. reserves the right to make changes to this Page 2 of 8 AMG4701ER-CWDMn Instruction document without notice. The information herein is believed to Sheet D16885-01.doc...
- Page 3 The AMG4701ER-CWDMn is connected as illustrated below when used with an AMG4702ER- CWDMn Ethernet Media Converter receive unit and external optical couplers, connected as a point to point system over a single optical fibre. AMG Systems Ltd. reserves the right to make changes to this Page 3 of 8 AMG4701ER-CWDMn Instruction document without notice.
- Page 4 Wavelength ..........Any 1310nm or 1550nm band Optical Fibre ........Singlemode Optical Overload ........-5dBm NOTE: The optical launch power may overload the input of an AMG receiver if connected directly. A minimum of 5dB loss is required to ensure correct operation. Power Connection Power supply ........from plug in connection on the AMG2009 / AMG2015 subrack...
- Page 5 RJ45 Ethernet port operating full duplex RJ45 Ethernet port operating half duplex Note: the RJ45 Ethernet auto-negotiates up to 100Mbit/s full duplex. AMG Systems Ltd. reserves the right to make changes to this Page 5 of 8 AMG4701ER-CWDMn Instruction document without notice. The information herein is believed to Sheet D16885-01.doc...
- Page 6 There are no user serviceable parts within AMG products. See unit data sheet for full specification. In case of problem or failure, please call your local support centre or contact: AMG Systems Ltd. at 3 The Omega Centre, Stratton Business Park, Biggleswade, Beds., SG18 8QB, UK.
- Page 7 This page is intentionally blank. AMG Systems Ltd. reserves the right to make changes to this Page 7 of 8 AMG4701ER-CWDMn Instruction document without notice. The information herein is believed to Sheet D16885-01.doc be accurate. No responsibility is assumed by AMG for its use.
- Page 8 This page is intentionally blank. AMG Systems Ltd. reserves the right to make changes to this Page 8 of 8 AMG4701ER-CWDMn Instruction document without notice. The information herein is believed to Sheet D16885-01.doc be accurate. No responsibility is assumed by AMG for its use.
