Unitech SL220 Quick Start Manual

SL220
iOS Scanner Sled
Quick Start Guide

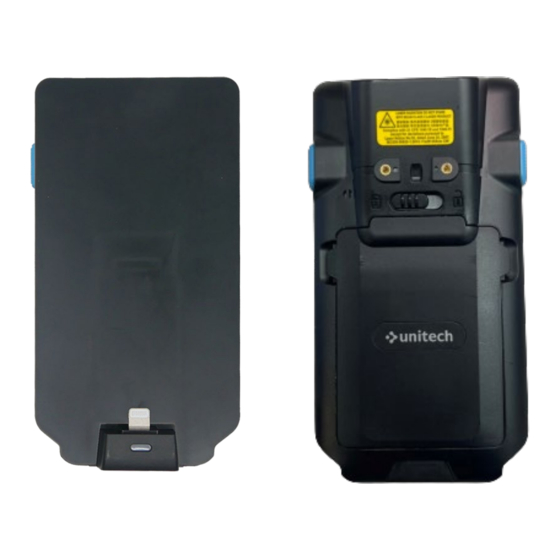

Product View
5
1
2
3
1. Sled Cover
2. Lightning Connector
3. Status LED
4. Scan Window
5. Triger Key
V1.1
4
5
6
7
8
9
10
6. Hand Strap Holder Screw Hole
7. Battery Lock
8. Battery Cover (Changeable)
9. POGO Pin
10. USB Type-C Port
Package
Please make sure the following contents are
in the SL220 gift box. If something is missing or
damaged, please contact your Unitech
representative.
The Package Contents
• SL220 Terminal
• Battery (1150mAh)
• QC 3.0 & PD standard power supply
(including USB-C cable)
Optional Accessories
• 1-slot charging Cradle
• OtterBox universe
• Hand Strap Holder Kit
• 3 Pin Power Cord
Install the Battery
1. Turn the terminal to its rear side, and push the
battery lock to the right to unlock the battery.
2. Grab two protrusions on both sides of the
battery cover, and lift upward to remove it.
3. Insert the battery into the battery compartment
from the top side and press down, make sure to
leave half of the battery strap outside.
