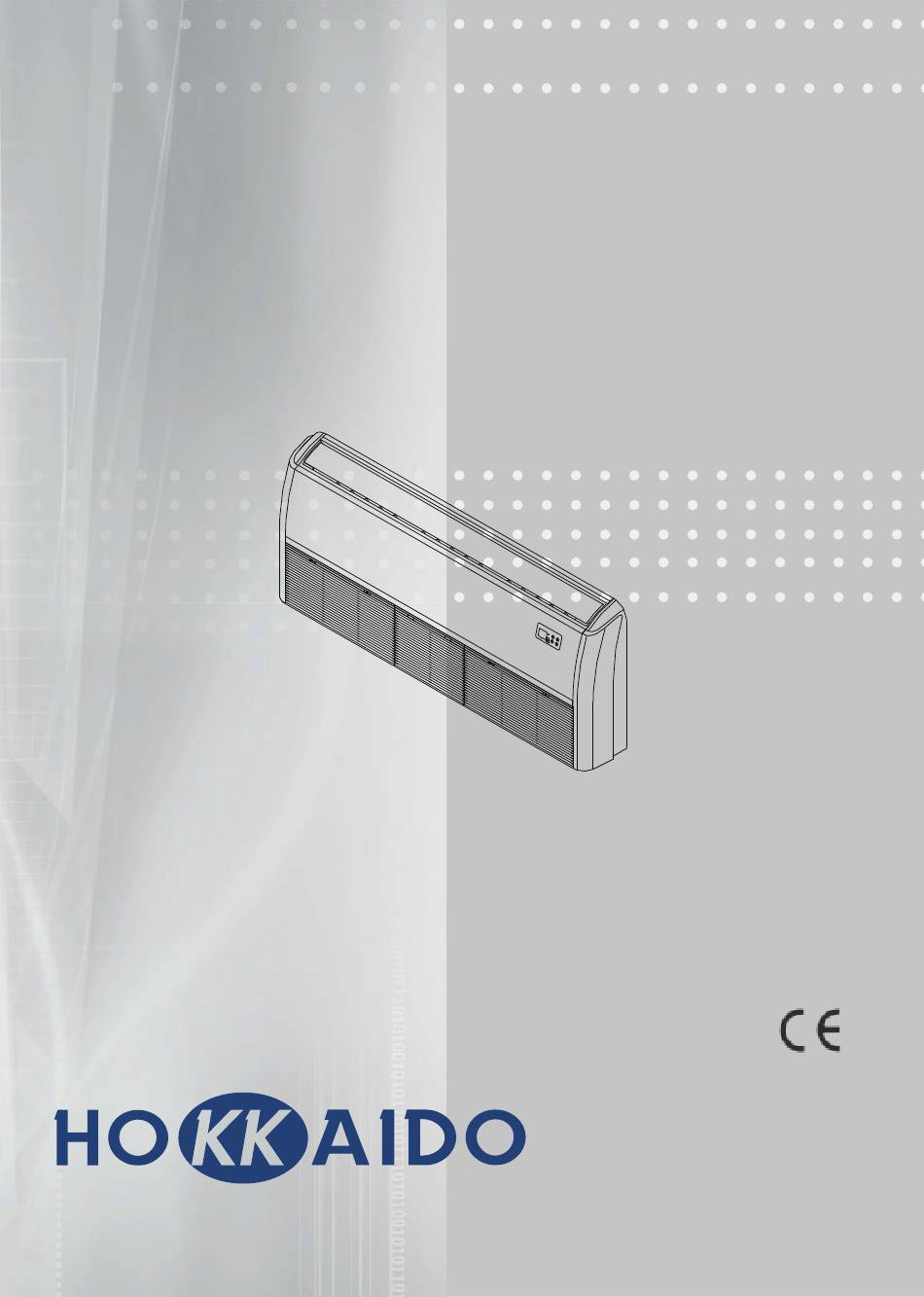

2019
User Manual & Installation
Light Commercial Units
Hybrid type Indoor Units (R410A & R32)
R410A type Outdoor Units
R32 type Outdoor Units
CEILING FLOOR Indoor Units
HSFU 530 ZAL
HSFI 710 ZA1
HSFI 1080 ZA1
HSFI 1400 ZA1
HSFI 1600 ZA1
IMPORTANT NOTE:
Read this Manual carefully before installing or operating your new air conditioning unit.
Make sure to save this Manual for future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HSFU 530 ZAL and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Hokkaido HSFU 530 ZAL

Summary of Contents for Hokkaido HSFU 530 ZAL

  • Page 1 User Manual & Installation Light Commercial Units Hybrid type Indoor Units (R410A & R32) R410A type Outdoor Units R32 type Outdoor Units CEILING FLOOR Indoor Units HSFU 530 ZAL HSFI 710 ZA1 HSFI 1080 ZA1 HSFI 1400 ZA1 HSFI 1600 ZA1 IMPORTANT NOTE: Read this Manual carefully before installing or operating your new air conditioning unit.
  • Page 2 Table of Contents Installation Manual Accessories ............ Safety Precautions ........Installation Overview ....... Indoor Unit Installation Indoor Unit Installation ............a. Indoor Unit Parts ........b. Indoor Unit Installation Instructions ..12 Outdoor Unit Installation ......a. Outdoor Unit Installation Instructions ..

  • Page 3: Table Of Contents

    Refrigerant Piping Connection ...... A. Notes on Pipe Length and Elevation ....B. Refrigerant Piping Connection Instructions ... 23 Wiring ..........a. Outdoor Unit Wiring ....b. Indoor Unit Wiring ...... c. Power Specifications ....Air Evacuation ..........a. Evacuation Instructions .......
  • Page 4 Accessories The air conditioning system comes with the following accessories. Use all of the installation parts and accessories to install the air conditioner. Improper installation may result in water leakage, electrical shock and re, or equipment failure. Name Shape Quantity Soundproof/insulation Refrigeration Fittings...
  • Page 5 Safety Precautions Read Safety Precautions Before Installation Incorrect installation due to ignoring instructions can cause serious damage or injury. The seriousness of potential damage or injuries is classified as either a WARNING or CAUTION. Failure to observe a warning may result in death. The appliance must be installed in accordance with national regulations.
  • Page 6 WARNING 11. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent 12. The appliance shall be installed in accordance with national wiring regulations. 13. An all-pole disconnection device which has at least 3mm clearances in all poles, and have a leakage current that may exceed 10mA, the residual current device (RCD) having a rated residual operating current not exceeding 30mA, and disconnection must be 14.
  • Page 7 Cautions for using R32/R290 refrigerant Installation (Space) - That the installation of pipe-work shall be kept to a minimum. - That pipe-work shall be protected from physical damage. - That compliance with national gas regulations shall be observed. - That mechanical connections shall be accessible for maintenance purposes. - In cases that require mechanical ventilation, ventilation openings shall be kept clear of obstruction.
  • Page 8 Max Refrigerant Charge (kg) Table.1-1 Installation Refrigerant LFL(kg/m ) Floor Area (m ) Height H0(m) Type 0.68 0.90 1.08 1.32 1.53 1.87 2.41 0.306 1.14 1.51 1.80 2.20 2.54 3.12 4.02 2.05 2.71 3.24 3.97 4.58 5.61 7.24 2.50 3.31 3.96 4.85 5.60...
  • Page 9 Explanation of symbols displayed on the indoor unit or outdoor unit (applicable to the unit adopting R32/R290 Refrigerant only): WARNING refrigerant is leaked and exposed to an external ignition source, there is a CAUTION This symbol shows that the operation manual should be read carefully. CAUTION This symbol shows that a service personnel should be handling this equipment with reference to the installation manual.
  • Page 10 Installation Overview INSTALLATION ORDER Install the indoor unit Install the outdoor unit Install the drainpipe (Page 11) (Page 16) (Page 19) Evacuate the Connect the wires Connect the refrigeration system (Page 25) refrigerant pipes (Page 29) (Page 21) Perform a test run (Page 31) Page 10 ...

  • Page 11: Indoor Unit Installation Indoor Unit Installation

    Indoor Unit Installation Indoor Unit Parts Installation part Louver grille Air outlet Display panel Air inlet Fig. 4.1 Safety Precautions CAUTION WARNING • Securely install the indoor unit on a • Install the indoor and outdoor units, cables, structure that can sustain its weight. If the and wires at least 1m (3.2’) from televisions structure is too weak, the unit may fall and and radios to prevent static or image...

  • Page 12: Indoor Unit Installation Instructions

    Indoor Unit Installation Instructions CAUTION NOTE: Panel installation should be performed DO NOT install the unit in the following after piping and wiring have been completed. locations: Step 1: Select installation location Areas with oil drilling or fracking Coastal areas with high salt content in the The indoor unit should be installed in a location that meets the following requirements: Areas with caustic gases in the air, such as...
  • Page 13 Refrigerant pipe connection (D. gas side) Drain point Refrigerant pipe connection (E. Liquid side) Hook Fig. 4.3 Table 4.1: Indoor parts installation size MODEL(Btu/h) Length of A (mm/inch) Length of B (mm/inch) Length of C (mm/inch) Length of D (mm/inch) Length of E (mm/inch) 18K~24K 1068/42 675/26.6...
  • Page 14 Step 2: Hang indoor unit CAUTION The unit body should align perfectly with the Wood hole. Ensure that the unit and the hole are the Place the square timber traversely over the roof same size before moving on. beam, then install the hanging screw bolts. (See Fig.4.4) 2.
  • Page 15 9. Remove the side board and the grille. Ceiling Installation (See Fig. 4.10). Hanging Hanging arm screw bolt Fig. 4.12 D. Refrigerant pipe connection Side board (D.gas side) Grille E. Refrigerant pipe connection Fig. 4.10 (E. Liquid side) 10. Mount the indoor unit onto the hanging screw bolts with a block.
  • Page 16 Outdoor Unit Installation The area must be free of combustible gases √  Outdoor Unit Installation Instructions and chemicals. √ The pipe length between the outdoor and  Step 1: Select installation location. indoor unit may not exceed the maximum The outdoor unit should be installed in the allowable pipe length.
  • Page 17 Split Type Outdoor Unit (Refer to Fig 5.4, 5.5, 5.6, 5.10 and Table 5.1) Fig. 5.4 Fig. 5.5 Fig. 5.6 Table 5.1: Length Specifications of Split Type Outdoor Unit (unit: mm/inch) Outdoor Unit Dimensions Mounting Dimensions W x H x D Distance A Distance B 760x590x285 (29.9x23.2x11.2)
  • Page 18 NOTE: The minimum distance between the 2. Insert the drain joint into the hole in the base outdoor unit and walls described in the pan of the unit. installation guide does not apply to airtight 3. Rotate the drain joint 90° until it clicks in place rooms.

  • Page 19: Drainpipe Installation

    Drainpipe Installation The drainpipe is used to drain water from the unit. Improper installation may cause unit and 1-1.5m (39-59”) property damage. CAUTION Downward slope 1/100 Insulate all piping to prevent condensation • Fig. 6.2 and water damage. If the drainpipe is bent or installed •...
  • Page 20 Using a 65-mm (2.5”) core drill, drill a hole in the wall. Make sure that the hole is drilled at a slight downward angle, so that the outdoor end of the hole is lower than the indoor end by about 12mm (0.5”). This will ensure proper water drainage (See Fig.

  • Page 21: Refrigerant Piping Connection

    Refrigerant Piping Connection Safety Precautions Notes On Pipe Length and Elevation Ensure that the length of the refrigerant pipe, the WARNING number of bends, and the drop height between the indoor and outdoor units meets the • All eld piping must be completed by a requirements shown in Table 7.1: licensed technician and must comply with the local and national regulations.
  • Page 22 CAUTION CAUTION • Oil traps If the outdoor unit is installed higher than the indoor unit: If the indoor unit is installed higher than the outdoor unit: -It is recommended that vertical suction risers not be upsized. Proper oil return to the -If oil flows back into the outdoor unit’s compressor should be maintained with suction compressor, this might cause liquid...

  • Page 23: Refrigerant Piping Connection Instructions

    Table 7.2 Step 2: Remove burrs. Burrs can a ect the air-tight seal of refrigerant Permitted length piping connection. They must be completely Total piping length 18K+18K 30m/98’ L+Max (L1, L2) removed. 24K+24K 50m/164’ 1. Hold the pipe at a downward angle to 30K+30K prevent burrs from falling into the pipe.
  • Page 24 6. Place flaring tool onto the form. 7. Turn the handle of the flaring tool clockwise until the pipe is fully flared. Flare the pipe in accordance with the dimensions shown in table 7.3. Table 7.3: PIPING EXTENSION BEYOND FLARE FORM Fig.
  • Page 25 Wiring Follow these instructions to prevent distortion Safety Precautions when the compressor starts: • The unit must be connected to the main WARNING outlet. Normally, the power supply must • Be sure to disconnect the power supply have a low output impedance of 32 ohms. before working on the unit.
  • Page 26 Table 8.2: Other Regions Indoor Unit Wiring Rated Current of Nominal Cross-Sectional 1. Prepare the cable for connection Appliance (A) Area (mm²) a. Using wire strippers, strip the rubber jacket 0.75 ≤ from both ends of a signal cable to reveal 6 - 10 about 15cm (5.9”) of the wires inside.
  • Page 27 CAUTION While connecting the wires, please strictly follow the wiring diagram. • The refrigerant circuit can become very hot. Keep the interconnection cable away from the • copper tube. 5. Clamp down the cable with the designated cable clamp to secure it in place. The cable should not be loose and should not pull on the u-lugs.
  • Page 28 Independent Power Supply Specifications ≤18K MODEL(Btu/h) 19K~24K 25K~36K 37K~48K 49K~60K PHASE 1 Phase 1 Phase 1 Phase 1 Phase 1 Phase POWER FREQUENCY (indoor) 208-240V 208-240V 208-240V 208-240V 208-240V AND VOLT CIRCUIT BREAKER/ 15/10 15/10 15/10 15/10 15/10 FUSE(A) PHASE 1 Phase 1 Phase 1 Phase...

  • Page 29: Air Evacuation

    Air Evacuation 4. Turn on the vacuum pump to evacuate the Safety Precautions system. 5. Run the vacuum for at least 15 minutes, or until the Compound Meter reads -76cmHG CAUTION (-1x105Pa). 6. Close the manifold gauge’s Low Pressure valve •...

  • Page 30: Note On Adding Refrigerant

    Note On Adding Refrigerant CAUTION • Refrigerant charging must be performed after wiring, vacuuming, and the leak testing. DO NOT exceed the maximum allowable quantity of refrigerant or overcharge the system. • Doing so can damage the unit or impact it’s functioning. •...

  • Page 31: Test Run

    Test Run f. Check to see that the drainage system is Before Test Run unimpeded and draining smoothly. A test run must be performed after the entire g. Ensure there is no vibration or abnormal system has been completely installed. Confirm noise during operation.

  • Page 32: European Disposal Guidelines

    European Disposal Guidelines Users in European Countries may be required to properly dispose of this unit. This appliance contains refrigerant and other potentially hazardous materials. When disposing of this appliance, the law requires special collection and treatment. DO NOT dispose of this product as household waste or unsorted municipal waste.

  • Page 33: Information Servicing

    Information Servicing (Required for the Units adopt R32/R290 Refrigerant only) 1. Checks to the area Prior to beginning work on systems containing ammable refrigerants, safety checks are necessary to ensure that the risk of ignition is minimised. For repair to the refrigerating system, the following precautions shall be complied with prior to conducting work on the system.
  • Page 34 the charge size is in accordance with the room size within which the refrigerant containing  parts are installed; the ventilation machinery and outlets are operating adequately and are not obstructed;   if an indirect refrigerating circuit is being used, the secondary circuits shall be checked for the presence of refrigerant;...
  • Page 35 11. Repair to intrinsically safe components Do not apply any permanent inductive or capacitance loads to the circuit without ensuring that this will not exceed the permissible voltage and current permitted for the equipment in use. Intrinscially safe components are the only types that can be worked on while live in the presence of a ammable atmosphere.
  • Page 36 When the final OFN charge is used, the system shall be vented down to atmospheric pressure to enable work to take place. This operation is absolutely vital if brazing operations on the pipe-work are to take place. Ensure that the outlet for the vacuum pump is not closed to any ignition sources and there is ventilation available.
  • Page 37 18. Labelling Equipment shall be labelled stating that it has been de-commissioned and emptied of refrigerant. The label shall be dated and signed. Ensure that there are labels on the equipment stating the equipment contains flammable refrigerant. 19. Recovery When removing refrigerant from a system, either for service or decommissioning, it is recommended good practice that all refrigerants are removed safely.
  • Page 38 NOTES...
  • Page 39 NOTES...
  • Page 40 Avec le souci d’améliorer sa production, le constructeur se réserve le droit de modifier les spécifications techniques des produits sans préavis. HOKKAIDO srl Via della Salute, 14 40132 Bologna Italy Tel.

This manual is also suitable for:

Hsfi 710 za1Hsfi 1080 za1Hsfi 1400 za1Hsfi 1600 za1
