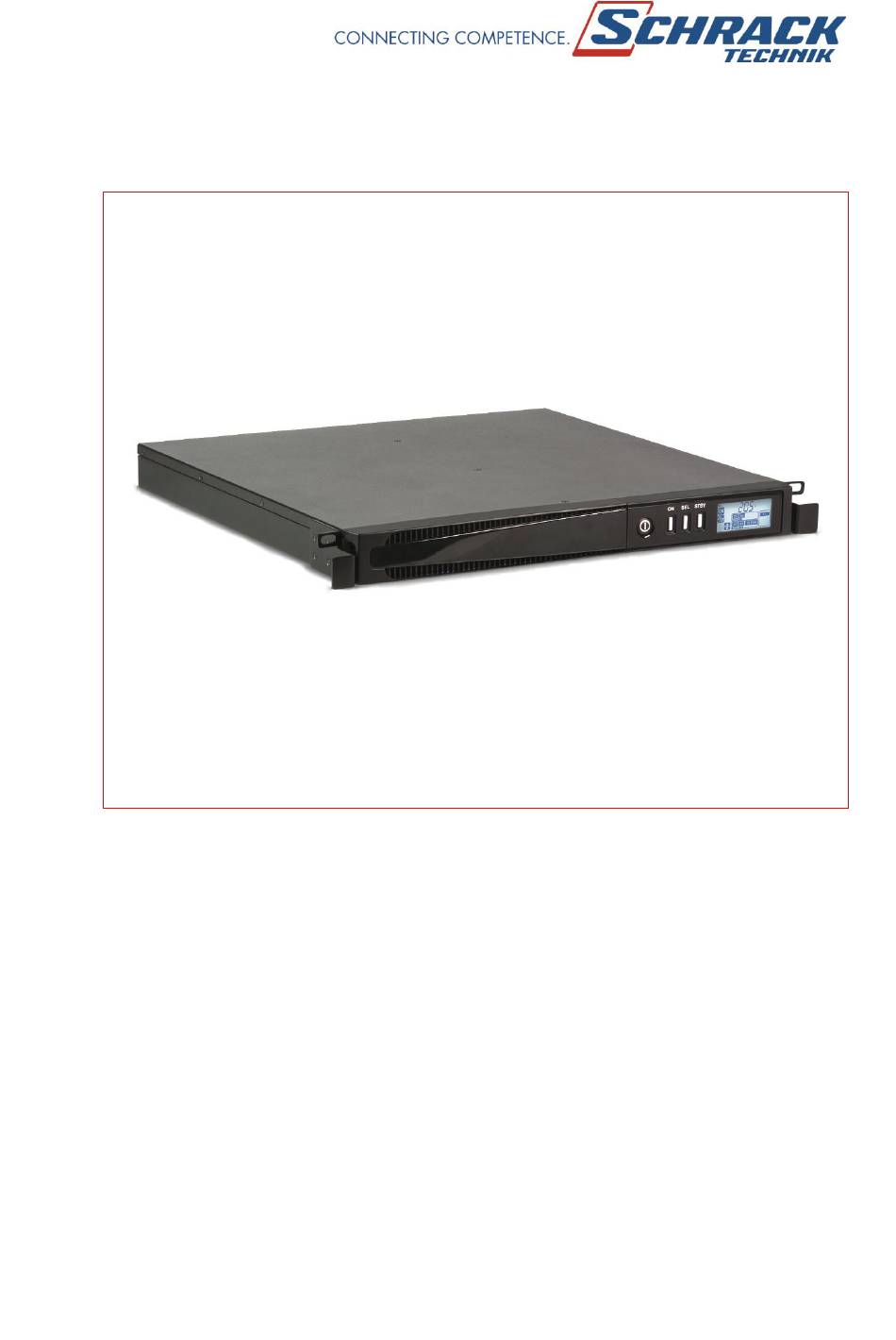

- Page 1 USER MANUAL UNINTERRUPTIBLE POWER SUPPLY Series GENIO Flex Plus Rack Series USVSR 800 – 1100 VA 1 phase input / 1 phase output On Line / Double Conversion (VFI) Technology...
- Page 2 NTRODUCTION Congratulations on purchasing a UPS GENIO Flex Plus Rack product and welcome to Schrack! To use the support service offered by Schrack, visit the site www.ups-technet.com The UPS described in this manual is a high quality product which has been carefully designed and built in order to guarantee the highest levels of performance.
-
Page 3: Table Of Contents
ONTENTS PRESENTATION UPS V IEWS RONT VIEW EAR VIEW ISPLAY PANEL VIEW INSTALLATION NITIAL CONTENT CHECK NSTALLATION ENVIRONMENT ONNECTIONS AND SWITCHING ON FOR THE FIRST TIME WITCHING ON FROM THE MAINS WITCHING ON FROM THE BATTERY WITCHING OFF THE ISPLAY PANEL MESSAGES STATUS MESSAGES EASUREMENT DISPLAY AREA ONFIGURING THE OPERATING MODE... -
Page 4: Presentation
PRESENTATION The GENIO FLEX PLUS RACK series is the ideal solution for high end users who require high security and versatility from their power systems. The GENIO FLEX PLUS RACK is the best protection system available for network devices, servers and conventional storage systems. -
Page 5: Ups Views
UPS V IEWS RONT VIEW Display Removable front panel Multipurpose buttons Battery pack retention panel ON/OFF Switch Battery pack connector... -
Page 6: Rear View
EAR VIEW Communication port RS232 IEC 10A input plug USB communication port Cooling fans Remote control terminal board IEC 10A output socket Communication Card Slots Energyshare... -
Page 7: Display Panel View
ISPLAY PANEL VIEW “ON” button Load level indicator “SEL” button (Select) Configuration area “STAND-BY” button Maintenance request Regular operation Timer Mains operation Measurement display area Battery operation Stand-by / alarm AVR active EnergyShare Battery charge indicator... -
Page 8: Installation
INSTALLATION NITIAL CONTENT CHECK After opening the packaging, it is first necessary to check the contents. The package must contain: Schuko power cable - IEC 10A 2 IEC 10A connection cables USB cable User manual CD + Safety manual Handles kit for rack installation NSTALLATION ENVIRONMENT The UPS and the Battery Box must be installed in ventilated, clean environments which are sheltered from bad weather. -
Page 9: Use
ONNECTIONS AND SWITCHING ON FOR THE FIRST TIME 1) Confirm that the installation upstream of the UPS is adequately protected against overloads and short circuits. It is recommended that the rating of this protection is either 10A or 16A type B or C (depending on the UPS power rating), always check prior to connection. -
Page 10: Display Panel Messages
ISPLAY PANEL MESSAGES This chapter describes, in detail, the various information that can be displayed on the LCD. STATUS MESSAGES ICON STATUS DESCRIPTION Fixed Indicates a fault Flashing The UPS is in stand-by mode Fixed Indicates regular operation Fixed The UPS is operating from the mains The UPS is operating from the battery. -
Page 11: Measurement Display Area
EASUREMENT DISPLAY AREA The front panel can be used to display important UPS operating information. When the UPS is switched-on, the display shows the main voltage value. To display a different measurement, press the “SEL” button repeatedly until the desired measurement appears. In the event of a fault/alarm (FAULT) or a lock (LOCK), the display will automatically show the type and code of the corresponding alarm. -
Page 12: Configuring The Operating Mode
ONFIGURING THE OPERATING MODE The area of the display shown in the figure displays the active operating mode and allows the user to choose other modes directly from the display panel. HOW TO PROCEED: • To access the configuration area, hold down the “SEL” button for at least 3 seconds. •... - Page 13 REMOTE CONTROL TERMINAL BOARD The remote control terminal allows for implementation of the REPO function (Remote Emergency Power Off) and to remotely switch on/off the UPS. The UPS is provided by the manufacturer with the REPO terminals short-circuited. For installation remove the short circuit and connect to the device's normally closed contact.
-
Page 14: Software
OFTWARE ONITORING AND CONTROL SOFTWARE The UPSMon software guarantees effective, intuitive UPS management, displaying all the most important information such as input voltage, applied load and battery capacity. It is also able to perform shutdown operations and send e-mails, text messages and network messages automatically when certain events (selected by the user) occur. -
Page 15: Ups Configuration
CONFIGURATION The table below illustrates all the possible configurations available to the user in order to best adapt the UPS for individual requirements. It is possible to perform these operations using the UPStools software. FUNCTION DESCRIPTION DEFAULT POSSIBLE CONFIGURATIONS • 50 Hz Selects the nominal output •... -
Page 16: Communication Ports
OMMUNICATION PORTS On the back of the UPS (see UPS Views), the following communication ports are present: • RS232 connector • USB connector • Expansion slot for additional communication cards RS232 CONNECTOR RS232 CONNECTOR PIN # SIGNAL NOTES Programmable output *: [default: UPS in lock] (*) Opto-isolated contact max. -
Page 17: Battery Pack Replacement
ATTERY PACK REPLACEMENT The UPS is also equipped with a dedicated battery pack that allows for easy replacement of batteries (hot swap) in complete safety, thanks to the protected connection system. • WHEN THE BATTERY PACK IS DISCONNECTED, THE LOADS CONNECTED TO THE UPS ARE NOT PROTECTED IN THE EVENT OF A MAINS FAILURE •... - Page 18 Remove the battery pack's retention panel carrying out the operations shown in the figure below. Disconnect the connector that connects the battery pack to the UPS. Slip off the battery pack pulling it towards the outside, as shown in the figure below. Be careful when extracting and lifting up the battery pack as it is heavy..
-
Page 19: Troubleshooting
TROUBLESHOOTING Irregular UPS operation is not always an indication of a fault, and can be due to minor or easy-to-resolve issues It is therefore advisable to consult the table below as it contains information which is useful for solving the most common UPS problems. - Page 20 PROBLEM POSSIBLE CAUSE SOLUTION THE BUZZER SOUNDS CONTINUOUSLY AND Reduce the load to within the threshold of 100% (or user THE DISPLAY SHOWS THE LOAD APPLIED TO threshold in the case of code A54). ONE OF THE FOLLOWING THE UPS IS TOO HIGH If the display shows a lock, remove the load and switch CODES: A54, F50, F51, the UPS off and back on again.
-
Page 21: Alarm Codes
LARM CODES Using a sophisticated self-diagnosis system, the UPS is able to check its own status for any anomalies and/or faults which may occur during normal operation and display them on the display panel. If there is a problem, the UPS signals the event by showing the code and the type of active alarm on the display (FAULT and/or LOCK). -
Page 22: Lock
➢ Active commands: Indicates the presence of an active remote command. CODE DESCRIPTION Remote control 1 (Switch On/Off) Remote control 2 (Load supplied by the mains) Remote control 3 (Switch On/Off) Battery test in progress LOCK alerts are normally preceded by an alarm signal and their scale leads to the powering-off of the inverter with the load being powered by the bypass line (this procedure is excluded for locks due to serious, persistent overloads and short circuits). -
Page 23: Technical Data
TECHNICAL DATA UPS MODELS USVSR 800 USVSR 1100 INPUT Nominal voltage [Vac] 220 - 230 - 240 Maximum operating voltage [Vac] Nominal frequency [Hz] 50 - 60 Rated current (1) BATTERY < 4h for 80% of the load Recharge time (standard versions) No. - Page 24 MAN_GENIO Flex Plus Rack USUSVSR_EN_2019_08_29_0MNUSVSR800RUENUA 0MNUSVSR800RUENUA...
