USER MANUAL
UNINTERRUPTIBLE POWER SUPPLY
Series GENIO Dual Maxi
Battery boxes
USBB240A3
USBB240A5
USBC240A5

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GENIO Dual Maxi Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Schrack Technik GENIO Dual Maxi Series

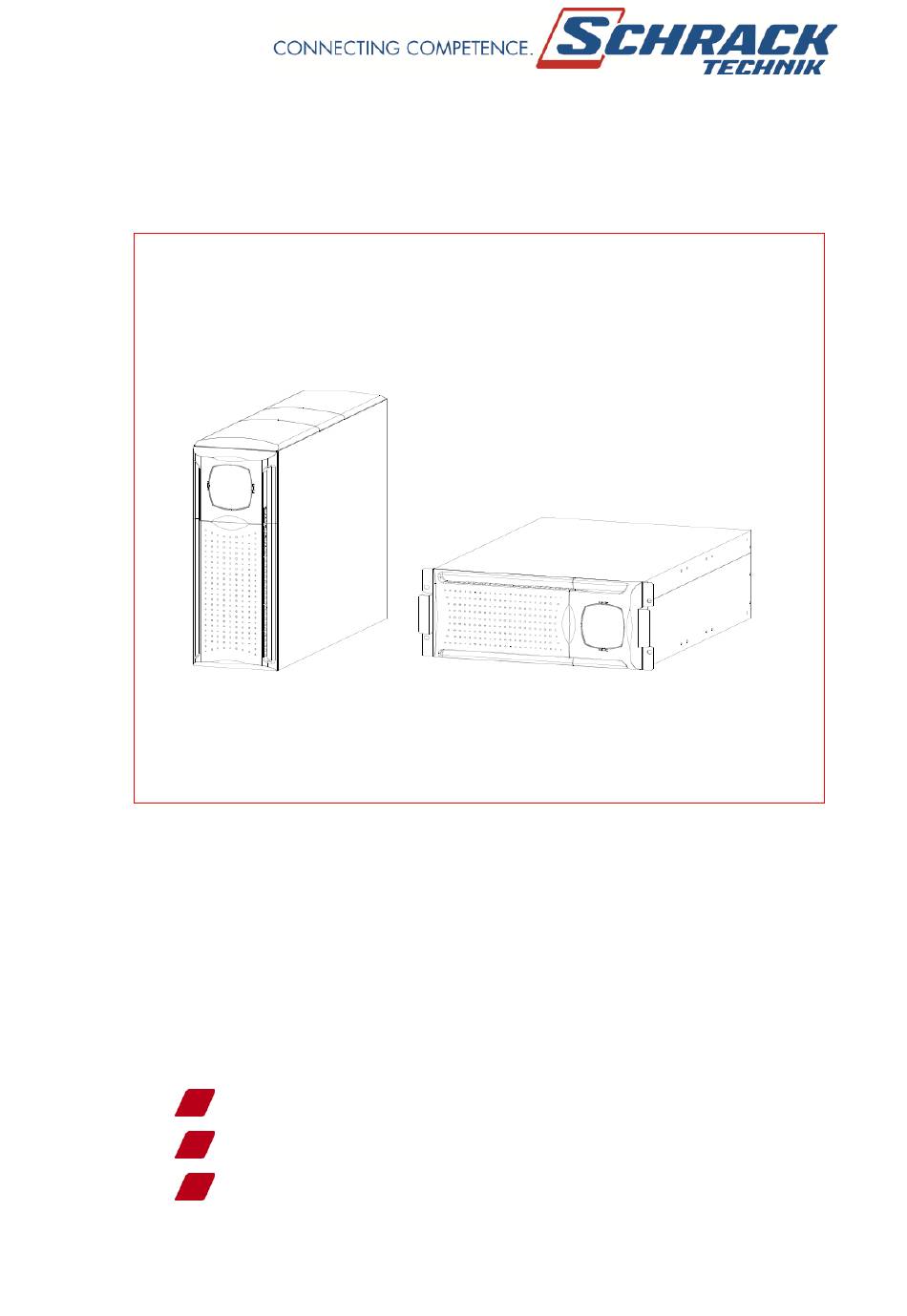

  • Page 1 USER MANUAL UNINTERRUPTIBLE POWER SUPPLY Series GENIO Dual Maxi Battery boxes USBB240A3 USBB240A5 USBC240A5...
  • Page 2 NTRODUCTION Thank you for choosing our product. The manufacturers are highly specialized in the development and production of uninterruptible power systems (UPS) and related accessories. This manual contains the detailed instructions for the use and installation of the BATTERY BOX for UPSs.
  • Page 3: Table Of Contents

    ONTENTS PRESENTATION BATTERY BOX IEWS OF THE PANEL ONLY FOR VERSIONS WITH BATTERY CHARGER ESCRIPTION OF OPERATION INSTALLATION PENING THE PACKAGING AND CHECKING ITS CONTENTS OWER VERSION ACK VERSION NSTALLATION PROCEDURE BATTERY BOX ONNECTING THE ULTIPLE EXPANSIONS OMINAL BATTERY CAPACITY SETTINGS SOFTWARE CONFIGURATION TROUBLESHOOTING TECHNICAL DATA TABLE...
  • Page 4: Presentation

    RESENTATION The new BATTERY BOX family has been designed with versatility in mind. Thus the BATTERY BOX can be installed in tower or rack version according to requirements by using the handles kit. The two different versions of the product are shown below: Tower Rack JSDL240PA3...
  • Page 5: Views Of The Battery Box

    RESENTATION BATTERY BOX IEWS OF THE Release slots Extractable / rotatable mask Removable front panel Front view Ventilation grid Fuse-holder Connectors for disconnecting battery expansion switches IEC 10A input (only in versions with battery charger) Rear view...
  • Page 6: Led Panel ( Only For Versions With Battery Charger )

    RESENTATION PANEL ONLY FOR VERSIONS WITH BATTERY CHARGER = MAINS PRESENT LED (green): when lit it means the mains is present. = BATTERY CHARGER OPERATING LED (yellow): when lit it means the batteries are being charged ESCRIPTION OF OPERATION The BATTERY BOX contains the batteries which can increase the operating time of uninterruptible power systems (UPS) in extended black-out conditions.
  • Page 7: Installation

    NSTALLATION PENING THE PACKAGING AND CHECKING ITS CONTENTS After opening the packaging, first check the contents. The packaging should contain the following: BATTERY BOX Power cable 3 plastic covers (only for models with battery charger) (upper panels) 2 plastic keys Battery expansion cable to release display Handles kit for rack version...
  • Page 8: Tower Version

    NSTALLATION OWER VERSION This chapter describes the operations required to prepare the BATTERY BOX for use in the tower version. WARNING: for your safety and that of your product, follow the information set out below exactly. BEFORE CARRYING OUT THE FOLLOWING SEQUENCE OF OPERATIONS, ENSURE THAT THE BATTERY BOX IS NOT CONNECTED TO THE ELECTRICITY MAINS, TO THE UPS OR TO ANY OTHER BATTERY BOXES Once removed from the packaging, the BATTERY BOX is ready for installation in tower...
  • Page 9: Rack Version

    NSTALLATION ACK VERSION The sequence of operations required to convert the BATTERY BOX into the rack version is described below. page WARNING: for your safety and that of your product, follow the information set out below exactly. BEFORE CARRYING OUT THE FOLLOWING SEQUENCE OF OPERATIONS, ENSURE THAT THE BATTERY BOX IS NOT CONNECTED TO THE ELECTRICITY MAINS, TO THE UPS OR TO ANY OTHER BATTERY BOXES 1 - First remove the 4 feet at the base of the...
  • Page 10 5 - Rotate the BATTERY BOX 90° clockwise taking the utmost care. 6 - At this point, with the BATTERY BOX in a horizontal position, fasten the handles to the sides with the screws as shown in the figure at the side. page NOTE: The BATTERY BOX is compatible for mounting in standard rack cabinets of 600mm x 800mm or more (in width).
  • Page 11: Installation Procedure

    NSTALLATION The company accepts no responsibility for damage caused by wrong connections or by operations not described in this manual. The BATTERY BOX electrical specifications are shown on the data plate at the back of the page device. NSTALLATION PROCEDURE Before connecting the BATTERY BOX to the UPS ensure that the following notes are complied with: Install the BATTERY BOX on a flat and stable surface.
  • Page 12: Multiple Expansions

    NSTALLATION ULTIPLE EXPANSIONS Several BATTERY BOXES can be connected in a cascade formation (check for any restrictions in the UPS user manual) for operation with extended back-up time. The page connections should be executed as shown below: BATTERY BOX BATTERY BOX BATTERY Battery Box EXPANSION...
  • Page 13: Troubleshooting

    ROUBLESHOOTING Only for models with battery charger Irregular functioning of the BATTERY BOX is most often not an indication of a fault but due simply to trivial problems, minor difficulties or carelessness. page We therefore recommend that you refer to the table below which gives a summary of useful information to solve the most common problems.
  • Page 14: Technical Data Table

    ECHNICAL DATA TABLE MODELS WITH BATTERY CHARGER JSDL240CA5 page INPUT Nominal voltage [Vac] 220 / 230 / 240 Accepted range [Vac] 190 ÷ 276 Nominal frequency [Hz] 50 – 60 Maximum current Nominal current BATTERY Nominal voltage [Vdc] Nominal Ah [Ah] End of charge voltage [Vdc]...
  • Page 15 page...
  • Page 16 MAN_USBB240A3 USBC240xx_EN_2011_03.doc 0MNSDL240NP5LUA...
