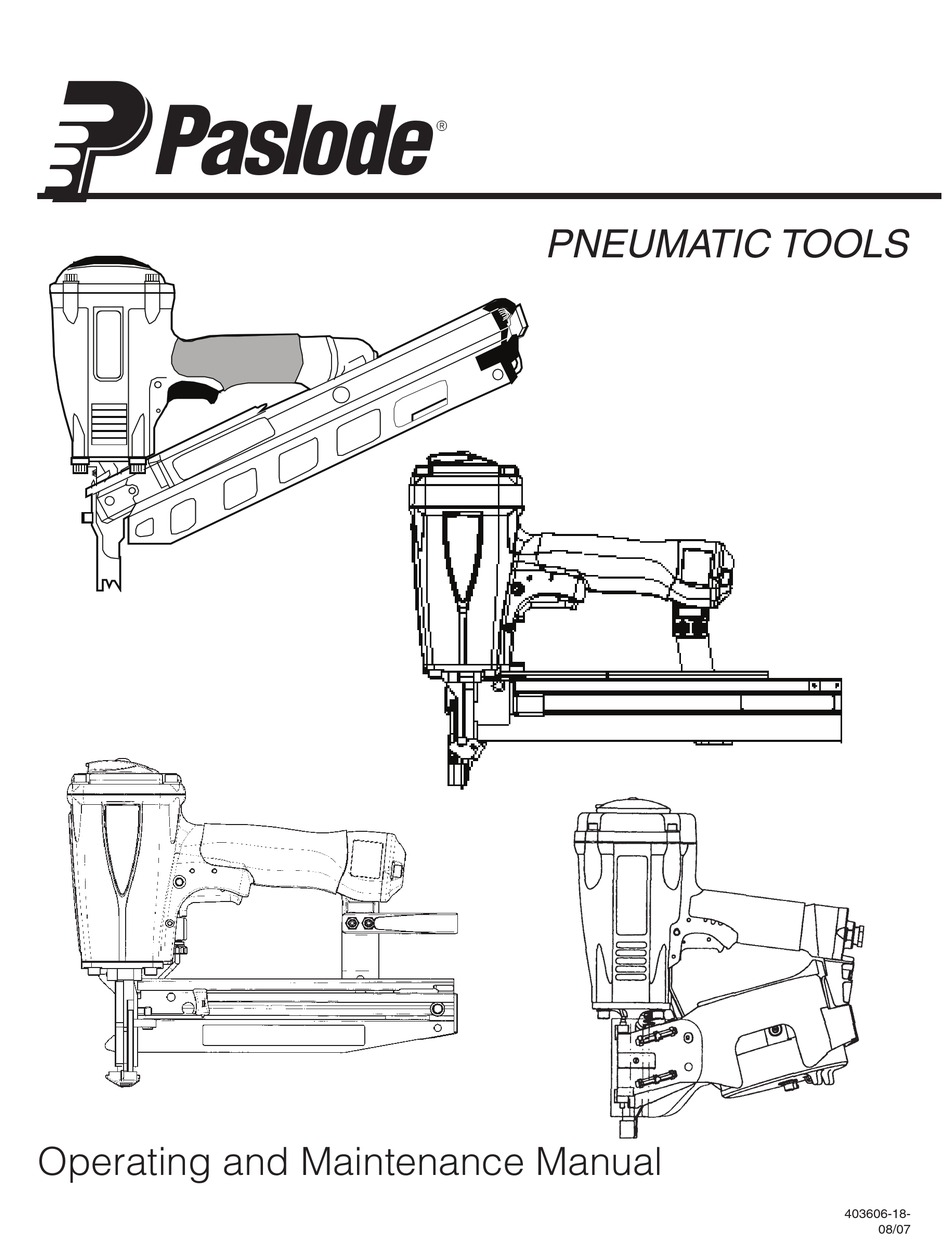

- Page 1 PNEUMATIC TOOLS Operating and Maintenance Manual 403606-18- 08/07...
- Page 2 PASLODE MODEL NUMBER DESIGNATION The model number of each Paslode tool contains information about the tool and the fasteners that are used with it. The following example illustrates the information contained in this tool model number. NAILER Power Pack Tool application letter...
-
Page 3: Table Of Contents
Congratulations on purchasing a Paslode pnuematic tool. You have made a wise choice. A Paslode tool is a professional quality tool that combines power and speed in a light weight design for versatile operation in a variety of industial and construction applications. -
Page 4: Safety Instructions
WARNING Failure to follow any of the above instructions could result in severe personal injury to tool user and bystanders or cause damage to tool and property. Contact your local Paslode Representative for presentation of Paslode’s Safety Awareness Program... -
Page 5: Air Systems
All pipes supplying air have a large enough Filter/regulator/lubricator units that can supply inside diameter to ensure adequate air supply. enough air and protection for Paslode tools must meet the following specifications: The main supply pipe slopes down, away from the compressor (1/16 inch per foot). - Page 6 Use the air consumption chart in the Tool Schematic for eaxh tool when calculating the For example, given a 20 hp electric compressor operating requirements for the tools. Paslode supplying approximately 80 cfm of air at 120 psi tools are designed to operate efficiently...
-
Page 7: Tool Installation
6. If this tool does not work when it is first connect- LOCK MOVE UP ed, do not try to make repairs. Call your Paslode TO INCREASE representative immediately. DRIVE DEPTH... - Page 8 TOOL OPERATION - continued clearing a jam continued MOVE UP TO INCREASE DRIVE DEPTH MOVE DOWN TO DECREASE DRIVE DEPTH SOCKET HEAD CAPSCREW WORK CONTACTING ELEMENT Precision Placement Driving - (Orange Trigger) Grasp the tool handle firmly and hold the bottom of the work ■...
-
Page 9: Tool Loading
TOOL LOADING Step No. 3 – Remove the retainer from a nail coil and Coil Nailers place the nail coil in the magazine with the tips of the nails against the loading tray and with about 4 inches of coil Step No. - Page 10 RHP-350 T250-F16 Series Finish Nailer PowerMaster Plus Step No. 1 – Grasp the nailer firmly with one hand. Strip Nailers Step No. 1 – Grasp the nailer handle firmly. Pull the magazine follower all the way to the rear of the magazine until it is latched into its loading position by the magazine latch.
- Page 11 T250A-F16 Series Finish Nailer Staplers Step 1 - Align the heads of the Paslode 16 ga.Finish Step No. 1 – Pull back the rail follower until it latches nails to the brad channel in the rear of the magazine at the end of the magazine. The rail cover will auto- and insert one or two strips.
-
Page 12: Maintenance
❑ Reduce the regulated air pressure to 30 psi. ❑ Use only Paslode approved fasteners in the tool, and ensure that they are correct for the application. ❑ Remove all fasteners from the tool. ❑... - Page 13 Keep lubricator filled. Keep tool lubricated. Fill with Paslode pneumatic tool lubricant. Part No. 403720. Clean filter element-then blow Prevent clogging of filter with Wash with soap and water or air through filter in direction...
-
Page 14: Operator Troubleshooting
Make sure correct fasteners are being used. ® Use fasteners that meet Paslode specifications only. Increase air flow to tool -- use larger air lines (3/8 ID minimum). Adjust work contacting element where available. -
Page 15: Tool Warranty
TOOL WARRANTY An Illinois Tool Works Company 888 Forest Edge Drive Vernon Hills, Illinois 60061 TOOL WARRANTY AND LIMITATIONS... - Page 16 An Illinois Tool Works Company 888 Forest Edge Drive Vernon Hills, Illinois 60061 Printed in U.S.A. www.paslode.com © 2007, Illinois Took Works, Inc.
