- Page 1 MODEL FNS-200 IMPORTANT OPERATING MANUAL DO NOT DESTROY It is the customer's responsability to have all operators and service personnel reand and understand this manual. Printed in Canada 12/14...
-
Page 2: Safety Measures

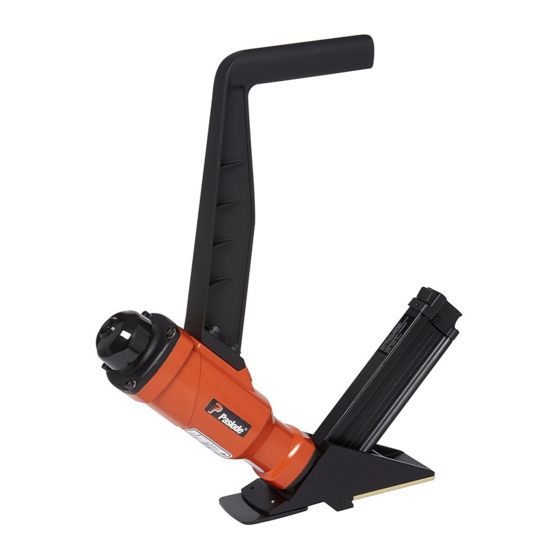

PASLODE PNEUMATIC TOOL FNS-200 The pneumatic flooring tool FNS-200 is a tool specially developed for the installation standard 3/4" to 1/2" hardwood flooring. It has been designed for easy maintenance where major components can be easily accessed. It makes the installation of hardwood floor very easy, allowing the operator to set and fasten the boards in the standing position. -
Page 3: Loading The Tool
110 psi (7.6 bar). PREVENTIVE MAINTENANCE This tool requires minimal lubrication. Use only detergent-free oil such as t h e Paslode Pneumatic Lubricating Oil. Few drops of oil weekly in the air inlet is sufficient. Other types of lubricant may degrade the seals. -
Page 4: Operation
Allen key. This section describes how to After loading the tool, the FNS-200 nailer/stapler is disassemble the tool to access its internal components. ready for use. - Page 5 ASSEMBLING THE TOOL This section describes how to re-assemble the tool after maintenance. The following procedure assumes that the base/magazine is already installed. • Insert the piston assembly into the tool and engage the driving blade thru the opening of gate/foot assembly guiding channel.
-
Page 6: Troubleshooting
WARRANTY STATEMENT ECOND HECK FOR AIR LEAKS Paslode’s sole liability hereunder will be to replace any At rest, this tool should not have any air leaks. Before part of accessory which proves to be defective within attempting to repair the tool and replace parts, check the specific time period.
