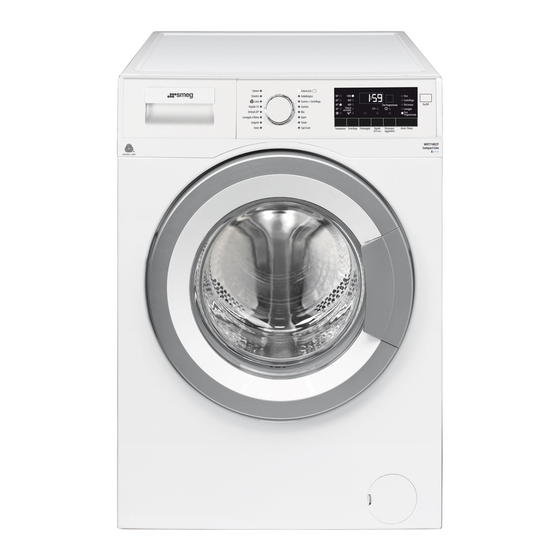

- Page 1 WHT710ECIT Lavatrice Manuale utente Washing Machine User’s Manual Numero del documento 2820525387_IT/ 19-11-18.(13:53)
-
Page 2: General Safety Instructions
General safety instructions This section includes security instructions which may help prevent the injuries and material damage risks. All kinds of warranties shall be invalid if these instructions are not observed. 1.1 Life and property safety Never place the product on a carpet-covered floor. Electrical parts will get overheated since air cannot circulate from under the device. -
Page 3: Electrical Safety
Do not forget to close the loading door when leaving the room where the product is located. store all detergents and additives in a safe place away from the reach of the children by closing the cover of the detergent container or sealing the detergent package. -
Page 4: Important Instructions For Environment
Important instructions for environment 2.1 Compliance with WEEE Directive This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE). This product has been manufactured with high quality parts and materials which can be reused and are suitable for recycling. -
Page 5: Technical Specifications
Technical specifications Complying Commission Delegated Regulation (EU) No 1061/2010 Supplier name or trademark SMEG Model name WHT710ECIT Rated capacity (kg) Energy efficiency class / Scale from A+++ (Highest Efficiency) to D (Lowest Efficiency) A+++ Annual Energy Consumption (kWh) Energy consumption of the standard 60°C cotton programme at full load (kWh) 0.960... -
Page 6: Appropriate Installation Location
4.1 Installation • Apply to the nearest authorized service agent for the installation of your product. • Preparation of the location and electrical, tap water and waste water installations at the place of installation is under customer's responsibility. • Make sure that the water inlet and discharge hoses as well as the power cable are not folded, pinched or crushed while pushing the product into its place after installation or cleaning procedures. -
Page 7: Connecting Water Supply
Keep the transportation safety bolts in a safe place to reuse when the washing machine needs to be moved again in the future. Install the transport safety bolts in reverse order of the disassembly procedure. Never move the product without the transportation safety bolts properly fixed in place! 4.1.4 Connecting water supply The water supply pressure required to run the product is between 1 to 10 bars (0.1 –... -
Page 8: Adjusting The Feet
4.1.6 Adjusting the feet CAUTION: In order to ensure that the product operates more silently and vibration-free, it must stand level and balanced on its feet. Balance the machine by adjusting the feet. Otherwise, the product may move from its place and cause crushing and vibration problems. -
Page 9: Preparing Laundry For Washing
4.2 Preparation 4.2.1 Sorting the laundry * Sort laundry according to type of fabric, color, and degree of soiling and allowable water temperature. * Always obey the instructions given on the garment tags. 4.2.2 Preparing laundry for washing • Laundry items with metal attachments such as, underwired bras, belt buckles or metal buttons will damage the machine. -
Page 10: Using Detergent And Softener
4.2.6 Using detergent and softener When using detergent, softener, starch, fabric dye, bleacher and decolorant, descaling agents; read the manufacturer's instructions written on the package and follow the dosages specified. Use measuring cup if available. The detergent drawer is composed of three compartments: –... - Page 11 Using liquid detergents If the product contains a liquid detergent cup: • Put the liquid detergent container into the compartment no “2”. • If the liquid detergent lost its fluidity, dilute it with water before putting it into the detergent container.
-
Page 12: Tips For Efficient Washing
4.2.7 Tips for efficient washing Clothes Light Colours and Black/Dark Delicates/ Colours Whites Colours Woolens/Silks (Recommended (Recommended (Recommended temperature (Recommended temperature range temperature range based temperature range range based on soiling level: based on soiling level: cold -40 on soiling level: cold based on soiling 40-90 level: cold -30... -
Page 13: Operating The Product
4.3 Operating the product 4.3.1 Control panel 1 - Programme selection knob 8 - Programme follow-up indicator LEDs 2 - Temperature selection LEDs 9 - On / Off button 3 - Spin speed selection LEDs 10 - Start / Pause button 4 - Duration information display 11 - Auxiliary function buttons 5 - Child lock enabled LED... - Page 14 • Cotone Eco (Cotton Economic)) Use to wash your normally soiled, durable cotton and linen laundry. Although it washes longer than all other programmes, it provides high energy and water savings. Actual water temperature may be different from the stated wash temperature. When you load the machine with less laundry (e.g. ½ capacity or less), programme time may automatically get shorter.
-
Page 15: Temperature Selection
4.3.4 Temperature selection Whenever a new programme is selected, the recommended temperature for the selected programme appears on the temperature indicator. To decrease the temperature, press the Temperature Adjustment button. Temperature will decrease gradually. If the programme has not reached the heating step, you can change the temperature without switching the machine to Pause mode. -
Page 16: Programme And Consumption Table
4.3.6 Programme and consumption table Auxiliary functions Selectable temperature Programme (°C) range °C 2.25 1000 • • • Cold-90 Cotone 1000 • • • Cold-90 1000 • • • Cold-90 1.15 1000 • • • Cold-60 Sintetici 0.65 1000 • •... -
Page 17: Auxiliary Function Selection
4.3.7 Auxiliary function selection Select the desired auxiliary functions before starting the programme. Whenever a programme is selected, if a relevant auxiliary function is selected its related indicator light will illuminate. When you try to select an auxiliary function that is not allowed to be selected together with the program you have set, indicator light of the relevant auxiliary function will flash. -
Page 18: Starting The Programme
4.3.9 Starting the programme 1. Press Start / Pause button to start the programme. 2. Programme follow-up light showing the startup of the programme will turn on. If no programme is started or no key is pressed within 1-10 minute during programme selection process, the machine will switch to OFF mode. -
Page 19: To Activate The Child Lock
4.3.12.1 To activate the child lock: Press and hold Auxiliary Function button 2 for 3 seconds. In the programme selection display on the panel, "CL On" light will turn on. You can release Auxiliary Function button 2 when this warning is displayed. 4.3.12.2 To deactivate the child lock: Press and hold Auxiliary Function button 2 for 3 seconds. -
Page 20: Maintenance And Cleaning
4.4 Maintenance and cleaning Service life of product extends and frequently experienced problems will be reduced if it is cleaned at regular intervals. 4.4.1 Cleaning the detergent drawer Clean the detergent drawer at regular intervals (every 4-5 washing cycles) as shown below in order to prevent accumulation of powder detergent in time. -
Page 21: Cleaning The Water Intake Filters
4.4.4 Cleaning the water intake filters There is a filter at the end of each water intake valve at the rear of the machine and also at the end of each water intake hose where they are connected to the tap. These filters prevent foreign substances and dirt in the water to enter the washing machine. - Page 22 3 Follow the below procedures in order to drain water. If the product has an emergency water draining hose, in order to drain the water: Pull the emergency draining hose out from its seat Place a large container at the end of the hose. Drain the water into the container by pulling out the plug at the end of the hose.
-
Page 23: Troubleshooting
Troubleshooting Problem Reason Solution Program does not start after Start / Pause / Cancel button was not pressed. • *Press the Start / Pause / Cancel button. closing the door. Programme cannot be started or Washing machine has switched to self protection •... - Page 24 Problem Reason Solution Programme time does not Timer may stop during water intake. • Timer indicator will not countdown until the countdown. (On models with machine takes in adequate amount of water. The display) (*) machine will wait until there is sufficient amount of water to avoid poor washing results due to lack of water.
- Page 25 Problem Reason Solution It does not rinse well. The amount, brand and storage conditions of the • Use a detergent appropriate for the washing detergent used are inappropriate. machine and your laundry. Keep detergents closed in an environment free of humidity and do not expose them to excessive temperatures.
- Page 26 Problem Reason Solution Laundry remains wet at the end of Excessive foam might have occurred and automatic • Use recommended amount of detergent. the programme. (*) foam absorption system might have been activated due to too much detergent usage. (*) Machine does not switch to spinning step when the laundry is not evenly distributed in the drum to prevent any damage to the machine and to its surrounding environment.
