Summary of Contents for Smeg WHT1114LUK1

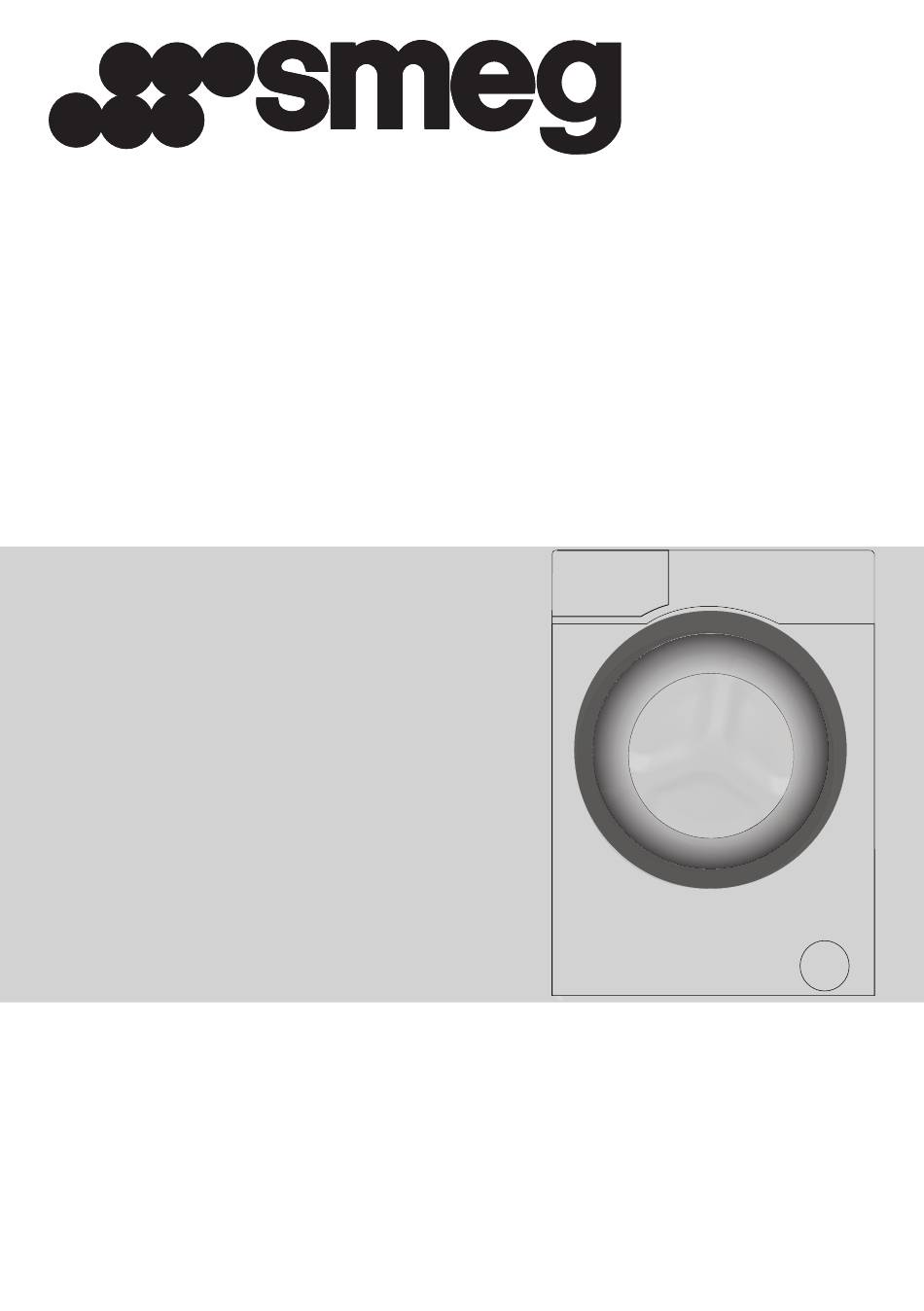

- Page 1 WHT1114LUK1 Washing Machine User’s Manual Document Number 2820527993_EN/ 04-11-19.(9:10)
- Page 2 Please read this user manual first! Dear Customer, Thank you for prefering a product. We hope that you get the best results from your product which has been manufactured with high quality and state-of-the-art technology. Therefore, please read this entire user manual and all other accompanying documents carefully before using the product and keep it as a reference for future use.
-
Page 3: General Safety Instructions
General safety instructions This section includes security instructions which may help prevent the injuries and material damage risks. All kinds of warranties shall be invalid if these instructions are not observed. 1.1 Life and property safety Never place the product on a carpet-covered floor. Electrical parts will get overheated since air cannot circulate from under the device. -
Page 4: Electrical Safety
Do not forget to close the loading door when leaving the room where the product is located. store all detergents and additives in a safe place away from the reach of the children by closing the cover of the detergent container or sealing the detergent package. -
Page 5: Important Instructions For Environment
Important instructions for environment 2.1 Compliance with WEEE Directive This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE). This product has been manufactured with high quality parts and materials which can be reused and are suitable for recycling. -
Page 6: Technical Specifications
9715 Complying Commission Delegated Regulation (EU) No 1061/2010 Supplier name or trademark SMEG Model name WHT1114LUK1 Rated capacity (kg) Energy efficiency class / Scale from A+++ (Highest Efficiency) to D (Lowest Efficiency) A+++ Annual Energy Consumption (kWh) Energy consumption of the standard 60°C cotton programme at full load (kWh) 1,041 Energy consumption of the standard 60°C cotton programme at partial load (kWh) -
Page 7: Appropriate Installation Location
4.1 Installation • Preparation of the location and electrical, tap water and waste water installations at the place of installation is the customer's responsibility. • Make sure that the water inlet and discharge hoses as well as the power cable are not folded, pinched or crushed while pushing the product into its place after installation or cleaning procedures. -
Page 8: Connecting The Water Supply
4.1.4 Connecting the water supply The water supply pressure required to run the product is between 1 to 10 bars (0.1 – 1 MPa). It is necessary to have 10 – 80 litres of water flowing from the fully open tap in one minute to have your machine run smoothly. Attach a pressure reducing valve if the water pressure is higher. -
Page 9: Adjusting The Feet
4.1.6 Adjusting the feet CAUTION: In order to ensure that the product operates more silently and vibration-free, it must stand level and balanced on its feet. Balance the machine by adjusting the feet. Otherwise, the product may move from its place and cause crushing and vibration problems. -
Page 10: Important Fitting A Different Plug
Important Fitting a different plug As the colours of the wires in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals on your plug, proceed as follows: Connect the green - yellow or green (earth) wire to the terminal in the plug marked ‘E’... -
Page 11: Preparing Laundry For Washing
4.2 Preparation 4.2.1 Sorting the laundry * Sort laundry according to type of fabric, color, and degree of soiling and allowable water temperature. * Always obey the instructions given on the garment tags. 4.2.2 Preparing laundry for washing • Laundry items with metal attachments such as, underwired bras, belt buckles or metal buttons will damage the machine. -
Page 12: Using Detergent And Softener
4.2.6 Using detergent and softener When using detergent, softener, starch, fabric dye, bleacher and decolorant, descaling agents; read the manufacturer's instructions written on the package and follow the dosages specified. Use measuring cup if available. The detergent drawer is composed of three compartments: –... - Page 13 Using liquid detergents If the product contains a liquid detergent cup: • Put the liquid detergent container into the compartment no “2”. • If the liquid detergent lost its fluidity, dilute it with water before putting it into the detergent container.
-
Page 14: Tips For Efficient Washing
4.2.7 Tips for efficient washing Clothes Light Colours and Black/Dark Delicates/ Colours Whites Colours Woolens/Silks (Recommended (Recommended (Recommended temperature (Recommended temperature temperature range temperature range range based on soiling level: range based on soiling level: 40-90 o C) cold -40 o C) based on soiling based on soiling level: cold -40... -
Page 15: Operating The Product
4.3 Operating the product 4.3.1 Control panel Auto Program Cottons HygieneCare Cotton Eco AntiCrease Temp. Shirts Synthetics Stain 14 Minutes Spin Spin Wash Dark Wash Mixed Sports Wool Duvet Delicate Start / Pause Prewash Quick Wash Extra Rinse Night Mode Ending In Rinse Spin+Drain... -
Page 16: Programme And Consumption Table
4.3.3 Programme and consumption table Auxiliary functions Selectable Programme temperature range °C 2,25 1400 Cold - 90 • • • • • Cottons 1,40 1400 Cold - 90 • • • • • 1,10 1400 Cold - 90 • • •... -
Page 17: Programme Selection
Indicative values for Synthetics programmes (EN) Remaining Moisture Content Remaining Moisture Content (%) ** (%) ** ≤ 1000 rpm > 1000 rpm 1.50 135/160 Synthetics 60 0.95 135/160 Synthetics 40 * You can see the washing time of the programme you have selected on the display of the machine. It is normal that small differences may occur between the time shown on the display and the real washing time. - Page 18 "Woolens programme of this machine is approved by “The Woolmark Company” for washing machine-washable woolen products provided that the products are washed in accordance with the instructions on the product tag and the instructions published by the manufacturer of this machine. M1422" In UK, Ireland, Hong Kong and India, the Woolmark trademark is a Certification trademark.
- Page 19 • Mixed Use to wash your cotton and synthetic clothes together without sorting them. • Auto Program Use to wash frequently washable cotton, synthetic or blended (cotton+synthetic) clothes. Programme detects the type and quantity of the laundry to automatically adjust water consumption and programme time. CAUTION: Do not wash your woolen and delicate clothes in this programme.
-
Page 20: Temperature Selection
4.3.6 Temperature selection Whenever a new programme is selected, the recommended temperature for the programme appears on the temperature indicator. It is possible that the recommended temperature value is not the maximum temperature that can be selected for the current programme. 88:88 1888 Press the Temperature Adjustment button to change the temperature. -
Page 21: Rinse Hold
If you want to spin your laundry after the Rinse Hold function: - Adjust the Spin Speed. - Press Start / Pause / Cancel button. The programme will resume. Machine drains the water and spins the laundry. If you want to drain the water at the end of the programme without spinning, use No Spin function. 88:88 No change can be made in programmes where spin speed adjustment is not allowed. -
Page 22: Auxiliary Functions
4.3.8.1 Auxiliary functions • Prewash A Prewash is only worthwhile for heavily soiled laundry. Not using the Prewash will save energy, water, detergent and time. • Extra Rinse This function enables the product to make another rinsing in addition to the one already made after the main wash. - Page 23 • AntiCrease 3 sec. This function is selected when the 4th auxiliary function is pressed and held for 3 seconds and the programme follow-up light for the relevant step turns on. When the function is selected, the drum rotates for up to 8 hours for preventing the laundry from creasing at the end of the programme.
-
Page 24: Starting The Programme
4.3.10 Starting the programme 1 Press Start / Pause button to start the programme. 2 The Start / Pause button's light which was off before starts to illuminate steadily now, indicating that the programme has started. 88:88 1888 3 Loading door is locked. The door lock symbol appears on the display after the loading door is locked. 88:88 1888 4 Programme follow-up indicator lights on the display will show the current programme step. -
Page 25: Cancelling The Programme
Changing the programme selection after programme has started: The programme change is not allowed when the current programme is running. You can select the new programme after switching the current programme to pause mode. The selected program starts anew. Changing the auxiliary function, speed and temperature Depending on the step the programme has reached, you can cancel or activate the auxiliary functions. -
Page 26: Maintenance And Cleaning
4.4 Maintenance and cleaning Service life of product extends and frequently experienced problems will be reduced if it is cleaned at regular intervals. 4.4.1 Cleaning the detergent drawer Clean the detergent drawer at regular intervals (every 4-5 washing cycles) as shown below in order to prevent accumulation of powder detergent in time. -
Page 27: Draining Remaining Water And Cleaning The Pump Filter
4.4.5 Draining remaining water and cleaning the pump filter The filter system in your machine prevents solid items such as buttons, coins and fabric fibers clogging the pump impeller during discharge of washing water. Thus, the water will be discharged without any problem and the service life of the pump will extend. -
Page 28: Troubleshooting
Troubleshooting Problem Reason Solution Program does not start after Start / Pause / Cancel button was not pressed. • *Press the Start / Pause / Cancel button. closing the door. It may be difficult to close the loading door in case of •... - Page 29 Problem Reason Solution Programme time does not There might be unbalanced load in the machine. • Automatic unbalanced load detection system countdown. (*) might be activated due to the unbalanced distribution of the laundry in the drum. Machine does not switch to There might be unbalanced load in the machine.
- Page 30 Problem Reason Solution Laundry became stiff after Insufficient amount of detergent is used. • Using insufficient amount of detergent for the washing. (**) water hardness can cause the laundry to become stiff in time. Use appropriate amount of detergent according to the water hardness. Detergent is put in the wrong compartment.
