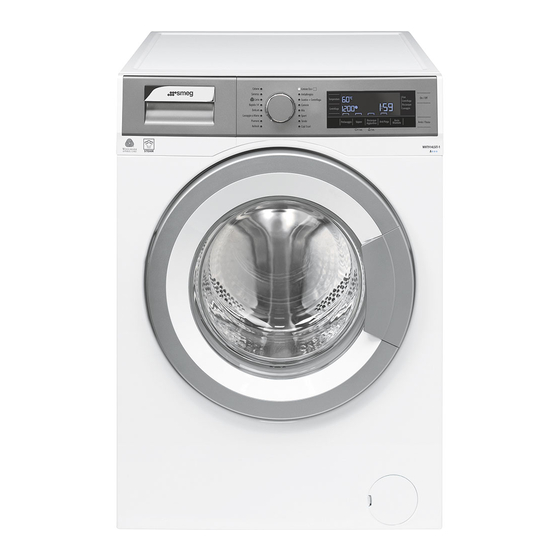

- Page 1 Questo manuale d’istruzione è fornito da trovaprezzi.it. Scopri tutte le offerte per Smeg WHT914LSIT cerca il tuo prodotto tra le migliori offerte di Lavatrici e Asciugatrici WHT914LSIT Lavatrice Manuale utente Washing Machine User’s Manual Document Number 2820524219_IT/ 24-10-14.(15:07)
-
Page 2: General Safety Instructions
General safety instructions This section includes security instructions which may help prevent the injuries and material damage risks. All kinds of warranties shall be invalid if these instructions are not observed. 1.1 Life and property safety Never place the product on a carpet-covered floor. Electrical parts will get overheated since air cannot circulate from under the device. -
Page 3: Electrical Safety
Do not forget to close the loading door when leaving the room where the product is located. store all detergents and additives in a safe place away from the reach of the children by closing the cover of the detergent container or sealing the detergent package. 1.3 Electrical safety If the product has a failure, it should not be operated unless it is repaired by the Authorized Service Agent. Risk of electric shock! This product is designed to resume operating in the event of powering on after a power interruption. If you wish to cancel the programme, see "Cancelling the programme"... -
Page 4: Important Instructions For Environment
Important instructions for environment 2.1 Compliance with WEEE Directive This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE). This product has been manufactured with high quality parts and materials which can be reused and are suitable for recycling. Do not dispose of the waste product with normal domestic and other wastes at the end of its service life. Take it to the collection center for the recycling of electrical and electronic equipment. Please consult your local authorities to learn about these collection centers. -
Page 5: Technical Specifications
Technical specifications Complying Commission Delegated Regulation (EU) No 1061/2010 Supplier name or trademark SMEG Model name WHT914LSIT Rated capacity (kg) Energy efficiency class / Scale from A+++ (Highest Efficiency) to D (Lowest Efficiency) A+++ Annual Energy Consumption (kWh) Energy consumption of the standard 60°C cotton programme at full load (kWh) 1.060 Energy consumption of the standard 60°C cotton programme at partial load (kWh) 0.900... -
Page 6: Appropriate Installation Location
4.1 Installation • Apply to the nearest authorized service agent for the installation of your product. • Preparation of the location and electrical, tap water and waste water installations at the place of installation is under customer's responsibility. • Make sure that the water inlet and discharge hoses as well as the power cable are not folded, pinched or crushed while pushing the product into its place after installation or cleaning procedures. • Make sure that the installation and electrical connections of the product are performed by authorized service. Manufacturer shall not be held liable for damages that may arise from procedures carried out by unauthorized persons. • Prior to installation, visually check if the product has any defects on it. If so, do not have it installed. Damaged products cause risks for your safety. 4.1.1 Appropriate installation location • Place the product on a hard and level floor. Do not put it onto a carpet with high pile or other similar surfaces. • When the washing machine and drier are placed on top of each other, their total weight –when loaded– amounts to 180 kilograms. Place the product on a solid and flat floor that has sufficient load carrying capacity! • Do not place the product on the power cable. -
Page 7: Connecting Water Supply
4.1.4 Connecting water supply The water supply pressure required to run the product is between 1 to 10 bars (0.1 – 1 MPa). It is necessary to have 10 – 80 liters of water flowing from the fully open tap in one minute to have your machine run smoothly. Attach a pressure reducing valve if water pressure is higher. If you are going to use the double water-inlet product as a single (cold) water-inlet unit, you must install the supplied stopper to the hot water valve before operating the product. (Applies for the products supplied with a blind stopper group.) CAUTION: Models with a single water inlet should not be connected to the hot water tap. In such a case the laundry will get damaged or the product will switch to protection mode and will not operate. CAUTION: Do not use old or used water inlet hoses on the new product. It may cause stains on your laundry. -
Page 8: Adjusting The Feet
4.1.6 Adjusting the feet CAUTION: In order to ensure that the product operates more silently and vibration-free, it must stand level and balanced on its feet. Balance the machine by adjusting the feet. Otherwise, the product may move from its place and cause crushing and vibration problems. CAUTION: Do not use any tools to loosen the lock nuts. Otherwise, they will get damaged. Loosen the lock nuts on the feet by hand. Adjust the feet until the product stands in a stable and balanced way. 3. Tighten all lock nuts by hand again. 4.1.7 Electrical connection Connect the product to a grounded outlet protected by a 16 A fuse. Our company shall not be liable for any damages that will arise when the product is used without grounding in accordance with the local regulations. • Connection must comply with national regulations. • Power cable plug must be within easy reach after installation. • If the current value of the fuse or breaker in the house is less than 16 Amps, have a qualified electrician install a 16 Amp fuse. -
Page 9: Preparing Laundry For Washing
4.2 Preparation 4.2.1 Sorting the laundry * Sort laundry according to type of fabric, color, and degree of soiling and allowable water temperature. * Always obey the instructions given on the garment tags. 4.2.2 Preparing laundry for washing • Laundry items with metal attachments such as, underwired bras, belt buckles or metal buttons will damage the machine. Remove the metal pieces or wash the clothes by putting them in a laundry bag or pillow case. • Take out all substances in the pockets such as coins, pens and paper clips, and turn pockets inside out and brush. Such objects may damage the product or cause noise problem. • Put small size clothes such as infant's socks and nylon stockings in a laundry bag or pillow case. • Place curtains in without compressing them. Remove curtain attachment items. • Fasten zippers, sew loose buttons and mend rips and tears. • Wash “machine washable” or “hand washable” labeled products only with an appropriate programme. • Do not wash colours and whites together. New, dark coloured cottons release a lot of dye. Wash them separately. • Tough stains must be treated properly before washing. If unsure, check with a dry cleaner. • Only use the dyes / color changers and descaling agents which are appropriate to machine wash. Always follow the instructions on the package. • Wash trousers and delicate laundry turned inside out. -
Page 10: Using Detergent And Softener
4.2.6 Using detergent and softener When using detergent, softener, starch, fabric dye, bleacher and decolorant, descaling agents; read the manufacturer's instructions written on the package and follow the dosages specified. Use measuring cup if available. The detergent drawer is composed of three compartments: – (1) for prewash – (2) for main wash – (3) for softener –... - Page 11 If the product does not contain a liquid detergent cup: • Do not use liquid detergent for the prewash in a programme with prewash. • Liquid detergent stains your clothes when used with Delayed Start function. If you are going to use the Delayed Start function, do not use liquid detergent. Using gel and tablet detergent • If the gel detergent thickness is fluidal and your machine does not contain a special liquid detergent cup, put the gel detergent into the main wash detergent compartment during first water intake. If your machine contains a liquid detergent cup, fill the detergent into this cup before starting the programme. • If the gel detergent thickness is not fluidal or in the shape of capsule liquid tablet, put it directly into the drum before washing.
-
Page 12: Tips For Efficient Washing
4.2.7 Tips for efficient washing Clothes Light Colours and Black/Dark Delicates/ Colours Whites Colours Woolens/Silks (Recommended (Recommended (Recommended temperature (Recommended temperature range temperature range based temperature range range based on soiling level: based on soiling level: cold -40 on soiling level: cold based on soiling 40-90 level: cold -30... -
Page 13: Operating The Product
4.3 Operating the product 4.3.1 Control panel 1 - Programme Selection knob 6 - On / Off button 2 - Spin speed adjustment button 7 - Start / Pause button 3 - Temperature Adjustment button 8 - End Time Setting button 4 - Display 9 - Auxiliary Function buttons 5 - Program Follow-up indicator... -
Page 14: Programme And Consumption Table
4.3.3 Programme and consumption table Selectable Programme temperature range °C 60** 1.06 1600 Cold-60 Cotone Eco 60** 0.90 1600 Cold-60 40** 0.84 1600 Cold-60 Antiallergico 2.60 1600 30-90 Camicie 1.29 • • • 60-Cold 0.90 • 40-Cold Sport 0.60 1000 •... -
Page 15: Programme Selection
Indicative values for Synthetics programmes (EN) Remaining Moisture Content Remaining Moisture Content (%) ** (%) ** ≤ 1000 rpm > 1000 rpm Synthetics 60 1.13 02:20 Synthetics 40 0.90 01:42 * You can see the washing time of the programme you have selected on the display of the machine. It is normal that small differences may occur between the time shown on the display and the real washing time. ** Remaining moisture content values may differ according to the selected spin speed. 4.3.4 Programme selection 1 Determine the programme suitable for the type, quantity and soiling level of the laundry in accordance with the "Programme and consumption table". Programmes are limited with the highest spin speed appropriate for that particular type of fabric. When selecting a programme, always consider the type of fabric, colour, degree of soiling and permissible water temperature. - Page 16 • Cotone Eco (Cotton Economic) Use to wash your normally soiled, durable cotton and linen laundry. Although it washes longer than all other programmes, it provides high energy and water savings. Actual water temperature may be different from the stated wash temperature. When you load the machine with less laundry (e.g. ½ capacity or less), programme time may automatically get shorter. In this case, energy and water consumption will decrease more, providing a more economic wash. This programme is available in the models with the remaining time indicator. • Antiallergico (BabyProtect) Use to wash baby laundry, and the laundry that belongs to allergic persons. Longer heating time and an additional rinsing step provide a higher level of hygiene. • BabyProtect+60°C programme is tested and approved by “The British Allergy Foundation” (Allergy UK) in United Kingdom. • Delicati (Delicate 20°) Use to wash your delicate clothes. It washes with more gentle washing action compared to the Synthetics programme. •...
-
Page 17: Temperature Selection
CAUTION: Do not wash the items apart from duvets such as carpets, rugs and etc. in the machine. Permanent damage occurs in the machine. • Lingerie Use this programme to wash delicates such as underwears. If there is little amount of laundry, use a laundry net. • Rinse Use when you want to rinse or starch separately. • Scarico + Centrifuga (Spin + Drain) Use to drain the water in the machine. 4.3.6 Temperature selection Whenever a new programme is selected, the recommended temperature for the programme appears on the temperature indicator. -
Page 18: Auxiliary Function Selection
Spin Speed Adjustment button only serves for decreasing the spin speed. Rinse Hold option is indicated with “ı_ı” symbol and No Spin option is indicated with “_” symbol. If you are not going to unload your laundry immediately after the programme completes, you can use Rinse Hold function in order to prevent them from getting wrinkled when there is no water in the machine. This function holds the laundry in the final rinsing water. 88:88 If you want to spin your laundry after the Rinse Hold function: - Adjust the Spin Speed. - Press Start / Pause / Cancel button. The programme resumes. Machine spins the laundry by discharging the water. If you want to discharge the water at the end of the programme without spinning, use No Spin function. 88:88 No change can be made in programmes where spin speed adjustment is not allowed. -
Page 19: Time Display
• Prelavaggio (Prewash) A Prewash is only worthwhile for heavily soiled laundry. Not using the Prewash will save energy, water, detergent and time. • Quick Wash This function can be used in Cottons and Synthetics programmes. It decreases the washing times and also the number of rinsing steps for lightly soiled laundry. When you select this function, load your machine with half of the maximum laundry specified in the programme table. • Risciacquo Aggiuntivo (Rinse Plus) This function enables the machine to make another rinsing in addition to the one already made after the main wash. Thus, the risk for sensitive skins (babies, allergic skins, etc.) to be effected by the minimal detergent remnants on the laundry can be reduced. • Anti Piega (Anti-Creasing) This function creases the clothes lesser when they are being washed. Drum movement is reduced and spin speed is limited to prevent creasing. In addition, washing is done with a higher water level. •... -
Page 20: Starting The Programme
4 Press Start / Pause button. Time countdown starts. “:” sign in the middle of the end time on the display starts flashing. Additional laundry may be loaded during the End Time countdown period. At the end of the countdown, End Time indicator turns off, washing cycle starts and the time of the selected programme appears on the display. When the End Time selection is completed, the time appears on the screen consists of end time plus the duration of the selected programme. 4.3.10 Starting the programme 1 Press Start / Pause button to start the programme. 2 The Start / Pause button which was off before starts to illuminate steadily now, indicating that the programme has started. - Page 21 88:88 1888 Changing the programme selection after programme has started: The programme change is not allowed when the current programme is running. You can select the new programme after switching the current programme to pause mode. The selected program starts anew. Changing the auxiliary function, speed and temperature Depending on the step the programme has reached, you can cancel or activate the auxiliary functions. See, "Auxiliary function selection".
- Page 22 Press and hold Auxiliary Function button 3 for 3 seconds to adjust the volume level. After the countdown as "3-2-1" on the display is over, the volume level symbol will appear and the new volume level will be displayed. 4.3.17 Memory programme setting You can create a Memory programme by saving frequently used programme and other settings. Use this function when you want to select quickly the same settings you use for the laundry that you wash regularly. Memory programme will remain at the factory set programme until you make a new Memory programme setting. To store a new Memory programme: 1 Select the desired programme, temperature, spin speed, soiling degree and auxiliary function. 2 Press and hold the Memory button for 3 seconds. 3 Countdown as "3-2-1" appears on the display. to select a Memory programme: 1 Press Memory button.
-
Page 23: Maintenance And Cleaning
4.4 Maintenance and cleaning Service life of product extends and frequently experienced problems will be reduced if it is cleaned at regular intervals. 4.4.1 Cleaning the detergent drawer Clean the detergent drawer at regular intervals (every 4-5 washing cycles) as shown below in order to prevent accumulation of powder detergent in time. Lift the rear part of the siphon to remove it as illustrated. If more than normal amount of water and softener mixture starts to gather in the softener compartment, the siphon must be cleaned. -
Page 24: Draining Remaining Water And Cleaning The Pump Filter
4.4.5 Draining remaining water and cleaning the pump filter The filter system in your machine prevents solid items such as buttons, coins and fabric fibers clogging the pump impeller during discharge of washing water. Thus, the water will be discharged without any problem and the service life of the pump will extend. If the machine fails to drain water, the pump filter is clogged. Filter must be cleaned whenever it is clogged or in every 3 months. Water must be drained off first to clean the pump filter. -
Page 25: Troubleshooting
Troubleshooting Problem Reason Solution Programme cannot be started or Washing machine has switched to self protection Š Press and hold On / Off button for 3 seconds. selected. mode due to a supply problem (line voltage, water (see. "Cancellation of program") pressure, etc.). - Page 26 Problem Reason Solution Programme time does not There might be unbalanced load in the machine. Š Automatic unbalanced load detection system countdown. (*) might be activated due to the unbalanced distribution of the laundry in the drum. Machine does not switch to There might be unbalanced load in the machine. Š...
- Page 27 Problem Reason Solution Laundry became stiff after Insufficient amount of detergent is used. Š Using insufficient amount of detergent for the washing. (**) water hardness can cause the laundry to become stiff in time. Use appropriate amount of detergent according to the water hardness. Detergent is put in the wrong compartment. Š...
