Summary of Contents for EPOS EXPAND SP 30+

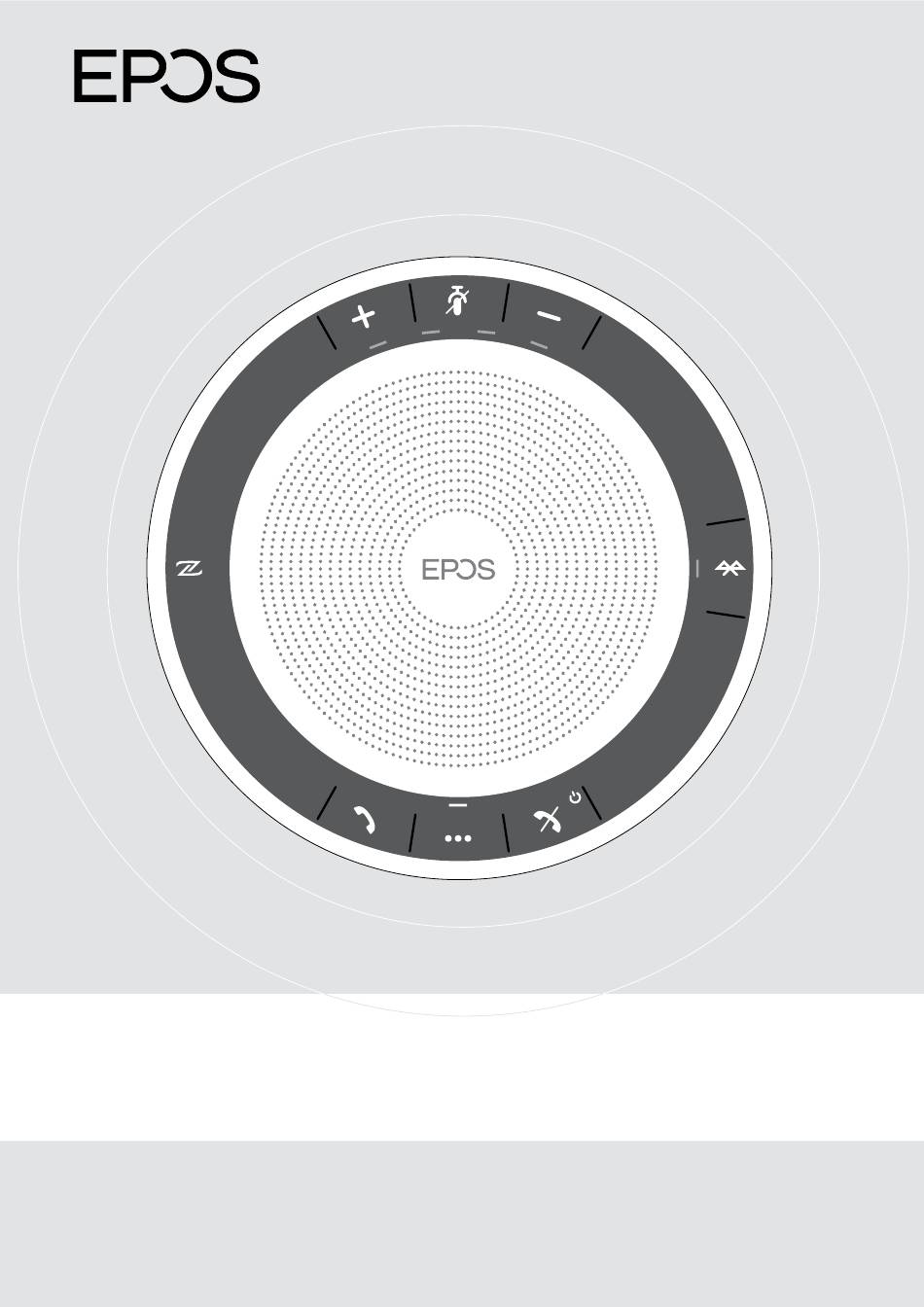

- Page 1 SP 30 | SP 30 + Bluetooth® Speakerphone User Guide...
-
Page 2: Table Of Contents
B: Pairing the Speakerphone and a mobile device via NFC™ ..........................8 C: Pairing the Speakerphone and a mobile device via Bluetooth® ........................9 D: Connecting the Bluetooth® dongle to a computer and pairing the Speakerphone ..............10 Installing EPOS software .............................................11 Using the Speakerphone ..........................................12 Turning the Speakerphone on/off........................................12 Connecting Bluetooth®... -
Page 3: Package Contents
§ For safety instructions, consult the Safety Guide. The free EPOS software EPOS Connect allows you to add value to your EPOS products. A list of accessories can be found on the product page at www.eposaudio.com. SP 30 | SP 30 +... -
Page 4: Product Overview
Product overview Product overview Overview of the Speakerphone Microphone mute Volume down Volume up Status LEDs Bluetooth NFC area Bluetooth LED Speaker Hook on (end call), Power on/off, Battery status Hook off (call) Activity LED Multi-function Overview of the bottom Dongle storage USB-C connector SP 30 | SP 30 +... - Page 5 Product overview LED overview Activity LED Meaning Speakerphone turned on Speakerphone turning off Speakerphone turned off Incoming call Active call Call on hold Second call on hold Audio playback Status LEDs Meaning Microphone muted Battery status; eight step indication Battery level low Volume level;...
-
Page 6: Overview Of The Btd 800 Usb Dongle
Product overview Overview of the BTD 800 USB dongle USB connector Link LED Link button LED overview Meaning Dongle in pairing mode: searching for Bluetooth devices to pair and connect Pairing successful Pairing failed Dongle tries to connect to a Bluetooth device Dongle and Bluetooth device connected Incoming call Outgoing/active call... -
Page 7: Setting Up The Speakerphone
Bluetooth® BTD 800 USB A: USB cable B: Bluetooth through NFC™ C: Bluetooth® D: Bluetooth® through EPOS dongle (included in SP 30 +) A: Connecting via USB cable USB-C USB-A Release the USB plug from the holder and unwind the Connect the USB connector directly to a USB-C port cable. -
Page 8: Overview: Pairing The Speakerphone With Wireless Bluetooth® Devices
Setting up the Speakerphone Overview: Pairing the Speakerphone with wireless Bluetooth® devices CAUTION Danger of malfunction! The transmitted radio waves of mobile phones can impair the operation of sensitive and unprotected devices. Only make calls with the speakerphone in locations where wireless Bluetooth transmission is permitted. The speakerphone complies with the Bluetooth 5.0 standard. -
Page 9: B: Pairing The Speakerphone And A Mobile Device Via Nfc
Setting up the Speakerphone B: Pairing the Speakerphone and a mobile device via NFC™ Activate Bluetooth and NFC (Near Field Move the mobile device in small circles directly above Communication) on your mobile device (see instruction the NFC area of the speakerphone. manual of your mobile device). -
Page 10: C: Pairing The Speakerphone And A Mobile Device Via Bluetooth
Select “SP 30”* to establish a Bluetooth connection to Once the speakerphone is paired with the mobile phone, the speakerphone. the LED lights up blue. * You can change the default name “SP 30” via EPOS Connect. SP 30 | SP 30 + Bluetooth Speakerphone... -
Page 11: D: Connecting The Bluetooth® Dongle To A Computer And Pairing The Speakerphone
Setting up the Speakerphone D: Connecting the Bluetooth® dongle to a computer and pairing the Speakerphone Press and hold the Power on/off button to turn on the Press and hold the Bluetooth button until the LED speakerphone. flashes blue and red. The LED lights up white. -
Page 12: Installing Epos Software
Setting up the Speakerphone Installing EPOS software The free EPOS software allows you to add value to your EPOS products. It enables easy set-up, configuration and update of your speakerphone. Examples of supported settings and configurations in EPOS Connect: • Bluetooth on/off, •... -
Page 13: Using The Speakerphone
Using the Speakerphone Using the Speakerphone Turning the Speakerphone on/off Turning the Speakerphone on Turning the Speakerphone off Press and hold the Power on/off button. Press and hold the Power on/off button. The LED lights up white. The LED flashes red 3 times and turns off. All volume settings are saved automatically when the speakerphone is turned off. -
Page 14: Disconnecting Bluetooth® Device(S)
Using the Speakerphone Disconnecting Bluetooth® device(s) Press the Bluetooth button. The LED turns off. To re-connect paired Bluetooth devices: Press the button again. Deactivate Bluetooth on the connected device. Clearing the speakerphone’s pairing list Press and hold the multi-function button and Bluetooth button until you hear a voice prompt. -
Page 15: Clearing The Dongle's Pairing List
Using the Speakerphone Clearing the dongle’s pairing list USB-A Plug the dongle into the USB port of your computer. Press and hold the button until the LED flashes blue and red. Double tap the button. The LED flashes purple three times to indicate that pairing list is cleared. -
Page 16: Adjusting The Volume
Using the Speakerphone Adjusting the volume You can adjust three independent volume settings for the speakerphone: Call volume: during an active call Audio volume: during audio streaming Volume for ring tone, tones and voice prompts: in idle mode – no active call or audio streaming Increasing the volume Decreasing the volume Press the button +... -
Page 17: Making Calls Using The Speakerphone
Making calls using the Speakerphone Making calls using the Speakerphone Making a call Initiate the call on your connected device. The LED lights up green. If your call is not automatically transferred to the speakerphone: Press the speakerphone’s hook off button , or use call transfer functionality on the mobile device. -
Page 18: Redialing
Making calls using the Speakerphone Redialing Redials the last number Cancels redialing Using the voice assistant/ voice dial Voice assistant and voice dialing will only be supported for device(s) connected via Bluetooth. Available functionality depends on the connected device. Activates voice assistant/ voice dial Cancels voice assistant/ voice dial The last connected Bluetooth device will be used for voice assistant or voice dial. -
Page 19: Managing Multiple Calls
Making calls using the Speakerphone Managing multiple calls You can use the Speakerphone with up to three connected devices, one connected via USB and two via Bluetooth. Two calls can be managed simultaneously. If you receive a call during an active call, a knock on tone will be played. - Page 20 Making calls using the Speakerphone Toggle between calls Softphone Active call 2nd held call Toggles between the active and held call End call Softphone Active call 2nd held call Ends the active call and makes the held call active SP 30 | SP 30 + Bluetooth Speakerphone...
-
Page 21: Merging Calls - Conference
Making calls using the Speakerphone Merging calls – Conference Two calls – one via USB, the other via Bluetooth – can be merged in a conference. Merge/unmerge calls Softphone Active call 2nd held call Merges the active call and the held call Unmerges the calls;... -
Page 22: Listening To Music Using The Speakerphone - Audio Playback
Listening to music using the Speakerphone – Audio playback Listening to music using the Speakerphone – Audio playback You can listen to audio playback via USB or Bluetooth connected device. Control active audio playback Plays the track Pauses the track Skips to the next track If you receive and accept a call, audio playback is paused and restarts after the call –... -
Page 23: Additional Functions
Additional functions Additional functions Switching between Bluetooth® personal and shared mode If the speakerphone is used as a personal device it will automatically attempt to connect to the last eight paired devices. In this setup the Personal Mode (default) should be used. If the speakerphone is used as a shared device automatic connection to previously paired devices may not be desired. -
Page 24: Retrieving Battery Status
Additional functions Retrieving battery status Press the Battery status button. The LEDs light up shortly. Battery status 100% between 75% and 100% between 50% and 75% between 25% and 50% between 10% and 25% critically low battery: LED flashes red Recharge speakerphone (see page 24). -
Page 25: Charging The Speakerphone
Additional functions Charging the Speakerphone When the battery charge level drops below 10%, the LED flashes red. When the battery is empty, the speakerphone turns off automatically. If you do not use the speakerphone for extended periods of time it is recommended to charge it every 3 months. You can charge the speakerphone regardless of the power state (on or off). -
Page 26: Maintaining And Updating The Products
Maintaining and updating the products Maintaining and updating the products Storing and carrying the Speakerphone Store the speakerphone in a clean and dry environment. When not in use, store the product in the carry pouch. This will help to avoid scratches and keep the product in good condition. Wind up the USB cable. -
Page 27: Replacing/Removing The Speakerphone's Rechargeable Battery
During the warranty period, the rechargeable battery must only be replaced by an authorized EPOS service center, otherwise the warranty will be null and void. Contact your EPOS service center if the rechargeable battery needs to be replaced. To find a EPOS service partner in your country, visit www.eposaudio.com. -
Page 28: If A Problem Occurs
If a problem occurs that is not listed in the above table or if the problem cannot be solved with the proposed solutions, please contact your local EPOS partner for assistance. To find a EPOS partner in your country, search at www.eposaudio.com. SP 30 | SP 30 +... -
Page 29: Restoring Speakerphone's Factory Default Settings
If a problem occurs ... Restoring speakerphone’s factory default settings Press and hold the mute button and multi-function button until the device restarts. All settings and the pairing list will be cleared. SP 30 | SP 30 + Bluetooth Speakerphone... -
Page 30: Specifications
Specifications Specifications SP 30 Speakerphone Dimensions (Ø x H) 120 x 37 mm / 4.72 x 1.47 in Weight approx. 314 g / 11.08 oz Talk time up to 18 hours Charging time approx. 3 h 20 min Max. charging voltage 5 V / max. - Page 31 Specifications Sennheiser Communications A/S Industriparken 27, DK-2750 Ballerup, Denmark www.eposaudio.com Publ. 02/20, A03 SP 30 | SP 30 + Bluetooth Speakerphone...
