Globe GL-RES/SW Series Manual

RESIDENTIAL HORIZONTAL SIDEWALL

GENERAL DESCRIPTION

The series GL-RES/SW sprinkler is a decorative fast re-
sponse glass bulb sprinkler specifically tested and Listed
for use in residential applications such as homes, apart-
ments, hotels, and dormitories to provide control of these
residential type fires and to improve the chance for occu-
pants to escape. It utilizes a 3mm frangible glass bulb as
its heat sensing operating element. The recessed version
of each of these Residential Sprinklers is intended for use
in walls or soffits as appropriate. It employs a two-piece Re-
cessed Escutcheon. The Recessed Escutcheon provides a
total adjustment of 1/2 inch (12.7mm) from the flush ceiling
position or ±1/4 inch (6.4mm) of recessed adjustment. The
adjustment provided by the Recessed Escutcheon reduces
the accuracy to which the pipe drops to the sprinklers must
be cut.
This sprinkler may be installed within dwelling occupancies
as allowed by NFPA 13, 13D, 13R and any other related
documents as appropriate.

TECHNICAL DATA

Approvals
•
See TABLE A
Maximum Working Pressure
•
175 psi (12 bar)
Temperature Rating
•
See TABLE A
K-Factor
GL4231 K4.2 gpm/psi ½
•
GL4431 K4.4 gpm/psi ½
•
Thread Size
•
1/2" NPT (15 mm)
Length
•
2-1/2" (6.3 cm)
Materials of Construction
•
Frame - bronze • Deflector - brass
•
Lodgement Wire - stainless steel
•
Spring - nickel alloy •
•
Bulb - glass with alcohol based solution, 3mm
•
Escutcheon Assembly - steel
NOTE:
Users should refer to Globe's web site (www.globesprinkler.com)
to assure that the most recent technical literature is being utilized.
APRIL 2019 REV. A
SERIES GL-RES/SW
K-FACTOR: 4.2, 4.4
60.5 lpm/bar ½
( )
63.4 lpm/bar ½
( )
• Screw - brass
• Bulb seat - copper
Seal - teflon
4077 Airpark Dr. Standish, MI 48658 • 989-846-4583 •
Technical Support 989-414-2600
•

OPERATION

Upon exposure to heat such as from a fire, the fluid in the
bulb expands, compressing the air bubble within the bulb.
When the air bubble can no longer compress, the fluid ex-
pansion causes breakage of the glass bulb, resulting in re-
lease of the water seat assembly, and discharge of water
from the sprinkler.

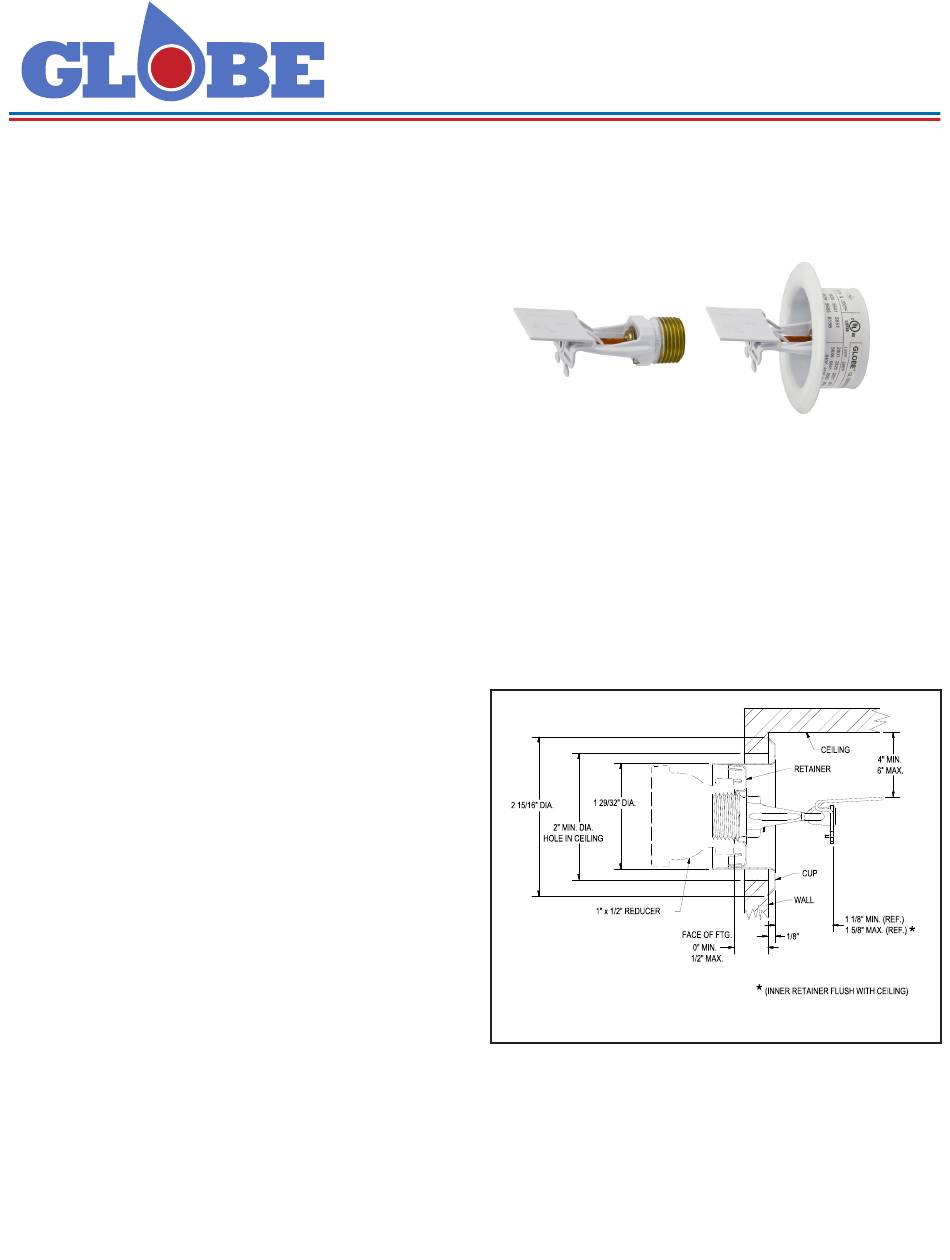

FIGURE 1: 1/2" ADJUSTMENT RECESSED SIDEWALL
FINISHES AND ACCESSORIES
Finishes
• Factory Bronze
• Black Polyester - special order
Escutcheons
• Brass
Wrenches
• Standard
GFS-332
• techservice@globesprinkler.com
SERIES GL-RES/SW
GL4231, GL4431
• Chrome • White Polyester
• Chrome • White Polyester
• Residential Sidewall Recess
www.globesprinkler.com
• Black Polyester
• 1/2" NPT
PAGE 1 of 4
