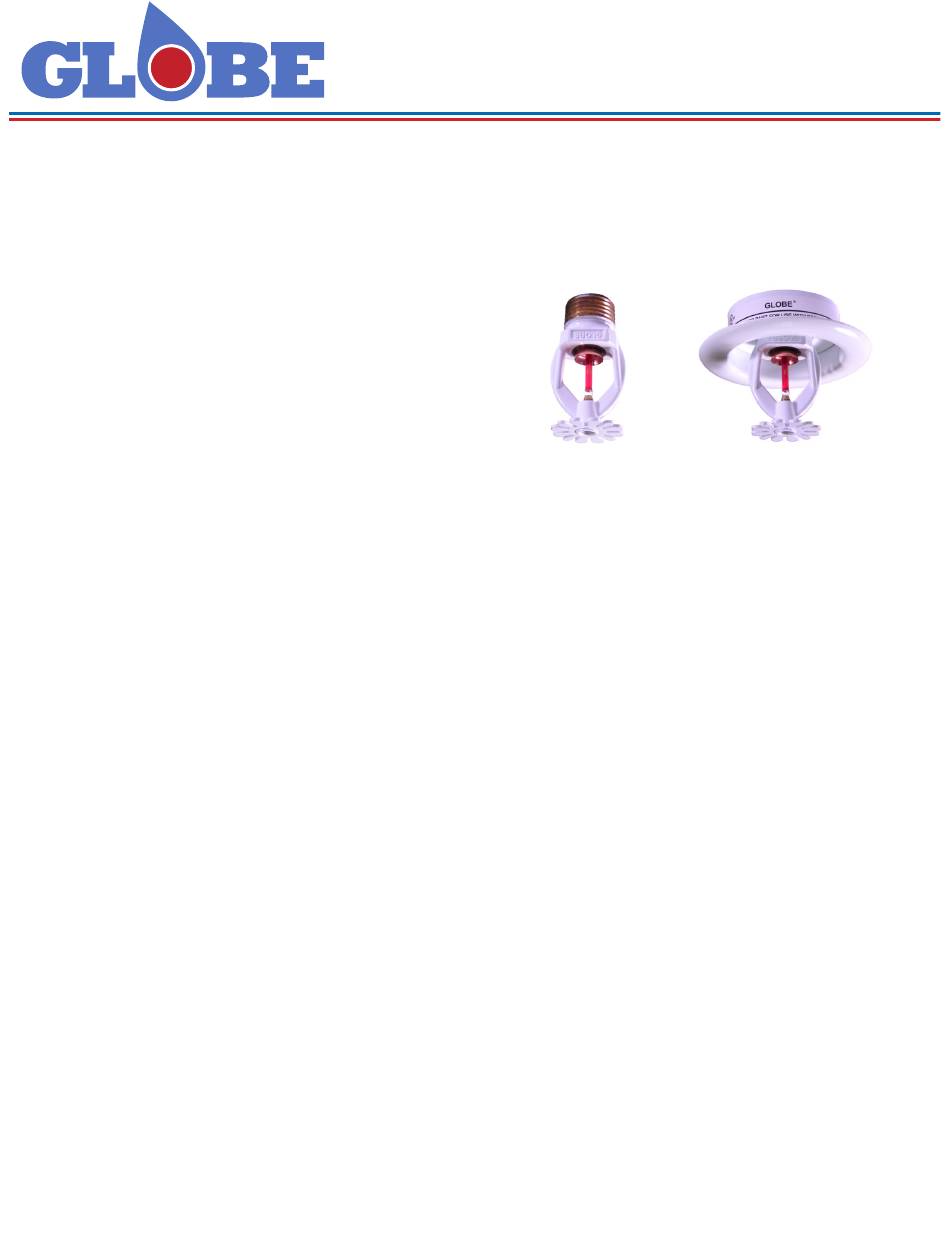

RESIDENTIAL PENDENT AND RECESSED PENDENT

GENERAL DESCRIPTION

The series GL-RES pendent sprinklers are decorative fast
response glass bulb sprinklers specifically tested and List-
ed for use in residential applications such as homes, apart-
ments, hotels, and dormitories to provide control of these
residential type fires and to improve the chance for occu-
pants to escape. They utilize a 3mm frangible glass bulb as
its heat sensing operating element. The recessed version
of each of these Residential Sprinklers is intended for use
in areas with finished ceilings. It employs a two-piece Re-
cessed Escutcheon. The Recessed Escutcheon provides a
total adjustment of 1/2 inch (12.7mm) from the flush ceiling
position or ±1/4 inch (6.4mm) of recessed adjustment. The
adjustment provided by the Recessed Escutcheon reduces
the accuracy to which the pipe drops to the sprinklers must
be cut.
This sprinkler may be installed within dwelling occupancies
as allowed by NFPA 13, 13D, 13R and any other related
documents as appropriate.
The GL3010 is typically utilized when maximum coverag-
es are not needed, thereby reducing flow demands. The
GL5610 is typically the sprinkler of choice when utilizing
Residential Sprinklers within an NFPA 13 Occupancy. The
larger K-factor can be advantageous when needed to con-
form to the NFPA 13 hydraulic Special Design Approach for
Residential Sprinklers.

OPERATION

Upon exposure to heat such as from a fire, the fluid in the
bulb expands, compressing the air bubble within the bulb.
When the air bubble can no longer compress, the fluid ex-
pansion causes breakage of the glass bulb, resulting in re-
lease of the water seat assembly, and discharge of water
from the sprinkler.
NOTE:
Users should refer to Globe's web site (www.globesprinkler.com)
to assure that the most recent technical literature is being utilized.
APRIL 2019 REV.A
4077 Airpark Dr. Standish, MI 48658 • 989-846-4583 •
Technical Support
SERIES GL-RES
K-FACTOR: 3.0, 4.1, 4.9, 5.6
GFS-302
989-414-2600
• techservice@globesprinkler.com
SERIES GL-RES
GL3010, GL4110, GL4910, GL5610

TECHNICAL DATA

Approvals
See TABLE A
Maximum Working Pressure
175 psi (12 bar)
Temperature Rating
See TABLE A
K-Factor
GL3010 K3.0 gpm/psi ½
GL4110 K4.1 gpm/psi ½
GL4910 K4.9 gpm/psi ½
GL5610 K5.6 gpm/psi ½
Thread Size
1/2" NPT (15 mm)
Length
2-1/2" (6.3 cm)
Materials of Construction
Frame - bronze
Deflector - brass
Lodgement Wire (GL5610 only) - stainless steel
seat - copper
Spring - nickel alloy
Bulb - glass with alcohol based solution, 3mm
Escutcheon Assembly - carbon steel

FINISHES AND ACCESSORIES

Finishes
Factory Bronze
Chrome
Black Polyester - special order
Escutcheons
Brass
Chrome
White Polyester
Wrenches
Standard
Recess
1/2" NPT
www.globesprinkler.com
43.2 lpm/bar ½
(
)
59.0 lpm/bar ½
(
)
70.6 lpm/bar ½
(
)
80.6 lpm/bar ½
(
)
Screw - brass
Seal - teflon
White Polyester
Black Polyester
PAGE 1 of 4
Bulb
