Globe GL Series Quick Start Manual

D
ESCRIPTION AND
The Globe Quick Response GL Series Dry Type Horizontal Sidewall
Sprinkler is designed for use in special applications such as freezing
environments and conditions where sediment or foreign materials might
accumulate in ordinary horizontal pipe nipples.
The Globe Quick Response GL Series Dry Type Horizontal Sidewall
Sprinkler utilizes a 3mm frangible glass ampule as the thermosensitive
element. This provides sprinkler operation approximately six times
faster than ordinary sprinklers. At the ampule's rated temperature,
the sprinkler opens releasing the bulb seat, causing the inner tube
assembly to move, allowing the spring assembly to pivot alongside
the inner tube. At this time, water fl ows through the sprinkler and is
distributed by the defl ector, in an approved discharge pattern. It can be
installed wherever standard spray sprinklers are specifi ed but offers the
additional feature of greatly increased safety to life. Quick Response
Sprinklers should be used advisedly and under the direction of approv-
ing authorities having jurisdiction.
The heart of Globe's GL Series sprinkler proven actuating assembly
is a hermetically sealed frangible glass ampule that contains a precisely
measured amount of fl uid. When heat is absorbed, the liquid within
the bulb expands increasing the internal pressure. At the prescribed
temperature the internal pressure within the ampule exceeds the
strength of the glass causing the glass to shatter. This results in water
discharge which is distributed in an approved pattern.
T D
ECHNICAL
• See reverse side for Approvals and Specifi cations.
• Temperature Ratings -
135°F (57°C), 155°F (68°C), 175°F (79°C)
200°F (93°C), 286°F (141°C)
• Water Working Pressure Rating - 175 psi (12 Bars)
• Factory tested hydrostatically to 500 psi (34 Bars)
• Maximum low temperature glass bulb rating is -67°F (-55°C)
• Frame - bronze •
• Bulb Seat - brass
• Retainer - brass
• Torsion Spring - stainless steel
• Bulb - glass with alcohol based solution, 3mm size
• 3/4"NPT or 1"NPT
• Inner Tube - stainless steel
SPRINKLER TEMPERATURE RATING/CLASSIFICATION and COLOR CODING
CLASSIFICATION
ORDINARY
INTERMEDIATE
HIGH
APR 2017
O
PERATION
ATA
Defl ector - brass • Screw - brass
• Spring - nickel alloy
• Pin - stainless steel
• Orifi ce Insert - brass
• Outer Tube - galvanized steel pipe
AVAILABLE SPRINKLER
TEMPERATURES
135°F/155°F 57°C/68°C
175°F/200°F 79°C/93°C
286°F
A
UTOMATIC
GL S
H
• Seal - tefl on
BULB COLOR
ORANGE/RED
YELLOW/GREEN
141°C BLUE
Q R
UICK ESPONSE
S
PRINKLERS
D
ERIES
S
ORIZONTAL

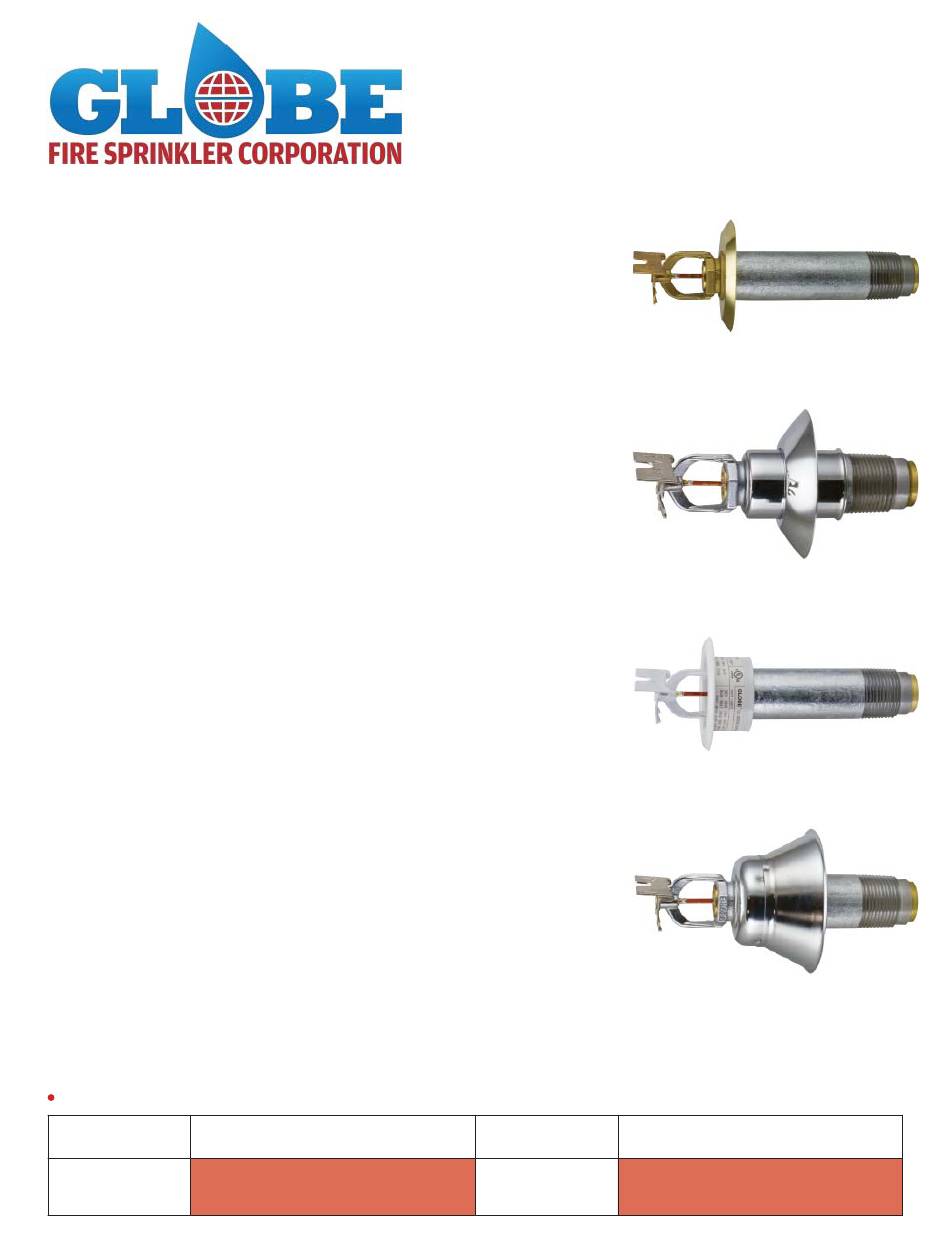

SURFACE MOUNT
SLEEVE & SKIRT
RECESSED
EXTENDED
N.F.P.A. MAXIMUM CEILING
TEMPERATURE
100°F
150°F
225°F
T
RY YPE
IDEWALL
38°C
66°C
107°C
GFS-520a (Formerly A-58)
