NOTE: Read the entire instruction manual before starting the
installation.
TABLE OF CONTENTS
Safety Considerations.....................................................................1
Introduction ....................................................................................3
Codes and Standards ......................................................................4
Safety.........................................................................................4
General Installation...................................................................4
Combustion and Ventilation Air ..............................................4
Duct Systems ............................................................................4
Acoustical Lining and Fibrous Glass Duct..............................4
Gas Piping and Gas Pipe Pressure Testing..............................4
Electrical Connections ..............................................................4
Electrostatic Discharge (ESD) Precautions Procedure..................5
Applications....................................................................................5
General ......................................................................................5
Upflow Applications.................................................................5
Downflow Applications ............................................................7
Applications....................................................................................8
Location ........................................................................................12
General ....................................................................................12
Equipment.....................................................................................12
Hazardous Locations...............................................................13
Installation ....................................................................................13
Leveling Legs (If Desired) .....................................................13
Applications..................................................................................13
Installation in Horizontal Applications ..................................13
Air Ducts.................................................................................15
Filter Arrangement..................................................................16
Bottom Closure Panel.............................................................16
Gas Piping...............................................................................17
Electrical Connections ............................................................18
Direct Venting.........................................................................20
Condensate Drain....................................................................30
installation, start-up,
and operating instructions
DELUXE 4-WAY MULTIPOISE
2-SPEED, 2-STAGE, DIRECT VENT
CONDENSING GAS FURNACE
A93040
-1-
Cancels: New
Start-Up Adjustment and Safety Check ......................................32
General ....................................................................................32
Sequence of Operation............................................................33
Start-Up Procedures ................................................................35
Adjustments.............................................................................36
Check Safety Controls ............................................................42
Checklist..................................................................................43
SAFETY CONSIDERATIONS
REGISTERED QUALITY SYSTEM
UPFLOW
HORIZONTAL
LEFT
DOWNFLOW
AIRFLOW

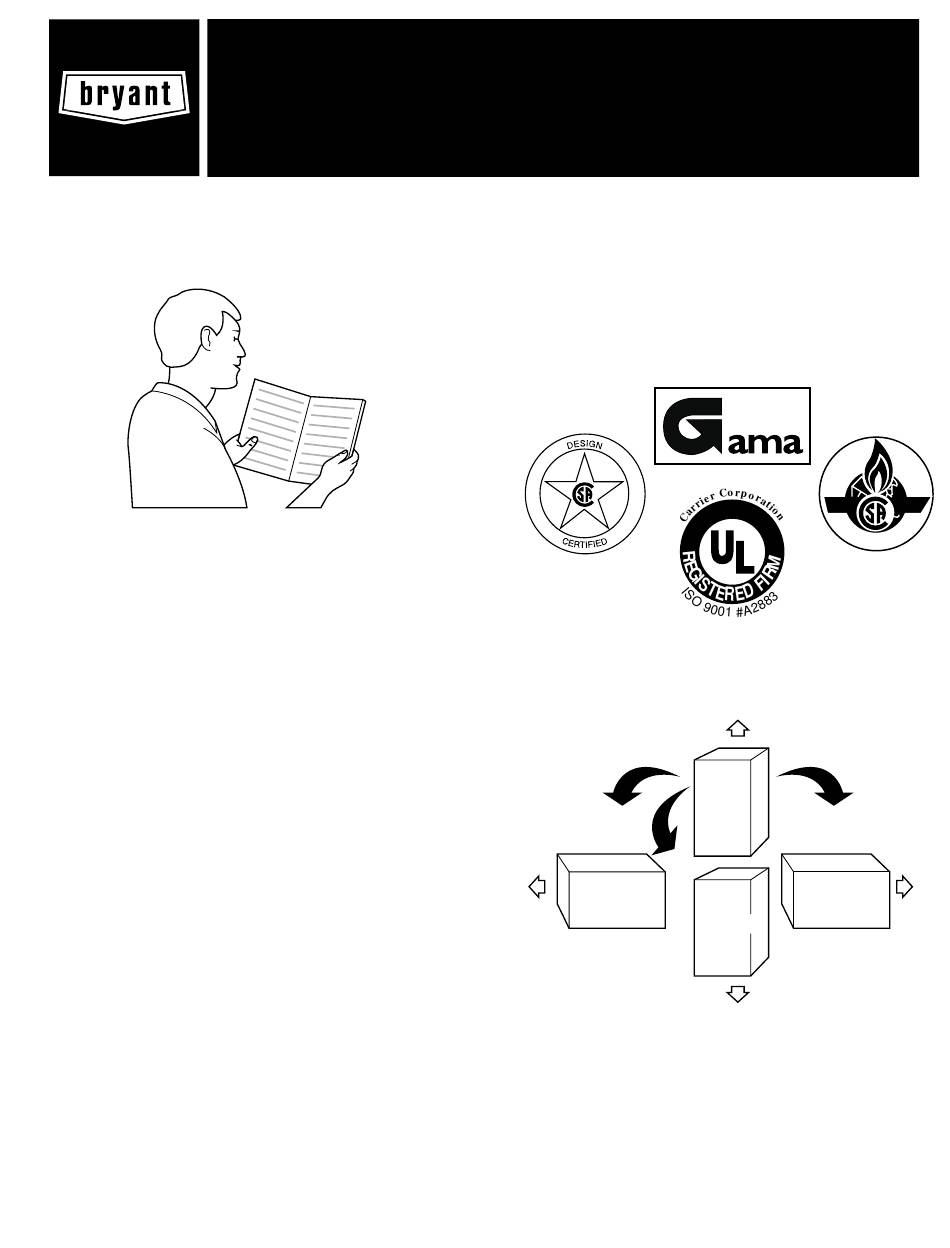

Fig. 1-Multipoise Orientations
Installing and servicing heating equipment can be hazardous due to
gas and electrical components. Only trained and qualified
personnel should install, repair, or service heating equipment.
Untrained personnel can perform basic maintenance functions
such as cleaning and replacing air filters. All other operations must
be performed by trained service personnel. When working on
heating equipment, observe precautions in literature, on tags, and
on labels attached to or shipped with unit and other safety
precautions that may apply.
352MAV
Series A
II 352M-60-1
3-01
EFFICIENCY
RATING
CERTIFIED
CERTIFIED
®
AIRFLOW
HORIZONTAL
RIGHT
AIRFLOW
AIRFLOW
A93041
Advertisement
Table of Contents
Related Manuals for Bryant 352MAV A Series
Summary of Contents for Bryant 352MAV A Series
-
Page 1: Table Of Contents
installation, start-up, 352MAV and operating instructions Series A DELUXE 4–WAY MULTIPOISE 2-SPEED, 2-STAGE, DIRECT VENT CONDENSING GAS FURNACE Cancels: New II 352M-60-1 3-01 NOTE: Read the entire instruction manual before starting the Start-Up Adjustment and Safety Check ........32 installation. General ..................32 Sequence of Operation............33 Start-Up Procedures ..............35 Adjustments................36... - Page 2 ⁄ " ⁄ " ⁄ ⁄ " " AIRFLOW ⁄ ⁄ " " ⁄ ⁄ " " ⁄ " ⁄ 19" " " " 2-IN. COMBUSTION- ⁄ " CONDENSATE DRAIN AIR CONN OUTLET OUTLET TRAP LOCATION (DOWNFLOW & CONDENSATE DRAIN 2-IN.
-
Page 3: Introduction
INSTALLATION This forced air furnace is equipped for use with natural gas at altitudes 0 - 10,000 ft (0 - 3,050m). An accessory kit, supplied by the manufacturer, shall be used to convert to propane gas use or may be required for some natural gas applications. This furnace is for indoor installation in a building constructed on site. -
Page 4: Codes And Standards
WARNING: Improper installation, adjustment, alter- ation, service, maintenance, or use can cause carbon monoxide poisoning, explosion, fire, electrical shock, or other conditions which may cause personal injury or property damage. Consult a qualified installer, service agency, local gas supplier, or your distributor or branch for information or assistance. -
Page 5: Electrostatic Discharge (Esd) Precautions Procedure
FURNACE BLOWER SHELF CONDENSATE DOOR TRAP FURNACE CONDENSATE DOOR FURNACE TRAP (INSIDE) FURNACE SIDE SIDE FIELD FIELD DRAIN DRAIN CONN CONN ALTERNATE DRAIN TUBE LOCATION SIDE VIEW FRONT VIEW END VIEW FRONT VIEW CONDENSATE TRAP DRAIN TUBE LOCATION HORIZONTAL DOWNFLOW AND ALTERNATE UPFLOW APPLICATIONS APPLICATIONS EXTERNAL UPFLOW APPLICATIONS... - Page 6 PLUG PLUG COLLECTOR BOX COLLECTOR BOX DRAIN TUBE (BLUE DRAIN TUBE (BLUE & WHITE STRIPED) & WHITE STRIPED) COLLECTOR BOX COLLECTOR BOX TUBE (PINK) TUBE (PINK) COLLECTOR BOX COLLECTOR BOX TUBE (GREEN) TUBE (GREEN) COLLECTOR BOX DRAIN TUBE (BLUE) INDUCER HOUSING (MOLDED) DRAIN TUBE (BEHIND COLLECTOR BOX...
-
Page 7: Downflow Applications
5. Fill unused condensate trap casing holes with plastic filler COLLECTOR BOX caps (factory-supplied in loose parts bag). DRAIN TUBE (BLUE) D. Condensate Trap Tubing (Alternate Upflow Orienta- tion) PLUG NOTE: See Fig. 7 or tube routing label on main furnace door to confirm location of these tubes. -
Page 8: Horizontal Left (Supply-Air Discharge) Applications
To relocate condensate trap from the blower shelf to desired (a.) Determine appropriate length and cut. location, perform the following: (b.) Connect tube to condensate trap. 1. Remove 3 tubes connected to condensate trap. (c.) Clamp tube to prevent any condensate leakage. 2. - Page 9 PLUG COLLECTOR BOX AUXILIARY "J" BOX DRAIN TUBE (BLUE AND WHITE STRIPED) CONDENSATE COLLECTOR BOX TRAP TUBE (GREEN) INDUCER HOUSING COLLECTOR DRAIN TUBE (VIOLET) BOX EXTENSION COLLECTOR BOX DRAIN TUBE DRAIN TUBE (BLUE) COLLECTOR BOX EXTENSION TUBE DRAIN TUBE COUPLING COLLECTOR BOX TUBE (PINK) RELOCATE TUBE BETWEEN BLOWER SHELF AND INDUCER HOUSING FOR 040, 060, AND 080 HEATING INPUT FURNACES...
-
Page 10: Horizontal Right (Supply-Air Discharge) Applications
COMBUSTION – AIR INTAKE VENT A 12-IN. MIN HORIZONTAL PIPE SECTION IS RECOMMENDED WITH SHORT (5 TO 8 FT) VENT SYSTEMS TO REDUCE EXCESSIVE CONDENSATE DROPLETS FROM ″ EXITING THE VENT PIPE. WORK AREA ″ ⁄ MANUAL SHUTOFF ACCESS OPENING GAS VALVE FOR TRAP DRAIN... - Page 11 COLLECTOR BOX DRAIN TUBE (BLUE) COLLECTOR BOX TUBE (GREEN) COLLECTOR BOX EXTENSION TUBE PLUG COLLECTOR BOX TUBE (PINK) AUXILARY “J” BOX RELOCATED HERE CONDENSATE TRAP COLLECTOR BOX DRAIN TUBE (BLUE AND WHITE STRIPED) INDUCER HOUSING DRAIN TUBE (VIOLET) COLLECTOR BOX EXTENSION TUBE A01028 Fig.
-
Page 12: Location
5. Determine appropriate length, cut, and connect tube. 6. Clamp tube to relief port connection. FRONT E. Condensate Trap Freeze Protection Refer to Condensate Drain Protection section for recommenda- tions and procedures F. Construct a Working Platform Construct working platform where all required furnace clearances are met. -
Page 13: Hazardous Locations
II. FURNACE LOCATION RELATIVE TO COOLING ″ ⁄ EQUIPMENT The cooling coil must be installed parallel with or on downstream ″ side of furnace to avoid condensation in heat exchanger. When ⁄ installed parallel with a furnace, dampers or other means used to ″... - Page 14 TABLE 1—OPENING DIMENSIONS (IN.) FURNACE PLENUM OPENING FLOOR OPENING CASING APPLICATION WIDTH Upflow Applications 24–1/8 16–5/8 24–3/4 Downflow Applications on Non-Combustible Flooring 15-7/8 16-1/2 19-5/8 Downflow Applications on Combustible Flooring Using KGASB Subbase 15-1/8 16-3/4 20-3/8 Furnace with or without CD5 or CK5 Coil Assembly or 17-1/2 KCAKC Coil Box Downflow Applications on Combustible Flooring NOT Using...
-
Page 15: Air Ducts
Flexible connections should be used between ductwork and furnace to prevent transmission of vibration. Ductwork passing PERFORATED DISCHARGE DUCT through unconditioned space should be insulated to enhance FLANGE system performance. When air conditioning is used, a vapor barrier is recommended. Maintain a 1-in. -
Page 16: Filter Arrangement
⁄ -IN. ROD ANGLE ″ ⁄ IRON OR EQUIVALENT ALTERNATE SUPPORT LOCATION 4-IN. MIN 8-IN. MAX DRAIN (A) ROD LOCATION USING DIMPLE LOCATORS -IN. MAX (SEE DIMENSIONAL -IN. HEX NUT ALTERNATE SUPPORT DWG FOR & WASHER (4) LOCATION FROM BACK REQD PER ROD LOCATIONS) NOTES:... -
Page 17: Bottom Closure Panel
⁄ NOTE: Side return-air openings can ONLY be used in UPFLOW -IN. WIDE CASINGS ONLY: configurations. Install filter(s) as shown in Fig. 23. Bottom INSTALL FIELD-SUPPLIED return-air opening may be used with all 4 orientations. Filter may FILTER FILLER STRIP need to be cut to fit some furnace widths. -
Page 18: Electrical Connections
Piping should be pressure tested in accordance with local and TABLE 3—MAXIMUM CAPACITY OF PIPE* national plumbing and gas codes before the furnace has been NOMINAL connected. If the pressure exceeds 0.5 psig (14-in. wc), gas supply LENGTH OF PIPE (FT) IRON INTERNAL pipe must be disconnected from the furnace and capped before... - Page 19 FIELD 24-V WIRING FIELD 115-, 208/230-, 460-V WIRING FACTORY 24-V WIRING FACTORY 115-V WIRING 1-STAGE THERMOSTAT TERMINALS FIVE FIELD-SUPPLIED WIRE FUSED DISCONNECT TWO-WIRE 208/230- OR HEATING- 460-V ONLY THREE PHASE 208/230-V W/W1 SINGLE PHASE Y/Y2 115-V FUSED JUNCTION DISCONNECT SWITCH CONTROL CONDENSING (WHEN REQUIRED)
-
Page 20: Direct Venting
TABLE 4—ELECTRICAL DATA OPERATING VOLTS— MAX WIRE MAX FUSE UNIT UNIT VOLTAGE RANGE HERTZ— UNIT WIRE LENGTH OR CKT BKR SIZE AMPACITY† PHASE AMPS SIZE (FT)‡ AMPS** Max* Min* 036060 115-60-1 11.3 036080 115-60-1 10.8 048080 115-60-1 11.6 15.3 048100 115-60-1 11.6 15.4... - Page 21 CONNECTION DIAGRAM SCHEMATIC DIAGRAM (NATURAL GAS & PROPANE) TO 115VAC FIELD DISCONNECT SWITCH NOTE #1 EQUIPMENT GROUND BHI / LOR LO-GAS-HEAT MED LO NOTE #6 BHT / CLR BLWM HI-GAS-HEAT GRN / YEL GRN/YEL NOTE #14 LGPS CAP-2 BLWR SPARE SPARE HI-COOL MED HI...
- Page 22 B. Combustion-Air and Vent Piping EAC - ELECTRONIC AIR CLEANER GENERAL (115-VAC 1 AMP MAX) Combustion-air and vent pipe, fittings, primers, and solvents must 3-AMP FUSE conform to American National Standards Institute (ANSI) stan- dards and American Society for Testing and Materials (ASTM) LED - standards.
- Page 23 TABLE 5—APPROVED COMBUSTION-AIR AND VENT PIPE, FITTING AND CEMENT MATERIALS SPECIFICATION MATERIAL PIPE FITTINGS SOLVENT CEMENT AND PRIMERS DESCRIPTION (MARKED ON MATERIAL) D1527 Pipe — — Schedule-40 D1785 Pipe — — Schedule-40 Solvent D2235 For ABS — — For ABS Cement D2241 Pipe...
- Page 24 minimum offset pipe section is recommended, as shown in Fig. 35, TABLE 6—COMBUSTION-AIR AND VENT PIPE to reduce excessive droplets from exiting vent pipe outlet. TERMINATION CLEARANCES COMBUSTION-AIR AND VENT PIPE DIAMETER CLEARANCE (FT) LOCATION Determine combustion-air and vent pipe diameter. U.S.A.
- Page 25 12 ″ MIN 12 ″ MIN VENT PIPE VENT PIPE COMBUSTION-AIR PIPE COMBUSTION-AIR PIPE HORIZONTAL TO ROOF HORIZONTAL TO SIDEWALL COMBUSTION-AIR PIPE VENT PIPE COMBUSTION-AIR PIPE 12 ″ MIN 12 ″ MIN VENT PIPE VERTICAL TO ROOF VERTICAL TO SIDEWALL NOTE: A 12 In.
- Page 26 TABLE 7—MAXIMUM ALLOWABLE PIPE LENGTH (FT) NUMBER OF 90° ELBOWS TERMINATION PIPE DIA ALTITUDE (FT) UNIT SIZE TYPE (IN.)* 1-1/2 2 Pipe or 2-in 036060 Concentric 1-1/2 036080 2 Pipe or 2-in 048080 Concentric 2-1/2 0 to 2000 048100 2 Pipe or 3-in 2-1/2 060100 Concentric...
- Page 27 TABLE 7—MAXIMUM ALLOWABLE PIPE LENGTH (FT) (CONTINUED) NUMBER OF 90° ELBOWS TERMINATION PIPE DIA ALTITUDE (FT) UNIT SIZE TYPE (IN.)* 1-1/2 2 Pipe or 2-in 036060 Concentric 036080 2 Pipe or 2-in 048080 Concentric 2-1/2 4001 to 5000‡ 2-1/2 048100 2 Pipe or 3-in 060100 Concentric...
- Page 28 TABLE 7—MAXIMUM ALLOWABLE PIPE LENGTH (FT) (CONTINUED) NUMBER OF 90° ELBOWS TERMINATION PIPE DIA ALTITUDE (FT) UNIT SIZE TYPE (IN.)* 1-1/2 2 Pipe or 2-in 036060 Concentric 036080 2 Pipe or 2-in 048080 Concentric 2-1/2 8001 to 9000‡ 2-1/2 048100 2 Pipe or 3-in 060100 Concentric...
- Page 29 TABLE 8—MAXIMUM ALLOWABLE EXPOSED VENT PIPE LENGTH (FT) WITH AND WITHOUT INSULATION IN WINTER DESIGN TEMPERATURE AMBIENT* WINTER DESIGN MAX PIPE UNIT WITHOUT WITH 3/8–IN. OR TEMPERATURE DIAMETER SIZE INSULATION THICKER INSULATION† (°F) (IN.) * Pipe length (ft) specified for maximum pipe lengths located in unconditioned spaces. Pipes located in unconditioned space cannot exceed total allowable pipe length as specified in Table 7.
-
Page 30: Condensate Drain
a. Comply with all clearance requirements as stated in OVERHANG OR ROOF Table 6. b. Termination kit should be positioned where vent vapors will not damage plants/shrubs or air conditioning equip- ment. 12″ MINIMUM VENT c. Termination kit should be positioned so it will not be affected by wind eddy (such as inside building comers) or that may allow recirculation of flue gases, airborne leaves, or light snow. - Page 31 VENT VENT 32°F MINIMUM INSTALLED COMBUSTION AMBIENT OR FREEZE PROTECTION REQUIRED A93056 Fig. 44—Concentric Vent and Combustion-Air Roof Termination (Dimension “A” is Touching or 2-in. Maximum Separation) A93058 Fig. 42—Freeze Protection Drain pipe and fittings must conform to ANSI standards and ASTM D1785, D2466 or D2846.
-
Page 32: Start-Up Adjustment And Safety Check
VENT OPEN STAND PIPE FOR A/C OR COMBUSTION AIR HUMIDIFIER DRAIN COMBUSTION AIR A96129 TO OPEN Fig. 46—Sidewall Termination of 12 in. or Less DRAIN (Dimension “A” is Touching or 2-in. Maximum Separation) A94054 Fig. 48—Example of Field Drain Attachment VENT CONDENSATE TRAP COMBUSTION AIR... -
Page 33: Sequence Of Operation
TABLE 9—SETUP SWITCH DESCRIPTION SETUP NORMAL DESCRIPTION SWITCH NO. POSITION OF USE Turn switch on to obtain only high-gas heat operation, on SW-1 OFF (Staged Gas Heat) any call for heat regardless of whether R-W/W1, or Only High-Gas Heat R-W/W1, -W2 is closed. SW-1 overrides SW-2. Turn switch off for installation with single-stage thermostats;... - Page 34 When wall thermostat ″calls for heat″, R-W/W1 circuit closes. The energized at the HI GAS-HEAT speed. Simultaneously, the furnace control performs a self check, verifies the low-heat and electronic air cleaner terminal EAC-1 is energized with high-heat pressure switch contacts LPS and HPS are open, and 115v and remain energized as long as blower motor BLWM starts inducer motor IDM in high speed.
- Page 35 low-heat gas valve solenoid GV-M will remain energized as E. Heat Pump Mode long as low-heat pressure switch LPS remains closed. The (See Fig. 28 for thermostat connections.) blower motor BLWM will switch to LO GAS-HEAT speed An accessory interface kit is required with single-speed heat for 5 sec after R-to-W2 circuit closes.
-
Page 36: Start-Up Procedures
a. When furnace control R to W/W1-and-Y/Y2 circuits are 7. The blower motor operates on HI COOL speed for 7 sec. closed, furnace control CPU continues blower motor 8. The gas valve and humidifier terminal HUM are not BLWM operation at heat pump heating speed until the energized for safety reasons. - Page 37 EXAMPLE: (0-2000 ft altitude using Table 11) Heating value = 1050 Btu/cu ft Specific gravity = 0.62 Therefore: Orifice No. 45 Manifold pressure 3.6-in. wc for high heat 1.5-in. wc for low heat * Furnace is shipped with No. 45 orifices. In this example all main burner orifices are the correct size and do not need to be changed to obtain the proper input rate.
- Page 38 TABLE 11—MODEL 352MAV ORIFICE SIZE AND MANIFOLD PRESSURE FOR CORRECT INPUT FOR USE WITH 060 THROUGH 120 SIZE FURNACES ONLY (TABULATED DATA BASED ON 20,000/13,000 BTUH PER BURNER, DERATED 2 PERCENT FOR EACH 1000 FT ABOVE SEA LEVEL) SPECIFIC GRAVITY OF NATURAL GAS ALTITUDE AVG GAS 0.58...
- Page 39 TABLE 11—MODEL 352MAV ORIFICE SIZE AND MANIFOLD PRESSURE FOR CORRECT INPUT (CONTINUED) FOR USE WITH 060 THROUGH 120 SIZE FURNACES ONLY (TABULATED DATA BASED ON 20,000/13,000 BTUH PER BURNER, DERATED 2 PERCENT FOR EACH 1000 FT ABOVE SEA LEVEL) SPECIFIC GRAVITY OF NATURAL GAS ALTITUDE AVG GAS 0.58...
- Page 40 TABLE 11—MODEL 352MAV ORIFICE SIZE AND MANIFOLD PRESSURE FOR CORRECT INPUT (CONTINUED) FOR USE WITH 060 THROUGH 120 SIZE FURNACES ONLY (TABULATED DATA BASED ON 20,000/13,000 BTUH PER BURNER, DERATED 2 PERCENT FOR EACH 1000 FT ABOVE SEA LEVEL) SPECIFIC GRAVITY OF NATURAL GAS ALTITUDE AVG GAS 0.58...
- Page 41 TABLE 13—GAS RATE (CU FT/HR) SECONDS SECONDS SIZE OF TEST DIAL SIZE OF TEST DIAL FOR 1 FOR 1 REVOLUTION Cu Ft Cu Ft Cu Ft REVOLUTION Cu Ft Cu Ft Cu Ft 1800 1636 1500 1385 1286 1200 1125 1059 1000 BURNER...
-
Page 42: Check Safety Controls
This furnace must operate within the temperature rise ranges TABLE 14–SPEED SELECTION specified on the furnace rating plate. Determine the air temperature COLOR SPEED AS SHIPPED as follows: White Common a. Place duct thermometers in return and supply ducts as Black High Cool... -
Page 43: Checklist
method to check limit control, it can be established that e. Turn off 115-v power to furnace. limit is functioning properly and operates if there is a f. Reconnect inducer motor leads, reinstall main furnace restricted return-air supply or motor failure. If limit control door, and turn on 115-v power supply. - Page 44 Safety Controls Check Operation Pipe Insulation ________ Primary Limit ________ Over Ceilings ________ Pressure Switch ________ Low-Ambient Exposed Pipes © 2001 Bryant Heating & Cooling Systems 7310 W. Morris St. Indianapolis, IN 46231 —44— Printed in U.S.A. 352m601 Catalog No. 5335–200...
