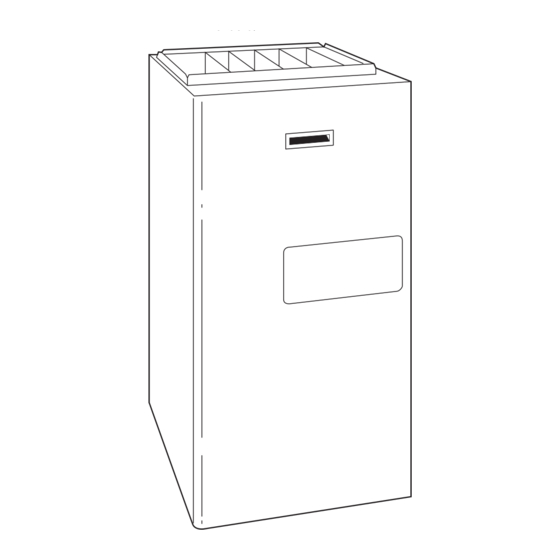

PLUS 95S - - MODEL 355CAV
DIRECT VENT 4- - WAY MULTIPOISE
MODULATING CONDENSING GAS FURNACE
WITH PERFECT SENSET PERFECT HUMIDITYT
NOTE TO INSTALLER:
THIS MANUAL MUST BE LEFT WITH THE EQUIPMENT
USER.
USER: Please read all instructions in the manual and retain all
manuals for future reference.
WARNING
!
FIRE OR EXPLOSION HAZARD
Failure to follow safety warnings exactly could result in
injury, death, or property damage.
Do not store or use gasoline or other flammable vapors and
liquids in the vicinity of this or any other appliance.
WHAT TO DO IF YOU SMELL GAS
- -Do not try to light any appliance.
- -Do not touch any electrical switch; do not use any
phone in your building.
- -Leave the building immediately.
- -Immediately call your gas supplier from a neighbor's
phone. Follow the gas supplier's instructions.
- -If you cannot reach your gas supplier, call the fire
department.
Installation and service must be performed by a qualified
installer, service agency or the gas supplier.
WARNING
!
CARBON MONOXIDE POISONING HAZARD
Failure to follow this warning could result in personal
injury and/or death.
Carbon Monoxide is invisible, odorless, and toxic! Bryant
Heating and Cooling Systems recommends a carbon
monoxide alarm in your home, even if you do not own a
gas appliance. Locate the carbon monoxide alarm in the
living area of your home and away from gas appliances and
doorways
to
attached
manufacturer's instruction included with the alarm.
Owner's Manual
garages.
Follow
the
alarm
As an ENERGY STAR® Partner,
Bryant Heating & Cooling
Systems has determined that
this product meets the ENERGY
STAR® guidelines for energy
efficiency.
Do not use this furnace if any part has been under water. A
flood- -damaged furnace is extremely dangerous. Attempts to
use the furnace can result in fire or explosion. A qualified
service agency should be contacted to inspect the furnace
and to replace all gas controls, control system parts,
electrical parts that have been wet or the furnace if deemed
necessary.
1
CERTIFIED
A05085

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PLUS 95S 355CAV and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Bryant PLUS 95S 355CAV

Summary of Contents for Bryant PLUS 95S 355CAV

  • Page 1 CARBON MONOXIDE POISONING HAZARD Failure to follow this warning could result in personal injury and/or death. Carbon Monoxide is invisible, odorless, and toxic! Bryant Heating and Cooling Systems recommends a carbon monoxide alarm in your home, even if you do not own a gas appliance.

  • Page 2: Table Of Contents

    A revolutionary design employs two heat exchangers to maximize the amount of heat from the fuel consumed. In fact, your new furnace is so efficient, up to95%* of the heat generated during combustion is captured and delivered inside your home.

  • Page 3: Components View

    (right or left side). 6. Inducer motor. Pulls hot flue gases through the heat exchangers, maintaining negative pressure for added safety. 7. Blower access panel safety interlock switch. 8. Air filter and retainer (location in furnace may vary). 9. Condensate drain connection. Collects condensed from burned gases for disposal into home drain system.

  • Page 4: Safety Considerations

    Recognize safety information. This is the safety- -alert symbol . When you see this symbol on the furnace and in instructions or manuals, be alert to the potential for personal injury. Understand the signal words: DANGER, WARNING, and CAUTION. DANGER identifies the most serious hazards which will result in severe personal injury or death.

  • Page 5: Starting And Shutting Down Your Furnace

    5 minutes. (See Fig. 11.) Then smell for gas, including near the floor. If you smell gas, STOP! Follow “B” on furnace label. If you don’t smell gas, go to next step. 6. After waiting 5 minutes, turn the control switch on the gas control to the ON position.
  • Page 6 NOTE: If the burners fail to ignite after 4 attempts, the furnace control system will lock out. If lockout occurs, main burners fail to light, or blower does not come on, shut down the furnace and A04151 call your dealer for service.

  • Page 7: Shutting Down Your Furnace

    If you own an Evolution Control, simply push the “fan” button to change the fan speed. SHUTTING DOWN YOUR FURNACE Should you ever need to shut down your furnace for service or maintenance, you will need to turn the furnace off. The following procedures must be followed: Fig.
  • Page 8 The air filter is normally located in the blower compartment or in the factory- -supplied filter cabinet attached to the side or bottom of the furnace casing. If air filter has been installed in another location, contact your dealer for instructions. To inspect, clean, and/or replace the air filter(s), follow these steps: 1.
  • Page 9 Fig. 23 - - Sliding Filter Retainer Sideways Fig. 24 - - Slide Air Filter Out of Furnace Fig. 25 - - Removing Filter Retainer from Latch A93010 A93011 Fig. 27 - - Slide Side Filter Out of Furnace A93012 Fig.

  • Page 10: Combustion Area And Vent System

    29 and 30.) or filter cabinet door. (Fig. 31 and 32.) 9. Turn on electrical supply to furnace. If your furnace air filter needs to be replaced, be sure to use a factory- -authorized filter of the same size that was originally supplied.

  • Page 11: Heading South For The Winter

    Check the combustion- -air intake and vent pipe on the outside of your home for blockage. When dirt, soot, scale, or rust is allowed to build up, your furnace can suffer a loss of efficiency and perform improperly. Accumulations on the main burners can result in firing out of normal sequence.
  • Page 12 3. Remove main furnace door. (See Fig. 19.) 4. Remove upper inducer housing drain connection cap. (See Fig. 35.) Fig. 35 - - Upper Inducer Housing Drain Connection Cap 5. Connect field- -supplied 1/2- -in. ID tube to upper inducer housing drain connection.

  • Page 13: Troubleshooting

    Check furnace for any obvious signs of deterioration. CALL If your furnace is not operating or not performing properly, you may save the expense of a service call by checking a few things yourself before calling for service.

  • Page 14: Installation Data

    Have available the Model No., Series Letter, & Serial No. of your equipment to ensure correct replacement part. Copyright 2008 Bryant Heating & Cooling Systems Manufacturer reserves the right to change, at any time, specifications and design without notice and without obligation.
