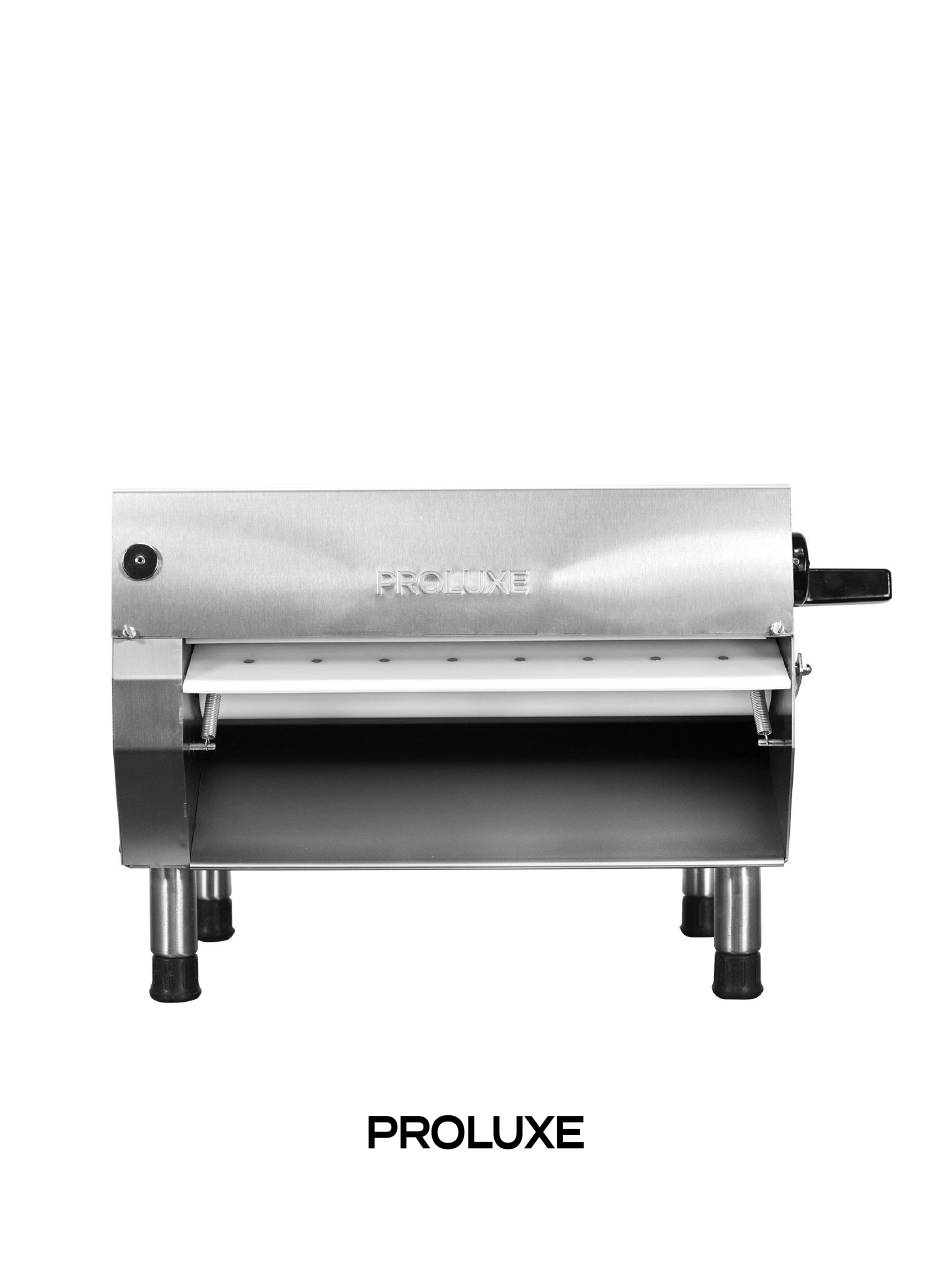

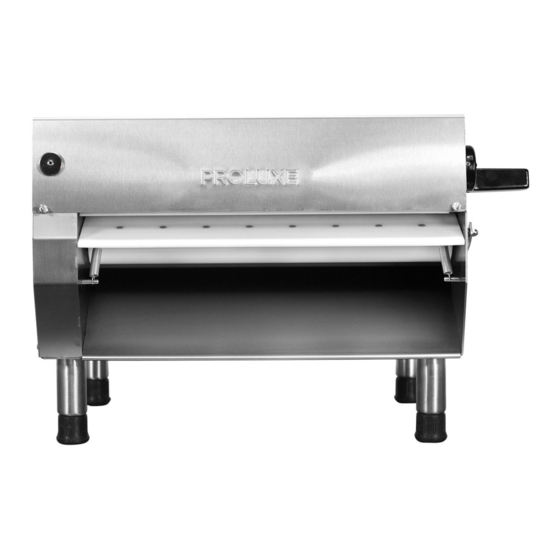

- Page 1 Operations Manual DPR2000 - Single Pass Dough Sheeter Model #: DPR2000 WWW.PROLUXE.COM Version: 51719...
- Page 3 The compact size fits just about anywhere. Great for operators who prefer sheeting dough versus pressing, the DPR2000 rolls all size dough up to and including 18”...
- Page 4 DOUGHPRO Take Your Dough Production To The Next Level DPR2000 Single Pass Dough Sheeter 26.9 17.5 23.5 16.3 23.8 TOP VIEW FRONT VIEW RIGHT SIDE VIEW Electrical Data ON/OFF Switch DPR2000A - 115v/60hz Synthetic or 8.80 amps - NEMA 5-15P...
- Page 5 DPR2000 Operations Instructions Step 1. Turn the unit on by pressing the green power button. Step 2. Adjust the thickness of the rollers by rotating the easy adjust arm on the right side of the unit. Step 3. Pre flour the hopper to make sure the rollers have been coated.
- Page 6 DPR2000 Cleaning Instructions Important: Please make sure the DPR2000 is off and unplugged before cleaning. Step 1. Loosen the 2 housing screws on the front panel of the machine. Then lift up the front panel. Step 2. It is Important that you remember how the two scrapers that are going to removed are positioned inside the unit.
- Page 7 EXPDPR2000 7 2X 20 4X 1 4X 28 4X 2 4X EXPDPR2000 RD 011819 CETEC MANUAL SHEET 1 OF 3...
- Page 8 EXPDPR2000 55 4X 22 2X 17 2X 58 4X 22 2X 80 2X 59 3X 17 2X EXPDPR2000 RD 011819 CETEC MANUAL SHEET 2 OF 3...
- Page 9 2X 56 EXPDPR2000 2X 58 16 2X 4X 55 3X 56 12 2X DETAIL SCALE 1 : 2 78 2X 67 2X EXPDPR2000 RD 011819 CETEC MANUAL SHEET 3 OF 3...
- Page 10 PARTS LIST FOR MODEL DPR2000 ITEM DESCRIPTION DPR2000A DPR2000B QTY. APPLIANCE LEGS 4" STAINLESS STEEL 1101097091 1101097091 RUBBER FOOT 1101097096 1101097096 GROMMET, RUBBER 3/8 ID, 7/8" OD, 3/16 THIK 110969116 110969116 BRACKET, RELAY 1101097080 1101097080 THREADED SPACER 1101097074 1101097074 BELT GUARD 11059052 11059052 NUT COUPLING 5/16‐18 X 1‐1/8 1101097094 1101097094 ADJUSMENT PLATE 1101097119 1101097119 HANDLE ADJUSMENT ASSEMBLY 1101097118 1101097118 PROXIMITY SWITCH SENSOR 1101097082 1101097082 MIDDLE ROLLER SPACER 1101097105 1101097105 THUMB SCREW WITH SHOULDER...
- Page 11 PARTS LIST FOR MODEL DPR2000 NUT, ACCORN 1/4‐20 NICKLE PLATE NA1420 NA1420 LOWER FRONT SCRAPER #3 SUB ASSEMBLY 11017770517 11017770517 MIDDLE FRONT SCRAPER #3 BAR 1101097063 1101097063 ANGULAR WELD STUD FOR SCRAPER #2 1101097101 1101097101 SCRAPER, TENSION SPRING 1101097052 1101097052 TOP FRONT SCRAPER #2 SUB ASSEMBLY 11017770513 11017770513 TOP FRONT SCRAPER #2 BAR 1101097057 1101097057 WASHER, INTERNAL TOOTH LOCK #10 WLIT10 WLIT10 THREADED SPACER, DPR2000 11059503 11059503 SCREW, SET 1/4‐20 X 1/2 SST142012 SST142012 SCREW, BUTTON HEAD 5/16‐18 X 3/4 SB5161834 SB5161834 SCREW, SET 1/4‐20 X 3/8 SST142038 SST142038 FRAME WELDING ASSEMBLY DPR2000 11059501 11059501 SCREW, ROUND HEAD 4‐40 X 1/2"...
-
Page 13: Warranty And Return Policy
Exclusions: 1. WOOD / GAS FIRED OVENS: PROLUXE warranty applies to the main body of the oven being steel / refractory and insulation shall be free from defects in materials and workmanship for a period of four years from the date of purchase. The gas equipment shall be free from defects in materials and workmanship for a period of one (1) year from the date of purchase.
