Operations Manual

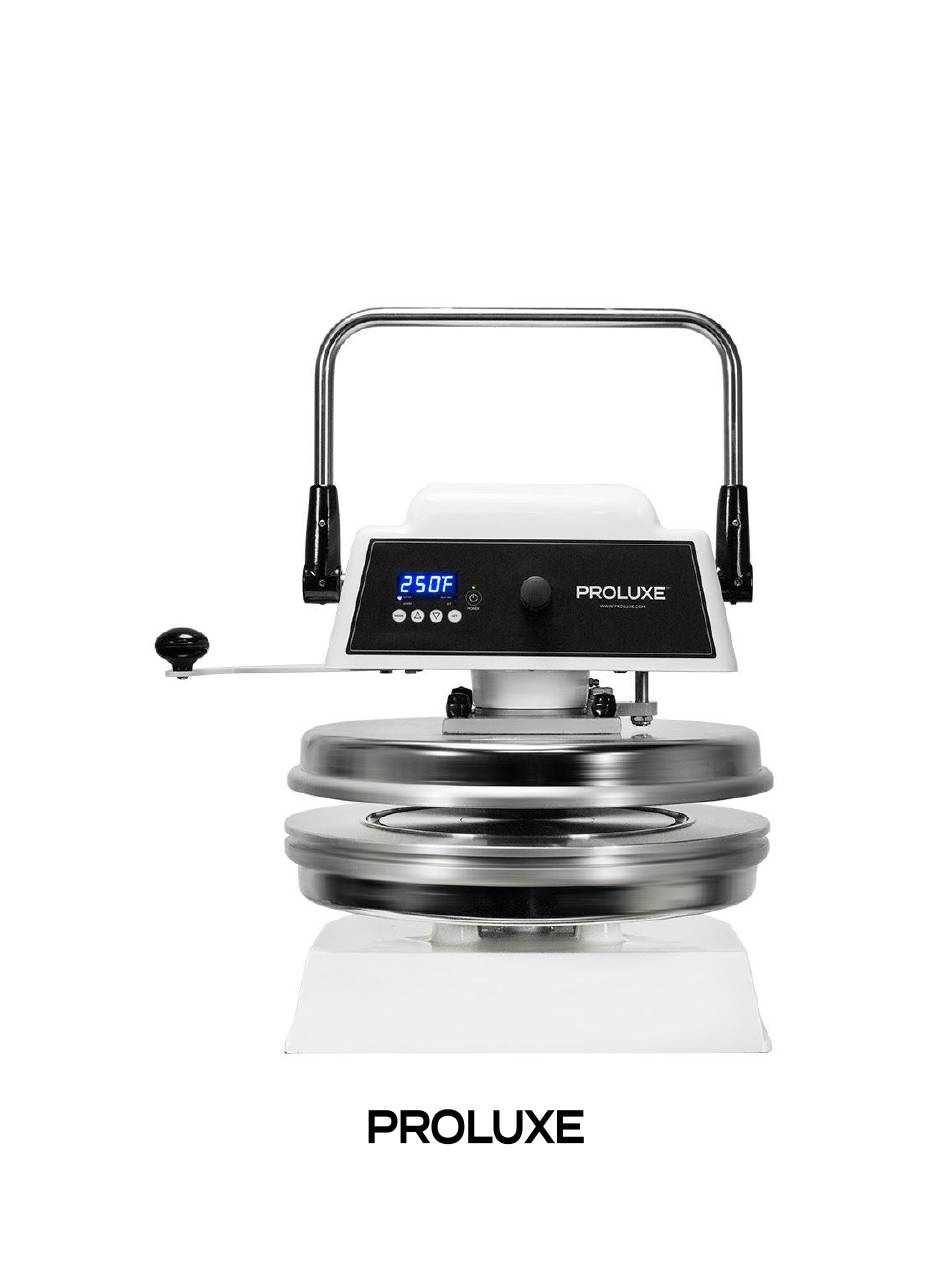

Endurance Pro X2M - Semi-automatic Dough Press, Interchangeable Molds
Model #: DP2010M



WWW.PROLUXE.COM

Version: 122820

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Endurance Pro X2M and is the answer not in the manual?

Questions and answers

Related Manuals for Proluxe Endurance Pro X2M

Summary of Contents for Proluxe Endurance Pro X2M

  • Page 1 Operations Manual  Endurance Pro X2M - Semi-automatic Dough Press, Interchangeable Molds  Model #: DP2010M        WWW.PROLUXE.COM    Version: 122820...
  • Page 2 The upper platen rotates up to 90°, in a  demanding commercial kitchens.  backward rotation, to facilitate the removal  Proluxe equipment is a result of the  of the dough product after the press cycle  has been completed.  highest quality engineering and ...

  • Page 3: Shipping Weight

      This warranty does not apply to any machine  that has been subjected to misuse,    negligence or accident. Proluxe shall not be  Power Off  liable for the injury, loss or damage, direct or  éteindre  consequential, arising out of the use or the ...
  • Page 4 S A F E T Y S U M M A R Y  and rating fuse. Listed Supplemental Fuse  rated max 3A, 120Vac.      Avertissement     Pour une protection continue contre l’incendie  Warning  et de choc électrique, remplacer avec le même  To reduce the risk of electrical shock, do not ...
  • Page 5       Familiarize yourself with the controls and  (H) Handle Adjustments (See tightening  operating mechanisms before using the  the pull-down handle.)   Endurance X2M.           (A) Pull-down pressing handle for raising  O P E R A T I O N T E M P E R A T U R E  and lowering the upper platen.

  • Page 6: Controller Operation

    2. ​ T ime​ – Time may be set from 1 second to  To reset the counter (# of cycles),  10 minutes.  simultaneously push UP (↑) or DOWN (↓)    arrow buttons (approx. 5 seconds).  3. ​ C ounter​ – Cycle counter counts the   ...
  • Page 7 7. Close the platen and pull the handle down  2. Tighten until the press action of the  to begin pressing.  handle becomes firm.      8. The timer will automatically begin and the    handle will release when the time cycle is  R E C O M M E N D E D S E A S O N I N G ...

  • Page 8: Daily Care

    The lubricant use must be USDA-H-I  unit down. This can cause platen to warp.  authorized for food machinery. This lubricant    can be ordered through Proluxe, part #  Piston Maintenance:  110-002.  In order to ensure pop and trouble free   ...
  • Page 9 Troubleshoot Guide - ​ M odel #: DP2010M    Problem  Cause  Action  Ref #  Power button on  1. Power cord is not plugged in.  1. Plug the power cord into wall    digital controller face    receptacle and power button.  68 ...
  • Page 10 tactile button on  may be not close enough to activate.  time to avoid fracturing the  digital controller,  Same goes if the buttons are already  traces on the controller) tighten  nothing happens.  pressed by overlay without  the nuts on the back of the   ...
  • Page 11 10 ...
  • Page 12     11 ...
  • Page 13 Endurance X2M Part List - ​ D P2010M    DP2010MLE 208 ~  DP2010MRE 208 ~  ITEM # DESCRIPTION QTY. HOUSING, MACHINED 1101781542201 1101781542201 LOCK PLUG, 5/8" ID DP17502 DP17502 CABLE STRAIN RELIEF 3231 3231 SCREW, SOCKET FLAT HEAD,1/4-20 X 3/4 SF142034 SF142034 HANDLE SOCKET...
  • Page 14 COLLAR, GEAR BAR 11013183 11013183 CLAMP, CABLE 1/2 CC12 CC12 SCREW, PHILLIPS PAN HEAD 8-32 X 3/8 SP83238 SP83238 SCREW, PAN HEAD 8-32 X 1 SP8321 SP8321 TRANSFORMER 11096975 11096975 WASHER, SAE #8 WSAE8 WSAE8 SCREW, BUTTON HEAD 1/4-20 X 3/4 SB142034 SB142034 HEX BOLT STAINLESS STEEL, 1/4-20 X 1/2...
  • Page 15 NUT, LOCK NUT 1/2-20 NHSL1220 NHSL1220 SCREW, SET 3/8-16 X 1/2 SST381612 SST381612 SET SCREW SOCKET 1/4-20 X 7/8 SST142078 SST142078 MARKER STRIP #5 MS6015 MS6015 WASHER, SPLIT LOCK 1/2 WL12 WL12 FUSE HOLDER 1 AMP MPPF708 MPPF708 FUSE, 1 AMP, 250V, 250W, LOW BLOW MPPF701R MPPF701R SCREW PHILLIPS PAN 2-56 x 1/4...
  • Page 16 TFE, SHRINK TUBING 7AWG 110131 110131 .66 FT. TERMINAL, RING #6 14-16 GA HIGH TEMP 1601HT 1601HT TERMINAL, RING #8 14-16 GA 1604 1604 TERMINAL, QD 3/16 X 18-22 GA 2280 2280 WASHER, SAE #6 WSAE6 WSAE6 TERMINAL, FEMALE MOLEX #BB-2141 MPSQ100 MPSQ100 WIRE, TFE 14GA.
  • Page 17     16 ...

  • Page 18: Warranty And Return Policy

          Proluxe warrants all products manufactured  In no event shall Proluxe be liable for  by it against defects in workmanship or  consequential damages arising out of the  materials from the date of purchase for a  failure of any of its products if operated ...
  • Page 19     10. Possession of this price list shall not be  5. F​ r eight/Routing​ : Method of shipment will  considered an offer to sell.  be determined by Proluxe unless otherwise  advised by purchaser.         ...
