hp-32s VESA adapter
Assembly
instructions
The VESA adapter is compatible with the following products from
hp
(hp.com):
32s

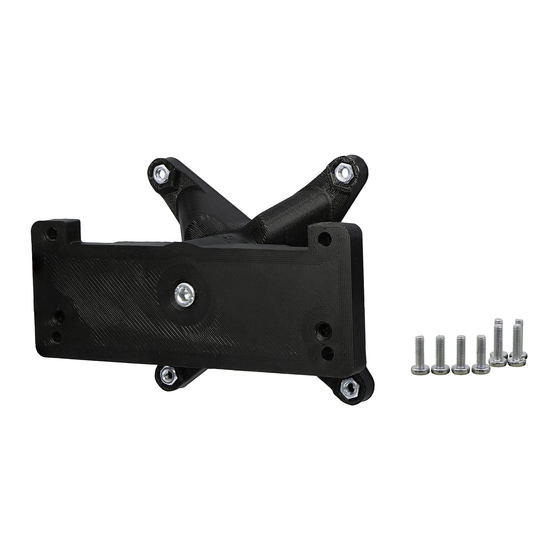

The VESA adapter allows you to conveniently mount your HP brand monitor to a
monitor arm with a VESA hole pattern (75 x 75mm). Use the included screws and
nuts.
If you want to mount your VESA adapter directly to the wall, use suitable screws
and dowels (not included).
