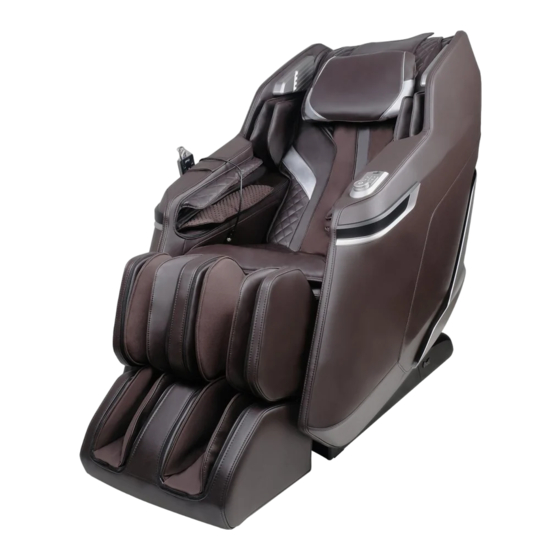

Osaki Belmont OS-3D Instruction Manual
  1. Manuals
  2. Brands
  3. Osaki Manuals
  4. Massager
  5. Belmont OS-3D
  6. Instruction manual

Osaki Belmont OS-3D Instruction Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Please read all instructions before using

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Belmont OS-3D and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Osaki Belmont OS-3D

Summary of Contents for Osaki Belmont OS-3D

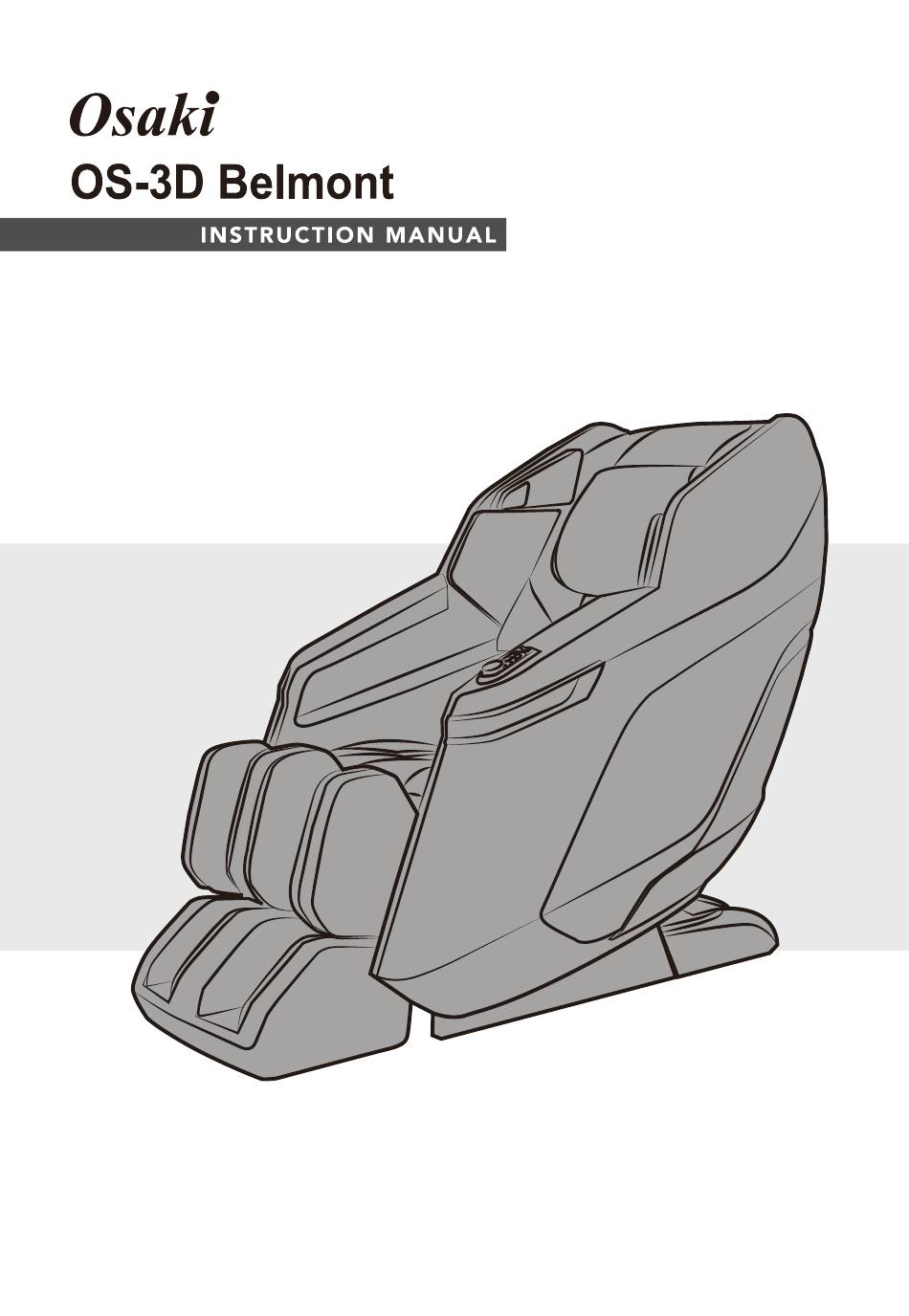

  • Page 1 Please read all instructions before using...
  • Page 2 13) Do not use massager in close proximity to loose clothing or jewelry. 14) Keep long hair away from massager while in use. 15) Use heated surfaces carefully.May cause serious burns.Do not use over insensitive skin areas or in the presence of poor circulation.The unattended use of heat by children or incapacitated persons may be dangerous.
  • Page 3 13) Do not use massager in close proximity to loose clothing or jewelry. 14) Keep long hair away from massager while in use. 15) Use heated surfaces carefully.May cause serious burns.Do not use over insensitive skin areas or in the presence of poor circulation.The unattended use of heat by children or incapacitated persons may be dangerous.

  • Page 4: Table Of Contents

    Thank you for purchasing this product. Please read this user manual carefully before using to ensure proper installation and operation. Please keep this USER MANUAL properly for future reference. CONTENTS SAFETY PRECAUTIONS NAME AND FUNCTION OF EACH COMPONENT External Structure Internal Structure Power Box Armrest Quick Buttons...

  • Page 5: Safety Precautions

    SAFETY PRECAUTIONS Safety Precautions Before using, please read the SAFETY PRECAUTIONS carefully to ensure correct operation of this appliance. Precautions and warnings listed below will help to ensure proper operation of this appliance. The classes of accidents caused by incorrect use are classified into WARNING and CAUTION.Read all WARNINGS and CAUTIONS below and follow all instructions within this manual.
  • Page 6 SAFETY PRECAUTIONS Best Circumstances Do not use this appliance where temperature is over 40℃. Do not use this appliance in moist or dusty environment. Unplug from outlet during thunder or lightening storms. Do not use outdoors. Please place the product on the flat level floor. CAUTION Do not store near heat or open flame.

  • Page 7: Name And Function Of Each Component

    NAME AND FUNCTION OF EACH COMPONENT External Structure Speaker Head pillow Headpiece Back cushion Armrest Controller Quick Button plug connector Armrest Seat cushion Legrest unit Power box Caster Internal Structure Massage mechanism Shoulder massage airbags Arm massage airbags Knee heat Leg massage airbags Foot massage airbags Foot roller...

  • Page 8: Power Box

    NAME AND FUNCTION OF EACH COMPONENT Power switch Children should be supervised to ensure that they do not play with the chair or touch the power box. Always unplug the massage chair from the electrical outlet immediately after use. Unplug from outlet during thunder or lightening storms. Turn off the power switch and unplug the massage chair from the electrical outlet while not in use to avoid children power on the massage chair accidentally.

  • Page 9: Armrest Quick Buttons

    NAME AND FUNCTION OF EACH COMPONENT Armrest Quick Buttons Rotary switch Massage Roller up techniques Roller down Point Heat Zero Gravity/Bluetooth ZERO...

  • Page 10: Instructions Of Armrest Quick Buttons

    NAME AND FUNCTION OF EACH COMPONENT Instructions of Armrest Quick Buttons Power Button Power button:Long press for 2 seconds to power on/off, short press to toggle auto programs. Rotary switch:rotate this switch to raise/recline the backrest:rotate clockwise to raise backrest,rotate counterclockwise to recline backrest. Massage techniques Press this button to navigate among 5 massage techniques:Kneading, Knocking,Shiatsu,Synchronized Kneading &...
  • Page 11 NAME AND FUNCTION OF EACH COMPONENT...

  • Page 12: Controller

    NAME AND FUNCTION OF EACH COMPONENT Controller Instructions Power Button: Press this button to power on/off the controller. Press this button while connected to power to show the menu display,the LCD Screen lights up,use the UP/DOWN/LEFT/RIGHT buttons to navigate the screen,press OK to select.

  • Page 13: Display Screen Instructions

    NAME AND FUNCTION OF EACH COMPONENT Feet Up Press and hold to raise the footrest,release the button to stop. Feet Down Press and hold to lower the footrest,release the button to stop. Back Up Press and hold to raise the backrest,release the button to stop. Back Down Press and hold to lower the backrest,release the button to stop.
  • Page 14 NAME AND FUNCTION OF EACH COMPONENT Thai：Thai Massage focuses on the back and waist extension. Pressing,grabbing, kneading and rubbing massage techniques are used to help adjust the skeletal structure, increaseflexibility and balance the body's energy system. Chinese ：By using kneading,pressing and rubbing massage techniques,Chinese Massage helps relax the lower back and release tension, soreness and tightness in the back muscles.
  • Page 15 NAME AND FUNCTION OF EACH COMPONENT Back Mechanism Massage Part:Press PART from MANUAL display,press RIGHT button then press UP or DOWN button to navigate among:Whole,Partial and Point massage regions.Press OK button to enter the setting you desire. Manual Manual Manual Mode Mode Mode...
  • Page 16 NAME AND FUNCTION OF EACH COMPONENT Airbags Press AIRBAG from HOME display to show the Airbag display,press RIGHT button then press UP or DOWN button to navigate between:Part-Air pressure region and Force-Air pressure intensity,Press OK button to enter the setting you desire. Menu Airbag Airbag...
  • Page 17 NAME AND FUNCTION OF EACH COMPONENT Settings Press SETTING from MENU display,press OK button to enter SETTING display, then press UP or DOWN button to navigate among: TIME,LANGUAGE,BLUETOOTH.Press OK button to enter the setting you desire. Menu Settings Settings 中文 Auto 10mins Time...
  • Page 18 NAME AND FUNCTION OF EACH COMPONENT 1 In the process of Auto or Manual Setting,LCD screen will automatically revert back to the homescreen after 10 seconds if there is no operation entered into the controller. Manual Speed Speed Force Force Width Width Roller...

  • Page 19: Preliminary Checks

    PRELIMINARY CHECKS Position & Placement for Installation Clearance space for the massage chair: Ensure there is an adequate clearance for the installation:It needs 15cm clearance for the reclining of the backrest;It needs 20cm clearance space for the extension of footrest and sliding forward of the chair. Keep it 1 meter away from the TV,radio or other audio/video appliance to avoid signal interference.

  • Page 20: Floor Protection

    PRELIMINARY CHECKS Floor Protection We recommend to place a piece of carpet or soft mat underneath it to avoid damaging the floor. Massage Chair Floor Carpet Surrounding Environment Do not use the massage chair in high moisture environment such as near swimming pool or bathroom to prevent electric shock accident.

  • Page 21: Installation Method

    PRELIMINARY CHECKS Installation Method Step 1, Take all massage chair units out of the cartons Unpack the cartons and take out all sewing and other accessories out of the cartons. Before beginning installation, please verify that all components are included(check with the packing list carefully) Step 2, Install the Controller Connect the controller cable to the massage chair’s plug connector (line up the pins...
  • Page 22 PRELIMINARY CHECKS Connect the power cable to the product power connector port located at the power box of the product.(Check the illustration below)

  • Page 23: Moving The Massage Chair

    PRELIMINARY CHECKS Moving the Massage Chair Roll the chair on its casters to the desired location. Incline the backrest to upright position. Turn off the power switch and unplug the appliance from the electrical outlet. Using two people,push down on the backrest and lift up on the front side by grabbing the moving Holder located to the front bottom of the armrest),roll the chair on its casters to the desired location(check the sketch for reference).

  • Page 24: Commissioning

    PRELIMINARY CHECKS Commissioning Use the controller to recline the backrest to its lowest position,raise and extend the footrest to its top position, make sure there is enough clearance before commissioning. Return the backrest and footrest back to its default position after commissioning and turn off the power switch.To choose the massage program, please check the Instructions of Control Panel and Instructions of Touchscreen Controller for reference.

  • Page 25: Care And Maintenance

    CARE AND MAINTENANCE Care Instructions To treat stains on back panel,armrest,footrest,plastic parts or air hose,spot clean with mild detergent foam,then wipe it with a dry cleaning cloth. To treat stains on controller,power box,spot clean with a dry cleaning cloth. To treat stains on back cushion or pillows,use a water-based upholstery cleaner only,wipe it with moist cloth,then air dry.

  • Page 26: Troubleshooting

    TROUBLESHOOTING Symptoms Possible Causes Possible Solutions This sound is normal and comes from the air pump motor or other Noise is heard while in No need to take any mechanical parts rubbing against measures the cloth cover Insert the power plug The power cord is not secured properly into the power into the socket...

  • Page 27: Technical Specification

    TECHNICAL SPECIFICATIONS Name: Deluxe Multi-function Massage Chair Model: OS-3D Belmont Rated voltage: 110-120V~ Rated current：0.7A Rated frequency:60Hz...
