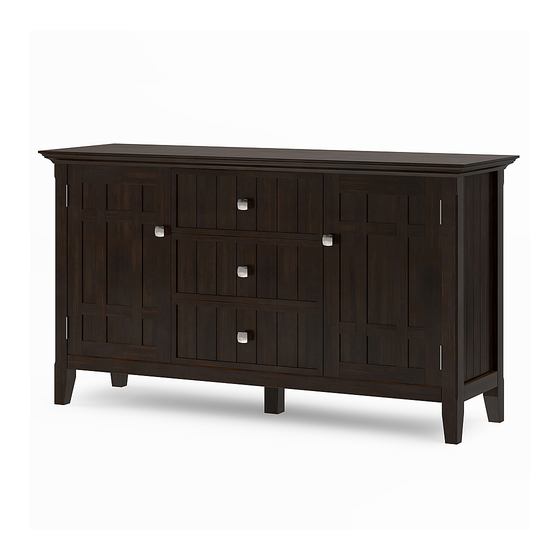

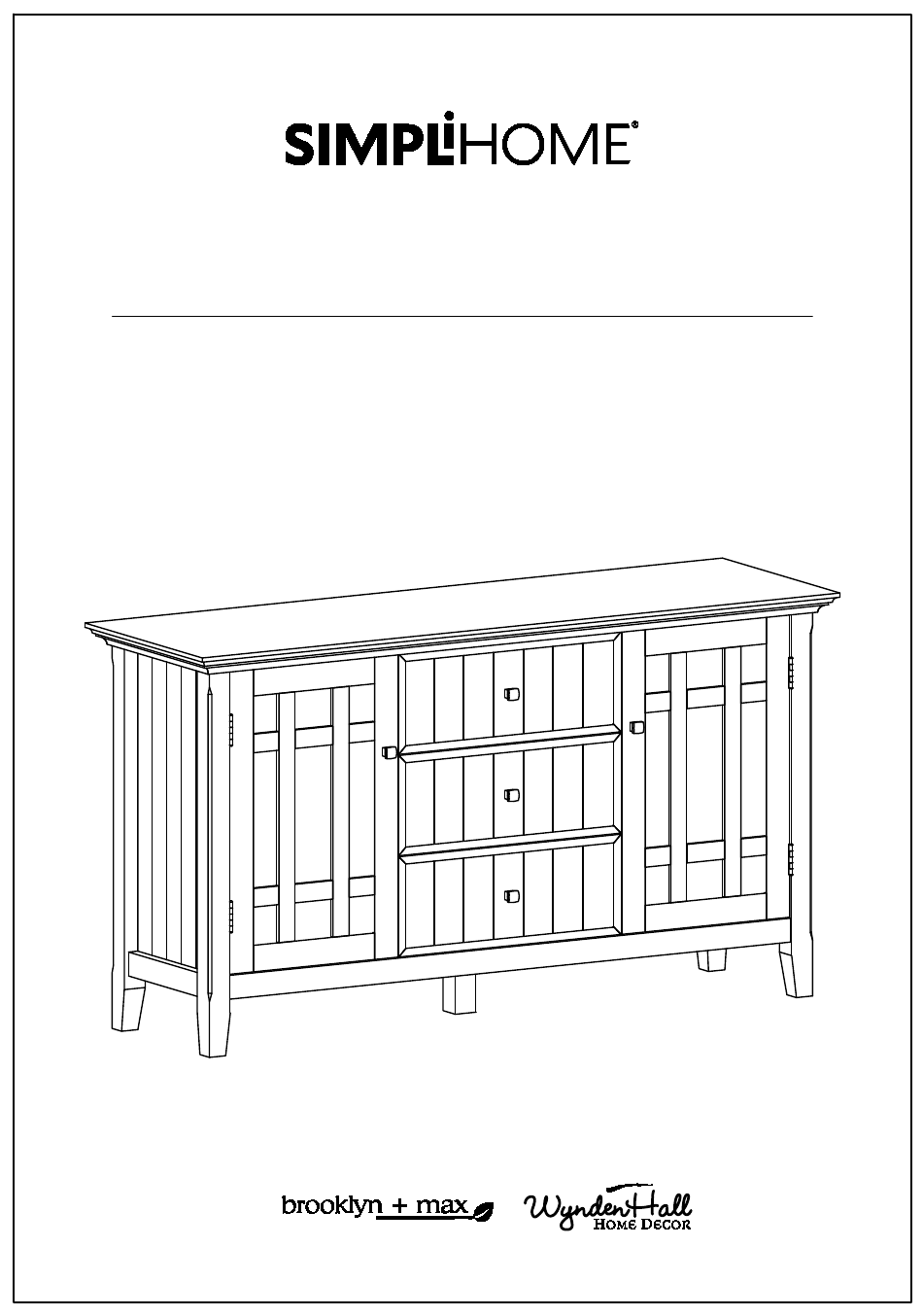

- Page 1 Bedford / Freemont / Hampton Sideboard Buffet Model # AXCBED-11-TB...
- Page 2 Great quality is a right. Thank you for shopping with Simpli Home, America's top brand for high-value furniture. It's time to register your product warranty. It's quick and easy. And you'll be happy you did. ü Activate your 1-year warranty ü...
- Page 3 Review your product and collect rewards! Thank you for your purchase! We hope you enjoy it. We’d love your feedback. Please share a review and get instant rewards! simpli-home.com/product-review Share photos and get your cash back! Send us images or share them on social and qualify for instant rewards.
- Page 4 For Fastest Customer Service: Open your phone’s camera. Point your phone’s camera at the QR code to scan. Click on the pop up. You’ll be taken to our customer service page. Fill the form with your order information and issue. Submit form.
-
Page 5: Safety Information
IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. Safety Information CAUTION: Injuries and damage can occur from furniture tip over if product is not properly anchored to the wall. Use the Furniture Anti-Tipping Restraint provided with the product. -
Page 6: Care And Maintenance
Care & Maintenance This furniture is designed for indoor use. Perhaps the greatest environmental damage to wood furniture comes from wide swings in relative humidity (RH) in our homes. Wood absorbs and desorbs water as relative humidity rises and falls, and in doing so it swells and shrinks. Making matters worse, it expands and contracts unequally along different grain directions. - Page 7 Pre-Assembly Information Model # AXCBED-11-TB Part Description BOTTOM FRAME SHELF QTY 1 QTY 1 QTY 2 LEFT SIDE RIGHT SIDE LEFT DIVIDER QTY 1 QTY 1 QTY 1 RIGHT DIVIDER LEFT DOOR RIGHT DOOR QTY 1 QTY 1 QTY 1 Warning Label LEFT BACK PANEL RIGHT BACK PANEL...
-
Page 8: Drawer Bottom
Pre-Assembly Information Model # AXCBED-11-TB Part Description DRAWER FRONT JOINING STRIP RIGHT MIDDLE BACK PANEL QTY 3 QTY 1 QTY 1 LEFT DRAWER SIDE RIGHT DRAWER SIDE DRAWER BACK QTY 3 QTY 3 QTY 3 DRAWER BOTTOM BOTTOM SUPPORT LEG QTY 3 QTY 1... - Page 9 Pre-Assembly Information Model # AXCBED-11-TB Hardware Description HANDLE M4 X 15mm - QTY 3 CAM LOCK PIN ALLEN KEY BOLT ALLEN KEY SCREW M4 X 25mm - QTY 2 CAM LOCK M6 X 35mm M6 X 30mm QTY 5 SETS QTY 12 SETS QTY 12 QTY 24...
- Page 10 Components - Key Diagram Model # AXCBED-11-TB...
- Page 11 Assembly Model # AXCBED-11-TB Step 1 1. Attach four Cam Lock Pins 3 into pre-drilled holes on back of Drawer Front J . 2. Use Phillips screwdriver to secure Cam Lock Pins. Do not over-tighten. Step 2 1. Align Cam Lock Pins with guide holes and attach Drawer Sides KL , KR . 2.
- Page 12 Assembly Model # AXCBED-11-TB Step 3 1. Slide Drawer Bottom M firmly into slots on Drawer Sides KL , KR and Drawer Front J . 2. Align Drawer Back L with Drawer Bottom M and press firmly into slot . 3.
- Page 13 Assembly Model # AXCBED-11-TB Step 4 1. Use Phillips screwdriver to attach Handle 4 to Drawer Front J . Repeat Step 1-4 for the two other drawers.
- Page 14 Assembly Model # AXCBED-11-TB Step 5 This Side Up 1. Attach Dividers EL , ER to Bottom Shelf B using six Allen Key Screws 2 (Three Screws on each Divider ). 2. Use Allen Key 5 to tighten screws. Do not over-tighten. 3.
- Page 15 Assembly Model # AXCBED-11-TB Step 6 1. Attach Bottom Shelf B to Sides DL , DR using six Allen Key Bolts 1 ( Three Bolts on each Side ). 2. Use Allen Key 5 to tighten screws. Do not over-tighten. 3.
- Page 16 Assembly Model # AXCBED-11-TB Step 7 1. Turn product stay upward before install the Top A . 2. Attach Top A to Sides DL , DR using six Allen Key Bolts 1 ( Three Bolts on each Side ). 3. Attach Top A to Dividers EL , ER using six Allen Key Screws 2 ( Three Screws on each Divider ).
- Page 17 Assembly Model # AXCBED-11-TB Note: Step 8 Warning Label 1. Attach parts GL , GR , HL to back frame by using eleven Phillips Screws 6 . 2. Insert Right Middle Back Panel HR into the slot of Plastic Joining Strip I . 3.
- Page 18 Assembly Model # AXCBED-11-TB Step 9 First Step Last Step ( after adjust the door ) 1. Attach hinges on Doors FL , FR to Sides DL , DR using Phillips Screws 9 into pre-drill holes: - Using Phillips screwdriver to attach Screws 9 at middle hole of hinges for both top &...
- Page 19 Assembly Model # AXCBED-11-TB Step 10 NOTE: The screwdriver is not included in the hardware pack. 1. Attach Magnet Plates 8 to bottom corner of Doors FL , FR using Phillips Screws 10 into pre-drilled holes on Doors FL , FR . 2.
- Page 20 Assembly Model # AXCBED-11-TB Step 11 shelf support shelf level 1 anti - tipping shelf level 2 shelf level 3 1. Use four Shelf Supports 7 for each Cabinet Shelf C in desired location. 2. Two Shelf Supports 7 may be used on back top of each Cabinet Shelf C as a tipping restraint.
- Page 21 Assembly Model # AXCBED-11-TB Step 12 1. Insert assembled drawers into glides on assembled Sideboard Buffet.
- Page 22 Furniture Tip Over Restraint Assembly WARNING Serious or fatal crushing injuries can occur from furniture tip-over. If the furniture tip over restraint kit is not in the box, please contact our customer service department in order to obtain another kit before using the furniture. Step 13 NOTE: The screwdriver is not included in the hardware pack.
- Page 23 Furniture Anti-Tipping Restraint Instructions Attach one of the mounting brackets securely to the back edge of the furniture. Use the shorter screw. Determine where furniture is to be placed and mark location on the wall for mounting bracket screw hole approximately 2 inches below the bracket mounted to the furniture.
