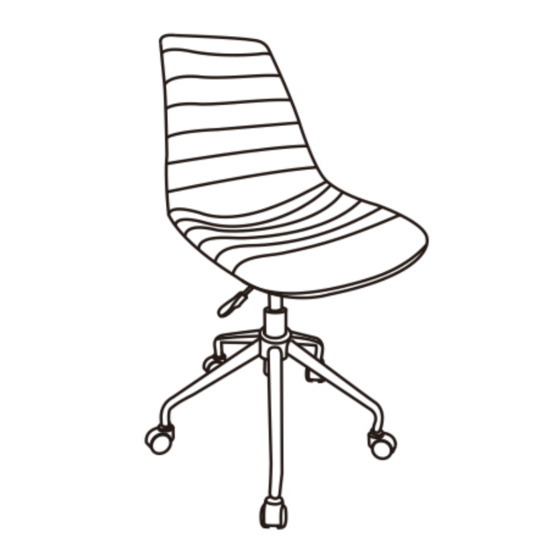

- Page 1 REANEY / WICKS / ANGUS SWIVEL OFFICE CHAIR MODEL # AXCOCHR-09...
- Page 2 Questions, problems, assembly help, missing parts? No need to return the product, we will gladly help and ship your replacement parts free of charge Please call Customer Service at 1-866-518-0120 ext. 262 Monday to Friday between 9 am – 4 pm EST or go to www.simpli-home.com/parts request...
-
Page 3: Safety Information
IMPORTANT: Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. SAFETY INFORMATION Identify all the parts and hardware. Do not discard of the packaging until you have checked that you have all of the parts and hardware required. Hardware package may have spare parts. -
Page 4: Pre-Assembly Information
PRE-ASSEMBLY INFORMATION PARTS DESCRIPTION CHAIR MECHANISM GAS LIFT QTY 1 QTY 1 QTY 1 BASE CASTER QTY 1 QTY 5 NEED HELP? For help with assembly or if you are missing a part, Please call customer service at 1-866-518-0120 ext. 262 (9 am to 4 pm EST) -
Page 5: Hardware Description
PRE-ASSEMBLY INFORMATION HARDWARE DESCRIPTION SHORT BOLT LONG BOLT ALLEN KEY M6 X 18MM M6 X 25MM QTY 2 QTY 2 QTY 1 NEED HELP? For help with assembly or if you are missing a part, Please call customer service at 1-866-518-0120 ext. 262 (9 am to 4 pm EST) - Page 6 ASSEMBLY STEP 1 Place the Base (D) upside down on a flat smooth surface. Attach the Casters (E) to the Base (D). Attach Gas Lift (C) to the Base (D).
- Page 7 ASSEMBLY STEP 2 Place the Chair (A) on its back on a flat smooth surface. Attach the Mechanism (B) to the bottom of Chair (A) with two Bolts (1) to the top two holes on the Mechanism (B). Use Allen Key (2) to tighten.
- Page 8 ASSEMBLY STEP 3 Attach the Mechanism (B) to the bottom of Chair (A) with two Bolts (2) to the bottom two holes on the Mechanism (B). Use Allen Key (2) to tighten.
- Page 9 ASSEMBLY STEP 4 Place the Chair (A) right side up the Gas Lift (C).
- Page 10 ASSEMBLY STEP 5 To raise the seat, lift your weight off the seat and reach underneath the right side of the Chair to lift the handle up slowly with a clockwise twisting motion to allow the Chair to rise to desired height. To lower seat, lift the handle slowly with a clockwise twisting motion while seated.
-
Page 11: Warranty
WARRANTY Thank you for purchasing a Simpli Home – Wyndenhall – Brooklyn + Max product. These products have been made to demanding, high-quality standards and are guaranteed for domestic use against manufacturing faults for a period of 12 months from the date of purchase. This warranty does not affect your statutory rights.
