FOLEY / PARKS / ANDERSON

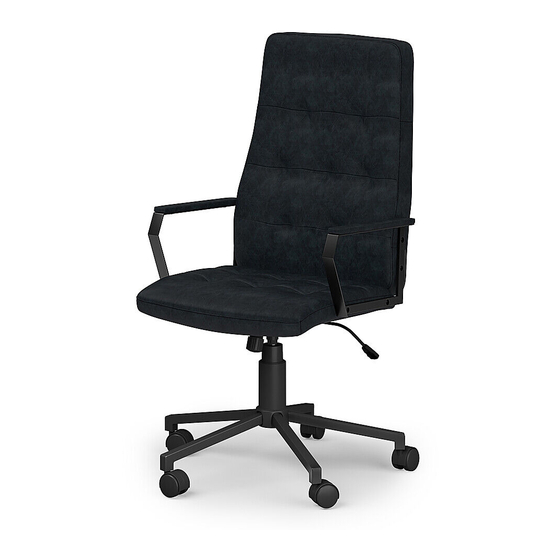

SWIVEL OFFICE CHAIR
MODEL # AXCOCHR-14-DSTB
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FOLEY AXCOCHR-14-DSTB and is the answer not in the manual?

Questions and answers

Related Manuals for Simpli Home FOLEY AXCOCHR-14-DSTB

Summary of Contents for Simpli Home FOLEY AXCOCHR-14-DSTB

  • Page 1 FOLEY / PARKS / ANDERSON SWIVEL OFFICE CHAIR MODEL # AXCOCHR-14-DSTB...
  • Page 2 For Fastest Customer Service Open your phone’s camera. Point your phone’s camera at the QR code to scan. Click on the pop up. You’ll be taken to our customer service page. Fill the form with your order information and issue. Submit form.

  • Page 3: Safety Information

    IMPORTANT: Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. SAFETY INFORMATION This furniture is designed for indoor use. Identify all the parts and hardware. Do not discard of the packaging until you have checked that you have all the parts and hardware required.

  • Page 4: Pre-Assembly Information

    MODEL # AXCOCHR-14-DSTB PRE-ASSEMBLY INFORMATION PART DESCRIPTION BACK SEAT LEFT ARM QTY 1 QTY 1 QTY 1 RIGHT ARM MECHANISM GAS LIFT QTY 1 QTY 1 QTY 1 BASE CASTER GAS LIFT CAP QTY 1 QTY 5 QTY 1...

  • Page 5: Hardware Description

    MODEL # AXCOCHR-14-DSTB PRE-ASSEMBLY INFORMATION HARDWARE DESCRIPTION SHORT BOLT WASHER LONG BOLT M6 x 20 mm M6 x 18 mm M6 x 25 mm QTY 4 QTY 8 QTY 4 ALLEN KEY QTY 1 QTY 8...
  • Page 6 ASSEMBLY MODEL # AXCOCHR-14-DSTB STEP 1 1. Place the Base G upside down on a flat smooth surface. 2. Attach the Casters H to the Base G . 3. Turn the Base G right side up and attach Gas Lift F and Gas Lift Cap I to the Base G .
  • Page 7 ASSEMBLY MODEL # AXCOCHR-14-DSTB STEP 2 1. Place the Seat B on its back on a flat smooth surface. 2. Attach the Mechanism E to the bottom of the Seat B using Bolts 1 and four Washers 3 . 3. Use Allen Key 5 to tighten.
  • Page 8 ASSEMBLY MODEL # AXCOCHR-14-DSTB STEP 3 1. Place the Seat B right side up on the Gas Lift F . 2. Attach the Left Arm C and Right Arm D to the Seat B using two Long Bolts 1 on the bottom two holes of each Arm C and D . 3.
  • Page 9 ASSEMBLY MODEL # AXCOCHR-14-DSTB STEP 4 1. Attach the Left Arm C and Right Arm D to the Back A using one Long Bolt 1 on the second hole from the top of each Arm C and D . 2. Use Allen Key 5 to tighten.
  • Page 10 ASSEMBLY MODEL # AXCOCHR-14-DSTB STEP 5 1. Straighten the Back A to an upright position. 2. Complete attaching the Left Arm C and Right Arm D to the Back A using one Long Bolt 1 on the first hole of top of each Arm C and D . 3.
  • Page 11 ASSEMBLY MODEL # AXCOCHR-14-DSTB STEP 6 1. Place four Caps 4 on each Arm C and D .
  • Page 12 ASSEMBLY MODEL # AXCOCHR-14-DSTB STEP 7 1. The tension knob is located under the seat cushion. 2. Turn the knob clockwise to tighten the tilt mechanism. 3. Turn the knob counter-clockwise to loosen the tilt mechanism.
  • Page 13 ASSEMBLY MODEL # AXCOCHR-14-DSTB STEP 8 1. To raise the seat, lift your weight off the seat and reach underneath the right side of the chair to lift the handle up slowly with a clockwise twisting motion to allow the chair to rise to desired height. 2.
  • Page 14 ASSEMBLY MODEL # AXCOCHR-14-DSTB STEP 9 To tilt the chair while seated: 1. Pull the handle outward to unlock. 2. Push the handle inward to lock into position.

  • Page 15: Warranty

    WARRANTY Thank you for purchasing a Simpli Home – Wyndenhall – Brooklyn + Max product. These products have been made to demanding, high-quality standards and are guaranteed for domestic use against manufacturing faults for a period of 12 months from the date of purchase. This warranty does not affect your statutory rights.
