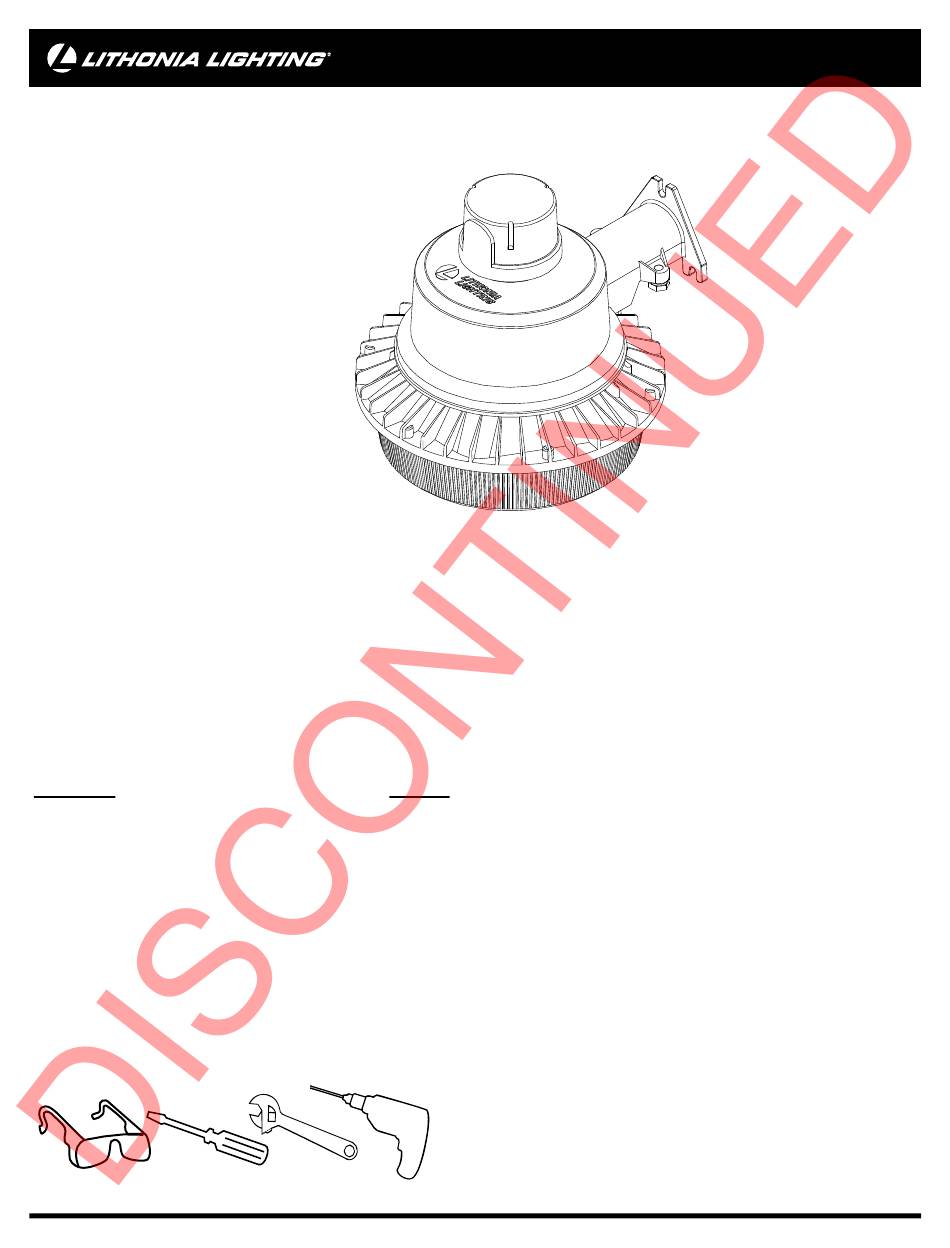

Lithonia Lighting TDD LED 2 Installation Instructions Manual

Protect yourself. Before installing, read the entire instructions
carefully and save them for future reference.
Date installed:________________________________________
FIXTURE PACKING LIST
Description
1) Housing Assembly ............................................................... 1
2) Photocontrol ........................................................................ 1
3) 1" Bolts* ............................................................................... 2
4) 2" Wood Screws* ................................................................. 3
5) Cover Plate* ........................................................................ 1
6) Wire Nuts* ........................................................................... 3
7) Diffuser* ............................................................................... 1
*Contained in parts packs
Mounting Hardware Included
Waterproof Supply Fittings & Conduit
will be required - Purchase Separately
Silicone Sealant Required
REQUIRED TOOLS:
Dusk to Dawn LED Area Light
Model Number(s):
TDD LED 2
INSTALLATION INSTRUCTIONS
If this fi xture fails to operate properly, use the guide below to
diagnose and correct the problem.
Trouble Shooting Guide
• Verify that power is turned on at switch and breaker
• Verify that fi xture is wired properly
• Verify that line voltage is correct.
Quantity
• Test if Photocontrol works properly
The photocontrol in this fi xture is designed to turn on fi xture
light at low light levels.
If light does not come on or stays on:
Test if Photocontrol works properly:
• Cover Photocontrol - Light should come on.
• Shine a fl ashlight into Photocontrol - Light should go off.
If fi xture cylcles on and off:
Light refl ecting back off any surrounding surfaces enters the
photocontol. To correct problem, reposition the fi xture or eliminate
refl ective surface.
If further technical assistance is required, contact: Technical
Support at: (800) 279-8041
This LED light provides low maintenance service with no bulbs
to change. Clean surfaces with mild soap and water. Do not use
abrasive materials such as scouring pads or powders, steel wool
or abrasive paper.
WARNING: There are no user serviceable parts inside fi xture.
page 1 UTDDLED2_Rev 7/14
