Lithonia Lighting IBL Series Manual

FEATURES & SPECIFICATIONS
INTENDED USE — Ideal one-for-one replacement of conventional HID and fluorescent high bay systems. Appli-
cations include warehousing, manufacturing, gymnasiums, and other large indoor spaces with mounting heights
up to 60' . Certain airborne contaminants can diminish the integrity of acrylic and/or polycarbonate.
Click here for Acrylic-Polycarbonate Compatibility table for suitable uses.
CONSTRUCTION — Lightweight aluminum heat sink designed to perform in ambient temperatures up to 55 °
C with lumen droop less than fluorescent due to precision thermal engineering for maximum naturally convective
cooling. Structural elements such as the channel and end caps are fabricated from steel for maximum rigidity.
Hard-tooled reflectors, utilizing reflective Alanod® MIRO-5® aluminum, for precise and repeatable photometry.
Semi-diffuse lens optional to provide glare control – may be inverted for gloss or matte side down. Wireguard
attachment points provided.
OPTICS — Narrow and wide distributions available to meet both horizontal and vertical light level require-
ments. Reflectors feature precision-formed optics utilizing reflective Alanod® MIRO-5® aluminum to achieve
narrow distribution and white polyester powder coat to achieve wide distri bution. Semi-diffuse lens optional
to provide glare control and LED protection.
ELECTRICAL — L95 at 60,000 hours (only 5% loss) with a predicted life of more than 100,000 hours. Utilizes
a 90°C case temperature driver for maximum life at high temperatures. 0.90 power factor and 10kA/10kV level
of surge protection is standard. Available as 120-277V or 347-480V input.
0-10V dimming standard for a dimming range of 100% to 10%; dimming source current is 150 microA.
WIRELESS NETWORKING — XPoint™ Wireless technology creates a mesh network to ensure commu-
nication between fixtures, sensors and wall stations facility-wide. This option provides superior lighting
management capabilities including granular control, configuration and custom grouping for increased
energy savings.
INSTALLATION — Suitable for suspension by chain, cable, surface-mounting bracket, hook monopoint
or single (pendant) monopoint. Surface mounting not recommended without optional surface mounting
bracket. To maintain high ambient listing, fixture should be mounted at a minimum plenum height of 24".
LISTINGS — CSA certified to US and Canadian safety standards. Damp location listed. Suitable for ambient
temperatures from -40°F (-40°C) to 131°F (55°C) when suspended 24" from ceiling. Patent pending.
DesignLights Consortium® (DLC) Premium qualified product and DLC qualified product. Not all versions of
this product may be DLC Premium qualified or DLC qualified. Please check the DLC Qualified Products List at
www.designlights.org/QPL to confirm which versions are qualified.
WARRANTY — 5-year limited warranty. Complete warranty terms located at:
www.acuitybrands.com/CustomerResources/Terms_and_conditions.aspx
Note: Actual performance may differ as a result of end-user environment and application.
All values are design or typical values, measured under laboratory conditions at 25 °C.
Specifications subject to change without notice.
INDUSTRIAL
Catalog
Number
Notes
Type

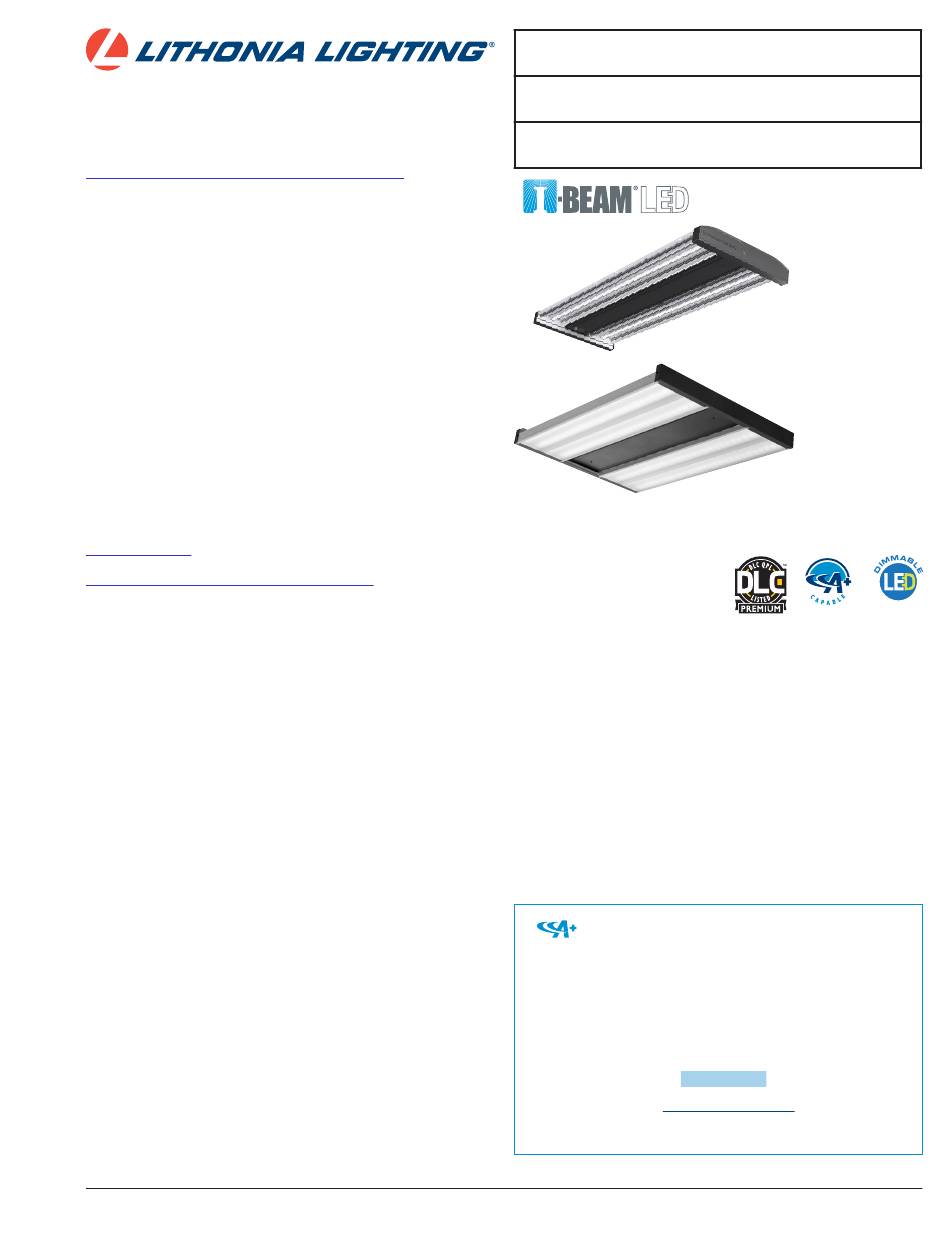

Unlensed (standard)
12-30L pictured
Capable Luminaire
This item is an A+ capable luminaire, which has been designed and tested to provide
consistent color appearance and out-of-the-box control compatibility with simple
commissioning.
• All configurations of this luminaire meet the Acuity Brands' specification for
chromatic consistency
• This luminaire is part of an A+ Certified solution for nLight® or XPoint™ Wireless
control networks marked by a shaded background*
To learn more about A+, visit www.acuitybrands.com/aplus.
*See ordering tree for details
LED High Bay
IBL
Patent Pending
Lensed (optional)
48-60L pictured
Page 1 of 8
