Summary of Contents for StarTech.com 525FCREADAL

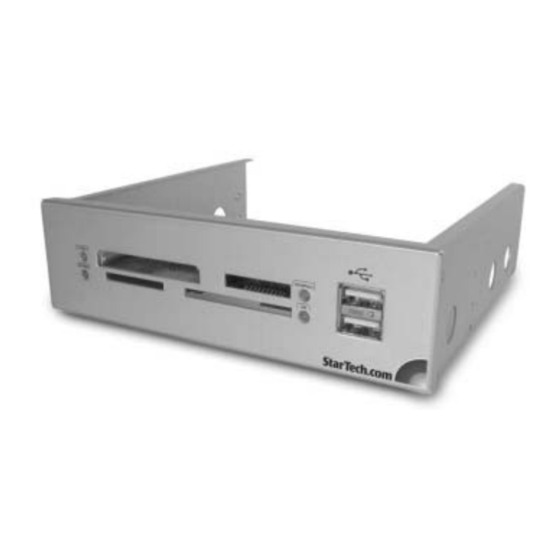

- Page 1 USB 2.0 FLASH C A R D READER Aluminum 5.25” Bay 7-in-1 Flash Card Reader/Writer 525FCREADAL Instruction Guide * Actual product may vary from photo The Professionals’ Source For Hard-to-Find Computer Parts...
- Page 2 FCC COMPLIANCE STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
-
Page 3: Table Of Contents
Using Your Card Reader ........ -
Page 4: Introduction
WARNING! Flash cards, like all computer equipment, can be severely damaged by static electricity. Be sure that you are properly grounded before opening your computer case or touching your card. StarTech.com recommends that you wear an anti-static strap when installing any computer component. If an anti-static strap is unavailable, discharge yourself of any static electricity build-up by touching a large grounded metal surface (such as the computer case) for several seconds. -
Page 5: Installation
I/O bracket on the rear of your computer. NOTE: If you want to use the front USB 2.0 ports on the card reader/writer, you will need to use the motherboard connection cable. If you do not want to use the front ports, you can skip ahead to Step 7. -
Page 6: Using Your Card Reader
Using Your Card Reader The LEDs on the panel are your best indication of the card reader’s activity. • A flashing LED indicates that there is data being transferred to or from the card. - Page 7 Removing a Card 1. Make sure that none of the LEDs on the front of the card reader are flashing. If you remove the card when the LEDs are flashing, data may be lost from your card. 2. Mac users should drag the memory card icon to the Trash bin.
-
Page 8: Troubleshooting
Troubleshooting The card reader is not detected. The reader has not been properly connected or is not receiving enough power. Make sure that the reader’s USB cable is firmly seated in the USB port. The card does not fit in the reader. -
Page 9: Technical Specifications
Technical Specifications Front Ports 2 x 4 pin USB (Type A) 7-in-1 Flash Card Reader/Writer Slots Standards USB 2.0 Data Transfer Rate USB 2.0 devices: Up to 480Mbits/sec USB 1.1 devices: Up to 12Mbits/sec Flash Cards 700Kbits/sec to 480Mbits/sec Flash Card Compact Flash I &... -
Page 10: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 11 Revised: February 03, 2004...
