Summary of Contents for StarTech.com 525FCREAD

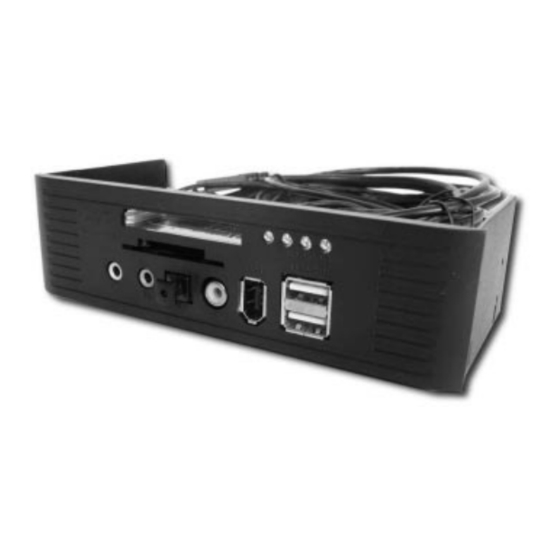

- Page 1 USB 2 2 .0 F F LASH C A R D READER 5.25” Bay Multi-Port Panel with a 6-in-1 Flash Card Reader/Writer 525FCREAD 525FCREADBK The Professionals’ Source For Hard-to-Find Computer Parts Instruction Guide * Actual product may vary from photo...
-
Page 2: Fcc Compliance Statement
FCC COMPLIANCE STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. -
Page 3: Table Of Contents
Table of Contents Introduction ............2 Installation . -
Page 4: Introduction
Thank you for purchasing a StarTech.com 5.25” bay multi-panel. This multi-purpose panel fits into an open 5.25” bay and provides you with a 6-in-1 card reader, two USB 2.0 ports, an IEEE 1394a port, two S/PDIF ports, and two audio ports, all conveniently located on the front of your computer. -
Page 5: Installation
Two of the USB cables are for the front USB ports. The third cable (slightly separate from the larger group of cables) is for the card reader. • 1 x IEEE 1394a cable. This cable plugs into an open FireWire port on the back of your computer. -
Page 6: Using Your Multi Panel
Connect your USB, FireWire, and audio devices to the front ports as directed by the device manufacturer. The blue LEDs on the panel are your best indication of the card reader’s activity. • A flashing Access LED indicates that there is data being transferred to or from the card. - Page 7 Removing a Card 1. Make sure that none of the LEDs on the front of the card reader are flashing. If you remove the card when the LEDs are flashing, data may be lost from your card. 2. Mac users should drag the memory card icon to the Trash bin.
-
Page 8: Troubleshooting
Troubleshooting The card reader is not detected. The reader has not been properly connected or is not receiving enough power. Make sure that the reader’s USB cable is firmly seated in the USB port. The card doesn’t fit in the reader. -
Page 9: Technical Specifications
Technical Specifications Front Ports 2 x USB 2.0 1 x IEEE 1394a 1 x Coaxial S/PDIF 1 x TosLink optical fiber 2 x 3.5mm stereo jack Data Transfer Rate USB 2.0 devices: Up to 480 Mbits/sec USB 1.1 devices: Up to 12 Mbits/sec IEEE 1394a devices: Up to 400 Mbits/sec Flash Cards: 700 Kbits/sec to 480 Mbits/sec Compatibility:... -
Page 10: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 11 Revised: October 31, 2003...
